  • Basic Information
    • **Manufacturer:** Mitsubishi
    • **Model Number:** FD70N
    • **Type:** Forklift
    • **Subtype:** Pneumatic Tire 4 Wheel Sit Down
    • **Fuel Type:** Diesel
  • Dimensions and Weight
    • **Overall Length (without forks):** 11.84 feet
    • **Overall Width:** 6.89 feet
    • **Overall Height:** 8.53 feet
    • **Wheelbase:** 8.07 feet
    • **Tread (Front):** 5.67 feet
    • **Tread (Rear):** 5.43 feet
    • **Ground Clearance (Under Mast):** 8.27 inches
    • **Ground Clearance (At Center of Wheelbase):** 0.46 feet
  • Performance
    • **Rated Capacity:** 15,435 pounds
    • **Drive Speed (Full Load):** 15.5 mph
    • **Drive Speed (No Load):** 19 mph
    • **Lifting Speed (Full Load):** 92 feet/min
    • **Lowering Speed (Full Load):** 98 feet/min
    • **Gradeability (Full Load):** 29.4%
  • Engine Specifications
    • **Engine Model:** Mitsubishi S6S
    • **Engine Output:** 99 hp
    • **Number of Cylinders:** 6
    • **Rated Speed:** 2300 rpm
  • Tire Details
    • **Front Tires:** 825 x 15 - 14PR
    • **Rear Tires:** 7.00 - 12 - 14PR
  • Capacity and Power Supply
    • **Fuel Tank Capacity:** 21.1 gallons
    • **Battery Voltage:** 24V

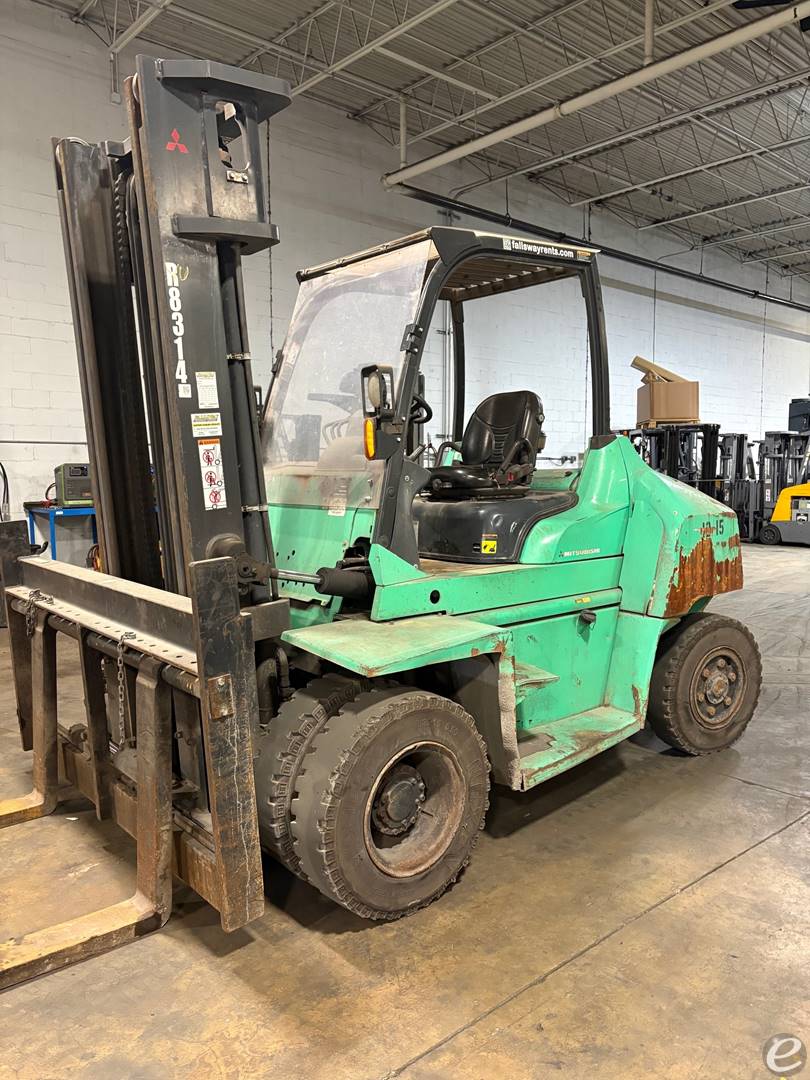

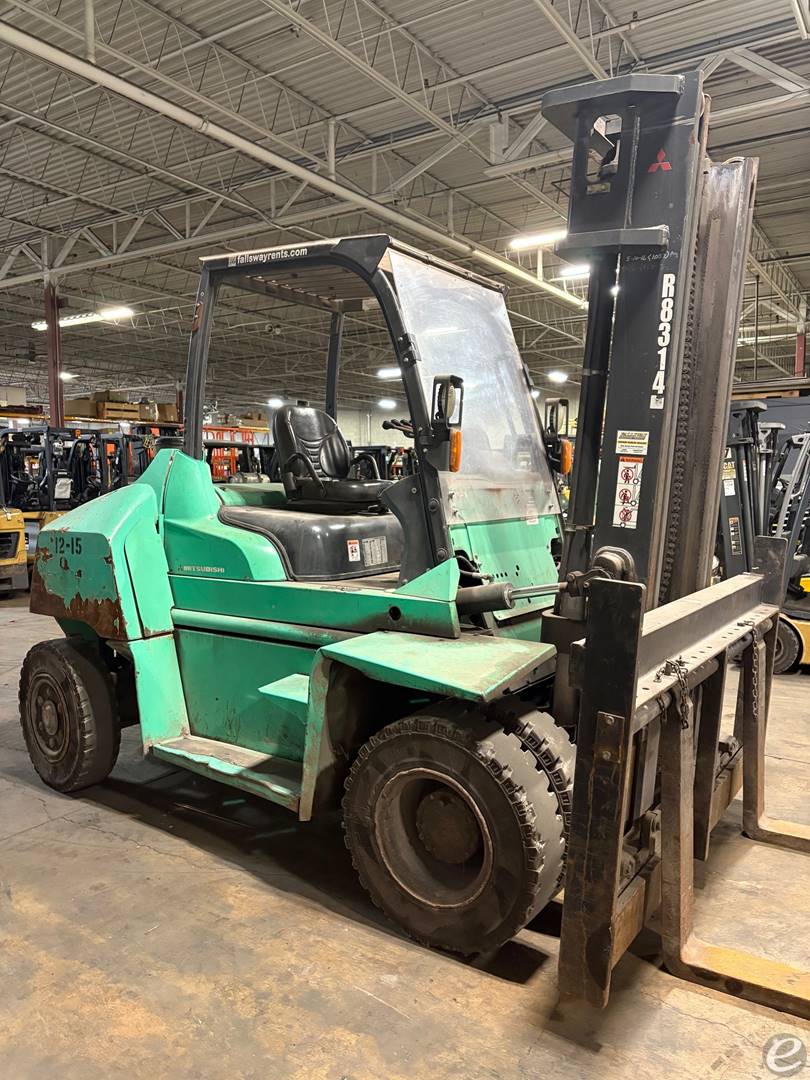

2015 Mitsubishi FD70N

pneumatic tire 4 wheel sit down diesel

Call for price

CONTACT INFO
Name:
Sales
Phone:

ADDRESS
Greyson Equipment LLC.
4105 Strausser St. NW
North CantonOhio 44720
ATTRIBUTES
STOCK #:
U8314
YEAR:
2015
Manufacturer:
MODEL #:
CAPACITY:
15500
FUEL:
MAST TYPE:
MAST HEIGHT:
115 / 148 in
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
2865
UNIT LOCATION:
Ohio [44720]
POST DATE:
2/12/2026
Reviews
Useful
Not

The Mitsubishi FD70N forklift is a beast in terms of handling heavy loads, making my job at the warehouse a lot smoother. The diesel engine gives it that extra power I need during busy shifts, and those pneumatic tires mean it can tackle any rough surfaces we’ve got. I remember when we first got this model; it took a bit of getting used to because it's definitely bigger than what we had before, but once I did, I couldn’t believe how stable it was. It has handled everything from pallets of lumber to big shipments of supplies without breaking a sweat. Overall, I'm pretty impressed with its performance—definitely a solid choice for anyone in the market for a reliable forklift.


Review by Mike Anderson (10/14/2025)

  • Basic Information
    • **Manufacturer:** Mitsubishi
    • **Model Number:** FD70N
    • **Type:** Forklift
    • **Subtype:** Pneumatic Tire 4 Wheel Sit Down
    • **Fuel Type:** Diesel
  • Dimensions and Weight
    • **Overall Length (without forks):** 11.84 feet
    • **Overall Width:** 6.89 feet
    • **Overall Height:** 8.53 feet
    • **Wheelbase:** 8.07 feet
    • **Tread (Front):** 5.67 feet
    • **Tread (Rear):** 5.43 feet
    • **Ground Clearance (Under Mast):** 8.27 inches
    • **Ground Clearance (At Center of Wheelbase):** 0.46 feet
  • Performance
    • **Rated Capacity:** 15,435 pounds
    • **Drive Speed (Full Load):** 15.5 mph
    • **Drive Speed (No Load):** 19 mph
    • **Lifting Speed (Full Load):** 92 feet/min
    • **Lowering Speed (Full Load):** 98 feet/min
    • **Gradeability (Full Load):** 29.4%
  • Engine Specifications
    • **Engine Model:** Mitsubishi S6S
    • **Engine Output:** 99 hp
    • **Number of Cylinders:** 6
    • **Rated Speed:** 2300 rpm
  • Tire Details
    • **Front Tires:** 825 x 15 - 14PR
    • **Rear Tires:** 7.00 - 12 - 14PR
  • Capacity and Power Supply
    • **Fuel Tank Capacity:** 21.1 gallons
    • **Battery Voltage:** 24V
