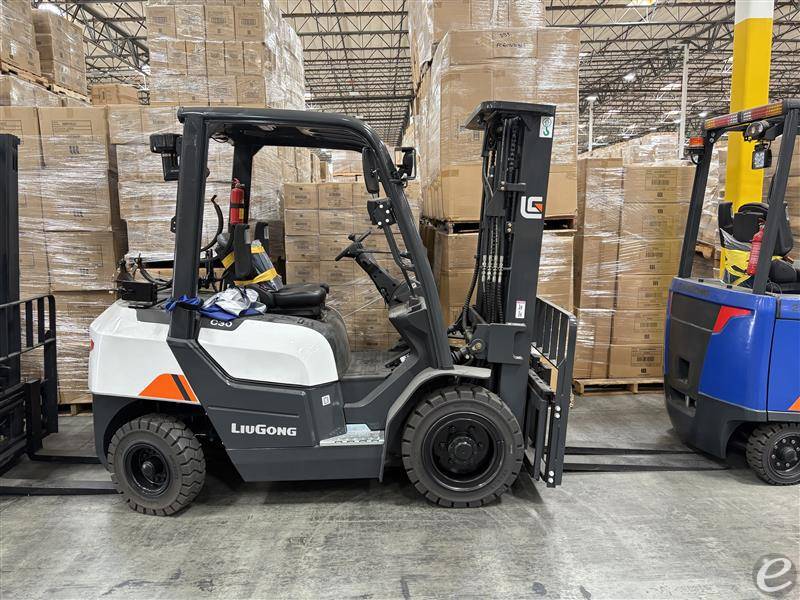

LiuGong CLG2030G Cushion Tire Forklift 6,600 lb Capacity | LPG/Gas Dual-Fuel | 3-Stage Mast with Side Shifter Overview The LiuGong CLG2030G is a Class IV internal combustion forklift delivering 6,600 lbs (3,000 kg) capacity at a 20-inch (500 mm) load center, powered by a Kubota WJ2503-L-E3 2.491L 4-cylinder engine with dual-fuel capability (gasoline or LPG), producing 55.3 HP at 2,600 RPM and 175 N·m of torque at 1,200 RPM (LPG), with EU Stage V and EPA emissions compliance for clean indoor operation. This unit is equipped with a 3-stage mast offering a maximum fork height of 185 inches (4,700 mm) with 46 inches (1,170 mm) of free lift, lowering to 87.2 inches (2,215 mm) and extending to 227.3 inches (5,774 mm), with 6 degrees forward and 12 degrees backward mast tilt, and features a 43.3-inch carriage, 42.1 x 4.8 x 1.6 inch forks with a minimum spread of 9.6 inches and maximum of 42.2 inches, and comes standard with a side shifter for improved load positioning. The forklift rides on pneumatic tires (front: 28x9-15-14PR, rear: 6.50-10-10PR) on a 66.9-inch wheelbase with a front tread of 39.4 inches and rear tread of 38.8 inches, delivering a 94.5-inch minimum outside turning radius and a right-angle stack of 160.4 inches including load length and clearance, with travel speeds of 11.5 mph loaded and 11.8 mph unloaded, lift speeds of 110 fpm loaded and 114 fpm unloaded, lower speeds of 101 fpm loaded and 83 fpm unloaded, maximum drawbar pull of 4,620 lbs loaded, and gradeability of 24% loaded and 26% unloaded. Weighing 9,768 lbs unloaded with axle loads of 14,227 lbs front and 2,140 lbs rear when loaded and 3,843 lbs front and 5,925 lbs rear when unloaded, the chassis measures 105.8 inches to fork face, 48.2 inches overall width, and 86.6 inches overhead guard height, with ground clearance of 5.1 inches below the mast loaded and 6.5 inches at the center of the wheelbase, while service brakes are foot-operated hydraulic and parking brake is hand-operated mechanical. Optional equipment can include non-marking tires, foam-filled tires, enclosed cabs, fork positioners, rotators, clamps, and 3-way or 4-way hydraulic valve configurations to match your specific material handling needs. Contact us today for more details, pricing, or to schedule an inspection. Specifications Summary Category Detail Model LiuGong CLG2030G Power Type Gasoline / LPG (dual-fuel) Rated Capacity 6,600 lbs (3,000 kg) Load Center 20 in (500 mm) Engine Kubota WJ2503-L-E3, 2.491L, 4-cyl Rated Power 55.3 HP (41.3 kW) @ 2,600 RPM Max Torque (LPG) 175 N·m @ 1,200 RPM Emissions EU Stage V and EPA compliant Mast Type 3-Stage (upgraded from standard 2-stage) Max Fork Height 185 in (4,700 mm) Free Lift 46 in (1,170 mm) Lowered Mast Height 87.2 in (2,215 mm) Extended Mast Height 227.3 in (5,774 mm) Mast Tilt 6° forward / 12° backward Carriage Width 43.3 in (1,100 mm) Fork Size 42.1 x 4.8 x 1.6 in (1,070 x 122 x 45 mm) Fork Spread (Min/Max) 9.6 / 42.2 in (244 / 1,072 mm) Side Shifter Standard Tires Pneumatic (front: 28x9-15-14PR, rear: 6.50-10-10PR) Wheelbase 66.9 in (1,700 mm) Turning Radius 94.5 in (2,400 mm) Travel Speed (Laden/Unladen) 11.5 / 11.8 mph (18.5 / 19 km/h) Gradeability (Laden/Unladen) 24% / 26% Service Weight 9,768 lbs (4,440 kg) Overall Width 48.2 in (1,225 mm) Overhead Guard Height 86.6 in (2,200 mm)
