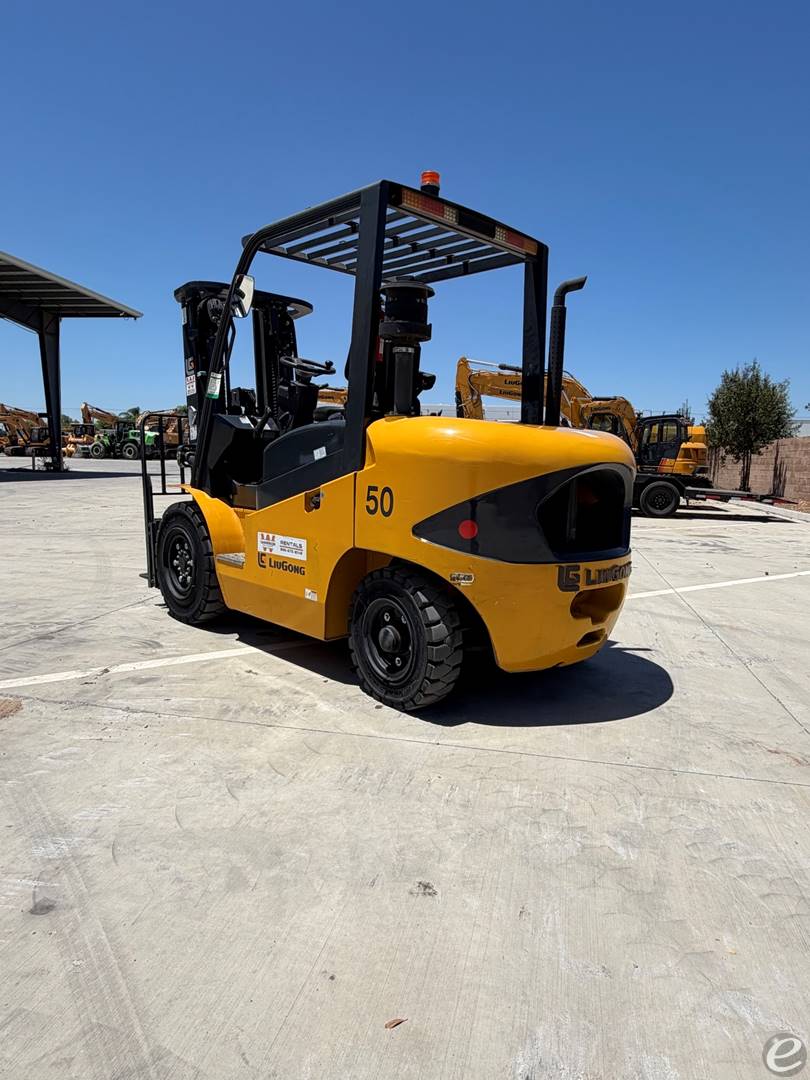

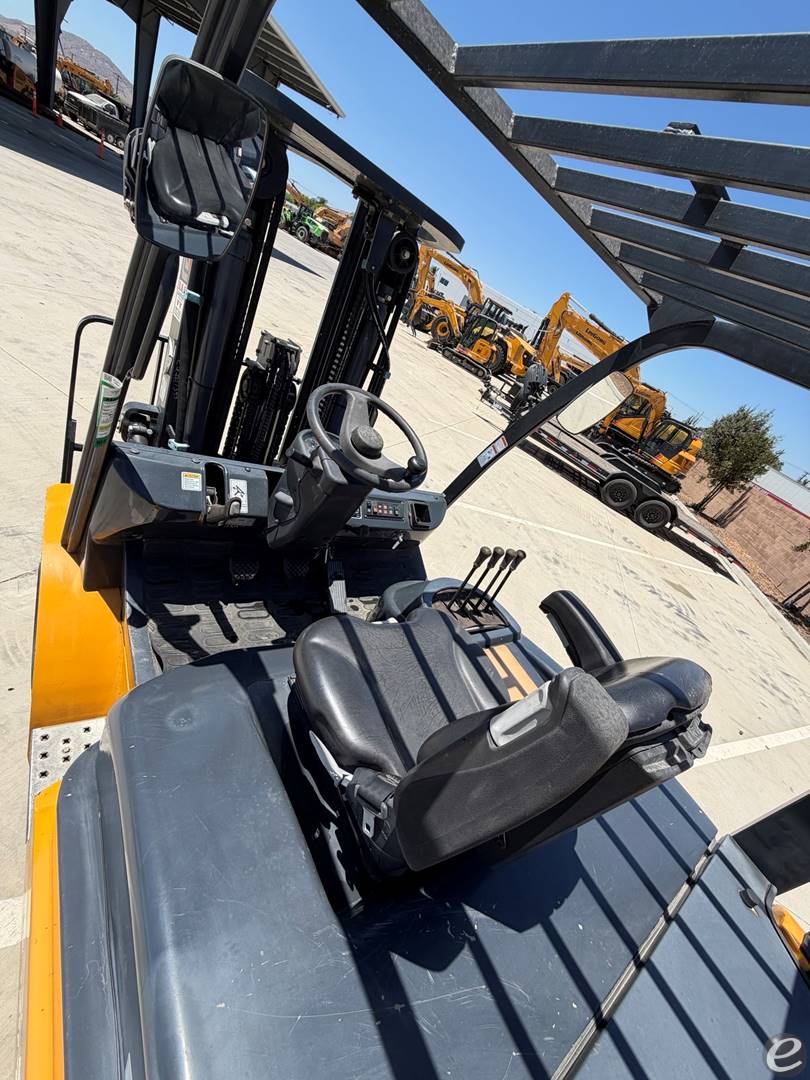

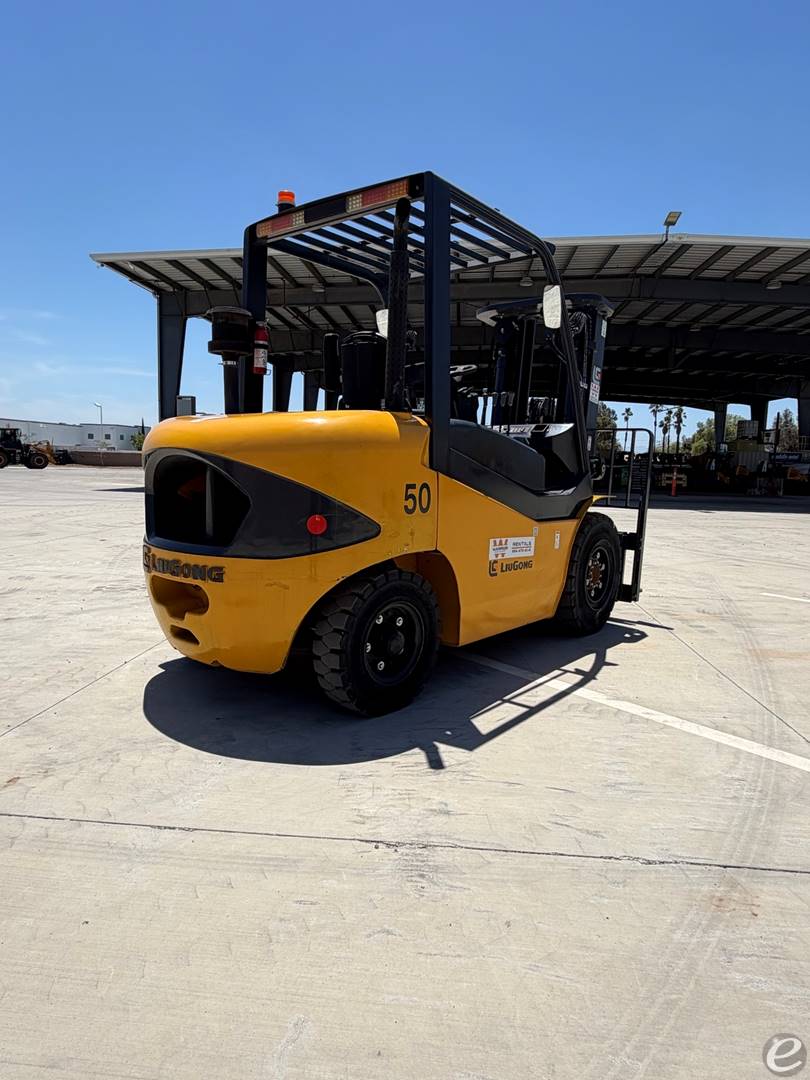

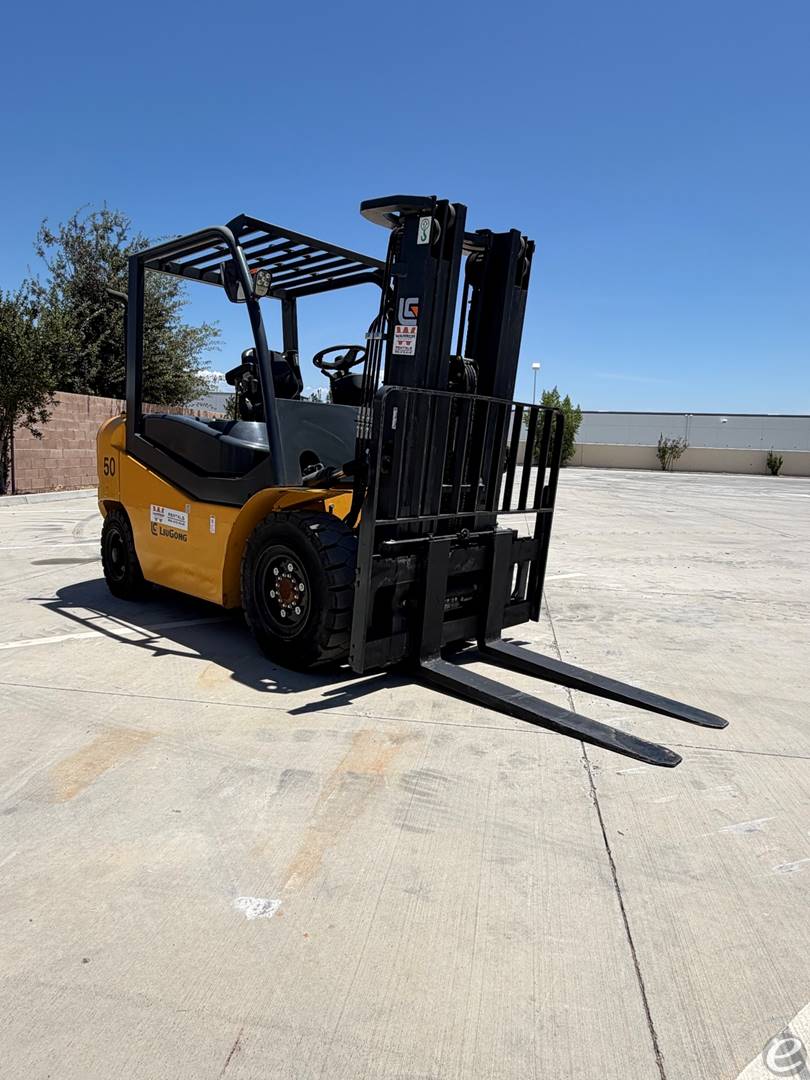

LiuGong CLG2025H(LPG) LPG Pneumatic Tire Forklift – This Class V internal combustion forklift delivers 5,000 lbs (2,268 kg) capacity at a 24" load center , powered by a reliable PSI 4G64 LPG engine producing 62 HP with EPA emissions compliance , and features a standard 2-stage mast with maximum fork height of 118" (3,000 mm), 5.7" free lift, lowered mast height of 85.6" (2,174 mm), and extended mast height of 160.9" (4,087 mm), with 6° forward and 12° backward mast tilt, equipped with a 40.9" wide carriage, 42" x 3.9" x 1.5" forks with a minimum spread of 9" and maximum of 39.7", along with auxiliary hydraulic plumbing for optional attachments such as side shifters, fork positioners, or other material handling tools; please inquire about 2-way, 3-way, or 4-way hydraulic valve configurations depending on your attachment needs . This unit features pneumatic tires (front: 7.00-12-12PR, rear: 6.00-9-10PR) on a 64.9" wheelbase with a front tread of 37.8" and rear tread of 36.3", delivering an 89.7" minimum outside turning radius and a right-angle stack of 157.9" including load length and clearance, with travel speeds of 11 mph loaded and 11.5 mph unloaded, lift speeds of 125 fpm loaded and 143 fpm unloaded, lower speeds of 98 fpm loaded and 78.7 fpm unloaded, maximum drawbar pull of 3,968 lbs loaded, and gradeability of 20% loaded and 31% unloaded . Weighing 8,488 lbs unloaded with axle loads of 12,390 lbs front and 1,610 lbs rear when loaded and 3,479 lbs front and 5,010 lbs rear when unloaded, the chassis measures 99.5" to fork face, 45.2" overall width, and 85.8" overhead guard height, with ground clearance of 4.7" below the mast loaded and 5.7" at the center of the wheelbase, while service brakes are foot-operated hydraulic and parking brake is hand-operated mechanical . Optional equipment can include non-marking or foam-filled tires, 72" forks, enclosed cabs, LED work lights, backup alarms, strobe lights, load backrest extensions, side shifters, fork positioners, contact us today 866.673.8148 for more details.
