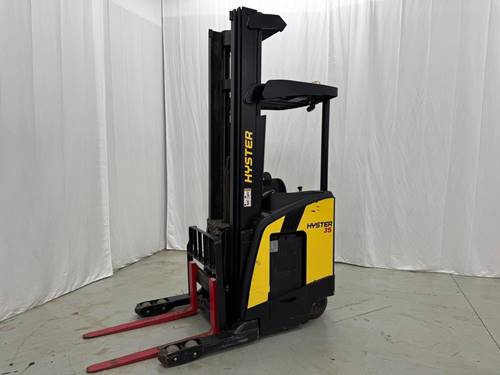

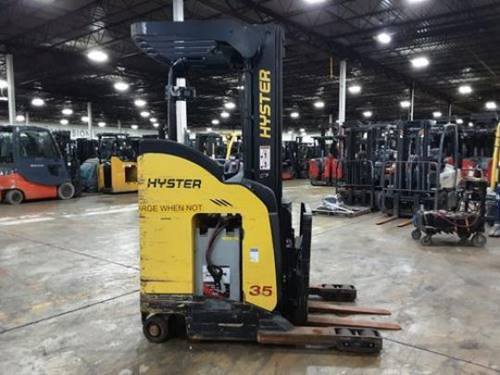

The Hyster N35ZR is known for its advanced ergonomic design, which enhances operator comfort and productivity. It features a narrow aisle reach truck configuration, ideal for tight spaces in warehouses. The truck offers excellent load handling capability and stability with its high visibility mast design and robust construction. Additionally, it includes an intuitive operator interface and customizable controls for enhanced user experience.
Battery Voltage: 36V or 48V (varies based on configuration)
Drive Motor: AC Motor
Hydraulic Motor: AC Motor
Dimensions:
Wheelbase: 59 inches
Vehicle Length (without load): 87 inches
Overall Width: 42 inches
Outside Turning Radius: 63 inches
Ground Clearance: 2.5 inches
Load Handling:
Load Capacity: 3,500 lbs
Load Center: 24 inches
Fork Length: Varies
Fork Width: 4 inches
Fork Thickness: 1.5 inches
Performance:
Travel Speed (with load): 7 mph
Travel Speed (without load): 8 mph
Lift Speed (with load): 60 ft/min
Lift Speed (without load): 100 ft/min
Lowering Speed (with load): 90 ft/min
Lowering Speed (without load): 80 ft/min
Safety and Ergonomics:
Operator Compartment: Spacious with ergonomic seat design
Visibility: Enhanced mast design for improved forward and upward visibility
Controls: Fingertip control for all hydraulic functions
Braking System: Regenerative braking
Tires and Wheels:
Front Tire: Solid poly 10 inches diameter
Rear Tire: Solid poly 16 inches diameter
Number of Wheels: 3-wheeled configuration
Discount Forklift Sales Dept: 720-770-2783 4905 Lima St Denver, CO 80239
FINANCING
All finance rates, terms, and conditions are subject to approval and may change without prior notice. Rates are provided for informational purposes only and are not guaranteed. Final rates and terms will depend on creditworthiness, market conditions, and other factors at the time of application.
Service Weight: Approximately 8,500 lbs (varies with configuration)
Performance:
Travel Speed: Up to 6.2 mph with load / 7 mph without load
Lift Speed with Load: 52 ft/min
Lowering Speed with Load: 55 ft/min
Power and Drive:
Battery Voltage: 36V
Drive Motor: AC Motor
Wheels and Tires:
Number of Wheels: 3
Tire Type: Polyurethane
Chicago Industrial Equipment Justin Cyrnek: 815 569 6499 600 Oakwood Ct Rockdale, IL 60436
FINANCING
All finance rates, terms, and conditions are subject to approval and may change without prior notice. Rates are provided for informational purposes only and are not guaranteed. Final rates and terms will depend on creditworthiness, market conditions, and other factors at the time of application.
Battery Capacity: Depends on specific battery used
Chassis
Tires: Cushion Tires
Brakes: Regenerative and mechanical braking systems
Operator's Compartment
Console: Multi-function control handle
Visibility: Optimized for operator
Forks
Fork Length: Varies
Fork Width: Approximately 4 inches
Safety Features
Operator Presence System
Adjustable Speed Control
TB Forklifts Antonio Borboa: 281-746-6799 5410 Mary Francis Dr Houston, TX 77039
