  • Manufacturer: Hyster
  • Model Number: N35ZR2
  • Type: Forklift
  • Subtype: Electric Narrow Aisle Single Reach
  • Fuel Type Used: Electric
  • Powertrain:
    • Power Source: Electric
    • Battery Voltage: 36V or 48V (varies based on configuration)
    • Drive Motor: AC Motor
    • Hydraulic Motor: AC Motor
  • Dimensions:
    • Wheelbase: 59 inches
    • Vehicle Length (without load): 87 inches
    • Overall Width: 42 inches
    • Outside Turning Radius: 63 inches
    • Ground Clearance: 2.5 inches
  • Load Handling:
    • Load Capacity: 3,500 lbs
    • Load Center: 24 inches
    • Fork Length: Varies
    • Fork Width: 4 inches
    • Fork Thickness: 1.5 inches
  • Performance:
    • Travel Speed (with load): 7 mph
    • Travel Speed (without load): 8 mph
    • Lift Speed (with load): 60 ft/min
    • Lift Speed (without load): 100 ft/min
    • Lowering Speed (with load): 90 ft/min
    • Lowering Speed (without load): 80 ft/min
  • Safety and Ergonomics:
    • Operator Compartment: Spacious with ergonomic seat design
    • Visibility: Enhanced mast design for improved forward and upward visibility
    • Controls: Fingertip control for all hydraulic functions
    • Braking System: Regenerative braking
  • Tires and Wheels:
    • Front Tire: Solid poly 10 inches diameter
    • Rear Tire: Solid poly 16 inches diameter
    • Number of Wheels: 3-wheeled configuration

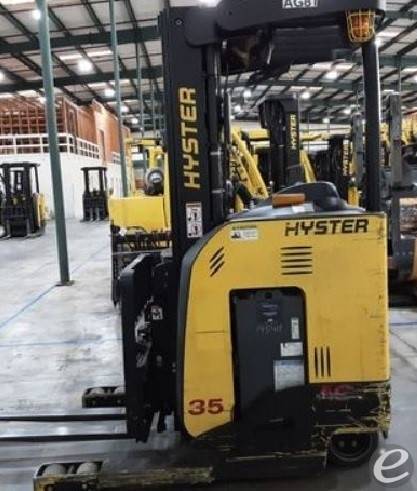

2014 Hyster N35ZR2

electric narrow aisle single reach

Call for price

CONTACT INFO
Name:
Sales Dept.
Phone:

ADDRESS
Select Equipment Sales
6911 8th St
Buena ParkCalifornia 90620
ATTRIBUTES
STOCK #:
U210107
YEAR:
2014
Manufacturer:
MODEL #:
CAPACITY:
3500
FUEL:
MAST TYPE:
MAST HEIGHT:
91 / 203 in
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
6684
UNIT LOCATION:
California [90620]
DESCRIPTION:
91" Lowered, 36 Volt, Side-Shift, 6684 Hours
POST DATE:
5/27/2026
Reviews
Useful
Not

The Hyster N35ZR2 has really impressed me over the past few months at my warehouse job. Navigating through those tight aisles used to be a real hassle with clunky equipment, but this electric narrow aisle forklift makes everything feel so much smoother. It's quiet, and I appreciate not having to deal with fumes while I work. Not to mention, it helps that I can lift pallets a lot higher without worrying about tipping over. I remember the first time I used it; I was amazed at how effortless it felt to maneuver in spaces I thought would be impossible. Overall, it’s been a solid addition to our fleet.



Review by Mike Thompson (12/5/2025)

  • Manufacturer: Hyster
  • Model Number: N35ZR2
  • Type: Forklift
  • Subtype: Electric Narrow Aisle Single Reach
  • Fuel Type Used: Electric
  • Powertrain:
    • Power Source: Electric
    • Battery Voltage: 36V or 48V (varies based on configuration)
    • Drive Motor: AC Motor
    • Hydraulic Motor: AC Motor
  • Dimensions:
    • Wheelbase: 59 inches
    • Vehicle Length (without load): 87 inches
    • Overall Width: 42 inches
    • Outside Turning Radius: 63 inches
    • Ground Clearance: 2.5 inches
  • Load Handling:
    • Load Capacity: 3,500 lbs
    • Load Center: 24 inches
    • Fork Length: Varies
    • Fork Width: 4 inches
    • Fork Thickness: 1.5 inches
  • Performance:
    • Travel Speed (with load): 7 mph
    • Travel Speed (without load): 8 mph
    • Lift Speed (with load): 60 ft/min
    • Lift Speed (without load): 100 ft/min
    • Lowering Speed (with load): 90 ft/min
    • Lowering Speed (without load): 80 ft/min
  • Safety and Ergonomics:
    • Operator Compartment: Spacious with ergonomic seat design
    • Visibility: Enhanced mast design for improved forward and upward visibility
    • Controls: Fingertip control for all hydraulic functions
    • Braking System: Regenerative braking
  • Tires and Wheels:
    • Front Tire: Solid poly 10 inches diameter
    • Rear Tire: Solid poly 16 inches diameter
    • Number of Wheels: 3-wheeled configuration
