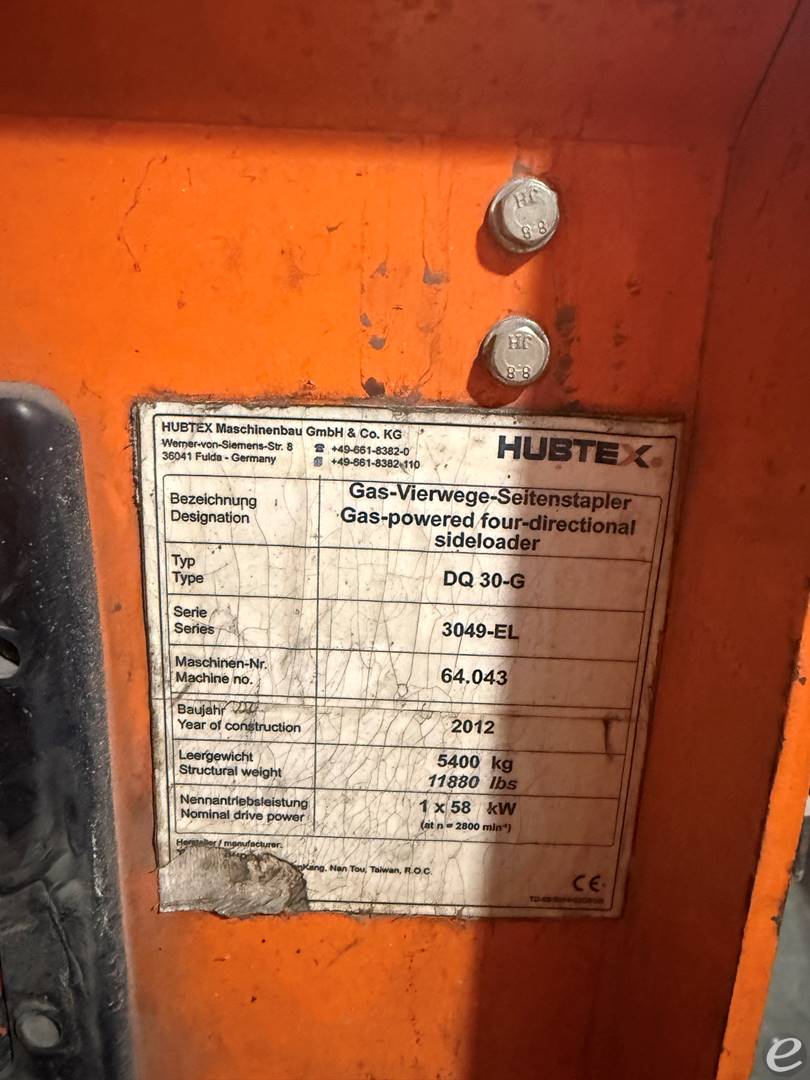

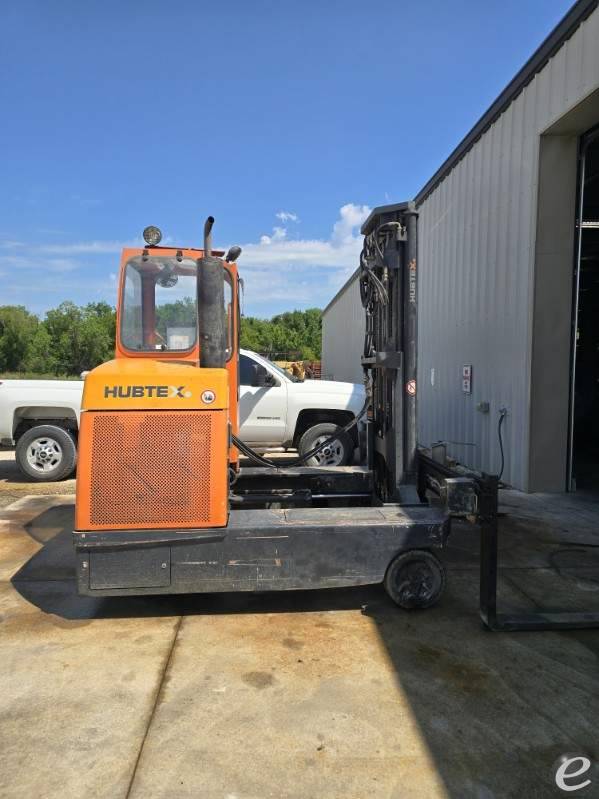

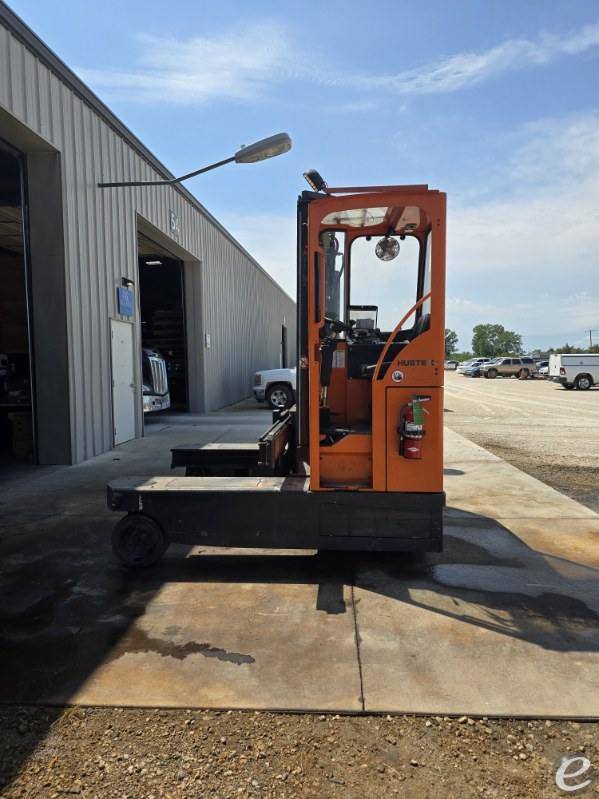

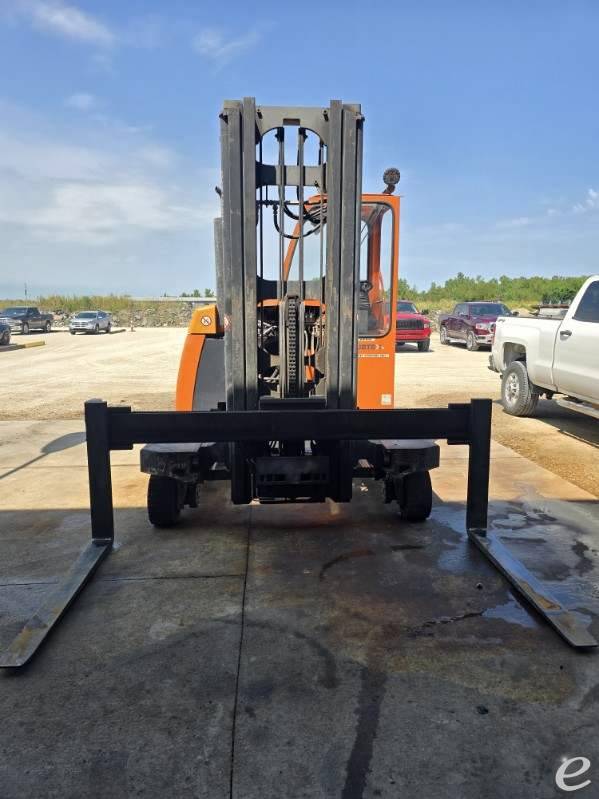

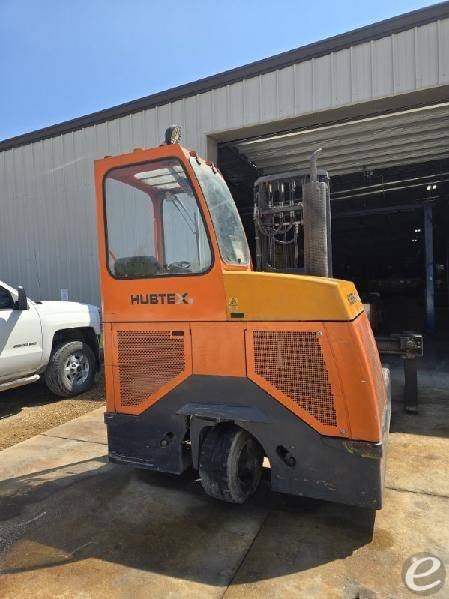

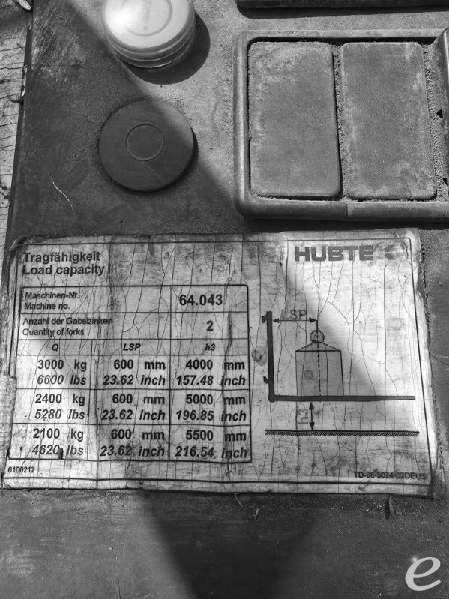

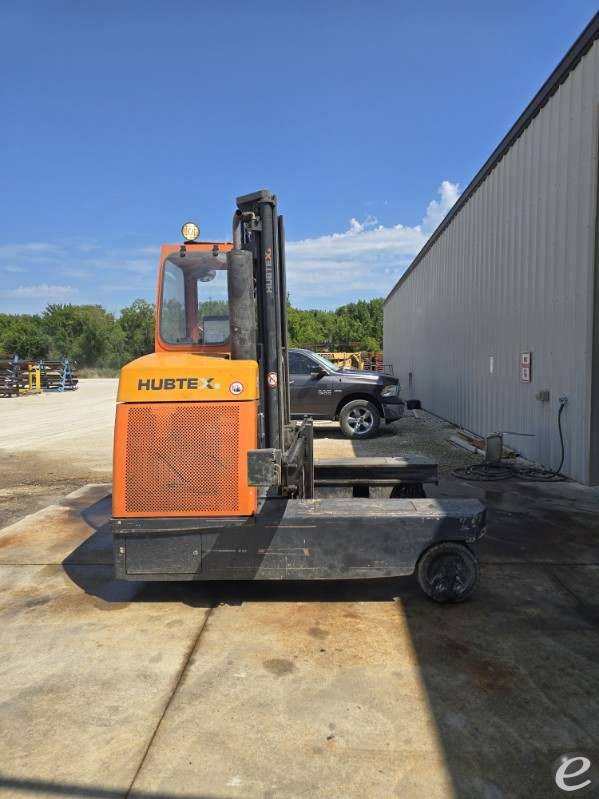

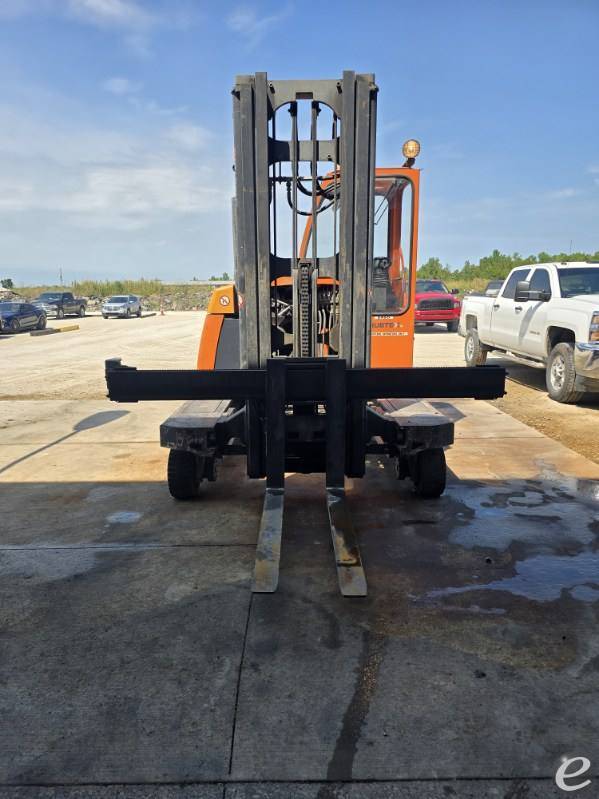

Hubtex Multi-Directional Sideloader Forklift Model: DQ30G Manufacturer: Hubtex Type: Multi-Directional Sideloader Forklift Fuel Type: LP Gas ________________________________________ Rated Capacity (24" Load Center) • 6,600 lbs to 118 in • 5,940 lbs to 177 in • 4,620 lbs to 216 in ________________________________________ Mast – H30TI • Collapsed Height: 106.3 in • Free Lift: 70.6 in • Maximum Fork Height: 216.0 in • Extended Height: 255.0 in • Carriage Height: 39.0 in ________________________________________ Load Pick-Up Device • Spread Carriage Width: 98.5 in • Forks: Two forks, 1.7 in × 4.7 in × 47.2 in • Fork Adjustment: Hydraulic, 19.7 in – 98.5 in • Fork Tilt: +5° / –3° (hydraulic) ________________________________________ Dimensions & Weights • Height Over Cabin: 100.0 in • Frame Length: 78.7 in • Total Length: 78.7 in • Frame Width: 92.2 in • Mast Reach: 51.9 in • Height Over Load Arms: 22.0 in • Load Arm Opening: 48.4 in • Distance Over Load Arms: 78.7 in • Ground Clearance: 6.4 in • Structural Weight: 11,880 lbs ________________________________________ Ramp Capability • 12% grade (longitudinal and cross direction) ________________________________________ Powertrain • Engine: GM LP Industrial Engine – Model ESD 3.0 • Configuration: 4-cylinder, inline • Output: 65 HP @ 2,800 RPM • Features: Soundproofed with reduced vibration design ________________________________________ Brake System Service Brake: • Hydrostatic, maintenance-free • Gentle braking via drive pedal release • Full braking via the brake/inch pedal Parking Brake: • Integrated into hydrostatic motors • Water- and dust-proof • Automatically engages when the engine is shut off • Electrically released via push-button when the engine is running to prevent rollback ________________________________________ Hydraulic System • Proportional valve technology for smooth, precise control (Hubtex system) ________________________________________ Steering • Hubtex three-wheel high-performance steering • Over 20° increased steering angle • Industry-leading turning radius and maneuverability ________________________________________ Operator Controls Single-Lever Controls For: • Lift / Lower • Mast Reach / Retract • Fork Tilt Joystick Functions: • Direction pre-selection • Fork adjustment • Horn • Circular drive • Differential lock ________________________________________ Cabin – Cross Seat Cabin Q890 • Protective roof with safety glass • Safety glass on load and engine sides • Horizontal pivot window • Load-side windshield wiper • Motor-side armrest • Two roof-mounted work lights • Cabin heater and defroster ________________________________________ Cabin Interior & Instrumentation • Adjustable, spring-suspended seat with integrated seat switch • Fabric seat cover with seat belt (standard) • Oil pressure monitoring • Battery status indicator • Hour meter • Maintenance interval display • Wheel position indicator (cross / longitudinal drive) ________________________________________ Fuel System • Tank: 33 lb standard propane forklift tank
