Equipment Description
3 Way Valve, Forks: 42/48
Spec Sheet
  • Manufacturer: Toyota
  • Model Number: 8FGCU25
  • General Specifications:
    • Power Type: LPG (Liquid Petroleum Gas)
    • Operator Position: Sit-down
    • Tire Type: Cushion
    • Number of Wheels: 4
  • Dimensions:
    • Length to Face of Forks: 8.17 ft
    • Overall Width (Without Load): 3.5 ft
    • Height to Top of Overhead Guard: 7 ft
    • Turning Radius: 80.5 in
    • Minimum Outside Turning Radius: 5.5 ft
    • Wheelbase: 5.08 ft
  • Performance:
    • Rated Load Capacity: 5,000 lbs
    • Load Center: 24 in
    • Travel Speed (Loaded): 11.2 mph
    • Travel Speed (Unloaded): 11.5 mph
    • Lifting Speed (Loaded): 118 ft/min
    • Lifting Speed (Unloaded): 131 ft/min
    • Lowering Speed (Loaded): 98 ft/min
    • Lowering Speed (Unloaded): 98 ft/min
  • Engine Specifications:
    • Engine Model: Toyota 4Y
    • Engine Type: 4-cylinder, water-cooled
    • Displacement: 142 in³
    • Rated Power: 51 hp @ 2,400 RPM
    • Torque: 118.6 lbf·ft @ 1,600 RPM
  • Weights:
    • Service Weight: 8,750 lbs
    • Axle Loading Front: 12,284 lbs (With Load)
    • Axle Loading Rear: 1,466 lbs (With Load)
  • Wheel Specifications:
    • Front Tires: 21x7x15
    • Rear Tires: 16x5x10 ½
    • Tread (Front/Rear): 36/36 in
  • Transmission:
    • Transmission Type: Powershift
    • Number of Speeds (Forward/Reverse): 1/1
  • Brakes:
    • Service Brake: Hydraulic
    • Parking Brake: Mechanical, hand operated
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

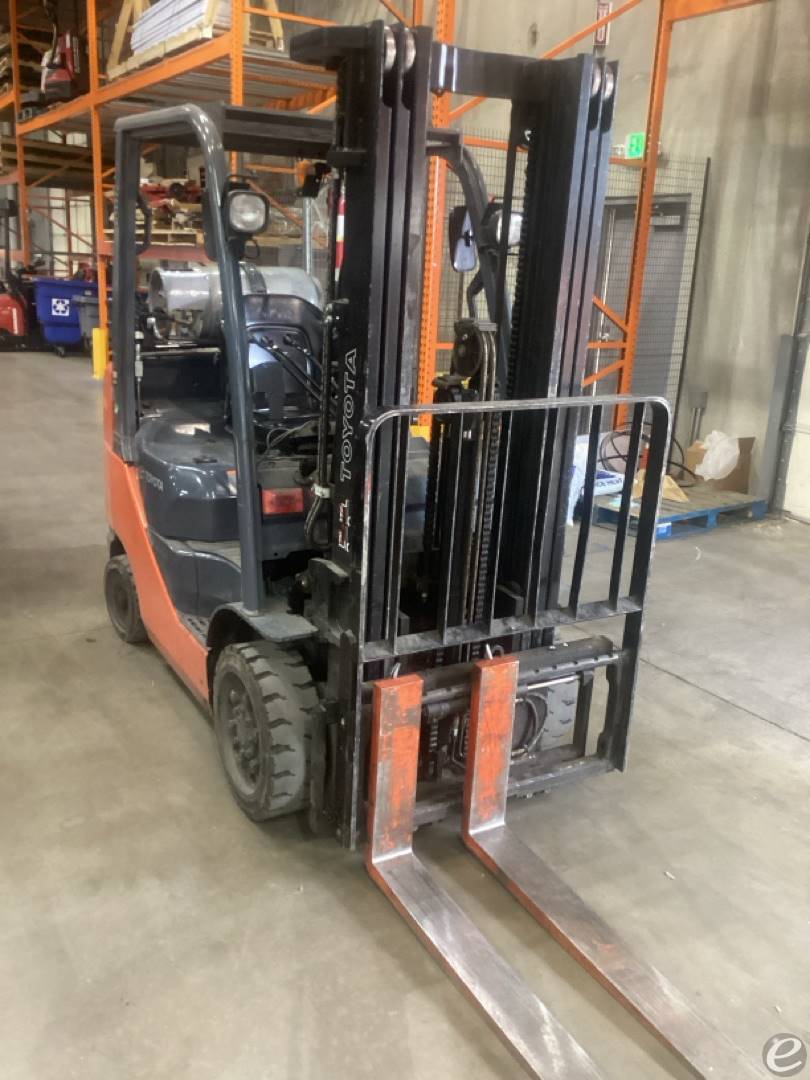

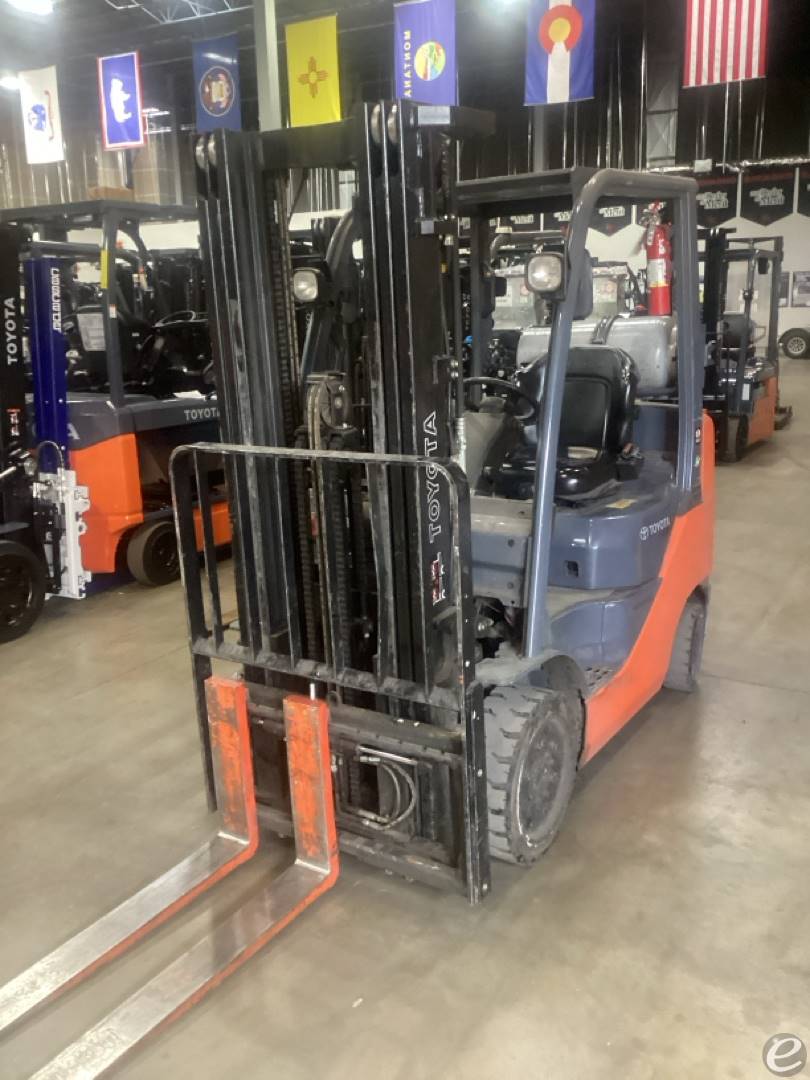

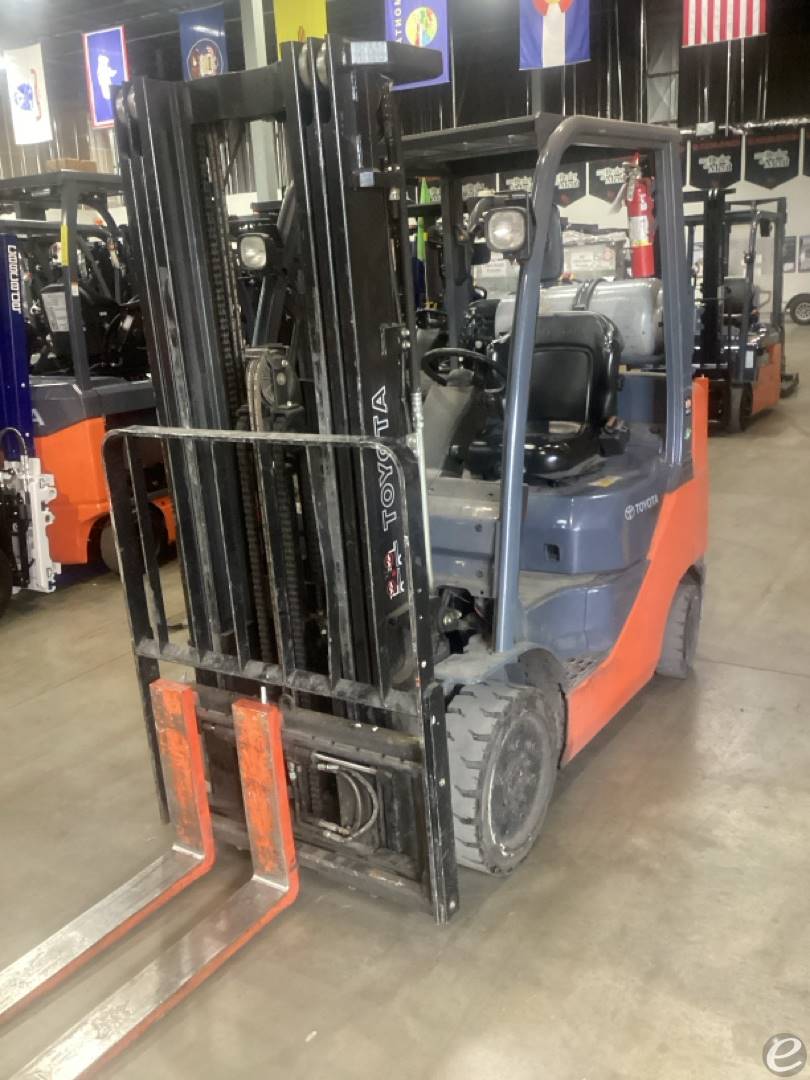

2016 Toyota 8FGCU25

cushion tire 4 wheel sit down (indoor warehouse) lp gas

Call for price

CONTACT INFO
Name:
Keith Fine
Phone:

ADDRESS
Welch Equipment Company Inc
5025 Nome St
DenverColorado 80239
ATTRIBUTES
YEAR:
2016
Manufacturer:
MODEL #:
CAPACITY:
5000
FUEL:
MAST TYPE:
MAST HEIGHT:
83 / 189 in
SERIAL #:
82110
CONDITION:
Used

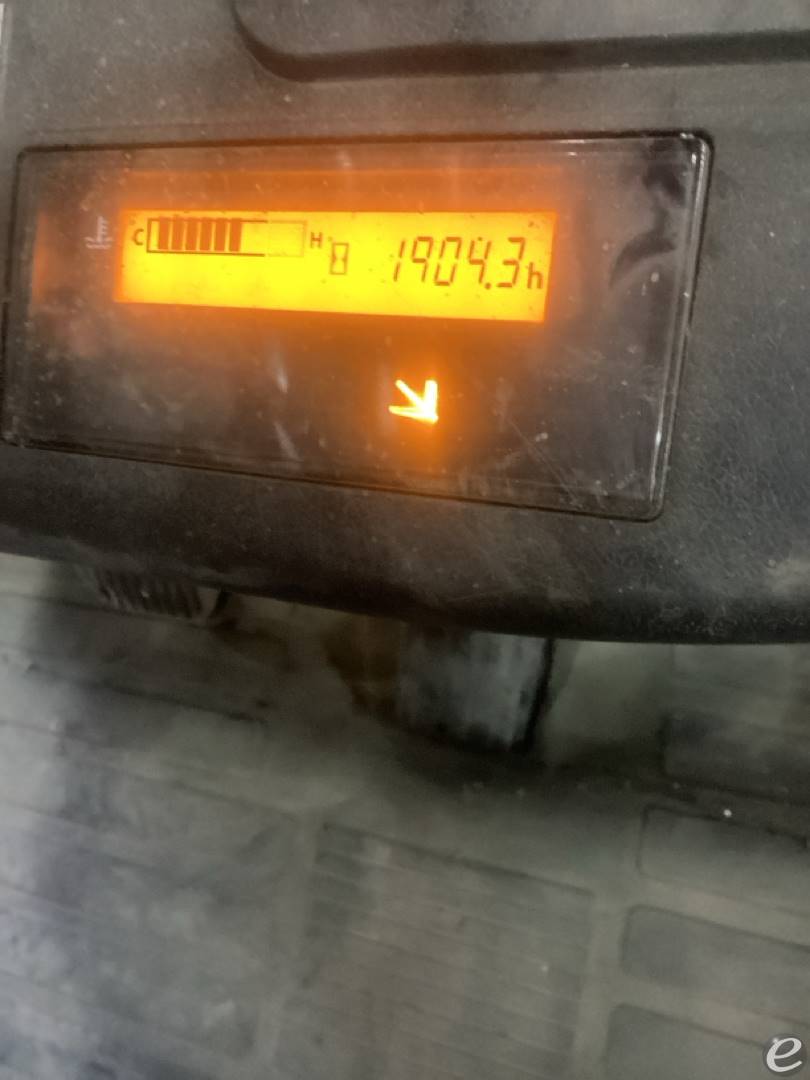

HOUR METER:
6
LOCATION:
Colorado [80239]
DESCRIPTION:
3 Way Valve, Forks: 42/48
POST DATE:
1/5/2026
Reviews
Useful
Not

Having had the chance to use the Toyota 8FGCU25 for some warehouse duties, I can confidently say it’s a solid lift. It handles heavy loads with ease, and maneuvering around tight spaces was surprisingly smooth. I remember stacking pallets in a corner of the loading dock, and the precision of the controls made it a breeze. The visibility from the driver's seat is also a game-changer, you can really see what’s going on around you, which comes in handy during busy shifts. Overall, it’s dependable and efficient, making those long haul days a bit easier.


Review by Mike Johnson (12/8/2024)
