Equipment Description

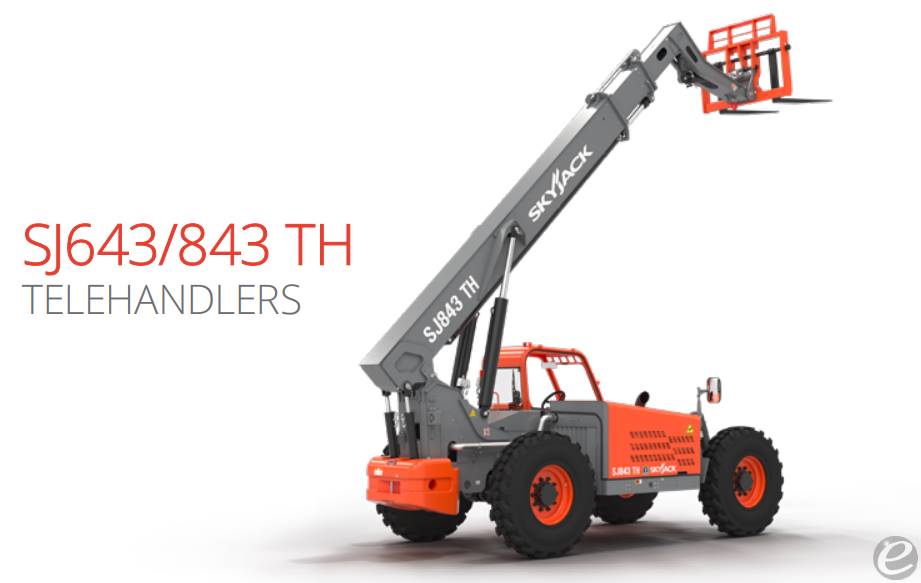

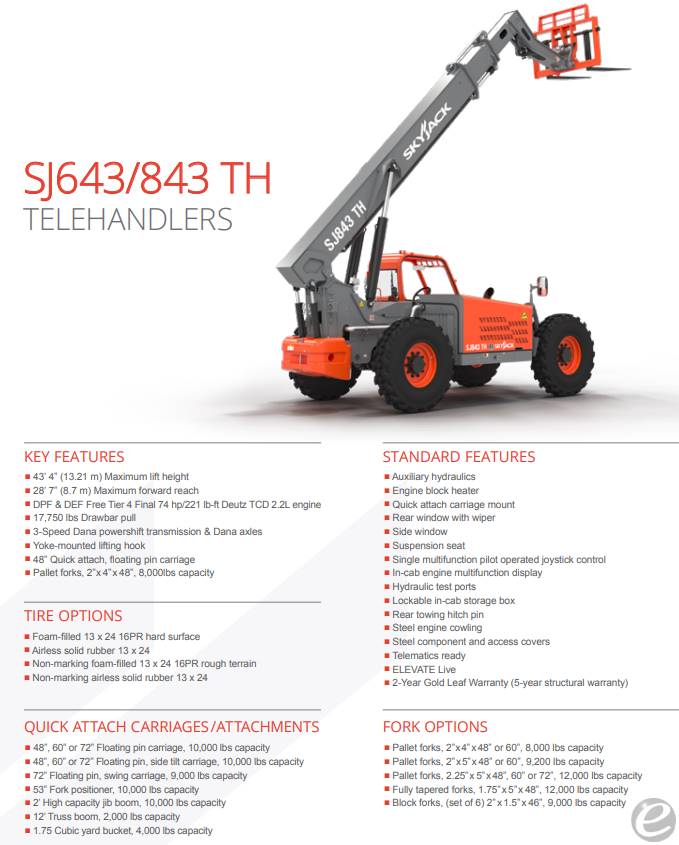

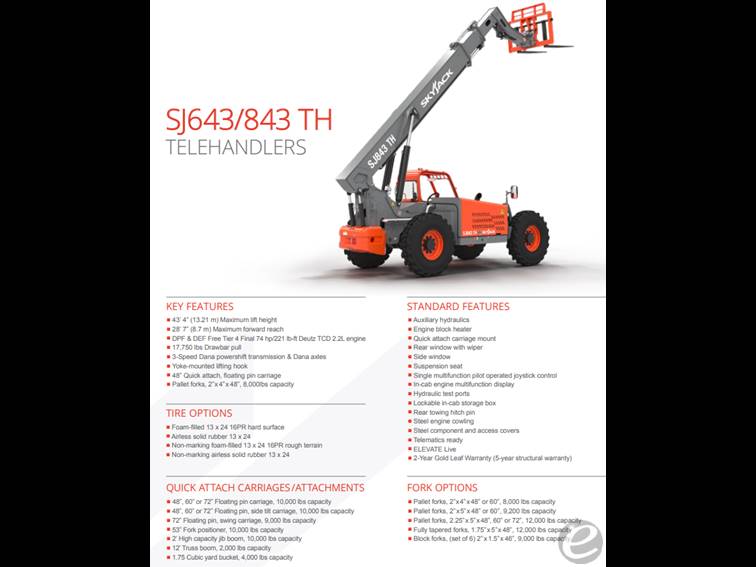

New SkyJack SJ843 TH Telehandler with 8,000 lb. Capacity (Less de-rate), 43' 4" of max lift height, 28' 7" max forward reach, 74 hp / 221 lb-ft Deutz TCD 2.2L T4F with 3-Speed Dana powershift transmission & Dana axles, 3 Mode steering, 48” Quick attach with floating pin carriage, Quick attach carriage mount, Suspension seat, grip lug pneumatic tires, plus a beautiful finish! (STOCK PHOTOS)
Spec Sheet
  • Model Number: SJ843 TH
  • Manufacturer: Skyjack
  • Type: Telehandler
  • Fuel Type: Diesel
  • Performance
  • Rated Load Capacity: 8,000 lbs
  • Max Forward Reach: 27 ft
  • Travel Speed: 18 mph
  • Drawbar Pull: 21,000 lbs
  • Engine
  • Engine Make: Cummins
  • Engine Model: QSF 3.8L
  • Power: 120 hp
  • Dimensions
  • Overall Width: 8 ft
  • Overall Height: 8 ft 5 in
  • Overall Length: 20 ft
  • Ground Clearance: 1 ft 5 in
  • Wheelbase: 10 ft 1 in
  • Fork Length: Varies
  • Tires
  • Size: 370/75-28
  • Hydraulic System
  • Hydraulic Flow: 31 GPM
  • System Pressure: 3,625 psi
  • Weights
  • Operating Weight: 23,500 lbs
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

Skyjack SJ843 TH

New

diesel

Call for price

CONTACT INFO
Name:
Dennis Firkins
Phone:

ADDRESS
Western Material Handling
1113 N. College Ave
Ft CollinsColorado 80524
ATTRIBUTES
STOCK #:
CHECK AVAILABILITY
Manufacturer:
MODEL #:
POWER:
Height:
43 ft
CAPACITY:
8000
CONDITION:
New
LOCATION:
Colorado [80022]
DESCRIPTION:
NEW SKYJACK SJ843 TH TELEHANDLER WITH 43' LIFT HEIGHT DIESEL
POST DATE:
12/2/2025
