Diesel boom lifts offer several advantages, such as robust power and torque, making them ideal for outdoor and heavy-duty applications. They tend to perform better in challenging terrains due to their substantial engine strength. Diesel models typically have longer lifespans with proper maintenance and are widely available, facilitating easy refueling. However, they have notable drawbacks, including higher emissions compared to electric or hybrid models, which can limit usage in environmentally sensitive areas or indoors without adequate ventilation. They are usually noisier and can have higher operational costs due to maintenance requirements and fluctuating diesel prices. In contrast, electric or hybrid lifts provide quieter operation and are more environmentally friendly, but they may lack the power needed for demanding outdoor tasks and could be limited by battery life and charging infrastructure.
All rental rates are subject to change without prior notice. Pricing may vary based on availability, demand, seasonal factors, or updates to policies. Rates provided at the time of inquiry or reservation are not guaranteed until confirmed. The rental provider reserves the right to adjust rates at their discretion.
Guardian Fleet Solutions Cameron Carter : 502-273-0323 3306 Gilmore Industrial Blvd Louisville, KY 40213
Rental availability within the continental United States.

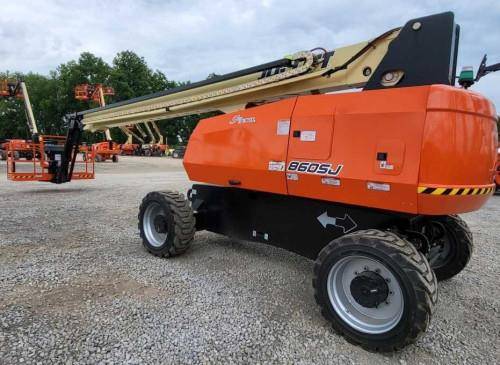

Model Number: 860SJ-D
Manufacturer: JLG
Type: Boom Lift
Subtype: Telescopic Boom
Fuel Type: Diesel
Dimensions
Overall Length: Approximately 37.7 feet
Overall Width: Approximately 8.2 feet
Overall Wheelbase: Approximately 9 feet
Ground Clearance: Approximately 1.2 feet
Weight
Machine Weight: Approximately 37,100 lbs
Performance
Platform Capacity: 500 lbs - 750 lbs range depending on configuration
Horizontal Outreach: Approximately 75.5 feet
Platform Rotation: 180 degrees
Turntable Rotation: Continuous 360 degrees
Drive Speed: Up to 3.5 mph
Gradeability: Up to 45%
Power
Engine: Diesel
Fuel Tank Capacity: Approximately 31.7 gallons
Engine Power: Approximately 74 hp
Chassis
Axle Oscillation: 8 inches
Steering: 4-wheel steer with coordinated, crab, and front steer modes
Drive: 4x4
MONTHLY RENTAL
$4,500 USD
WEEKLY RENTAL
$2,200 USD
DAILY RENTAL
$900 USD
Reserve Rental
All rental rates are subject to change without prior notice. Pricing may vary based on availability, demand, seasonal factors, or updates to policies. Rates provided at the time of inquiry or reservation are not guaranteed until confirmed. The rental provider reserves the right to adjust rates at their discretion.
Guardian Fleet Solutions Cameron Carter : 502-273-0323 3306 Gilmore Industrial Blvd Louisville, KY 40213
Rental availability within the continental United States.
General Specifications
Model Number: 660SJ-D-4WD
Manufacturer: JLG
Type: Boom Lift
Subtype: Telescopic Boom
Fuel Type: Diesel
Engine
Engine Manufacturer: Diesel Engine
Emissions: Tier 4 Final
Power Source: Diesel
Performance
Platform Capacity: 750 lbs
Horizontal Outreach: 56 ft 7 in
Platform Height Capacity: 66 ft
Drive Speed: 4.5 mph (Stowed)
Dimensions
Machine Width: 8 ft 1 in
Platform Width: 3 ft
Platform Length: Varies
Weight
Operating Weight: 29,000 lbs
Hydraulic System
Hydraulic Tank Capacity: 30 gal
Tire
Tire Size: 15-625
Tire Type: Foam-Filled
MONTHLY RENTAL
$3,000 USD
WEEKLY RENTAL
$1,350 USD
DAILY RENTAL
$650 USD
Reserve Rental
All rental rates are subject to change without prior notice. Pricing may vary based on availability, demand, seasonal factors, or updates to policies. Rates provided at the time of inquiry or reservation are not guaranteed until confirmed. The rental provider reserves the right to adjust rates at their discretion.
Guardian Fleet Solutions Cameron Carter : 502-273-0323 3306 Gilmore Industrial Blvd Louisville, KY 40213
Rental availability within the continental United States.
Model Number: 660SJ-R-D
Manufacturer: JLG
Type: Boom Lift
Subtype: Telescopic Boom
Fuel Type: Diesel
Dimensions
Overall Length: Approx. 28 ft
Overall Width: Approx. 8 ft 2 in
Overall Height: Approx. 9 ft 10 in
Wheelbase: Approx. 10 ft
Ground Clearance: Approx. 1 ft
Performance
Platform Capacity: 750 lbs
Horizontal Outreach: 57 ft
Turning Radius - Outside: Approx. 18 ft
Drive Speed - 4WD: 3.3 mph
Gradeability - 4WD: 45%
Power Source
Engine: Diesel
Fuel Tank Capacity: 40 gal
Axle Oscillation
Oscillation: 8 in
Platform
Platform Width: 36 in
Platform Length: Varies
Platform Height: Approx. 66 ft
Weights
Machine Weight: Approx. 24,270 lbs
MONTHLY RENTAL
$3,000 USD
WEEKLY RENTAL
$1,350 USD
DAILY RENTAL
$650 USD
Reserve Rental
All rental rates are subject to change without prior notice. Pricing may vary based on availability, demand, seasonal factors, or updates to policies. Rates provided at the time of inquiry or reservation are not guaranteed until confirmed. The rental provider reserves the right to adjust rates at their discretion.
Guardian Fleet Solutions Cameron Carter : 502-273-0323 3306 Gilmore Industrial Blvd Louisville, KY 40213
Rental availability within the continental United States.
Dimensions
Overall Height: 3.81 ft
Overall Length: 37.73 ft
Overall Width: 8.2 ft
Wheelbase: 10 ft
Ground Clearance: 1.08 ft
Performance
Platform Capacity – Unrestricted: 500 lbs
Platform Capacity – Restricted: 1,000 lbs
Horizontal Outreach: 51.8 ft
Up and Over Height: 27 ft
Turntable Rotation: 360 degrees continuous
Drive Speed: 3 mph
Jib Range of Motion: 130 degrees
Power
Engine Make: Deutz
Engine Model: TD2.9L4
Power Source: Diesel
Engine Power: 67 hp
Fuel Tank Capacity: 31.7 gallons
Weights
Machine Weight: 35,200 lbs
Operational
Platform Dimensions: 36 in x 96 in
Tires: Foam-filled
Tire Size: 395/85 R20
Features
Drive: 4WD
Gradeability: 45%
Axle Oscillation: Yes
MONTHLY RENTAL
$4,500 USD
WEEKLY RENTAL
$2,200 USD
DAILY RENTAL
$900 USD
Reserve Rental
All rental rates are subject to change without prior notice. Pricing may vary based on availability, demand, seasonal factors, or updates to policies. Rates provided at the time of inquiry or reservation are not guaranteed until confirmed. The rental provider reserves the right to adjust rates at their discretion.
Guardian Fleet Solutions Cameron Carter : 502-273-0323 3306 Gilmore Industrial Blvd Louisville, KY 40213
Rental availability within the continental United States.
Model Number: 450AJ-D-4WD/GM
Manufacturer: JLG
Type: Boom Lift
Subtype: Articulated Boom
Fuel Type: Diesel
Performance:
Platform Height: 45 ft
Horizontal Outreach: 25 ft
Up and Over Height: 24 ft 6 in
Platform Capacity: 500 lbs
Platform Rotator: 180 Degrees
Dimensions:
Overall Width: 7 ft 6 in
Stowed Height: 7 ft 9 in
Overall Length: 21 ft 9 in
Wheelbase: 7 ft
Ground Clearance: 1 ft
Engine:
Engine Model: GM Vortec 3000
Power: 82 hp
Chassis:
Axle Oscillation: 8 in
Tires: 12 x 16.5 pneumatic
Drive Speed: 4.5 mph
Gradeability: 45%
Operational:
Hydraulic Tank Capacity: 24 gallons
Fuel Tank Capacity: 25 gallons
MONTHLY RENTAL
$2,600 USD
WEEKLY RENTAL
$1,300 USD
DAILY RENTAL
$480 USD
Reserve Rental
All rental rates are subject to change without prior notice. Pricing may vary based on availability, demand, seasonal factors, or updates to policies. Rates provided at the time of inquiry or reservation are not guaranteed until confirmed. The rental provider reserves the right to adjust rates at their discretion.
Guardian Fleet Solutions Cameron Carter : 502-273-0323 3306 Gilmore Industrial Blvd Louisville, KY 40213
