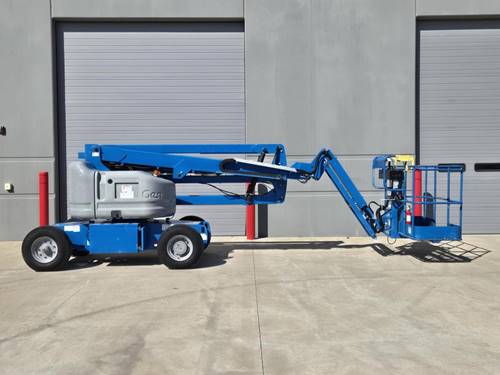

The Genie Z45/25J IC articulated boom lift features a platform height of 45 feet and a horizontal reach of 25 feet, making it suitable for reaching high and difficult areas. It is equipped with a jib for increased range of motion and versatility. The lift operates on diesel or dual-fuel engines, granting flexibility in various work environments. Its rough terrain capabilities, including four-wheel drive and positive traction, allow it to navigate challenging outdoor conditions effectively.
Rental availability within the continental United States.
Specifications
Model Number: Z45/25J-DC-GM
Manufacturer: Genie
Type: Boom Lift
Subtype: Articulated Boom
Fuel Type: Hybrid (Electric with fuel option)
Dimensions
Platform Height: Approximately 45 ft
Horizontal Reach: Approximately 25 ft
Up and Over Clearance: Approximately 23 ft
Platform Length: Varies
Platform Width: Approximately 5 ft
Wheelbase: Approximately 6 ft 8 in
Weight: Approximately 16,700 lbs
Performance
Lift Capacity: Approximately 500 lbs
Rotation: 355 Degree Non-Continuous
Turntable Swing: 360 Degree Continuous
Power
Motor: Electric with fuel option
Battery: 48V DC
Fuel Tank Capacity: Approximately 7 gallons
Chassis
Drive Speed: 3.5 mph stowed, 0.68 mph raised
Gradeability: 30%
Turning Radius (Inside): Approximately 6 ft 4 in
Turning Radius (Outside): Approximately 14 ft 8 in
Additional Features
AC Power to Platform
Foam-Filled Tires
Proportional Controls for Smooth Operation
Automatic Hill-Brake System
MONTHLY RENTAL
$2,450 USD
WEEKLY RENTAL
$1,325 USD
DAILY RENTAL
$510 USD
Reserve Rental
All rental rates are subject to change without prior notice. Pricing may vary based on availability, demand, seasonal factors, or updates to policies. Rates provided at the time of inquiry or reservation are not guaranteed until confirmed. The rental provider reserves the right to adjust rates at their discretion.
Guardian Fleet Solutions Cameron Carter : 502-273-0323 3306 Gilmore Industrial Blvd Louisville, KY 40213
Rental availability within the continental United States.

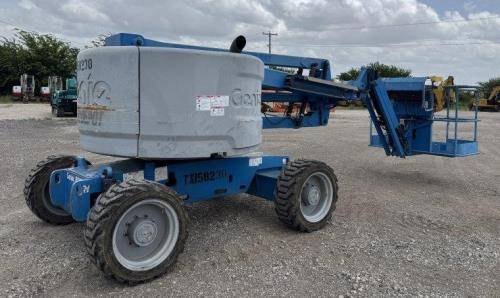

General Specifications
Model: Z45/25J-RT-GM
Manufacturer: Genie
Type: Boom Lift
Subtype: Articulated Boom
Fuel Type: Dual Fuel
Dimensions
Overall Height (Stowed): 7 ft 5 in
Overall Length (Stowed): 22 ft 7 in
Overall Width: 7 ft 6 in
Wheelbase: 6 ft 8 in
Ground Clearance: 1 ft 2 in
Performance
Platform Height: 45 ft
Horizontal Reach: 25 ft
Up and Over Clearance: 23 ft 5 in
Platform Capacity: 500 lbs
Gradeability: 45%
Turning Radius (Outside): 8 ft 2 in
Turning Radius (Inside): 3 ft
Power and Drive
Engine Type: Dual Fuel Engine (Gas/LPG)
Drive Speed (Stowed): 4.5 mph
Drive Speed (Raised): 0.68 mph
Operational
Platform Rotation: 180 degrees
Jib Length: 5 ft 6 in
Jib Range of Motion: 135 degrees
Turntable Rotation: Continuous 360 degrees
Weight
Weight: 16,600 lbs
MONTHLY RENTAL
$2,600 USD
WEEKLY RENTAL
$1,300 USD
DAILY RENTAL
$480 USD
Reserve Rental
All rental rates are subject to change without prior notice. Pricing may vary based on availability, demand, seasonal factors, or updates to policies. Rates provided at the time of inquiry or reservation are not guaranteed until confirmed. The rental provider reserves the right to adjust rates at their discretion.
Guardian Fleet Solutions Cameron Carter : 502-273-0323 3306 Gilmore Industrial Blvd Louisville, KY 40213
Rental availability within the continental United States.
General Specifications
Model Number: Z45/25RT-4WD
Manufacturer: Genie
Type: Boom Lift
Subtype: Telescopic Boom
Fuel Type: Dual Fuel
Dimensions
Overall Length: 25 ft
Overall Width: 7.6 ft
Overall Height: 8.9 ft
Wheelbase: 6.6 ft
Ground Clearance: 1.2 ft
Weight
Machine Weight: 16,900 lbs
Performance
Horizontal Reach: 25 ft
Lifting Capacity: 500 lbs
Platform Rotation: 180 degrees
Turntable Rotation: 360 degrees continuous
Drive
Drive Speed (Stowed): 3 mph
Gradeability: 45%
Turning Radius (Inside): 7.9 ft
Tires
Tire Type: Rough Terrain
Size: 33 x 12 in
Operational
Power Source: Dual Fuel (Gas/LPG)
Hydraulic Tank Capacity: 10 gal
Platform
Platform Dimensions: 6 ft x 2.5 ft
Platform Height: 45 ft
MONTHLY RENTAL
$2,600 USD
WEEKLY RENTAL
$1,300 USD
DAILY RENTAL
$480 USD
Reserve Rental
All rental rates are subject to change without prior notice. Pricing may vary based on availability, demand, seasonal factors, or updates to policies. Rates provided at the time of inquiry or reservation are not guaranteed until confirmed. The rental provider reserves the right to adjust rates at their discretion.
Guardian Fleet Solutions Cameron Carter : 502-273-0323 3306 Gilmore Industrial Blvd Louisville, KY 40213
