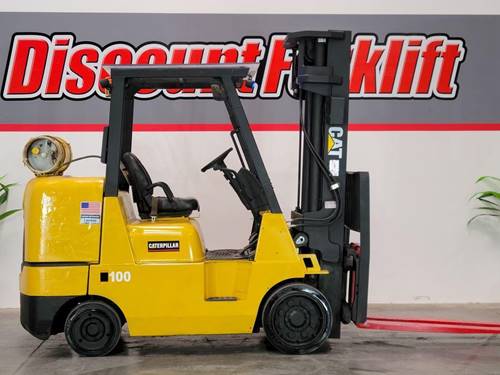

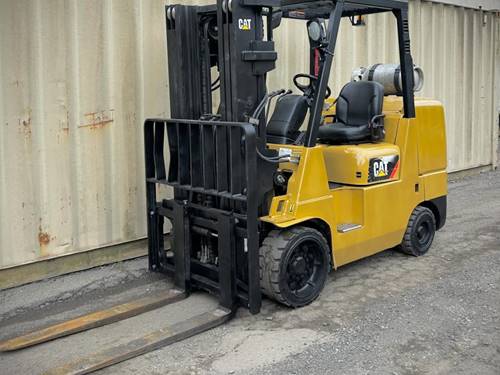

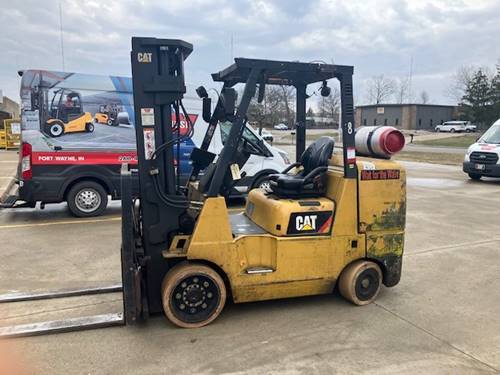

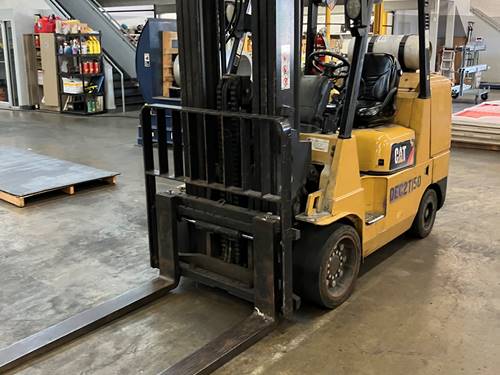

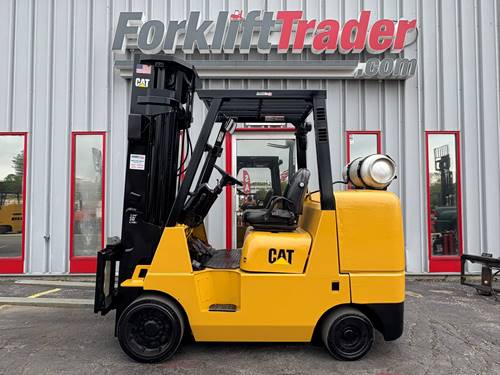

The Cat GC45K-SWB is a specialized forklift designed for handling heavy loads in industrial settings. It features a robust design with a high-capacity engine for enhanced performance. The forklift is equipped with advanced hydraulic systems for smooth operation and has a durable chassis to withstand tough working conditions. Its short wheelbase (SWB) provides improved maneuverability in confined spaces, making it particularly effective in warehouses with narrow aisles. The ergonomic cabin design ensures operator comfort and safety, contributing to efficient and reliable material handling.
Displacement: 2.0 L (approximately 122 cubic inches)
Performance
Lift Capacity: 9,000 lbs
Travel Speed: 11.2 mph (loaded)
Gradeability: 27% (at full load)
Dimensions
Overall Length: 144.9 inches (without forks)
Overall Width: 48.0 inches
Height to Top Overhead Guard: 85.8 inches
Wheelbase: 74.6 inches
Weights
Service Weight: 14,990 lbs
Axle Load (Front/Rear) without Load: 6,920 lbs / 8,070 lbs
Axle Load (Front/Rear) with Load: 20,290 lbs / 3,700 lbs
Wheels and Tires
Tires (Front/Rear): 28x9x15 / 6.50x10
Tire Type: Cushion
Brakes
Service Brakes: Hydraulic
Parking Brakes: Mechanical, Hand Operated
Steering
Steering Type: Hydrostatic Power
Steering Angle (Left/Right): 90 degrees
Hydraulic System
Relief Pressure: 2,560 psi
Operator Environment
Seat: Suspension Seat with Adjustable Settings
Noise Level: 84 dB
