Equipment Description

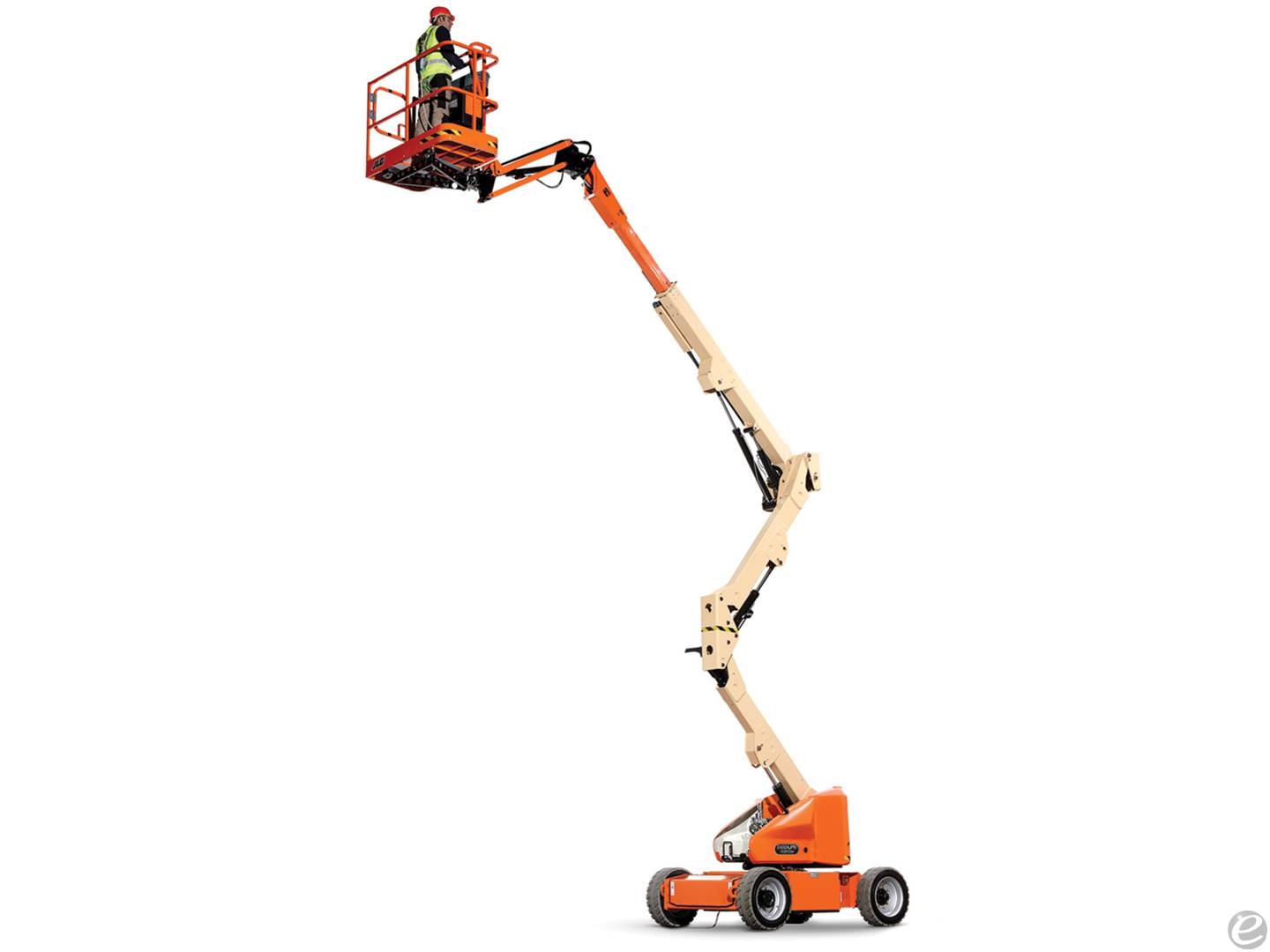

Self-propelled articulating boom lift with 40ft vertical reach and 23ft horizontal reach. Narrow model, 4ft 11in wide. Rotating jib. Electric powered. Full spec sheet in photos. *Stock Photo. **Long-term discounts available.

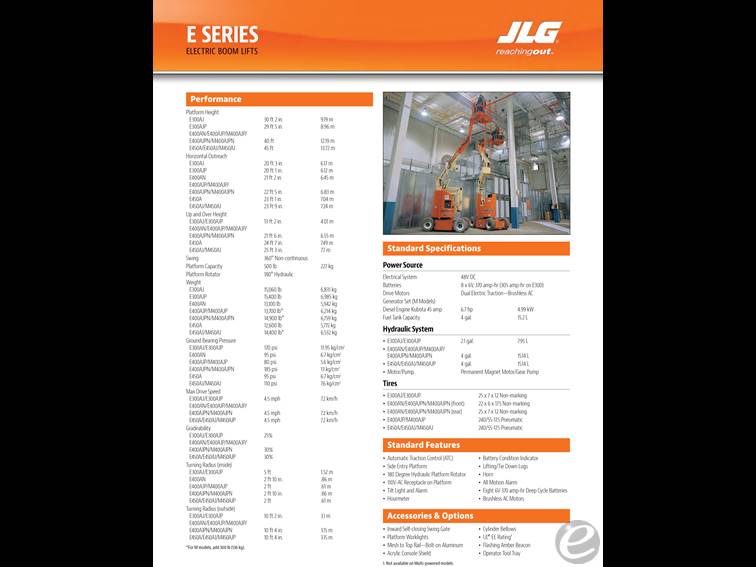

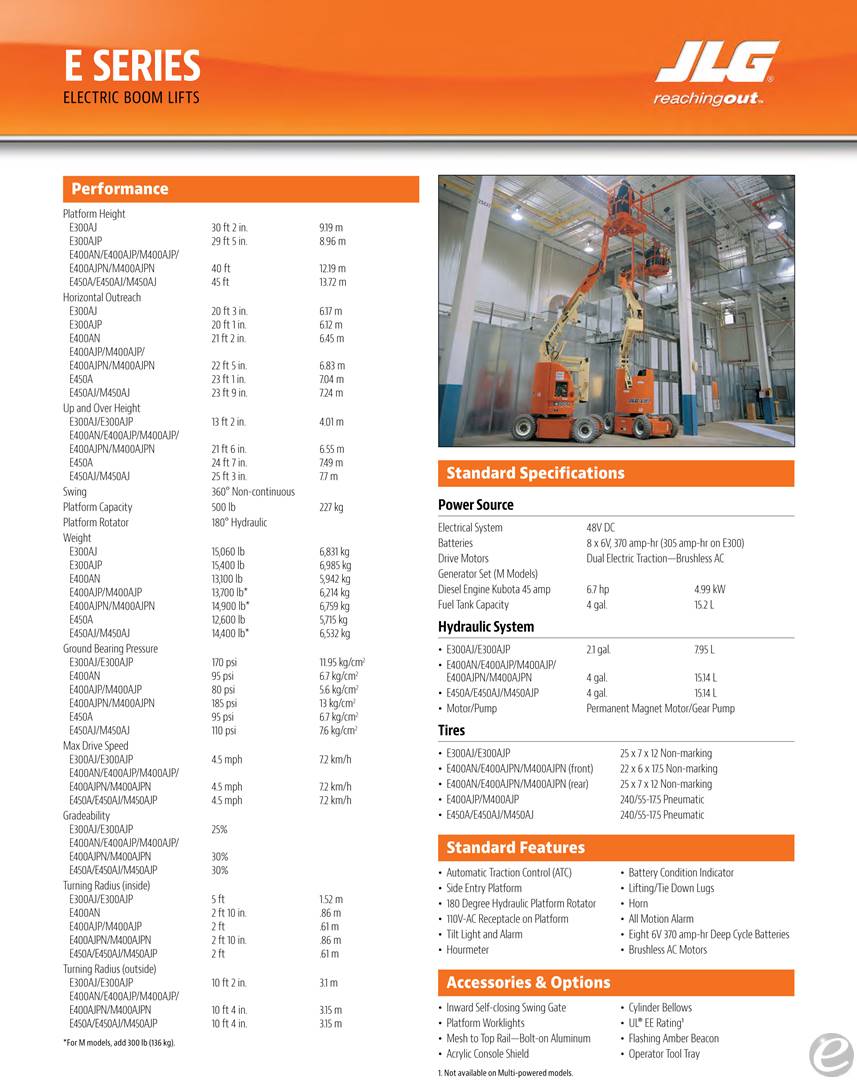

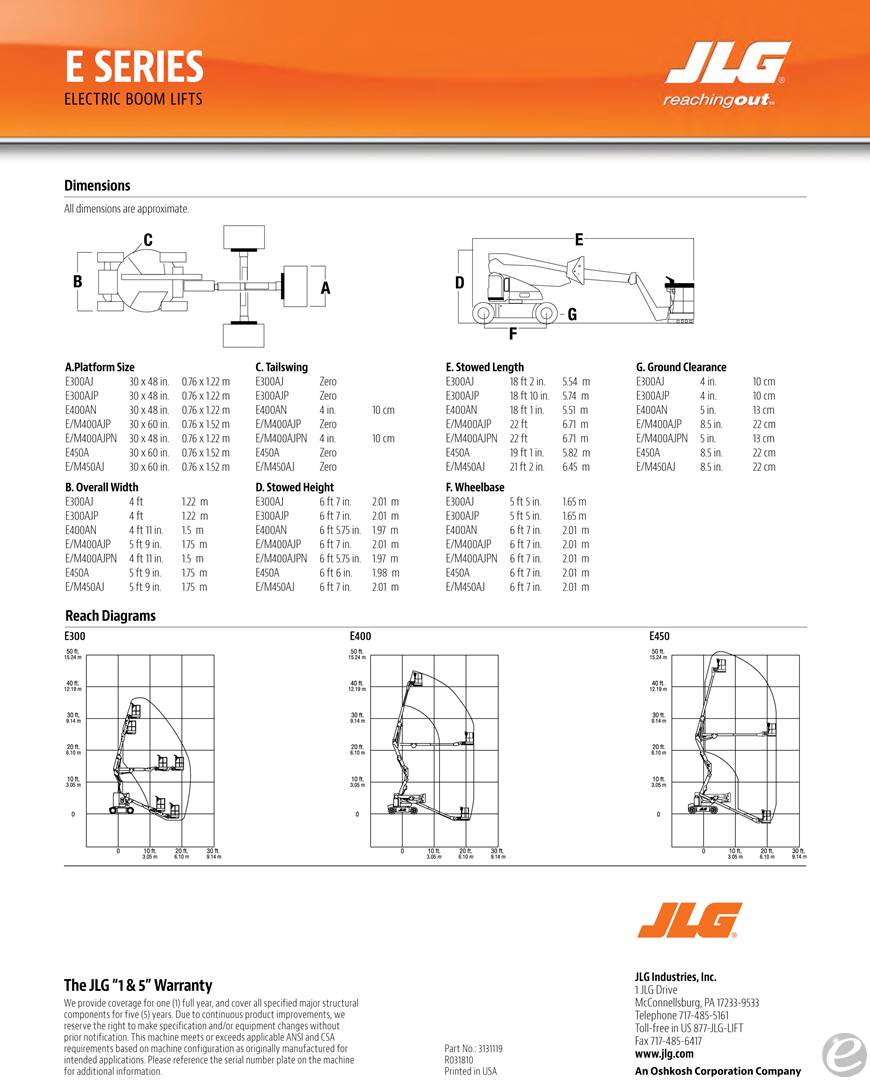

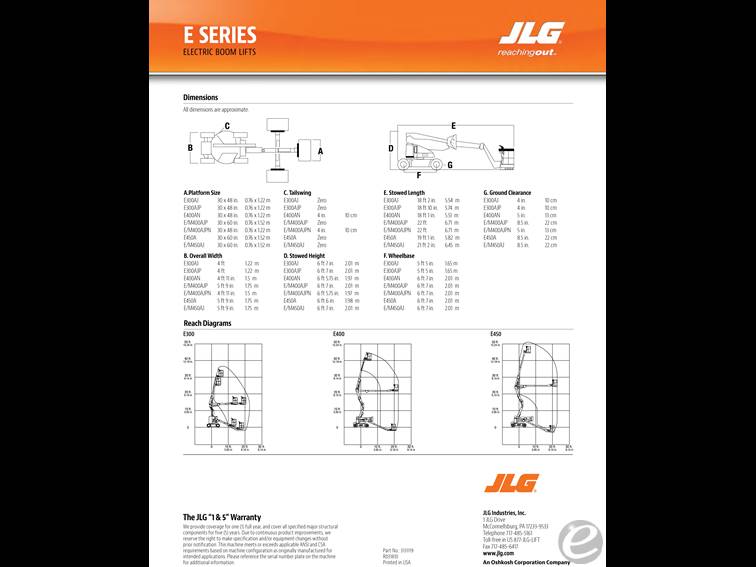

Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Specifications
    • Model: E400AJPN
    • Manufacturer: JLG
    • Type: Forklift
  • Dimensions
    • Overall Length: 16 ft
    • Overall Width: 4 ft 11 in
    • Overall Height: 6 ft 7 in
    • Ground Clearance: 0 ft 10 in
    • Wheelbase: 6 ft 7 in
  • Weight
    • Machine Weight: 11,750 lbs
  • Performance
    • Drive Speed: 0-4.5 mph
    • Gradeability: 25%
    • Turning Radius: Inside 6 ft 7 in, Outside 12 ft 9 in
    • Capacity: 500 lbs
  • Power Source
    • Power Type: Electric
    • Battery Voltage: 48V
    • Battery Capacity: 370 Ah
  • Tire Information
    • Tire Size: 24 x 7 x 17.75 flat-free

JLG E400AJPN

Buy or Rent

articulated boom electric

Call for price

$240 USD per day

$550 USD per week

$1,650 USD per month


CONTACT INFO
Name:
Greg Herzog
Phone:

ADDRESS
Lift-X Lift Services L.L.C.
N4134 State Rd 57
WaldoWisconsin 53093
ATTRIBUTES
STOCK #:
LX17
Manufacturer:
MODEL #:
Drive:
2WD
SUBCATEGORY:
Height:
40 ft
FUEL:
SERIAL #:
0300098097
CONDITION:
Used/Rental
UNIT LOCATION:
Wisconsin [53073]
DESCRIPTION:
40ft electric self-propelled articulating narrow boom lift
POST DATE:
4/8/2026
Reviews
Useful
Not

The JLG E400AJPN forklift really impressed me during a recent warehouse project. Maneuvering it around tight corners was surprisingly easy, and I felt like I had total control, even when lifting heavier loads. It reminded me of the first time I was tasked with moving some hefty equipment at my uncle's construction site—no one wants to drop things, right? The visibility from the operator's seat is pretty great; I could see everything I needed to without any issues. Overall, it’s a solid machine that got the job done without any drama. Definitely a good choice for anyone needing reliable lifting power.



Review by Mike Thompson (8/30/2025)

  • General Specifications
    • Model: E400AJPN
    • Manufacturer: JLG
    • Type: Forklift
  • Dimensions
    • Overall Length: 16 ft
    • Overall Width: 4 ft 11 in
    • Overall Height: 6 ft 7 in
    • Ground Clearance: 0 ft 10 in
    • Wheelbase: 6 ft 7 in
  • Weight
    • Machine Weight: 11,750 lbs
  • Performance
    • Drive Speed: 0-4.5 mph
    • Gradeability: 25%
    • Turning Radius: Inside 6 ft 7 in, Outside 12 ft 9 in
    • Capacity: 500 lbs
  • Power Source
    • Power Type: Electric
    • Battery Voltage: 48V
    • Battery Capacity: 370 Ah
  • Tire Information
    • Tire Size: 24 x 7 x 17.75 flat-free
