Equipment Description

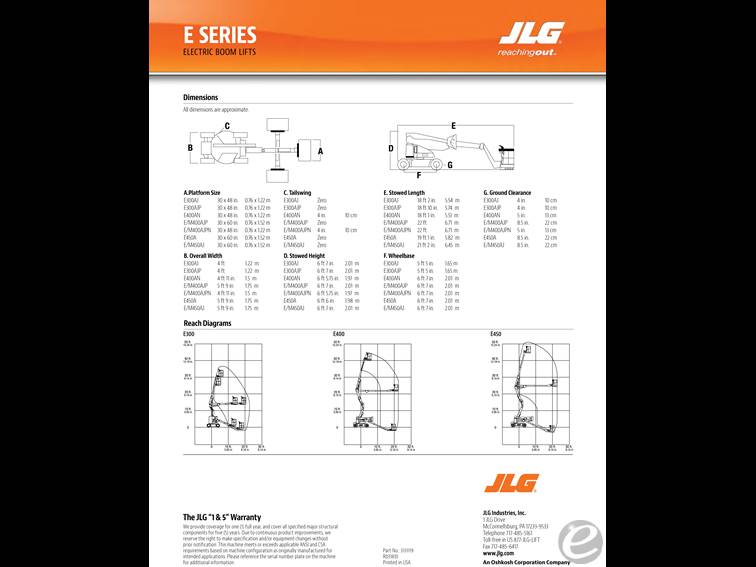

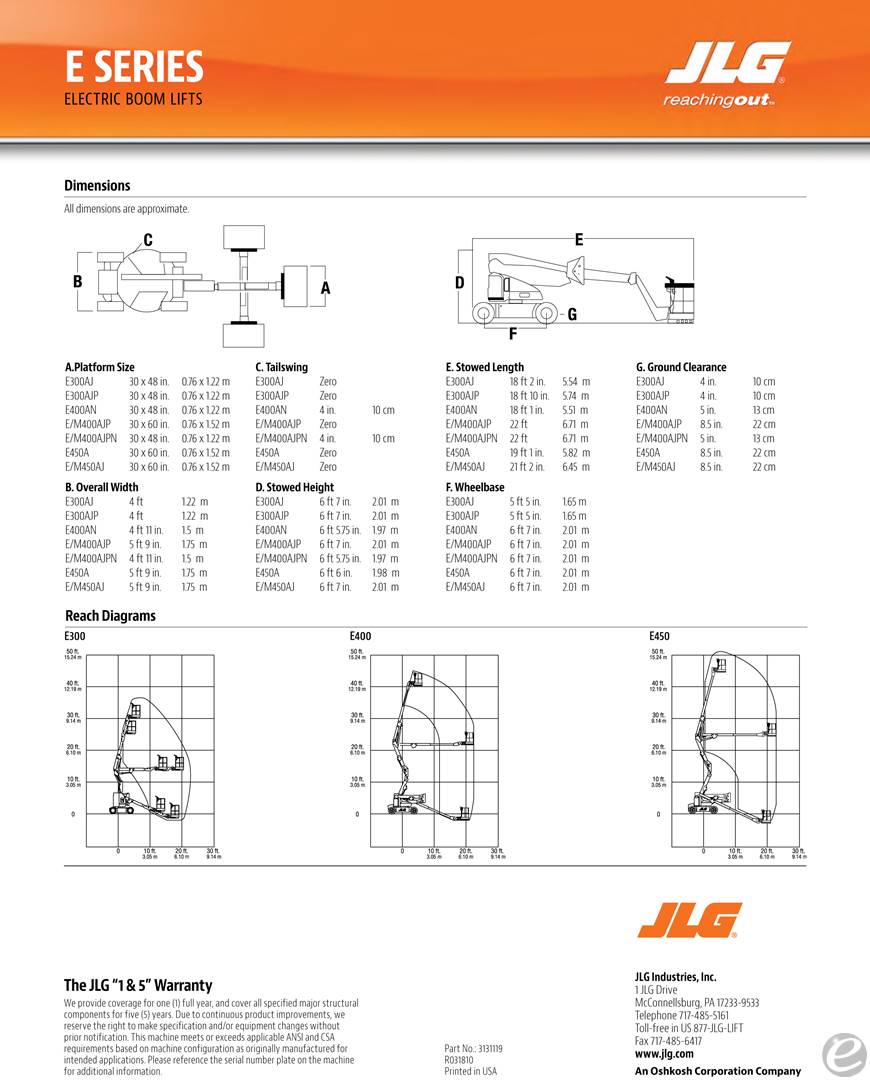

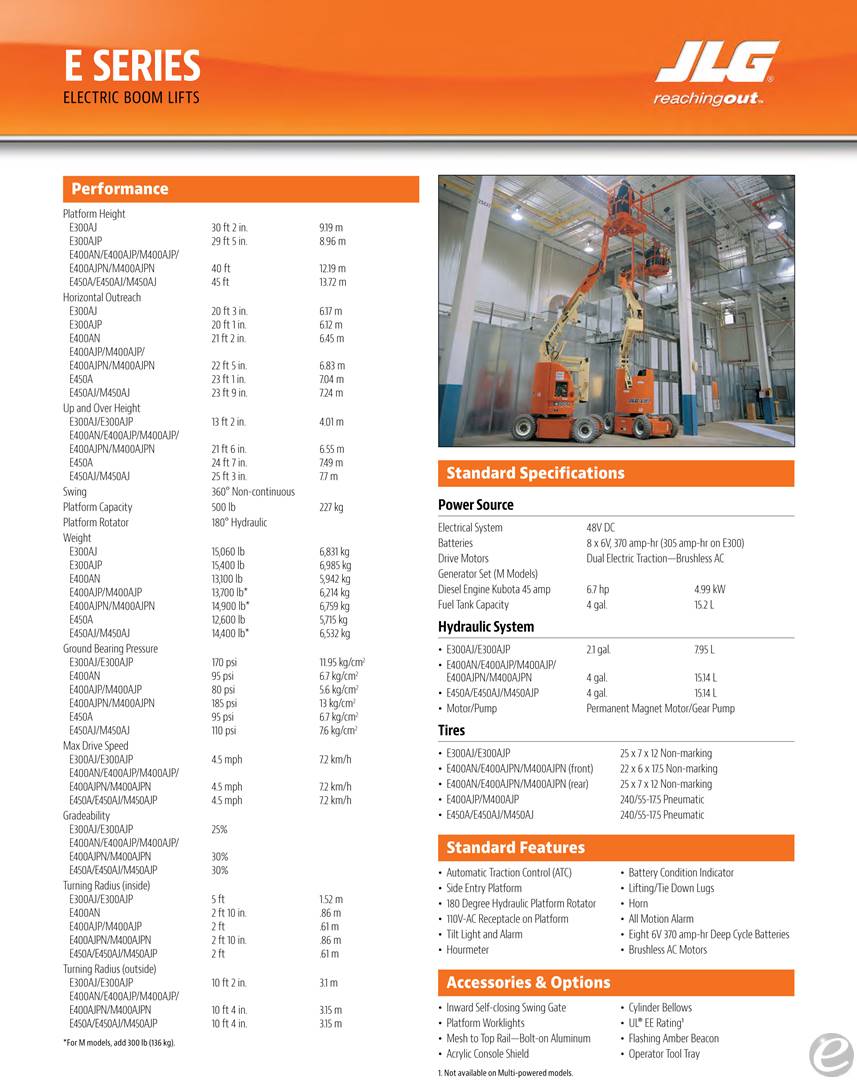

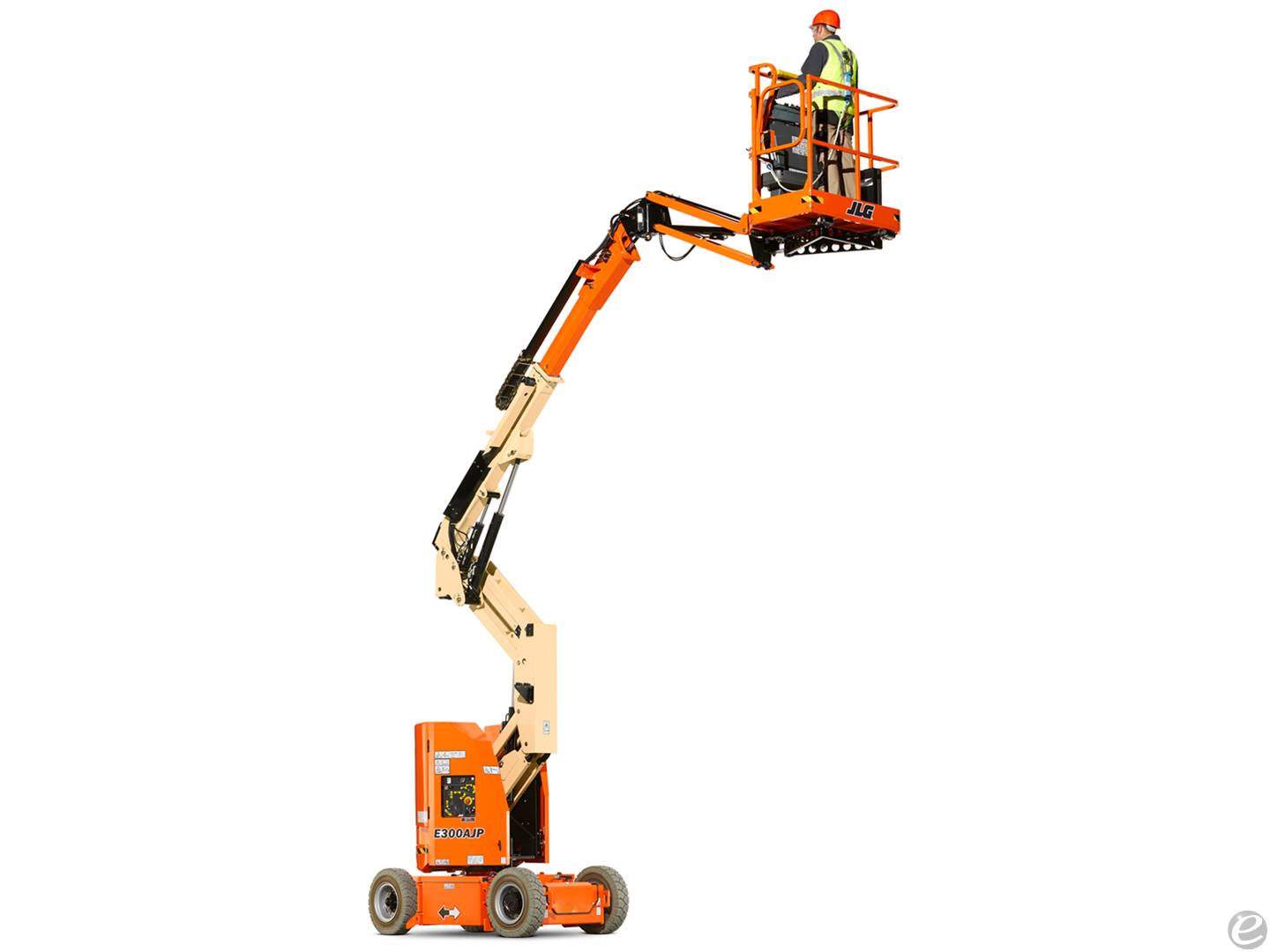

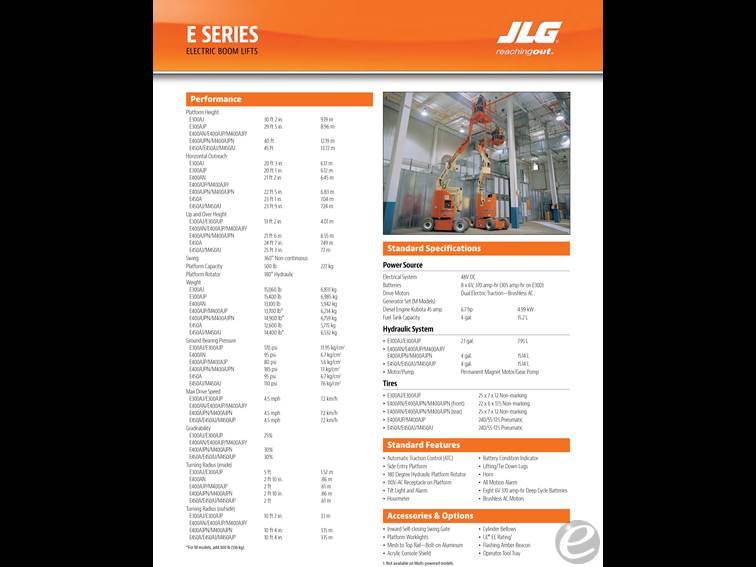

Self-propelled articulating boom lift with 30ft vertical reach and 20ft horizontal reach. Rotating jib. Electric powered. Full spec sheet in photos. *Stock Photo. **Long-term discounts available.
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • Model Number: E300AJP
  • Manufacturer: JLG
  • Type: Forklift
  • Subtype: Telescopic Boom
    • Performance
      • Max Platform Weight Capacity: 500 lbs
      • Drive Speed: 3.0 mph
      • Gradeability: 25%
    • Power & Transmission
      • Power Source: Electric
      • Battery Voltage: 48 V
      • Battery Capacity: 370 Ah
    • Dimensions
      • Overall Length: 14 ft 1 in
      • Overall Width: 4 ft 11 in
      • Overall Height: 6 ft 8 in
      • Wheelbase: 6 ft 3 in
      • Ground Clearance: 3 in
      • Turning Radius: 5 ft 1 in
      • Fork Length: Varies
    • Operational
      • Operating Weight: 7,300 lbs
      • Hydraulic Tank Capacity: 4.2 gal
    • Wheels & Tires
      • Tire Type: Non-marking solid
      • Front Tire Size: 16 x 5 in
      • Rear Tire Size: 16 x 5 in

JLG E300AJP

Buy or Rent

articulated boom electric

Call for price

$215 USD per day

$525 USD per week

$1,575 USD per month


CONTACT INFO
Name:
Greg Herzog
Phone:

ADDRESS
Lift-X Lift Services L.L.C.
N4134 State Rd 57
WaldoWisconsin 53093
ATTRIBUTES
STOCK #:
LX15
Manufacturer:
MODEL #:
Drive:
2WD
SUBCATEGORY:
Height:
30 ft
FUEL:
SERIAL #:
0300142276
CONDITION:
Used/Rental
UNIT LOCATION:
Wisconsin [53073]
DESCRIPTION:
30ft electric self-propelled articulating boom lift
POST DATE:
4/8/2026
Reviews
Useful
Not

The JLG E300AJP telescopic boom forklift is a real game changer on the job site. Having used it for a few material lifts, I can honestly say it offers impressive reach and flexibility, especially when navigating tight spaces. I recall when we had to get some heavy equipment up to a second-floor balcony, and this boom made it look easier than I anticipated. The controls felt intuitive, and it had a sturdy build that gave me confidence while operating. Overall, it's a solid choice for anyone needing reliable performance without too much hassle.



Review by Kyle Anderson (6/30/2025)

  • Model Number: E300AJP
  • Manufacturer: JLG
  • Type: Forklift
  • Subtype: Telescopic Boom
    • Performance
      • Max Platform Weight Capacity: 500 lbs
      • Drive Speed: 3.0 mph
      • Gradeability: 25%
    • Power & Transmission
      • Power Source: Electric
      • Battery Voltage: 48 V
      • Battery Capacity: 370 Ah
    • Dimensions
      • Overall Length: 14 ft 1 in
      • Overall Width: 4 ft 11 in
      • Overall Height: 6 ft 8 in
      • Wheelbase: 6 ft 3 in
      • Ground Clearance: 3 in
      • Turning Radius: 5 ft 1 in
      • Fork Length: Varies
    • Operational
      • Operating Weight: 7,300 lbs
      • Hydraulic Tank Capacity: 4.2 gal
    • Wheels & Tires
      • Tire Type: Non-marking solid
      • Front Tire Size: 16 x 5 in
      • Rear Tire Size: 16 x 5 in
