Equipment Description
NLEQ# 150669, 390 Hours, Electric, Solid Non-Marking Tires, 30' Platform Height, 36' Working Height, All New Batteries, Fully Serviced, Fresh Annual Inspection, 30 Day Warranty!
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Specifications
    • Model Number: Z30 20N
    • Manufacturer: Genie
    • Type: Boom Lift
    • Subtype: Articulated Boom
    • Fuel Type Used: Hybrid (Electric and Fuel)
  • Dimensions
    • Length: 21 ft
    • Width: 4 ft 11 in
    • Height: 7 ft 2 in
    • Wheelbase: 6 ft 4 in
  • Performance
    • Platform Capacity: 500 lbs
    • Horizontal Reach: 21 ft 5 in
    • Up and Over Clearance: 11 ft 3 in
    • Turntable Rotation: 355° non-continuous
    • Drive Speed: 3 mph
    • Gradeability: 30%
  • Power
    • Hybrid Power Source: Electric and Fuel
    • Battery: 48V DC
    • Fuel Tank Capacity: 10 gal
  • Weight
    • Operating Weight: 14,898 lbs
  • Tires
    • Tire Type: Foam-filled
    • Tire Size: 22 in
  • Features
    • Proportional joystick controls
    • AC power to platform
    • Tilt alarm
    • Hour meter
    • Hybrid system for lower fuel emissions

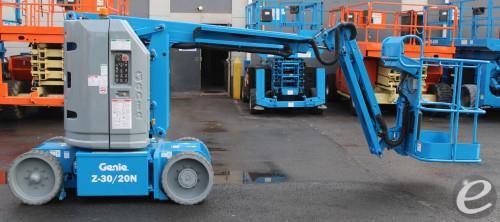

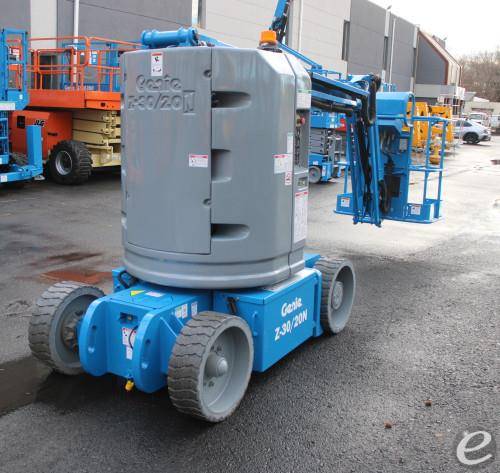

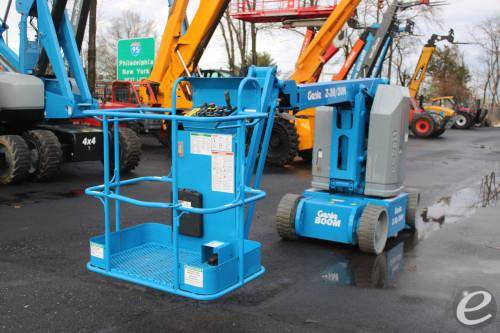

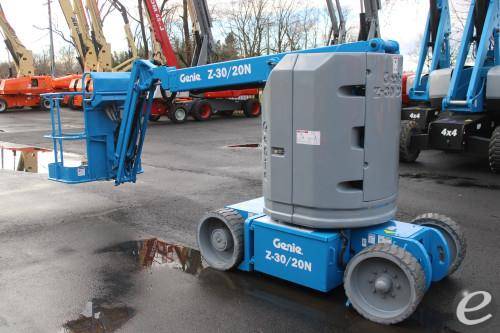

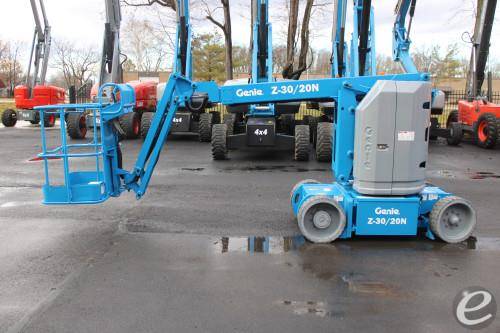

2016 Genie Z30/20N

articulated boom electric

$24,785 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Sales

ADDRESS
National Lift Equipment
300 Pond St.
BristolPennsylvania 19007
ATTRIBUTES
STOCK #:
150669
YEAR:
2016
Manufacturer:
MODEL #:
SUBCATEGORY:
Height:
30 ft
FUEL:
CONDITION:
Used
HOUR METER:
390
UNIT LOCATION:
Pennsylvania [19007]
POST DATE:
5/13/2026
Reviews
Useful
Not

The Genie Z30 20N articulated boom lift is a game changer for getting into tight spaces while needing that extra height for projects. Working on a recent outdoor event setup, I was able to maneuver it easily around equipment without any fuss. The electric power means it’s quiet and doesn’t stink up the area with fumes. It's definitely a solid choice if you're trying to get a lift that gets the job done without all the noise and hassle of gas engines. Plus, the controls felt intuitive, which made those long hours in the air way more bearable. All in all, it's a reliable lift that I wouldn't hesitate to recommend.



Review by Mike Thompson (9/26/2025)

  • General Specifications
    • Model Number: Z30 20N
    • Manufacturer: Genie
    • Type: Boom Lift
    • Subtype: Articulated Boom
    • Fuel Type Used: Hybrid (Electric and Fuel)
  • Dimensions
    • Length: 21 ft
    • Width: 4 ft 11 in
    • Height: 7 ft 2 in
    • Wheelbase: 6 ft 4 in
  • Performance
    • Platform Capacity: 500 lbs
    • Horizontal Reach: 21 ft 5 in
    • Up and Over Clearance: 11 ft 3 in
    • Turntable Rotation: 355° non-continuous
    • Drive Speed: 3 mph
    • Gradeability: 30%
  • Power
    • Hybrid Power Source: Electric and Fuel
    • Battery: 48V DC
    • Fuel Tank Capacity: 10 gal
  • Weight
    • Operating Weight: 14,898 lbs
  • Tires
    • Tire Type: Foam-filled
    • Tire Size: 22 in
  • Features
    • Proportional joystick controls
    • AC power to platform
    • Tilt alarm
    • Hour meter
    • Hybrid system for lower fuel emissions
