Heli stands out in the industry with its innovative and reliable equipment, renowned for outstanding performance and durability. Popular models like the Heli forklift lineup demonstrate exceptional lifting capacity and efficiency, making them the preferred choice for businesses seeking productivity and safety. The company's commitment to quality and customer satisfaction sets Heli apart from competitors, ensuring your operations run smoothly and effectively.

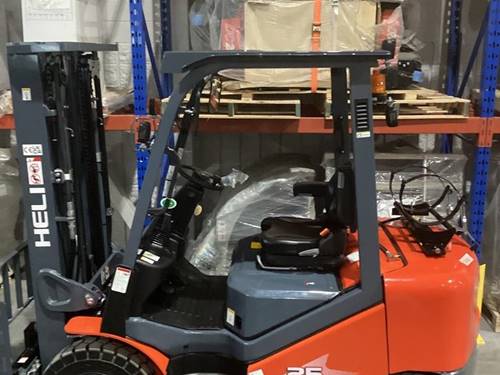

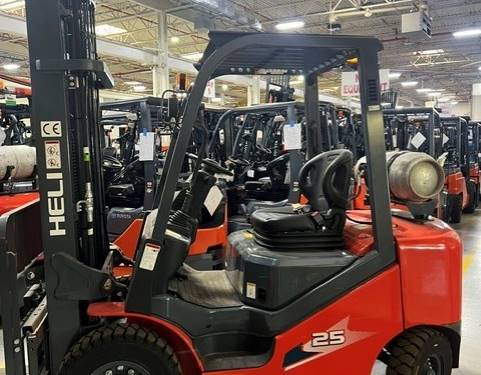

NEW 5000LB, LP, PNEUMATIC TIRES, TRIPLE MAST, SIDESHIFTER
Engine Specifications
Engine Model: Kubota V2403
Engine Type: Diesel
Displacement: 148 in³
Power: 49.5 hp
Fuel Tank Capacity: 13.2 gallons
Performance
Load Capacity: 5,000 lbs
Load Center: 23.6 inches
Travel Speed (loaded): 11 mph
Travel Speed (unloaded): 12 mph
Lifting Speed (loaded): varies
Lifting Speed (unloaded): varies
Dimensions and Weight
Overall Length (without forks): varies
Overall Width: 46.4 inches
Overall Height (overhead guard): 83.3 inches
Turning Radius: 86.6 inches
Wheelbase: 63.4 inches
Operating Weight: 8,380 lbs
Tires
Tire Type: Pneumatic
Front Tires: 7.00-12
Rear Tires: 6.00-9
Brakes
Service Brake: Hydraulic
Parking Brake: Mechanical, hand-operated
Steering
Steering Type: Power steering
Steering Angle: 85 degrees
Hydraulics
Hydraulic System Pressure: 2,900 psi
Hydraulic Tank Capacity: 9.2 gallons
Additional Features
Operator's Seat: Adjustable with seat belt
Instrumentation: Hour meter, fuel gauge, temperature gauge
Standard Lighting: Front and rear work lights
Drive Train-36 months or 6000 hrs: Heli America warrants each new Heli forklift Drive Motor, Motor Controller and Drive Axle to be free, under normal use and when the manufactures maintenance guidelines are followed, of defects in material and workmanship for thirty-six (36) months or 6,000 operating hours (whichever occurs first) from the date of first use by the original purchaser from an Authorized Heli Dealer or Heli Distributor.
Basic-2 YEARS or 4000 Hours: Heli America warrants each new Heli Forklift to be free, under normal use and when the manufactures maintenance guidelines are followed, of defects in material and workmanship for the first twenty-four (24) months or 4,000 operating hours (whichever occurs first) from the date of first use by the original purchaser from an Authorized Heli Dealer or Heli Distributor.
Associated Forklift, Inc. Jim Carr: 717-745-1490 670 Longs Gap Rd Carlisle, PA 17013
