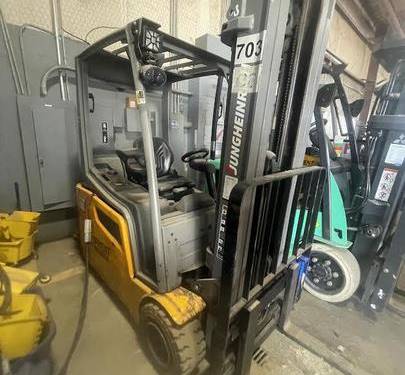

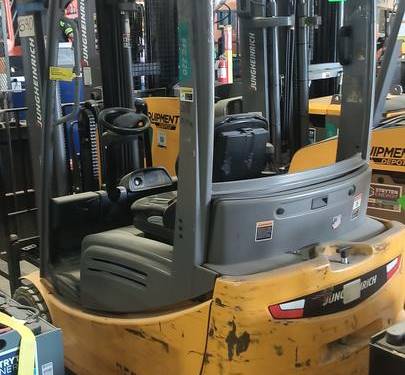

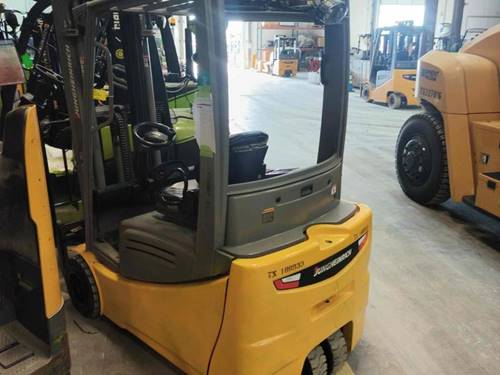

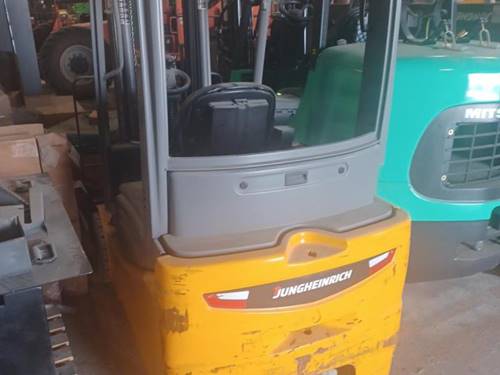

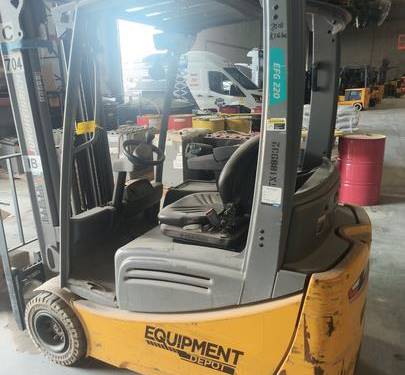

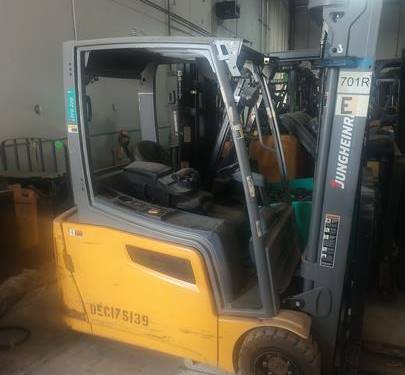

The Jungheinrich EFG 220 is known for its advanced ergonomic design, offering enhanced operator comfort and ease of use. It features energy-efficient electric motors that provide powerful performance and longer operating times between charges. Its compact design and excellent maneuverability make it suitable for use in narrow aisles and tight spaces. The forklift also includes advanced safety features and is designed for easy maintenance, contributing to lower overall operating costs.
Overall Length (excluding forks): Approximately 68 inches
Overall Width: Approximately 43 inches
Overall Height (cab): Approximately 84 inches
Wheelbase: Approximately 51 inches
Turning Radius: Approximately 55 inches
Weight
Service Weight (with battery): Approximately 7,500 pounds
Performance
Load Capacity: Up to 4,400 pounds
Travel Speed (loaded/unloaded): Approximately 9 mph
Lifting Speed (loaded/unloaded): Approx. 1 foot per second
Lowering Speed (loaded/unloaded): Approx. 1.2 feet per second
Gradeability (loaded/unloaded): Approx. 10%
Power Source
Power Unit: Electric
Battery Voltage: 48V
Battery Capacity: Approximately 775 Ah
Tires
Front Tires: 18x7-8
Rear Tires: 15x4.5-8
Brakes
Service Brake: Hydraulic
Parking Brake: Manual
Steering
Steering System: Electric Power Steering
Chicago, IL Dustin Siem: 262 369 5500 751 Expressway Dr. Itasca, IL 60143
