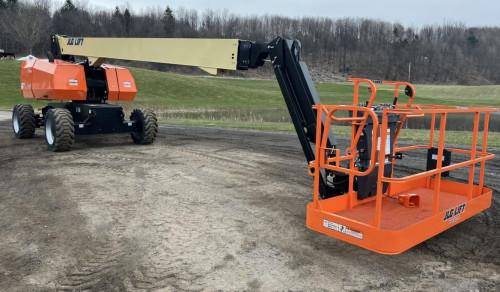

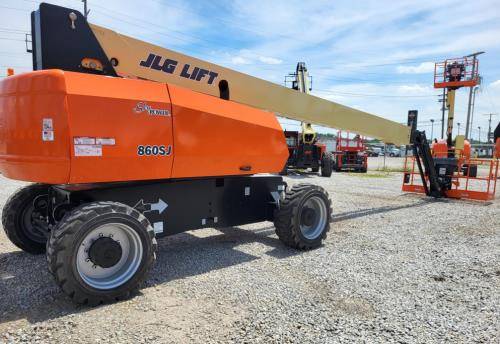

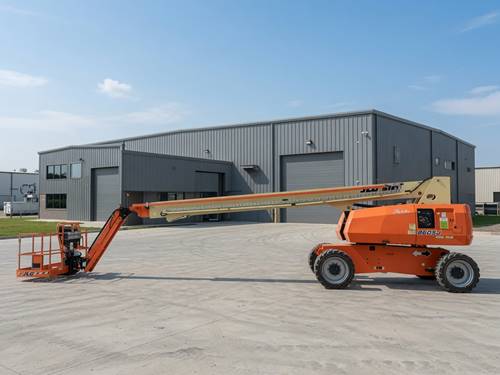

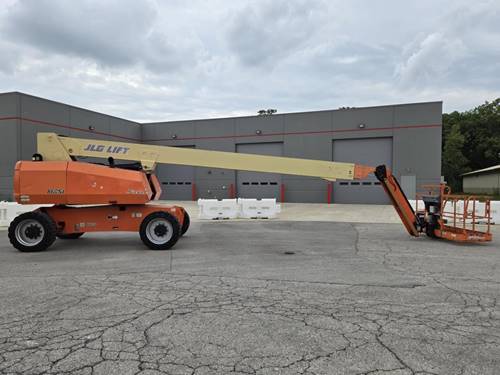

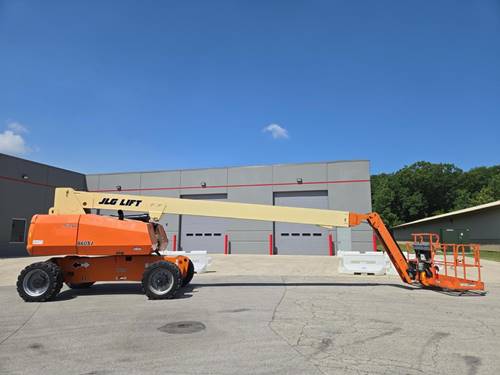

The JLG 860SJ HC3 is designed to handle heavier loads while maintaining stability and performance. It features the ability to operate with up to three occupants and their tools across its entire working envelope. The machine offers advanced load sensing technology, allowing it to adjust capacity based on load, ensuring safety and efficiency. With its enhanced outreach and a platform height of 86 feet, it is suited for a range of high-capacity applications.
Rental availability within the continental United States.
Model Number: 860SJ-D
Manufacturer: JLG
Type: Boom Lift
Subtype: Telescopic Boom
Fuel Type: Diesel
Dimensions
Overall Length: Approximately 37.7 feet
Overall Width: Approximately 8.2 feet
Overall Wheelbase: Approximately 9 feet
Ground Clearance: Approximately 1.2 feet
Weight
Machine Weight: Approximately 37,100 lbs
Performance
Platform Capacity: 500 lbs - 750 lbs range depending on configuration
Horizontal Outreach: Approximately 75.5 feet
Platform Rotation: 180 degrees
Turntable Rotation: Continuous 360 degrees
Drive Speed: Up to 3.5 mph
Gradeability: Up to 45%
Power
Engine: Diesel
Fuel Tank Capacity: Approximately 31.7 gallons
Engine Power: Approximately 74 hp
Chassis
Axle Oscillation: 8 inches
Steering: 4-wheel steer with coordinated, crab, and front steer modes
Drive: 4x4
MONTHLY RENTAL
$4,500 USD
WEEKLY RENTAL
$2,200 USD
DAILY RENTAL
$900 USD
Reserve Rental
All rental rates are subject to change without prior notice. Pricing may vary based on availability, demand, seasonal factors, or updates to policies. Rates provided at the time of inquiry or reservation are not guaranteed until confirmed. The rental provider reserves the right to adjust rates at their discretion.
