Equipment Description
Fully Serviced & Reconditioned with New Paint/Decals, RECON Battery, & Matching Used Charger...Retail Ready!! CALL FOR PRICE W/ NEW BATTERY!!
Spec Sheet
  • General Information
    • Model Number: 770-R45TT
    • Manufacturer: Raymond
    • Type: Forklift
    • Subtype: Electric Narrow Aisle Single Reach
    • Fuel Type: Electric
  • Dimensions
    • Overall Length: 117 inches
    • Overall Width: 42 inches
    • Overall Height (to top of overhead guard): 88 inches
    • Wheelbase: 57 inches
    • Turning Radius: 64 inches
  • Performance
    • Load Capacity: 4,500 lbs
    • Travel Speed (loaded/unloaded): 7 mph
    • Lift Speed (loaded/unloaded): 55 feet/min
    • Lowering Speed (loaded/unloaded): 60 feet/min
    • Gradeability (loaded): 10%
  • Chassis
    • Tire Type: Polyurethane
    • Number of Wheels: 3
    • Wheel Size:
      • Drive Tire: 12 inches
      • Load Wheel: 4 inches
  • Forks
    • Fork Length: Varies
    • Fork Width: 4 inches
    • Fork Thickness: 2 inches
    • Fork Spread: 24 inches (adjustable)
  • Powertrain
    • Drive Motor: 7.5 kW
    • Lift Motor: 15 kW
    • Battery Voltage: 36V
    • Battery Capacity: 930 Ah
  • Brakes
    • Brake Type: Electric Regenerative
  • Operator Environment
    • Steering Type: Electronic Power Steering
    • Seat Type: Adjustable, cushioned
    • Display: Multifunction LCD
    • Controls: Joystick control
  • Safety Features
    • Overhead Guard: Yes
    • Backup Alarm: Yes
    • Stability Control: Yes
    • Seat Belt: Yes
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

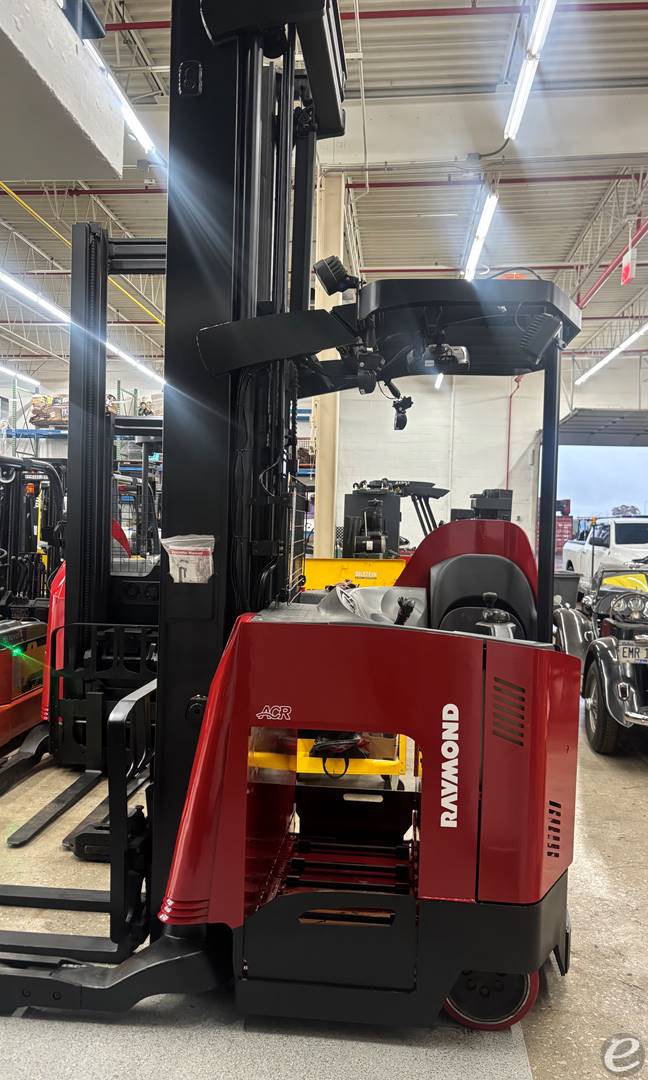

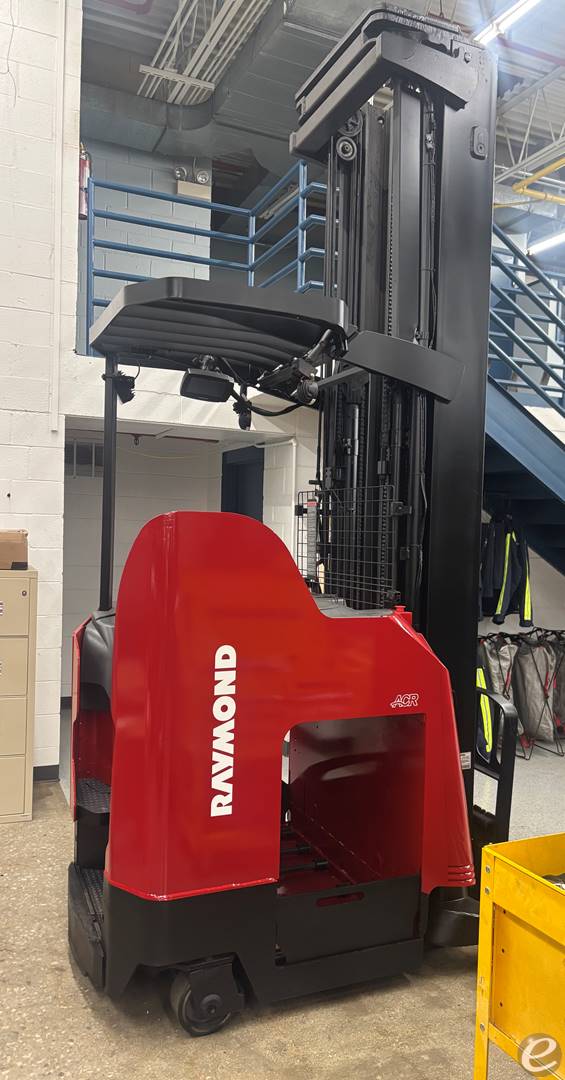

2020 Raymond 770-R45TT

electric narrow aisle single reach electric

$39,900 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
John Major
Phone:

ADDRESS
Chicago Forklift, LLC
1127 Dickens Dr.
OconomowocWisconsin 60056
ATTRIBUTES
YEAR:
2020
Manufacturer:
MODEL #:
CAPACITY:
4500
FUEL:
MAST TYPE:
MAST HEIGHT:
138 / 321 in
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
7335
UNIT LOCATION:
DESCRIPTION:
Hard to Find Raymond Sit-Down/Stand-Up Reach Truck!!
POST DATE:
10/8/2025
Reviews
Useful
Not

The Raymond 770-R45TT electric narrow aisle forklift has proven to be a game changer for our tight warehouse space. I've seen it maneuver through the aisles with ease, even when things get a bit crowded. One day, while trying to stack some heavy pallets in a tricky spot, the precision of this unit really shone through; it felt like an extension of my own body. The electric design not only keeps things quiet, which is nice during long shifts, but also helps cut down on maintenance hassles. Overall, it’s reliable, and definitely a solid choice for anyone needing a versatile lift in a busy environment.



Review by Mike Thompson (7/16/2025)
