  • General Information:
    • Model Number: TM 20
    • Manufacturer: Clark
    • Type: Forklift
    • Subtype: Electric 3 Wheel Sit Down
    • Fuel Type Used: Electric
  • Dimensions and Weight:
    • Overall Length: Varies
    • Overall Width: 39.4 inches
    • Overall Height: 83.1 inches
    • Wheelbase: 50.4 inches
    • Ground Clearance: 3.9 inches
    • Turning Radius: 55.1 inches
  • Weight:
    • Service Weight: 7399 lbs
  • Tires:
    • Tire Type: Cushion Tires
    • Front Tire Size: 18 x 6 x 12.1 inches
    • Rear Tire Size: 15 x 4.5 x 8 inches
  • Performance:
    • Load Capacity: 4000 lbs
    • Travel Speed: 9.3 mph (unloaded) / 9 mph (loaded)
    • Lifting Speed: 93 fpm (feet per minute) unloaded / 59 fpm loaded
    • Lowering Speed: 80 fpm unloaded / 98 fpm loaded
  • Electrical System:
    • Battery Voltage: 36V
    • Battery Capacity: 775 Ah
  • Power and Drive Unit:
    • Drive Motor Power: 6.7 kW
    • Lifting Motor Power: 10.2 kW
  • Operator Comfort:
    • Seat Type: Fully adjustable with suspension
    • Steering: Power steering

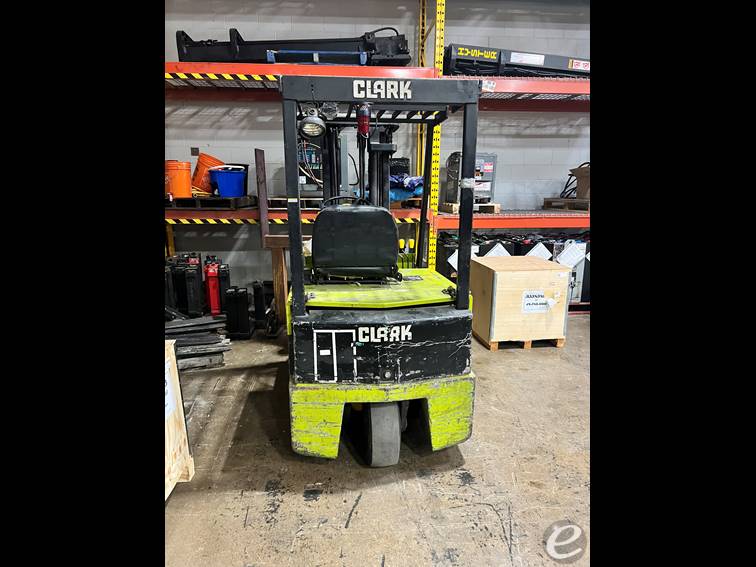

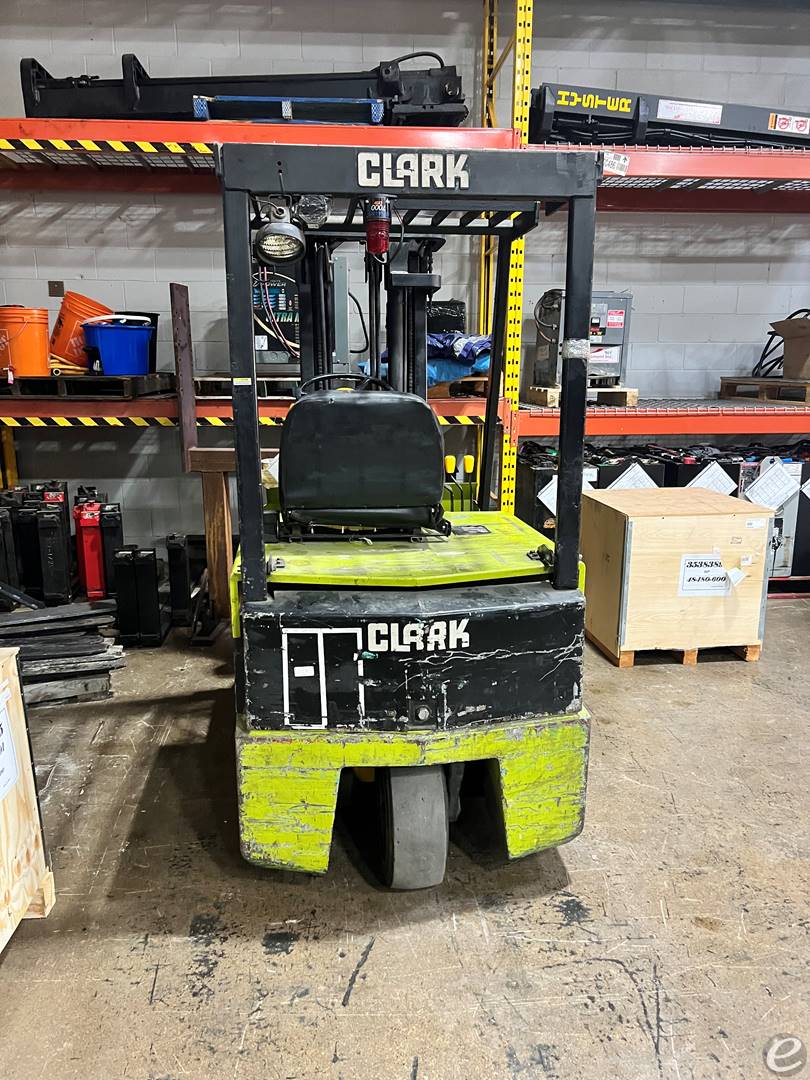

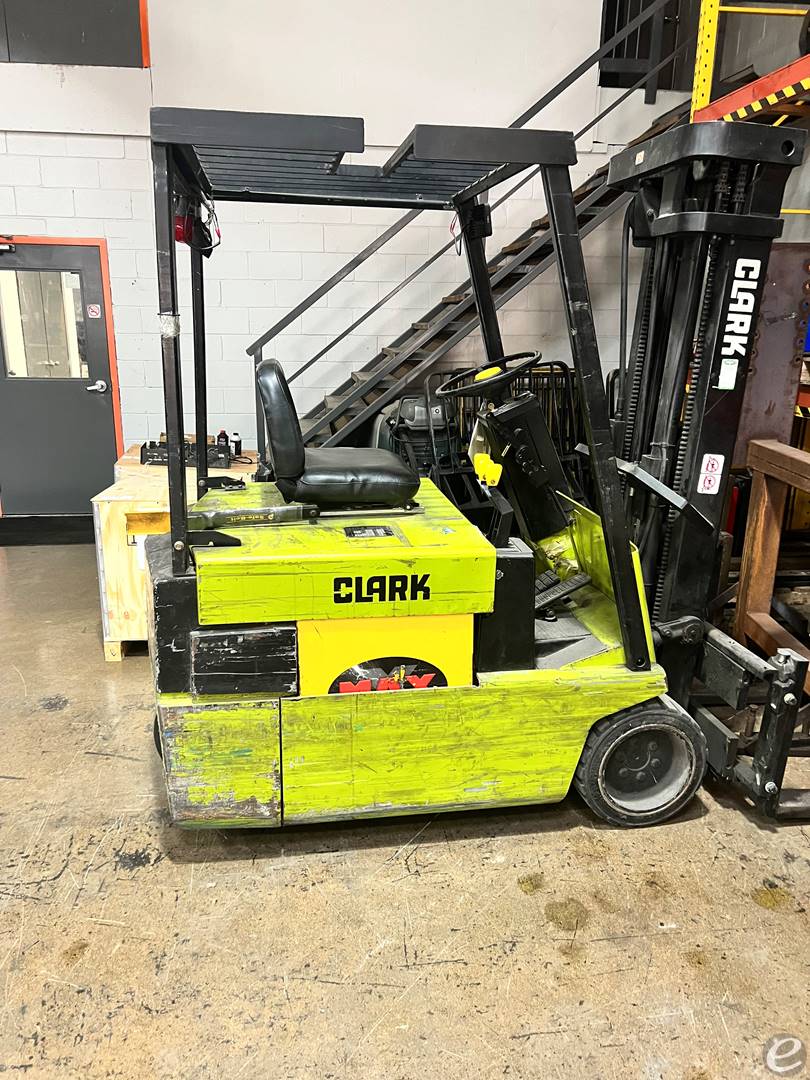

Clark TM20

electric 3 wheel sit down

Call for price

CONTACT INFO
Name:
Kevin Patrick
Phone:

ADDRESS
Premier Lift Equipment
99 West Drive Building H
BramptonOntario L6T 2J6
ATTRIBUTES
STOCK #:
7585
Manufacturer:
MODEL #:
CAPACITY:
4000
FUEL:
MAST TYPE:
MAST HEIGHT:
83 / 189 in
SERIAL #:
TM247–1113-9091FB
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
1084
UNIT LOCATION:
Ontario [L6T 2J6 ]
DESCRIPTION:
42” forks, traction drive tires,36 volt battery and charger
POST DATE:
3/19/2026
Reviews
Useful
Not

The Clark TM 20 electric forklift is a sturdy little beast that I've had the opportunity to operate at my friend's warehouse. It's impressively compact for a sit-down model, which makes navigating tight spaces a breeze. One day, during a particularly hectic shift, I was maneuvering it around stacks of pallets, and I was pleasantly surprised by how smoothly it handled. The electric power gives it a good amount of torque while being super quiet, which is a huge plus when you’re trying not to disturb the office workers upstairs. Overall, it's a reliable machine that gets the job done without the headaches.



Review by Jack Thompson (3/7/2025)

  • General Information:
    • Model Number: TM 20
    • Manufacturer: Clark
    • Type: Forklift
    • Subtype: Electric 3 Wheel Sit Down
    • Fuel Type Used: Electric
  • Dimensions and Weight:
    • Overall Length: Varies
    • Overall Width: 39.4 inches
    • Overall Height: 83.1 inches
    • Wheelbase: 50.4 inches
    • Ground Clearance: 3.9 inches
    • Turning Radius: 55.1 inches
  • Weight:
    • Service Weight: 7399 lbs
  • Tires:
    • Tire Type: Cushion Tires
    • Front Tire Size: 18 x 6 x 12.1 inches
    • Rear Tire Size: 15 x 4.5 x 8 inches
  • Performance:
    • Load Capacity: 4000 lbs
    • Travel Speed: 9.3 mph (unloaded) / 9 mph (loaded)
    • Lifting Speed: 93 fpm (feet per minute) unloaded / 59 fpm loaded
    • Lowering Speed: 80 fpm unloaded / 98 fpm loaded
  • Electrical System:
    • Battery Voltage: 36V
    • Battery Capacity: 775 Ah
  • Power and Drive Unit:
    • Drive Motor Power: 6.7 kW
    • Lifting Motor Power: 10.2 kW
  • Operator Comfort:
    • Seat Type: Fully adjustable with suspension
    • Steering: Power steering
