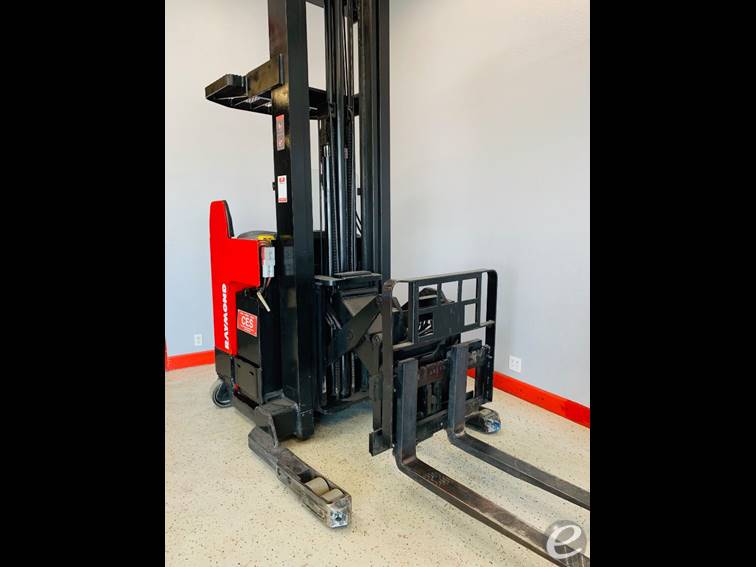

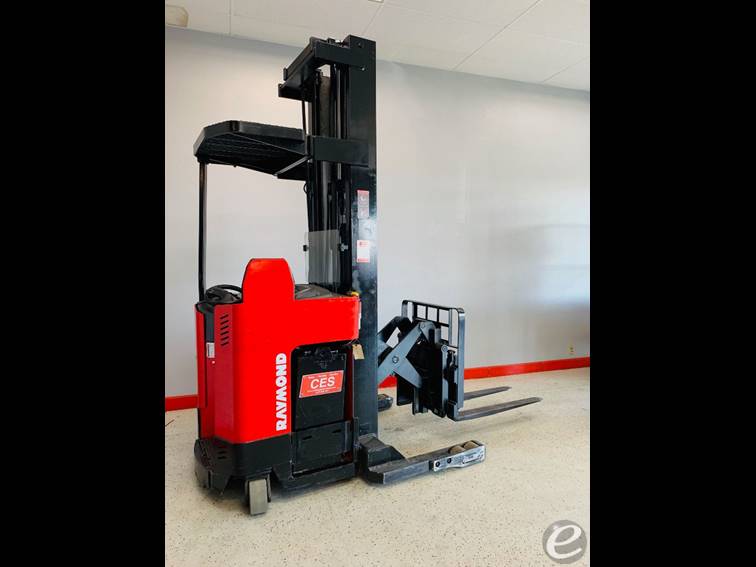

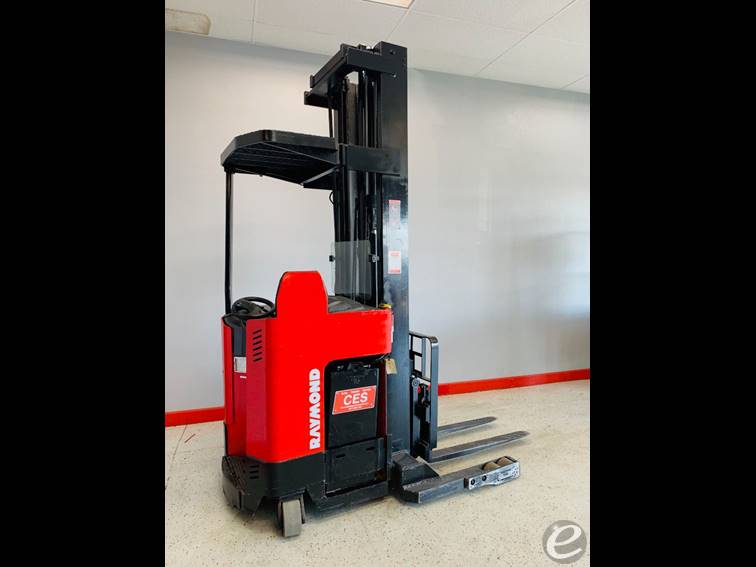

Raymond EASI R40TT

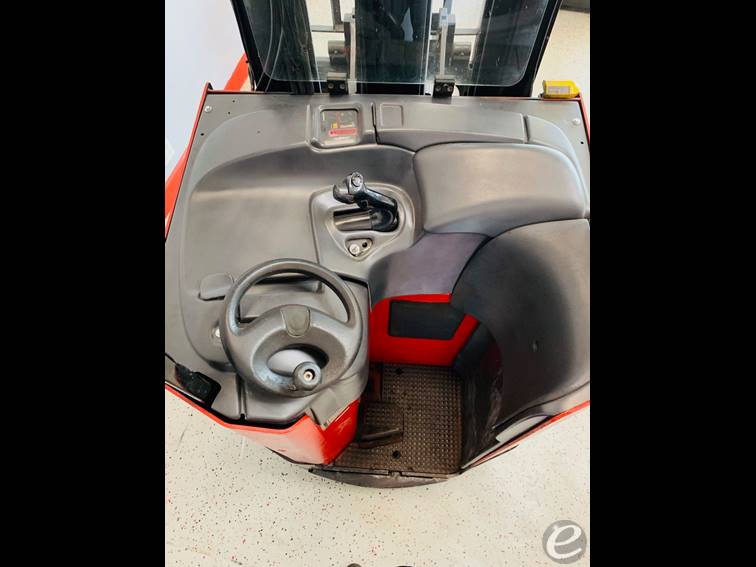

**Model: EASI R40TT Forklift Specifications** **Manufacturer:** - Raymond **General Specifications:** - **Model Number:** EASI R40TT - **Type:** Forklift - **Subtype:** Electric Narrow Aisle Single Reach - **Fuel Type:** Electric **Dimensions:** - **Length to Fork Face:** Approximately 84 inches - **Overall Width:** About 48 inches - **Wheelbase:** Approximately 60 inches - **Turning Radius:** Around 60 inches - **Overhead Guard Height:** Approximately 88 inches **Performance:** - **Load Capacity:** Up to 4,000 lbs - **Travel Speed:** Approximately 6.5 mph (laden/unladen) - **Lift Speed:** Approximately 50 feet per minute (unladen) - **Lower Speed:** Approximately 100 feet per minute (unladen) **Power Source:** - **Battery Type:** Electric Lead Acid - **Battery Voltage:** 36V - **Charger Type:** Onboard/External **Chassis:** - **Tires:** Polyurethane - **Brakes:** Regenerative and Electromagnetic **Operator Compartment:** - **Steering:** Electronic power-assisted steering - **Controls:** Multi-function control handle - **Seat/Stand:** Stand-up user position **Safety Features:** - **Standard Safety Features:** Proximity sensor, deadman pedal **Forks and Carriage:** - **Fork Length:** Varies - **Fork Width:** Approximately 3.9 inches each **Additional Options:** - **Cold Storage Option:** Yes (optional packages available) - **Accessory Rail:** Available for additional attachments
