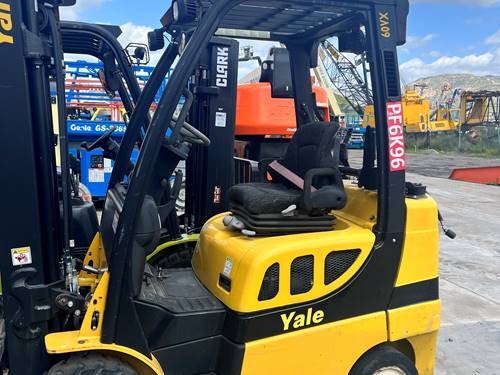

Yale's material handling equipment is distinct due to its emphasis on ergonomics, advanced technology, and energy efficiency. The company integrates ergonomic designs to enhance operator comfort and productivity, reducing strain and fatigue during operation. Yale's innovations often include intuitive controls and advanced telemetry systems that provide operators and fleet managers with real-time data and insights. The equipment is also known for its robust engineering and durability, catering to a wide range of industry needs, from warehousing to heavy-duty applications. Additionally, Yale prioritizes energy efficiency, with many of its models available in electric versions, reducing environmental impact and operational costs.
Subtype: Cushion Tire 4 Wheel Sit Down (Indoor Warehouse)
Powertrain:
Engine Type: Internal Combustion
Fuel Type: LPG (Liquefied Petroleum Gas)
Engine Model: GM 4.3L V6
Transmission: Powershift
Capacity:
Load Capacity: 12,000 lbs
Dimensions:
Overall Length: 133 inches
Overall Width: 55 inches
Overhead Guard Height: 91 inches
Wheelbase: 82 inches
Ground Clearance: 4.5 inches
Performance:
Travel Speed: Approximately 14 mph
Lift Speed: Approximately 100 ft/min
Lowering Speed: Approximately 98 ft/min
Tires:
Tire Type: Cushion
Front Tires: 22 x 9 x 16
Rear Tires: 18 x 7 x 12.125
Mast and Forks:
Fork Length: Varies
Operator Environment:
Steering: Hydrostatic Power Steering
Seat Type: Adjustable Suspension Seat
Control Type: Finger-tip Controls
Refurbished Lifts Brandon Wright: 909-552-8773 3788 Milliken Ave Ste D Eastvale, CA 91752
FINANCING
Finance with
As low as
$/mo
Finance with
As low as
$/mo
All finance rates, terms, and conditions are subject to approval and may change without prior notice. Rates are provided for informational purposes only and are not guaranteed. Final rates and terms will depend on creditworthiness, market conditions, and other factors at the time of application.
Overall Length (without forks): Approximately 122 inches
Wheelbase: 74 inches
Ground Clearance: 5 inches
Capacity
Load Capacity: 8,000 lbs
Fuel Capacity: Approximately 20 gallons (LPG)
Performance
Travel Speed (Unloaded): 14.5 mph
Lift Speed (Loaded): 110 feet per minute
Gradeability (Loaded): 28%
Tires
Type: Pneumatic
Tire Size (Front): 28 x 12.5-15
Tire Size (Rear): 6.50 x 10
Brakes
Service Brake: Hydraulic System
Parking Brake: Hand Lever Operated
Steering
Steering Type: Hydrostatic Power Steer
Turning Radius: 107 inches
National Lift Equipment Sales: (215) 544-2708 300 Pond St. Bristol, PA 19007
FINANCING
Finance with
As low as
$/mo
Finance with
As low as
$/mo
All finance rates, terms, and conditions are subject to approval and may change without prior notice. Rates are provided for informational purposes only and are not guaranteed. Final rates and terms will depend on creditworthiness, market conditions, and other factors at the time of application.
Overall Height: 49 inches to top of overhead guard
Fork Length: Varies
Weight:
Service Weight: Approximately 7,500 lbs
Tire Specifications:
Tire Type: Polyurethane
Number of Wheels (Front/Rear): 2/2
Performance:
Travel Speed: 6.5 mph unloaded
Lift Speed: 50 feet per minute unloaded
Lowering Speed: 60 feet per minute unloaded
Battery:
Battery Type: Industrial Lead-acid
Battery Voltage: 24V
Battery Capacity: 750 Ah
Controls:
Steering: Electronic Power Steering
Mast Operation: Lever Reach Control
National Lift Equipment Sales: (215) 544-2708 300 Pond St. Bristol, PA 19007
FINANCING
Finance with
As low as
$/mo
Finance with
As low as
$/mo
All finance rates, terms, and conditions are subject to approval and may change without prior notice. Rates are provided for informational purposes only and are not guaranteed. Final rates and terms will depend on creditworthiness, market conditions, and other factors at the time of application.
Subtype: Cushion Tire 4 Wheel Sit Down (Indoor Warehouse)
Power Source: LPG
Operator Type: Sit-Down Rider
**Dimensions**
Overall Length: Approximately 104 inches
Overall Width: 43-45 inches (depends on specific model configuration)
Overall Height to Top of Overhead Guard: Approximately 85 inches
Wheelbase: 63 inches
Ground Clearance: 3.75 inches
**Weights**
Base Weight: Approximately 10,500 pounds
**Capacity**
Rated Capacity: 6,000 pounds
**Tires**
Tire Type: Cushion
Number of Wheels: 4
Front Tire Size: 21 x 7 x 15 inches
Rear Tire Size: 16 x 5 x 10.5 inches
**Engine**
Engine Type: LPG Engine
**Transmission**
Transmission Type: Powershift
Number of Speeds: 1 Forward/1 Reverse
**Performance**
Travel Speed: Up to 11 mph
Lift Speed: Approximately 110 fpm (feet per minute)
**Braking System**
Service Brake: Hydraulic
Parking Brake: Hand operated
**Steering**
Steering System: Automotive-type with hydrostatic power steering
**Additional Features**
Operator Presence Detection System: Standard
Adjustable Steering Column: Standard
Ergonomic Seat: Optional suspension seat available
Access Lift Equipment Inc. Steve Hornbaker: 717-366-7377 2180 Carbaugh Ave. Chambersburg, PA 17201
FINANCING
Finance with
As low as
$/mo
Finance with
As low as
$/mo
All finance rates, terms, and conditions are subject to approval and may change without prior notice. Rates are provided for informational purposes only and are not guaranteed. Final rates and terms will depend on creditworthiness, market conditions, and other factors at the time of application.
Quality Forklift Inc. Bob Hennen: 651-433-6901 587 Citation Dr Shakopee, MN 55379
FINANCING
Finance with
As low as
$/mo
Finance with
As low as
$/mo
All finance rates, terms, and conditions are subject to approval and may change without prior notice. Rates are provided for informational purposes only and are not guaranteed. Final rates and terms will depend on creditworthiness, market conditions, and other factors at the time of application.
