  • General Specifications
    • Model Number: 18BT-9
    • Manufacturer: Hyundai
    • Type: Forklift
    • Subtype: Electric 3 Wheel Sit Down
    • Fuel Type: Electric
  • Dimensions
    • Overall Length: 8.03 ft
    • Overall Width: 3.22 ft
    • Overall Height (cab): 7.06 ft
    • Wheelbase: 4.63 ft
    • Ground Clearance: 3.54 in
    • Turning Radius: 4.92 ft
    • Fork Length: Varies
  • Capacity
    • Load Capacity: 3,968 lbs
    • Load Center: 1.64 ft
  • Performance
    • Travel Speed (loaded): 9.32 mph
    • Travel Speed (unloaded): 10.5 mph
    • Lifting Speed (loaded): 59 ft/min
    • Lifting Speed (unloaded): 98.4 ft/min
    • Lowering Speed (loaded): 98.4 ft/min
    • Lowering Speed (unloaded): 79 ft/min
    • Gradeability (loaded): 23%
    • Max Drawbar Pull: 3,637 lbf
  • Weight
    • Service Weight: 7,826 lbs
  • Tires
    • Front Tires: 18x7-8
    • Rear Tires: 15x4.5-8

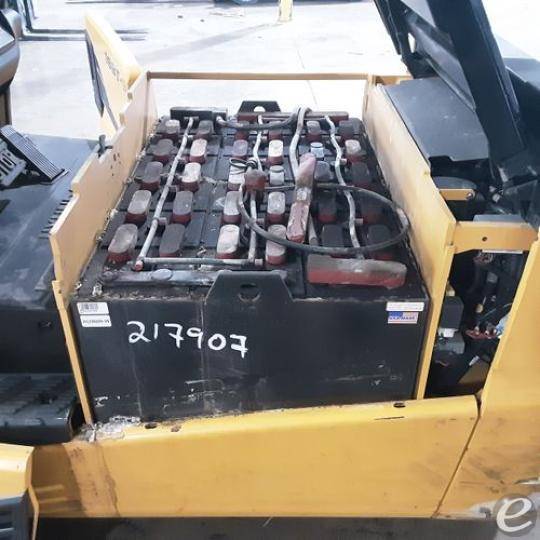

  • Battery & Electrical
    • Battery Voltage: 48V
    • Battery Capacity: 360 Ah
  • Hydraulic System
    • Hydraulic Tank Capacity: 8.5 gallons

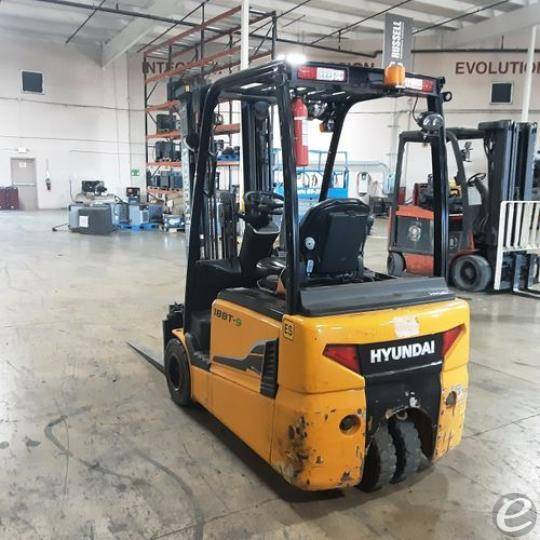

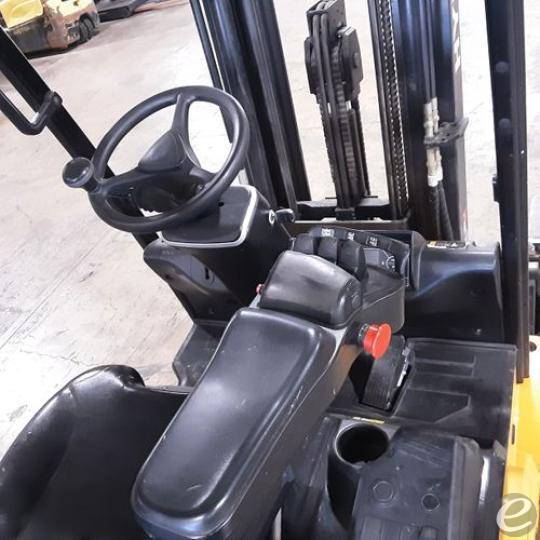

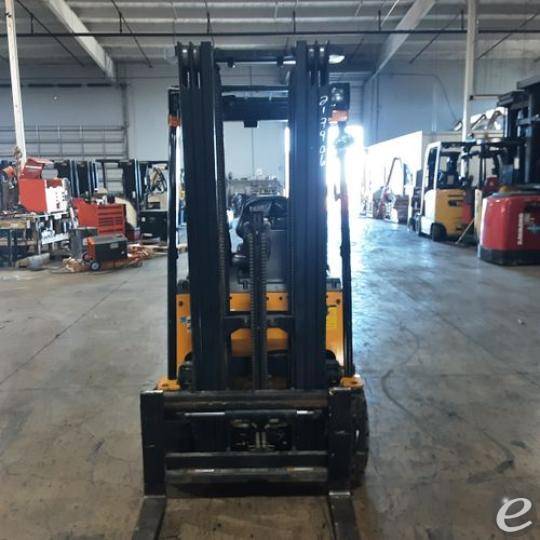

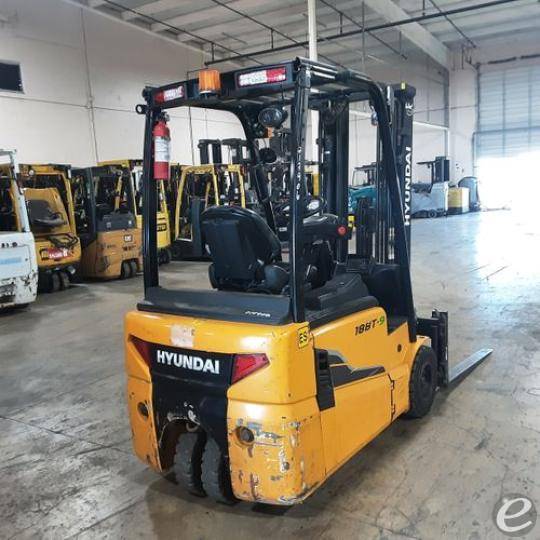

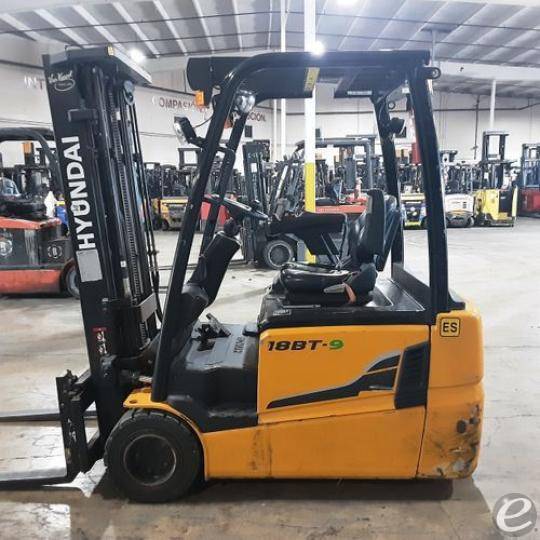

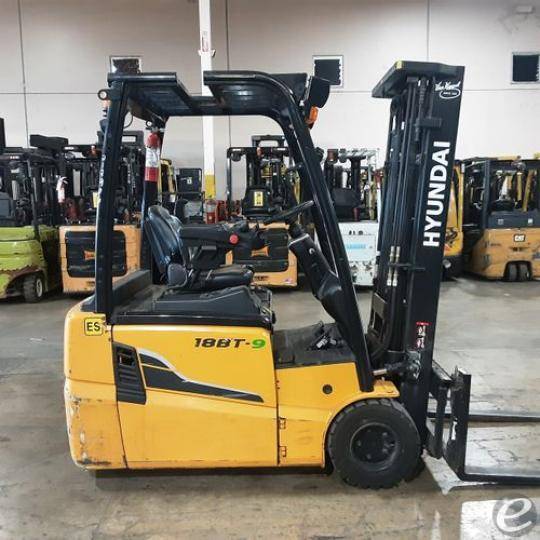

2017 Hyundai 18BT-9

electric 3 wheel sit down electric

Call for price

CONTACT INFO
Name:
Sales Dept.
Phone:

ADDRESS
Russell Equipment
1793 Enterprise Parkway
TwinsburgOhio 44087
ATTRIBUTES
STOCK #:
217906
YEAR:
2017
Manufacturer:
MODEL #:
CAPACITY:
3000
FUEL:
MAST TYPE:
UNIT LOCATION:
Ohio [44087]
POST DATE:
3/10/2026
Reviews
Useful
Not

The Hyundai 18BT-9 electric forklift has been a game changer for our warehouse operations. It’s incredibly smooth to drive, and the three-wheel design makes it easy to maneuver around tight corners, which is something I really appreciate during our busy shifts. I remember a time when our old forklift would struggle to make those turns, causing delays and frustration. With this machine, I can get the job done more efficiently while also feeling confident about its reliability. Plus, being electric means it’s much quieter and doesn’t emit fumes, making the work environment a lot more pleasant. All in all, it’s a good investment for anyone looking to enhance their material handling.

Review by Jake Thompson
