Equipment Description
36V, 42" Forks, 2588 Hours
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • Manufacturer: Crown
  • Model Number: RC5510-30
  • Type: Forklift
  • Subtype: Electric Stand Up End Control (Docker)
  • Fuel Type: Electric
  • General Specifications
    • Operator Position: Stand-up, end control
    • Configuration: 3-wheel
  • Dimensions
    • Overall Length: 72 inches
    • Overall Width: 42 inches
    • Height to Top of Overhead Guard: 88 inches
    • Wheelbase: 51 inches
    • Turning Radius: 60 inches
  • Performance
    • Load Capacity: 3,000 lbs
    • Travel Speed - Loaded/Unloaded: 6.0 mph
    • Lift Speed - Loaded/Unloaded: 55 feet per minute
    • Lowering Speed - Loaded/Unloaded: 80 feet per minute
    • Gradeability - Loaded/Unloaded: 10% / 15%
  • Powertrain
    • Voltage: 36V
    • Drive Motor: AC
  • Wheels and Tires
    • Drive Wheel: 16 x 5 inches, cushion
    • Load Wheels: 10 x 4 inches, polyurethane
  • Forks
    • Fork Length: Varies
    • Fork Width: 4 inches
    • Fork Thickness: 1.5 inches
    • Fork Spread - Minimum/Maximum: 9 inches / 33 inches

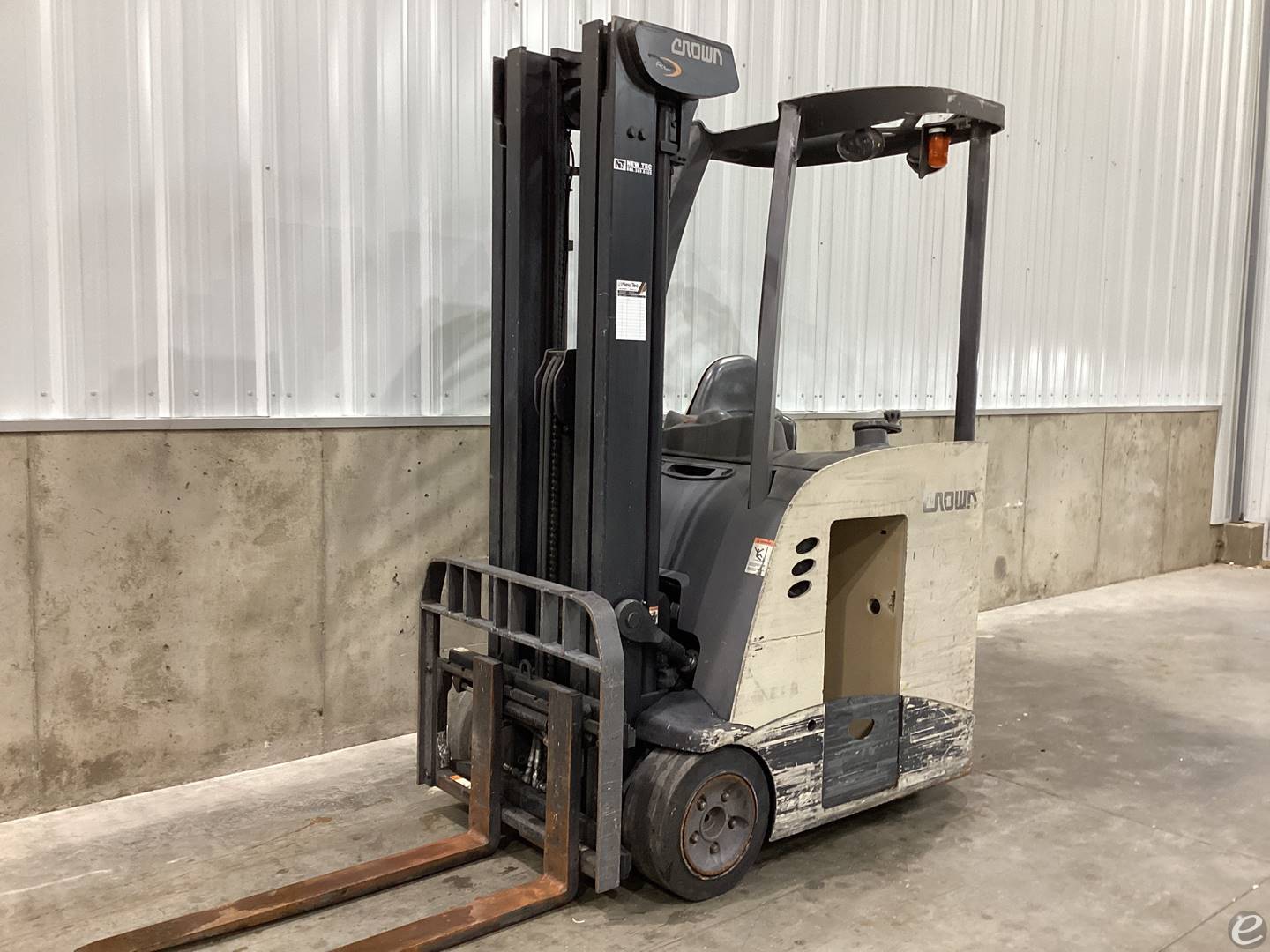

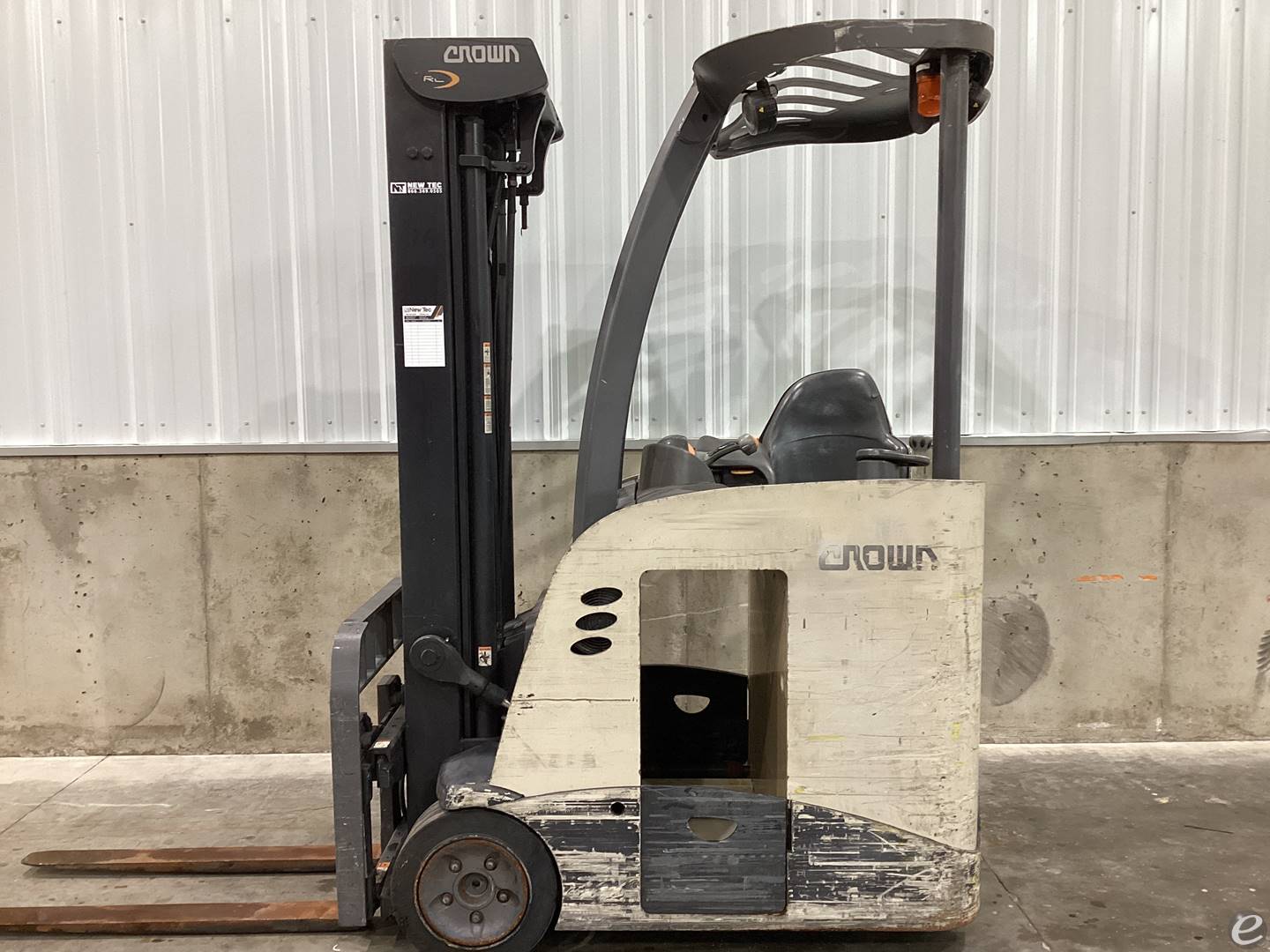

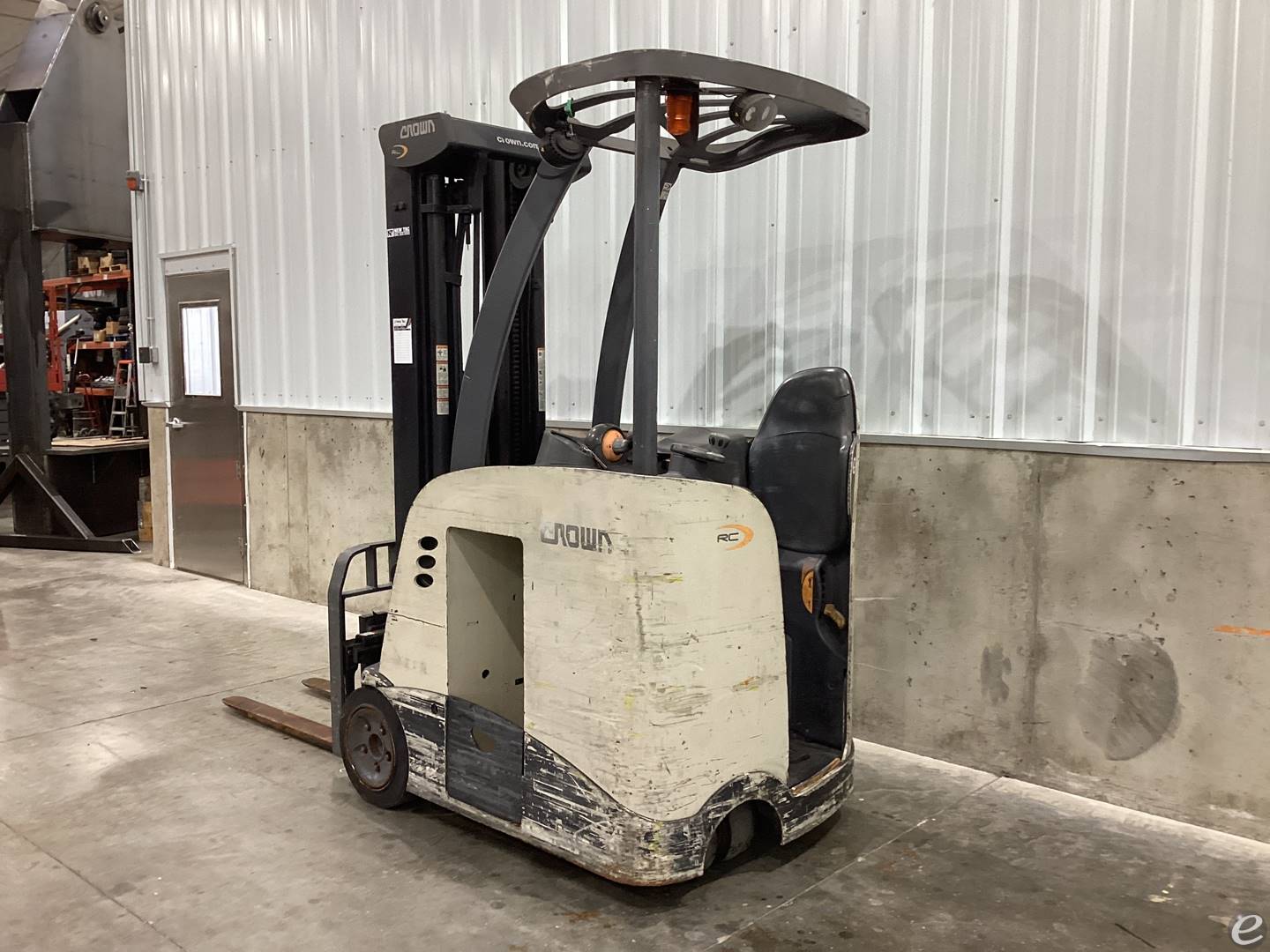

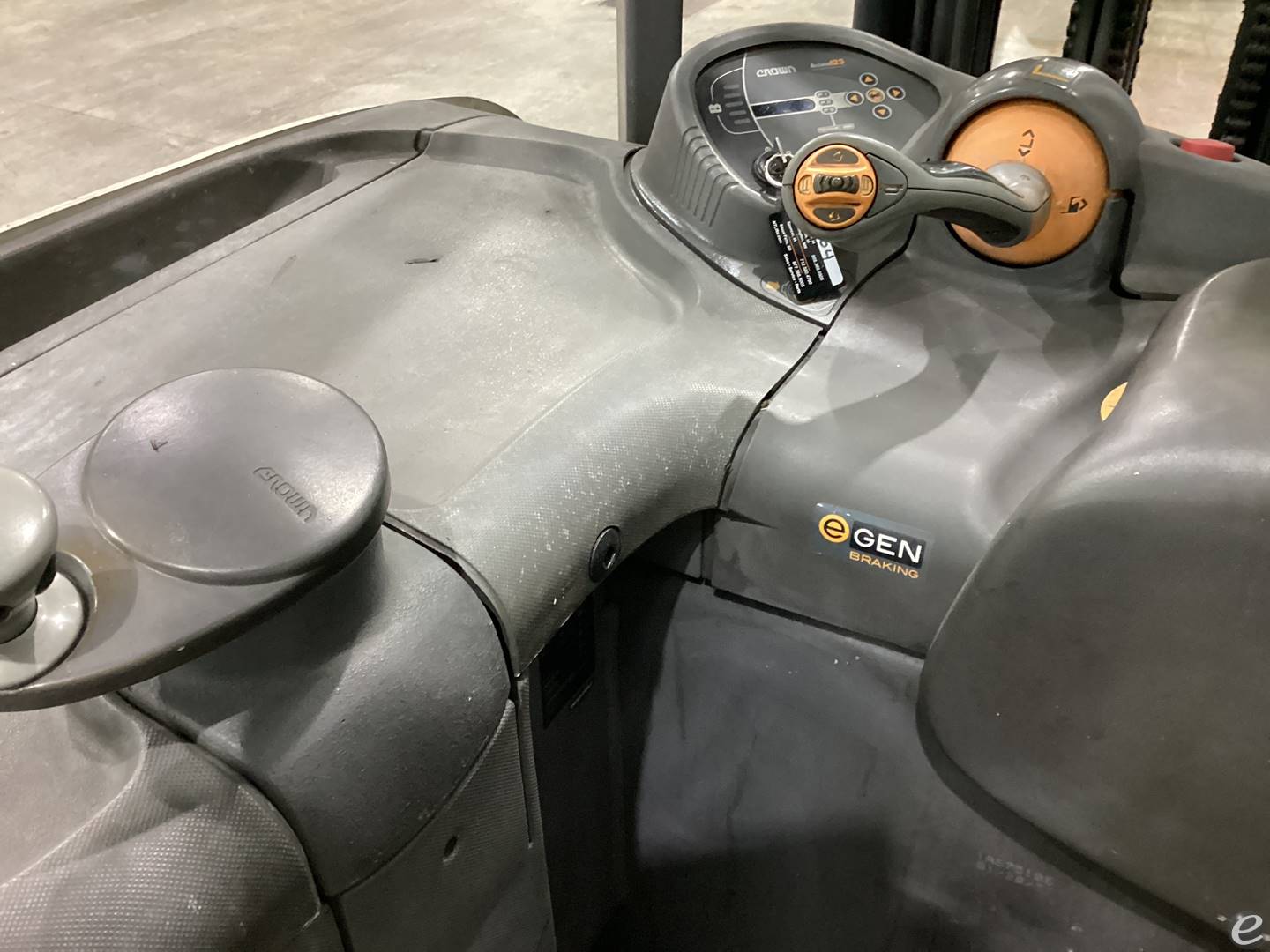

2019 Crown RC5510-30

electric walkie counterbalanced stacker

Call for price

CONTACT INFO
Name:
Jeremy or Tage
Phone:
Website:

ADDRESS
New Tec, Inc.
3764 US 75 Ave
Sioux CenterIowa 51250
ATTRIBUTES
STOCK #:
0022304
YEAR:
2019
Manufacturer:
MODEL #:
CAPACITY:
3000
FUEL:
MAST TYPE:
MAST HEIGHT:
89 / 208 in
SERIAL #:
1A575108
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
2588
UNIT LOCATION:
Iowa [51250]
DESCRIPTION:
RC5510-30 3,000 lb Capacity, 3st 89/208 Mast, Side Shift
POST DATE:
6/1/2026
Reviews
Useful
Not

The Crown RC5510-30 is one of those forklifts that feels like an extension of your body once you get the hang of it. I remember my first time using it at a local warehouse; it was surprisingly smooth and easy to maneuver, even in tight spots. The electric power means you’re not constantly battling fumes, which makes a huge difference during long shifts. My buddy who operates forklifts all day mentioned how the ergonomics really reduce strain, and I totally get it; my back felt fine after a full day. If you’re in the market for something reliable that won’t have you sweating bullets, this one’s worth a look.



Review by Jake Thompson (5/2/2025)

  • Manufacturer: Crown
  • Model Number: RC5510-30
  • Type: Forklift
  • Subtype: Electric Stand Up End Control (Docker)
  • Fuel Type: Electric
  • General Specifications
    • Operator Position: Stand-up, end control
    • Configuration: 3-wheel
  • Dimensions
    • Overall Length: 72 inches
    • Overall Width: 42 inches
    • Height to Top of Overhead Guard: 88 inches
    • Wheelbase: 51 inches
    • Turning Radius: 60 inches
  • Performance
    • Load Capacity: 3,000 lbs
    • Travel Speed - Loaded/Unloaded: 6.0 mph
    • Lift Speed - Loaded/Unloaded: 55 feet per minute
    • Lowering Speed - Loaded/Unloaded: 80 feet per minute
    • Gradeability - Loaded/Unloaded: 10% / 15%
  • Powertrain
    • Voltage: 36V
    • Drive Motor: AC
  • Wheels and Tires
    • Drive Wheel: 16 x 5 inches, cushion
    • Load Wheels: 10 x 4 inches, polyurethane
  • Forks
    • Fork Length: Varies
    • Fork Width: 4 inches
    • Fork Thickness: 1.5 inches
    • Fork Spread - Minimum/Maximum: 9 inches / 33 inches
