Equipment Description

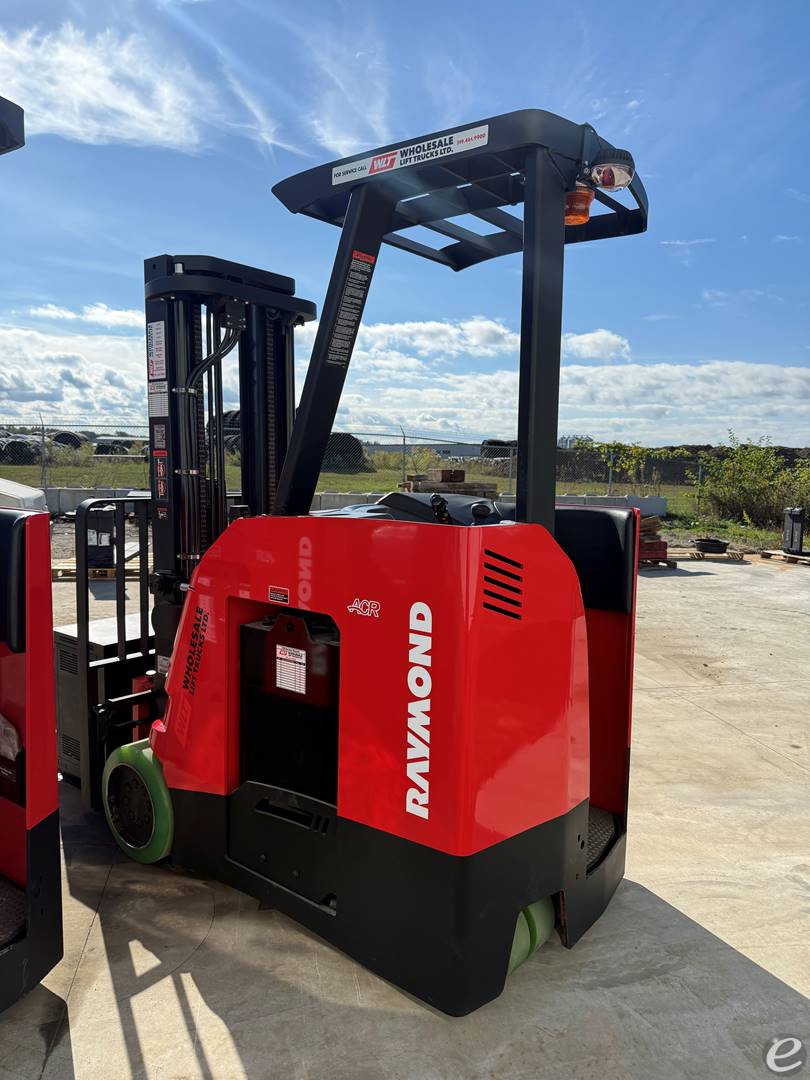

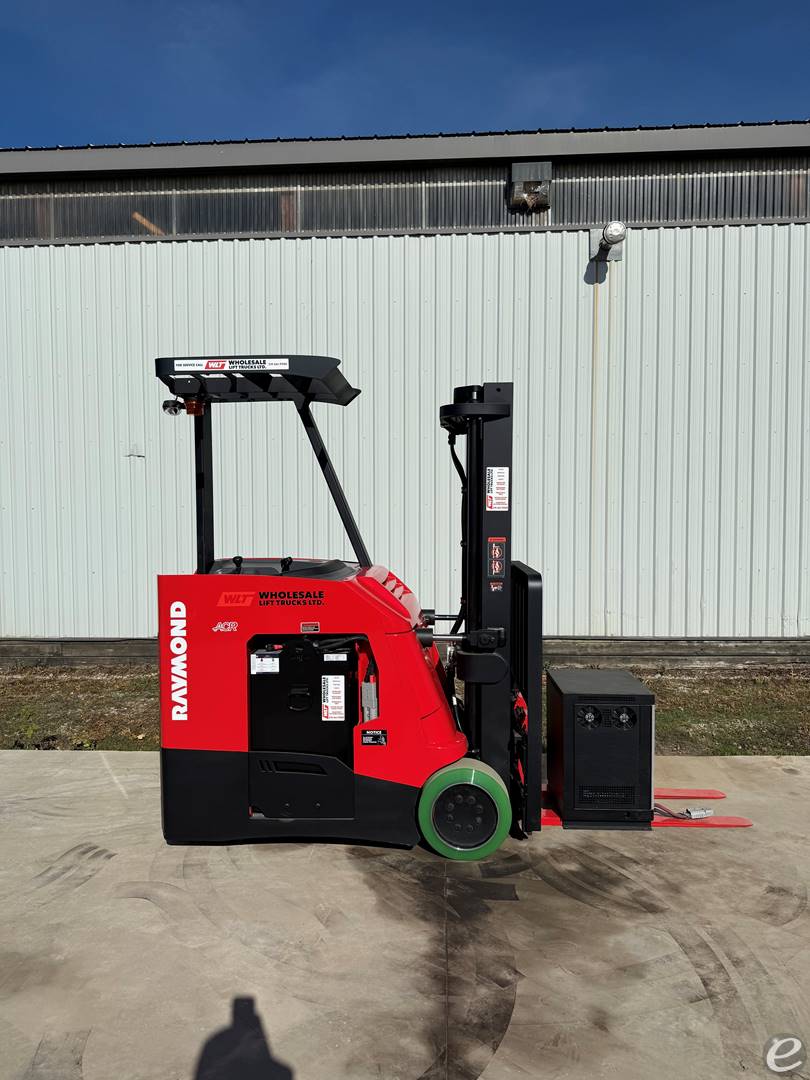

2023 Raymond 425-C30TT Forklift Electric Powered | New 36V Battery | Equipped with Side Shifter | 3-Stage Mast | Charger Included Specifications: Make: Raymond Model: 425-C30TT Year: 2023 Basic Capacity: 3,000lbs @ 24” Load Centre Mast: 3-Stage Standard (208” Max Lift Height) Attachment: Side Shifter Forks: 42” Battery: NEW 36V w/Charger Now available from Wholesale Lift Trucks Ltd, Ontario’s trusted source for Used and Reconditioned material handling equipment. Optional: Factory-level repainting and reconditioning available to match your fleet or corporate colours. Why WLT? Lease-to-own available Expert sales & service support Nationwide shipping (Canada & U.S.) P: 519-461-9900 E: sales@wlt-ltd.com W: www.wlt-ltd.com
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Information
    • Model Number: 425 C30TT
    • Manufacturer: Raymond
    • Type: Forklift
    • Subtype: Electric Stand Up End Control (Docker)
    • Fuel Type: Electric
  • Dimensions
    • Overall Width: Approximately 42 inches
    • Overall Length: Approximately 98 inches
    • Overall Height: Approximately 89 inches (varies by configuration)
    • Wheelbase: Approximately 61 inches
    • Ground Clearance: Approximately 3 inches
    • Fork Length: Varies
  • Performance
    • Load Capacity: 3,000 lbs
    • Travel Speed (loaded/unloaded): Approximately 6.5 mph loaded, 7.5 mph unloaded
    • Gradeability: 8% loaded, 10% unloaded
  • Powertrain
    • Power Source: 36V Electric Battery
    • Drive Motor: AC motor technology
    • Control System: AC drive controller
  • Chassis
    • Tire Type: Cushion
    • Steering: Electric power steering
    • Braking System: Regenerative braking
  • Operator Features
    • Operator Compartment: Stand-up end control operator station
    • Instrumentation: Multifunction display with battery discharge indicator, hour meter, and fault indicator
    • Seating: None, stand-up operation
    • Controls: Fingertip control system
  • Safety Features
    • Emergency Power Disconnect
    • Load Backrest
    • Integrated Operator Presence System

2023 Raymond 425-C30TT

electric stand up end control (docker) electric

Call for price

CONTACT INFO
Name:
Sales
Phone:

ADDRESS
Wholesale Lift Trucks
21767 Nissouri Rd Unit B
ThorndaleOntario N0M 2P0
ATTRIBUTES
YEAR:
2023
Manufacturer:
MODEL #:
CAPACITY:
3000
FUEL:
MAST TYPE:
MAST HEIGHT:
208 in
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
2453
UNIT LOCATION:
Ontario [N0M 2P0]
DESCRIPTION:
2023 Raymond 425-C30TT
POST DATE:
5/14/2026
Reviews
Useful
Not

The Raymond 425 C30TT is quite the handy electric stand-up forklift, especially if you've got tight spaces to maneuver in like we did at the warehouse. It's got this really smooth control that makes it easy to zip around corners, and I’ve definitely appreciated that during busy shifts when you need to get things done fast. The electric power is a huge plus, too—not nearly as noisy as the older gas models we’ve used, which makes the workday feel a bit less hectic. I remember trying to turn the older machines around and nearly crashing into shelves, but this one really lets you pivot easily without breaking a sweat. Overall, it’s made daily tasks feel a lot more manageable and less of a hassle.


Review by Jake Thompson

  • General Information
    • Model Number: 425 C30TT
    • Manufacturer: Raymond
    • Type: Forklift
    • Subtype: Electric Stand Up End Control (Docker)
    • Fuel Type: Electric
  • Dimensions
    • Overall Width: Approximately 42 inches
    • Overall Length: Approximately 98 inches
    • Overall Height: Approximately 89 inches (varies by configuration)
    • Wheelbase: Approximately 61 inches
    • Ground Clearance: Approximately 3 inches
    • Fork Length: Varies
  • Performance
    • Load Capacity: 3,000 lbs
    • Travel Speed (loaded/unloaded): Approximately 6.5 mph loaded, 7.5 mph unloaded
    • Gradeability: 8% loaded, 10% unloaded
  • Powertrain
    • Power Source: 36V Electric Battery
    • Drive Motor: AC motor technology
    • Control System: AC drive controller
  • Chassis
    • Tire Type: Cushion
    • Steering: Electric power steering
    • Braking System: Regenerative braking
  • Operator Features
    • Operator Compartment: Stand-up end control operator station
    • Instrumentation: Multifunction display with battery discharge indicator, hour meter, and fault indicator
    • Seating: None, stand-up operation
    • Controls: Fingertip control system
  • Safety Features
    • Emergency Power Disconnect
    • Load Backrest
    • Integrated Operator Presence System
