  • General Specifications
    • Model Number: RSS30
    • Manufacturer: Raymond
    • Type: Forklift
    • Subtype: Electric Walkie Straddle Stacker Reach
  • Power and Drive System
    • Power Source: Electric
    • Battery Voltage: 24V
    • Drive Motor: 1.5 hp
    • Hydraulic Motor: 3 hp
    • Steering: Electric Power Steering
  • Capacity
    • Load Capacity: 3,000 lbs
  • Dimensions
    • Overall Length: 8.5 ft (varies)
    • Overall Width: 3.3 ft
    • Overall Height (Lowered): 7 ft
    • Fork Length: Varies
    • Load Center: 2 ft
  • Performance
    • Travel Speed (Loaded/Unloaded): 3.4 mph / 3.5 mph
    • Lift Speed (Loaded/Unloaded): 36 ft/min / 48 ft/min
    • Lowering Speed (Loaded/Unloaded): 45 ft/min / 38 ft/min
  • Weight
    • Truck Weight Without Battery: 2,720 lbs
  • Brakes
    • Service Brake: Electromagnetic
  • Tires
    • Drive Tire: Polyurethane
    • Load Tires: Polyurethane

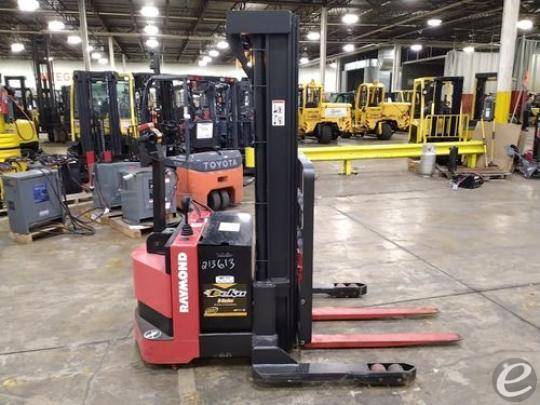

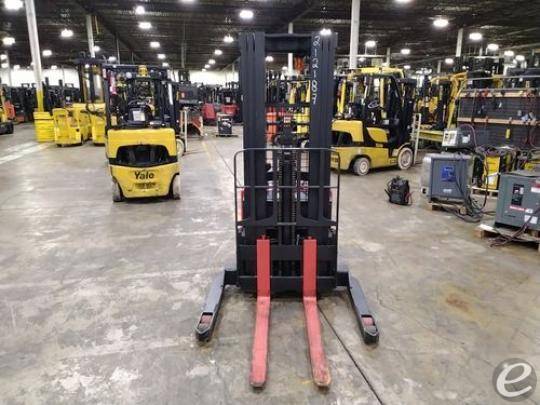

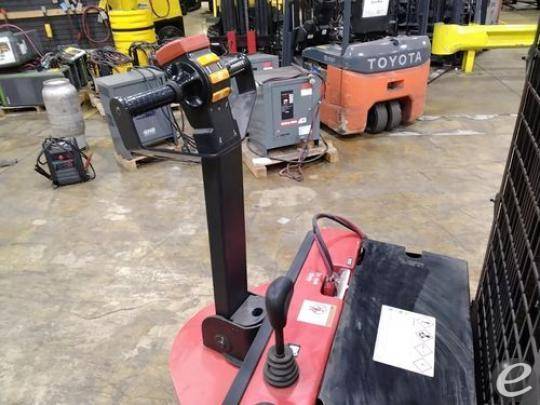

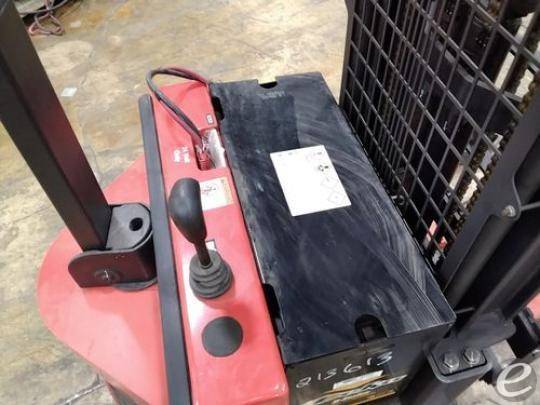

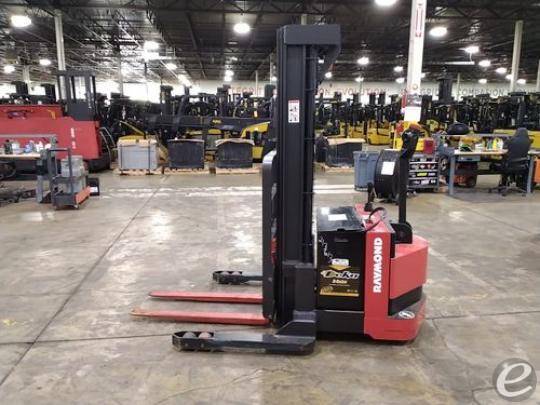

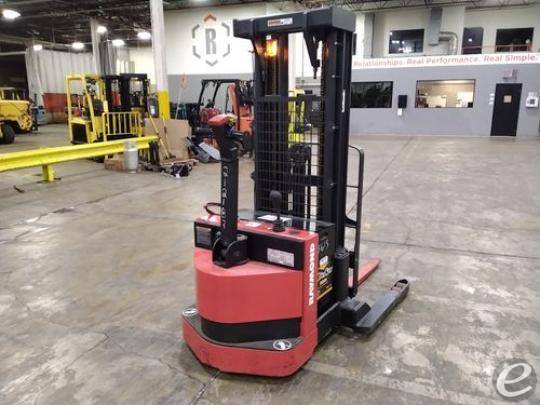

2021 Raymond RSS30

electric walkie straddle stacker reach electric

Call for price

CONTACT INFO
Name:
Sales Dept.
Phone:

ADDRESS
Russell Equipment
1793 Enterprise Parkway
TwinsburgOhio 44087
ATTRIBUTES
STOCK #:
212187
YEAR:
2021
Manufacturer:
MODEL #:
CAPACITY:
3000
FUEL:
MAST TYPE:
UNIT LOCATION:
Ohio [44087]
POST DATE:
2/20/2026
Reviews
Useful
Not

Having spent quite a bit of time operating the Raymond RSS30 electric walkie straddle stacker, I can say it’s been a game changer in our warehouse. Maneuvering it around tight aisles is surprisingly easy, which was a relief during our peak season when space is at a premium. I remember one particularly hectic afternoon where this unit really shined while stacking pallets in a pinch. The battery life holds up well, and it’s pretty quiet, which made those long shifts a bit more bearable. Overall, it's solid equipment that gets the job done without too much fuss.
