Equipment Description
2011 Cat LP forklift. 8000 capacity with cushion tires. Model# GC40KSTR.
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Information
    • Manufacturer: Caterpillar
    • Model Number: GC40KSTR
    • Type: Cushion Tire Forklift
  • Engine Specifications
    • Engine Model: GCT GK45
    • Fuel Type: LPG
    • Rated Power: 97 HP
    • Displacement: 273 cubic inches
  • Dimensions
    • Overall Length: 127.6 inches
    • Overall Width: 55.1 inches
    • Height to Top of Overhead Guard: 91.1 inches
    • Wheelbase: 78.7 inches
  • Performance
    • Load Capacity: 8,000 lbs
    • Travel Speed (laden): 11.2 mph
    • Travel Speed (unladen): 12.4 mph
    • Lift Speed (laden): 98 feet/min
    • Lift Speed (unladen): 110 feet/min
    • Gradeability (laden): 35%
  • Brakes and Drive
    • Service Brake: Hydraulic
    • Parking Brake: Mechanical, Hand Lever
  • Tires
    • Tire Type: Cushion
    • Front Tires: 22 x 9 x 16 inches
    • Rear Tires: 18 x 7 x 12.1 inches
  • Hydraulic System
    • Main Pump Flow: 46 gallons/min
    • Relief Pressure: 2,410 psi
  • Forks
    • Fork Length: Varies
    • Thickness: 2 inches
    • Width: 5 inches

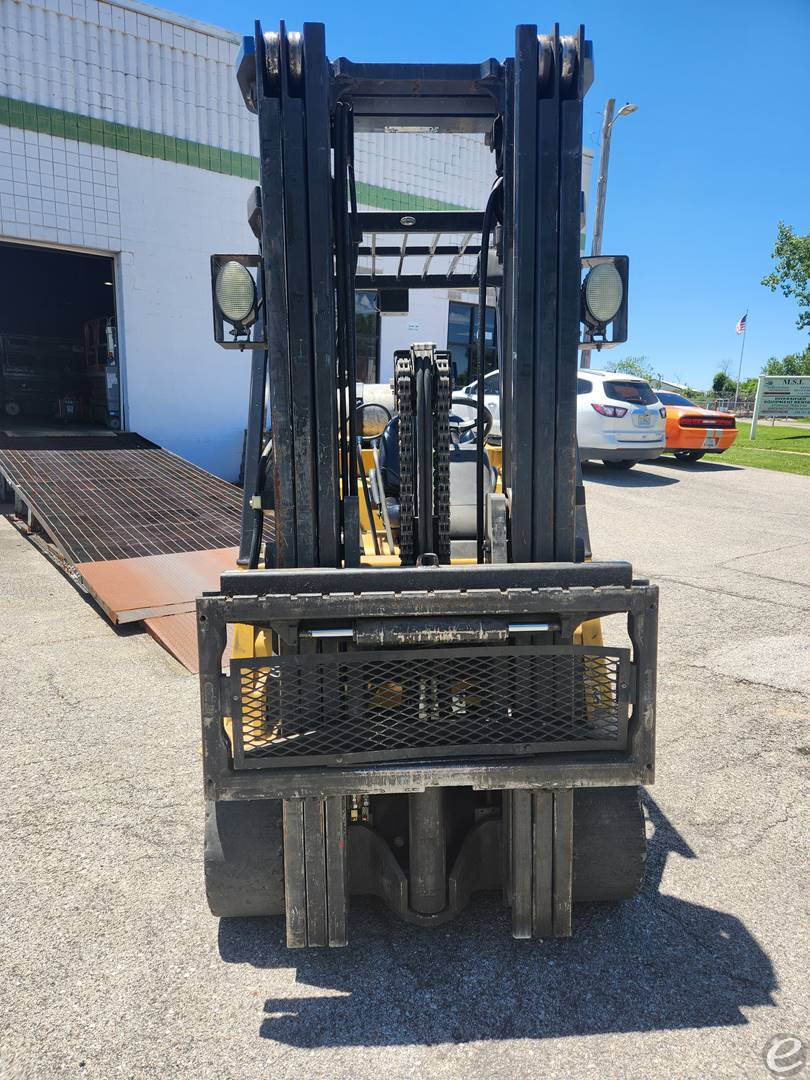

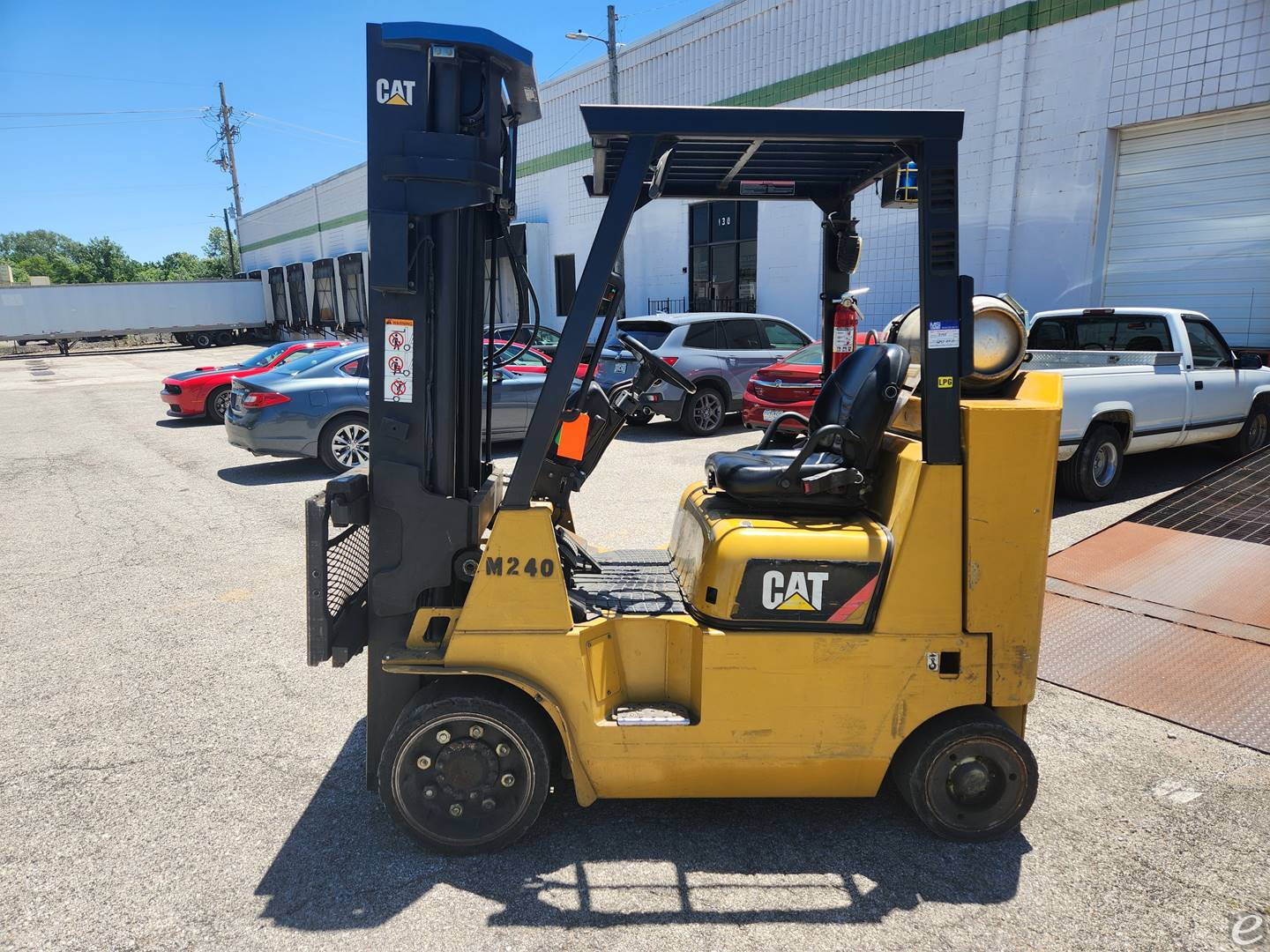

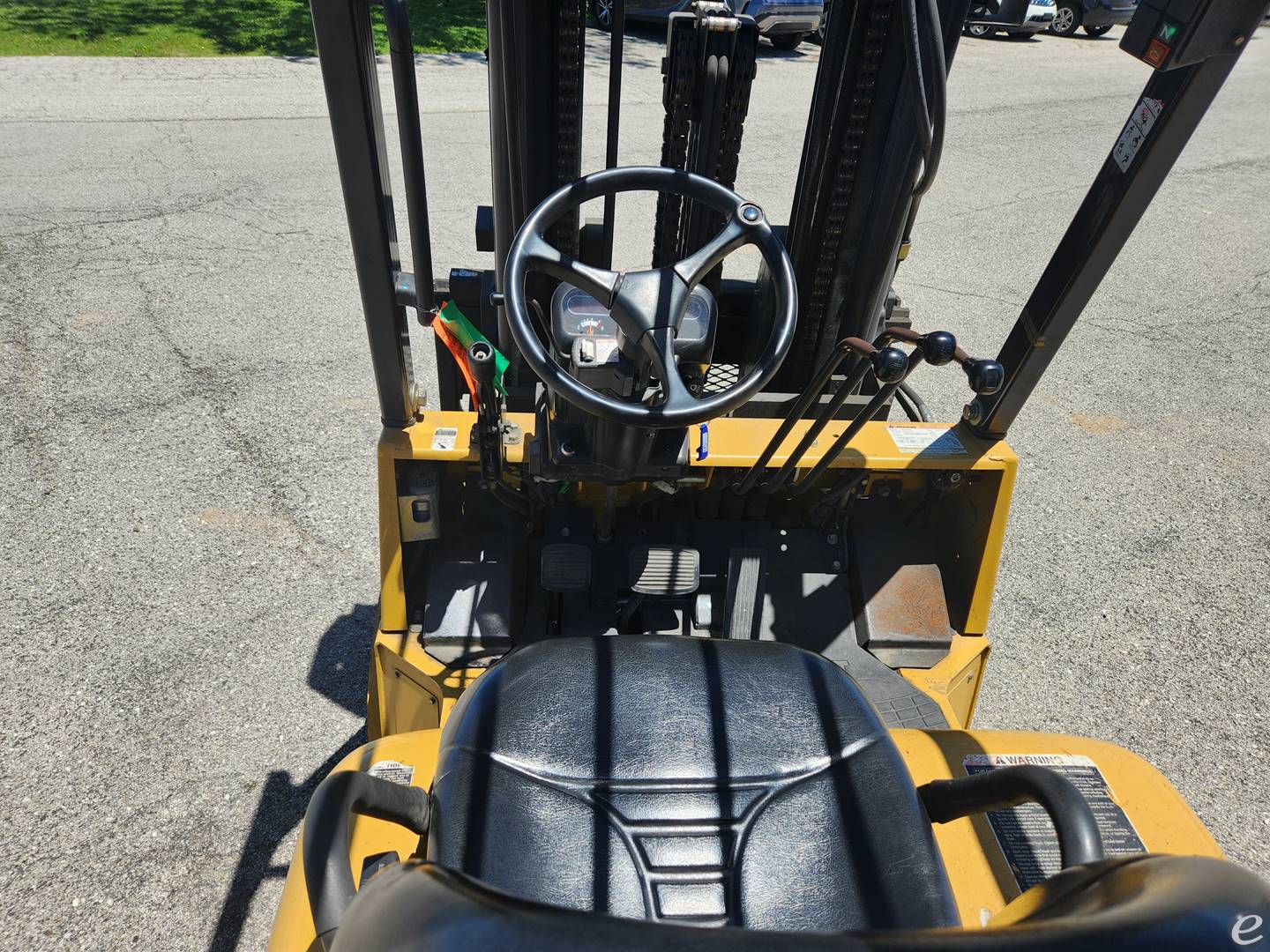

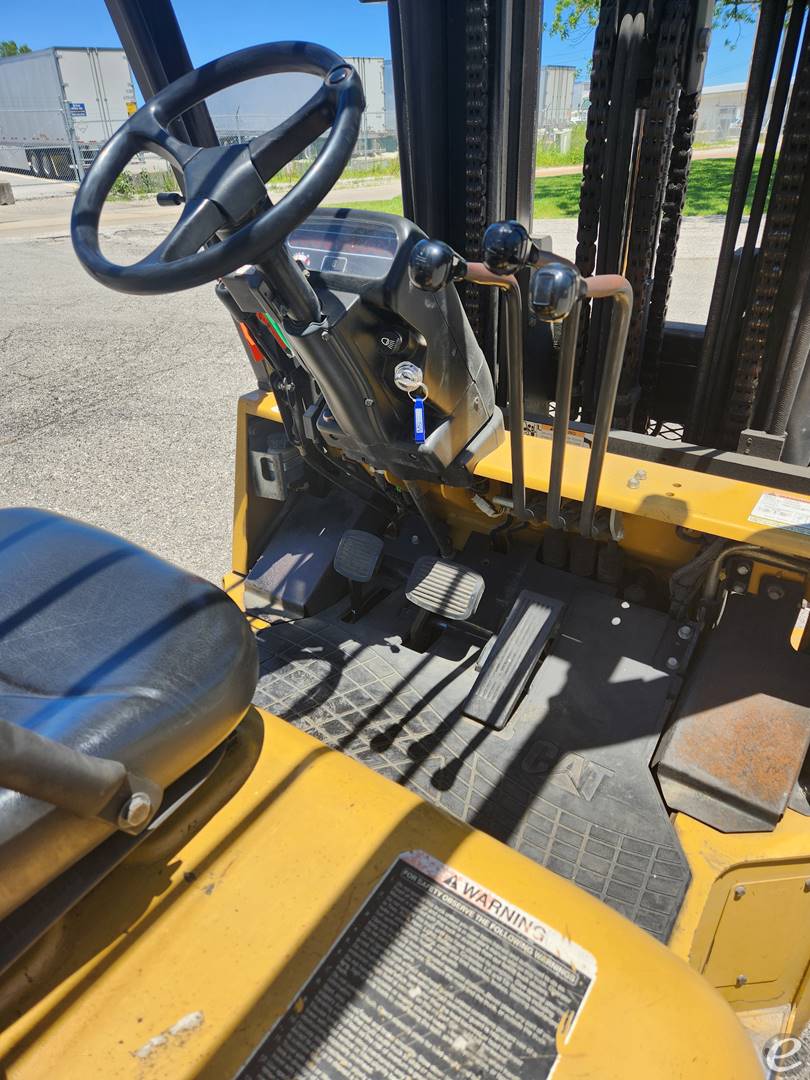

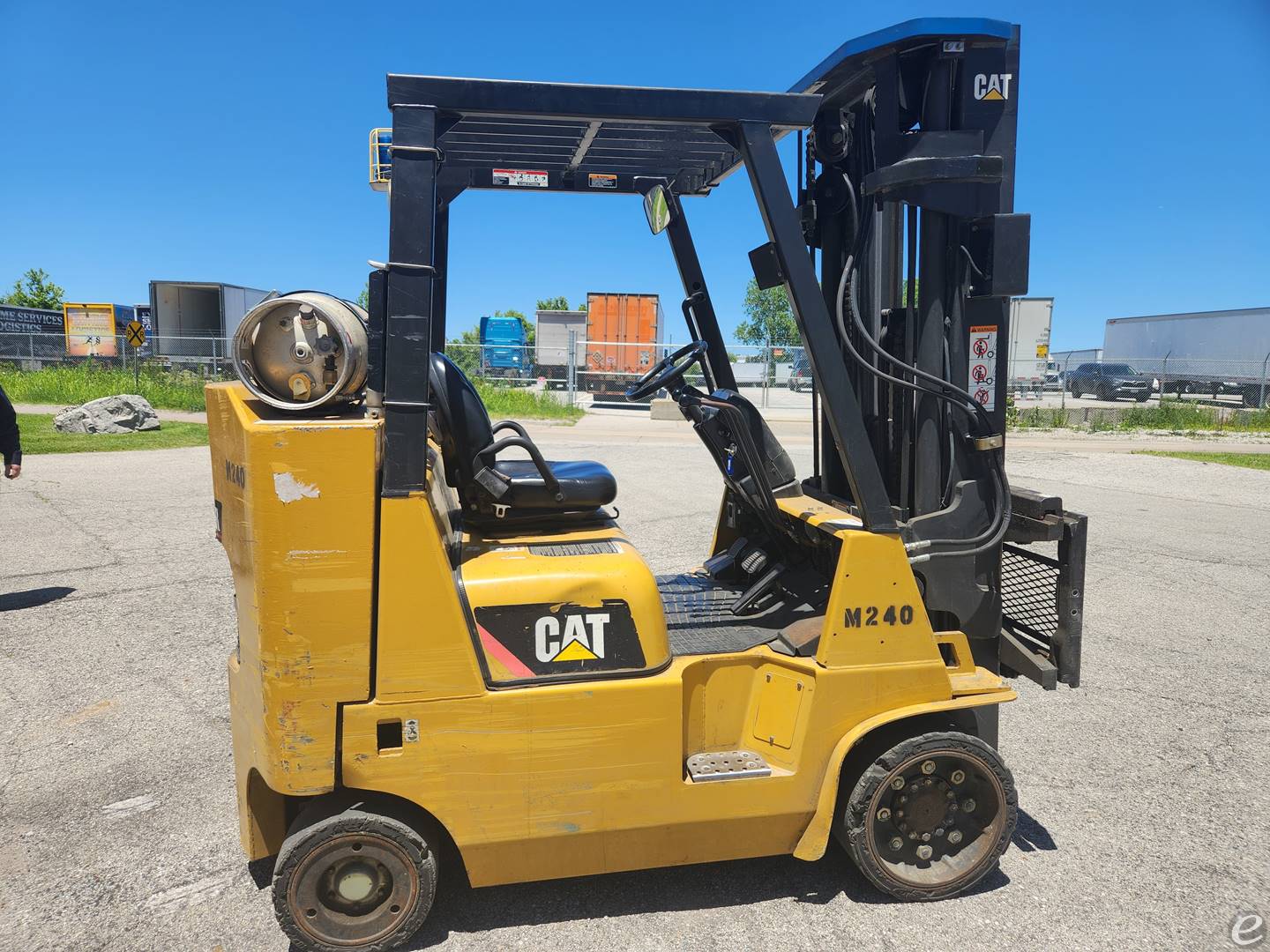

2011 Cat GC40KSTR

Buy or Rent

cushion tire 4 wheel sit down (indoor warehouse) lp gas

Call for price

CONTACT INFO
Name:
Sales Dept.
Phone:

ADDRESS
Motor Service, Inc.
130 Byassee Dr
HazelwoodMissouri 63042
ATTRIBUTES
STOCK #:
M-240
YEAR:
2011
Manufacturer:
MODEL #:
CAPACITY:
8000
FUEL:
MAST TYPE:
MAST HEIGHT:
98 / 199 in
SERIAL #:
AT87A31184
SIDE SHIFTER:
Yes
CONDITION:
Used/Rental

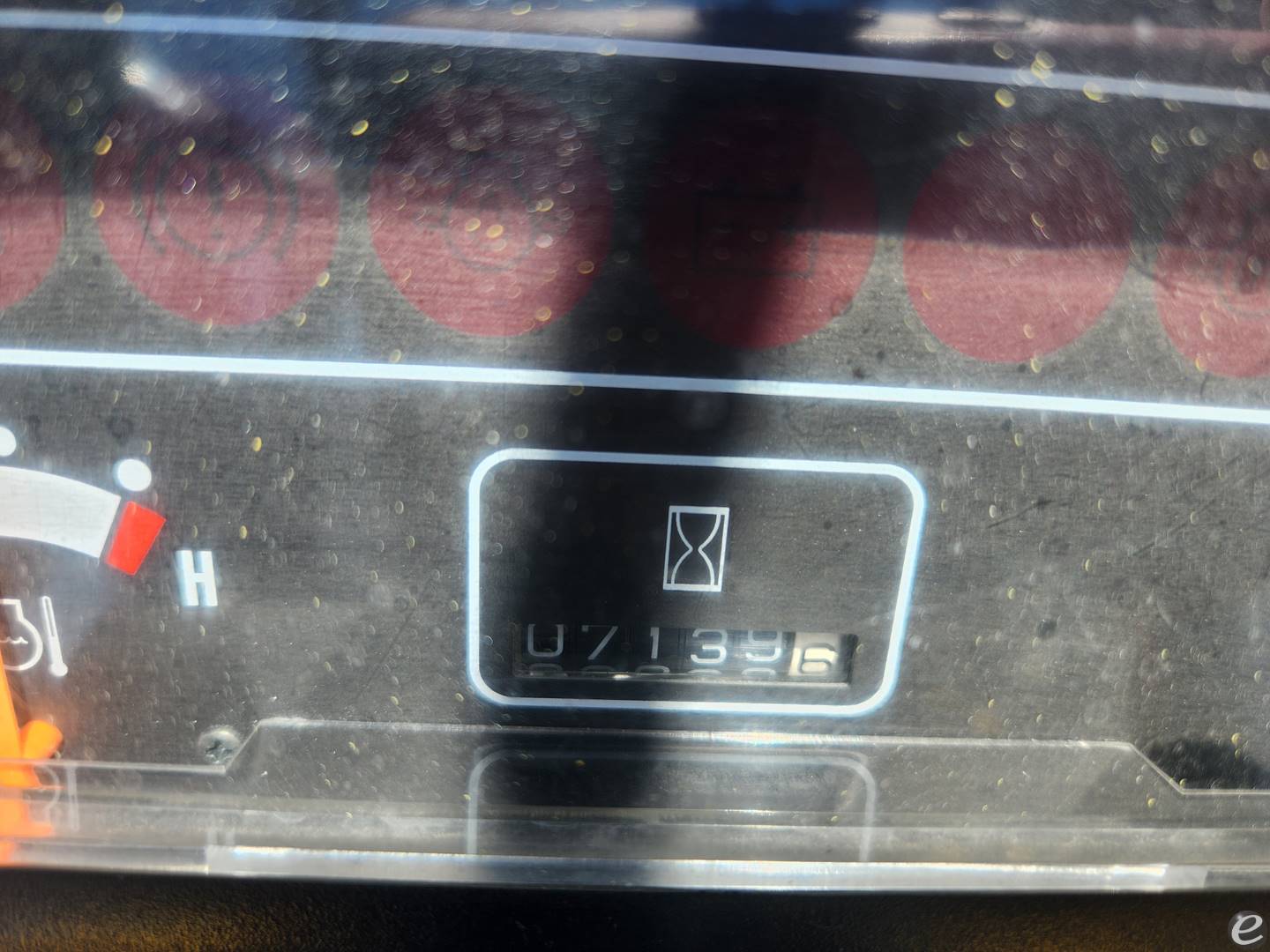

HOUR METER:
7139
UNIT LOCATION:
DESCRIPTION:
Call for sale price or rental rates! 314-731-4111
POST DATE:
1/21/2026
