Equipment Description
Unit comes in Fully Refurbished condition! A 120-Day FULL Warranty on Parts and Labor AND 1-Year Warranty* on Battery included! *Proof of Maintenance required
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Specifications
    • Model Number: 9800
    • Manufacturer: Raymond
    • Type: Forklift
    • Power Source: Battery/Electric
    • Operator Type: Stand-up
  • Dimensions
    • Overall Length: 123 inches
    • Overall Width: 42 inches
    • Height to Top of Overhead Guard: 89 inches
    • Turning Radius: 65 inches
  • Performance Specifications
    • Load Capacity: 4,400 lbs
    • Travel Speed (Loaded): 6.5 mph
    • Travel Speed (Unloaded): 7 mph
    • Lift Speed (Loaded): 63 feet/min
    • Lift Speed (Unloaded): 98 feet/min
    • Lowering Speed (Loaded): 92 feet/min
    • Lowering Speed (Unloaded): 85 feet/min
    • Gradeability (Loaded): 10%
    • Gradeability (Unloaded): 15%
  • Fork Details
    • Fork Length: Varies
    • Fork Width: 4 inches
    • Fork Thickness: 1.6 inches
  • Weight
    • Truck Weight: 8,500 lbs
  • Tire Specifications
    • Front Tires: Polyurethane
    • Rear Tires: Polyurethane
  • Battery
    • Battery Voltage: 36V
    • Battery Capacity: 775 Ah

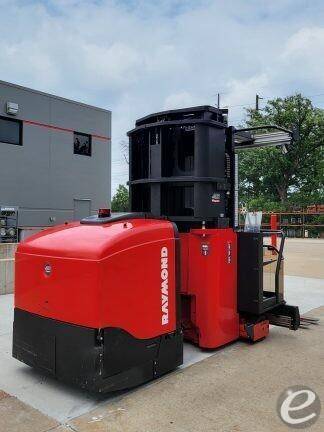

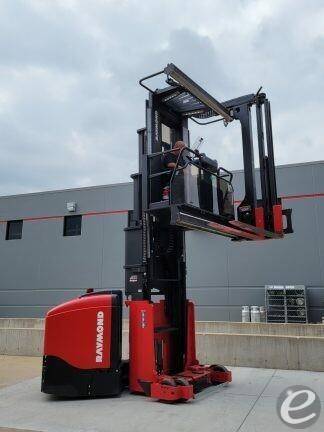

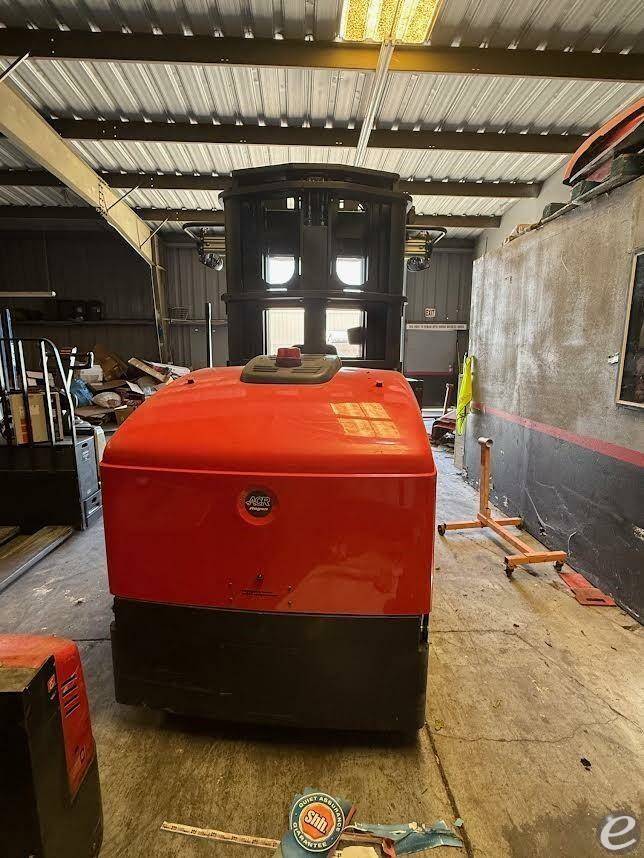

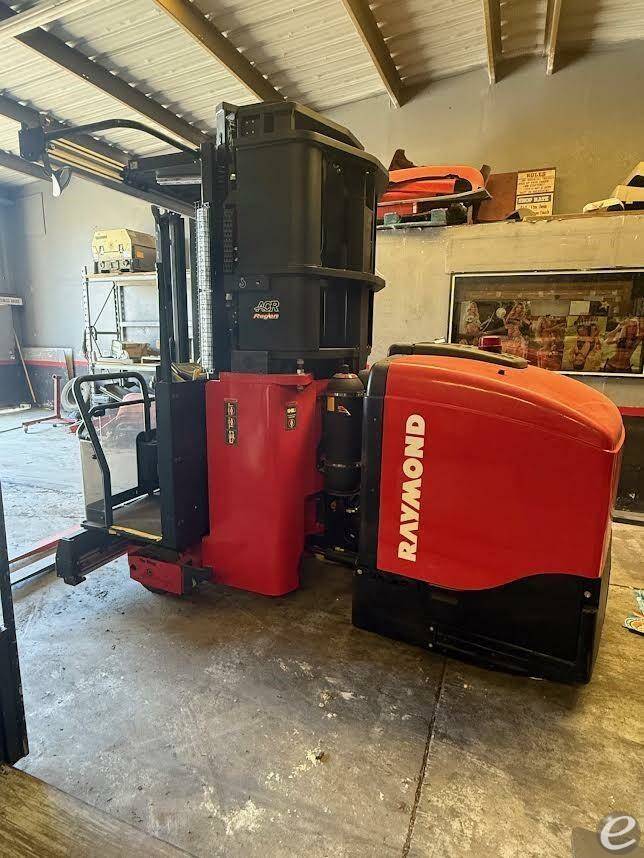

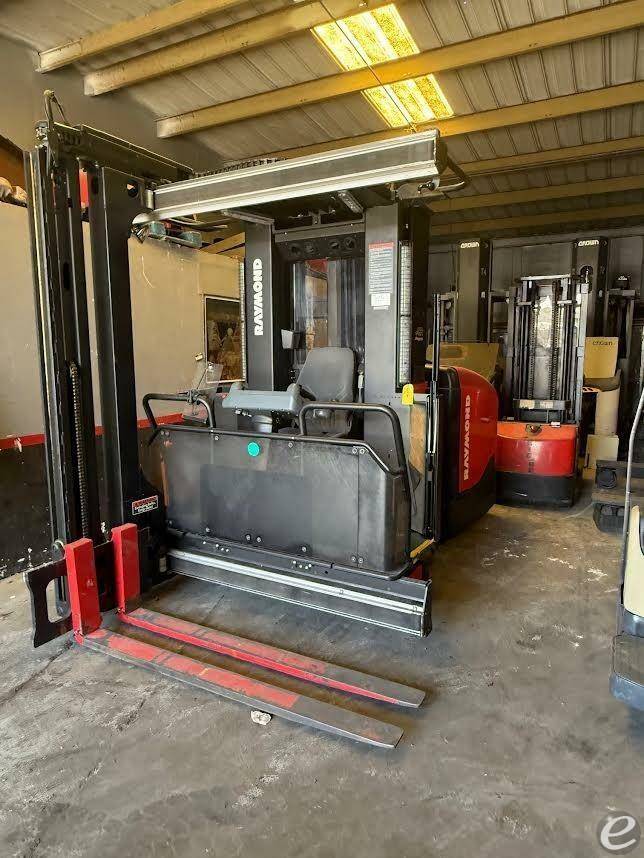

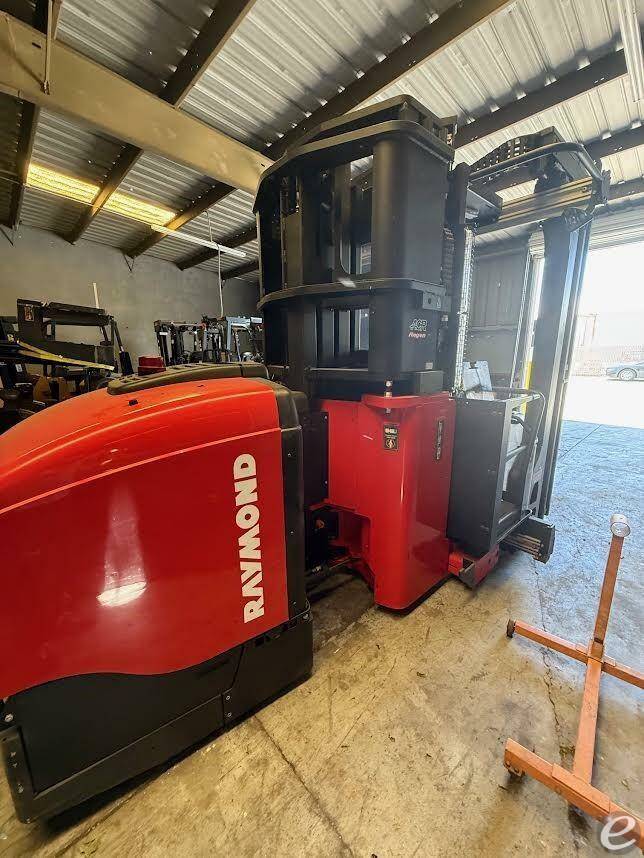

2016 Raymond 9800

$22,950 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Jeff Croft
Phone:

ADDRESS
Refurbished Lifts
675 S Lincoln Av
San BernardinoCalifornia 92408
ATTRIBUTES
STOCK #:
(RL #727423 Ai)
YEAR:
2016
Manufacturer:
MODEL #:
MAST HEIGHT:
226 in

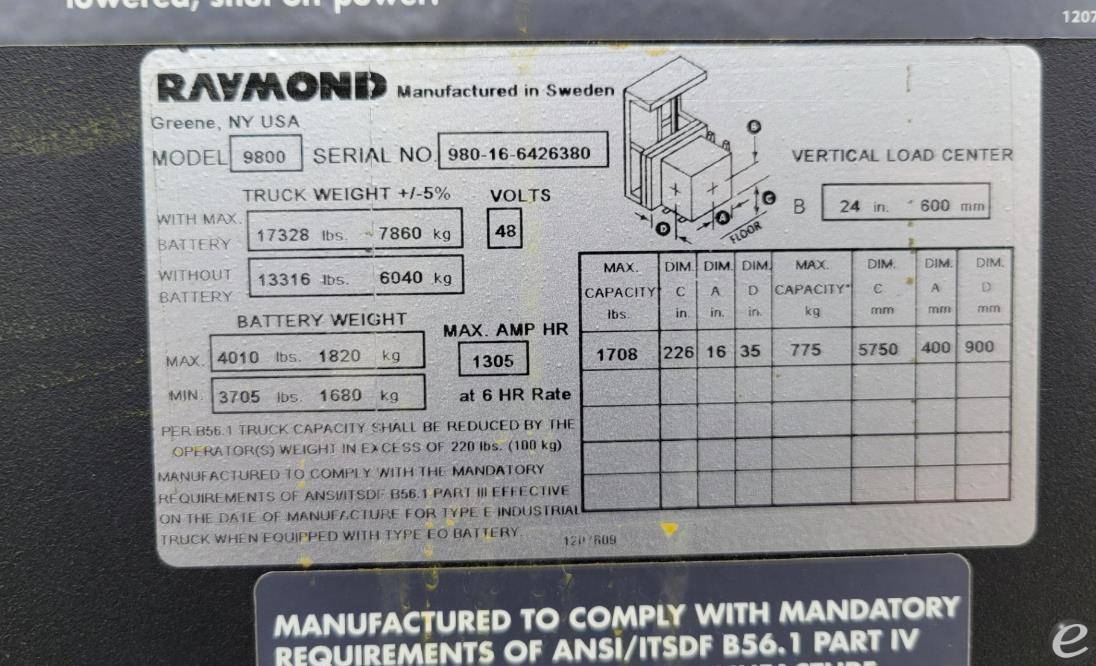

SERIAL #:
980-16-6426380
CONDITION:
Used
HOUR METER:
258
UNIT LOCATION:
California [92222]
POST DATE:
5/1/2026
Reviews
Useful
Not

The Raymond 9800 forklift has become a reliable workhorse in our warehouse. It’s impressive how smoothly it glides through tight spaces, making those busy days a little less chaotic. I remember the first time I used it during a major inventory overhaul; it felt like I was gliding rather than lifting. The controls are pretty intuitive, which makes it less stressful, especially when you’re racing against the clock. Plus, it's surprising how much weight it can handle while still feeling stable. Overall, it’s a solid choice for anyone looking to get the job done efficiently.


Review by James Thompson (7/17/2025)
