  • Manufacturer: Crown
  • Model Number: TSP700-33
  • Type: Forklift
  • Subtype: Electric Man Up Swing Reach Turret
  • Fuel Type: Electric
  • Performance
    • Load Capacity: 3,300 lbs
    • Load Center: 24 inches
    • Travel Speed: Approximately 6 mph
    • Lift Speed: Approximately 60 feet per minute (loaded)
    • Lower Speed: Approximately 80 feet per minute (loaded)
  • Dimensions
    • Overall Length: 148 inches
    • Width: 55 inches
    • Height to Top Overhead Guard: 90 inches
    • Turn Radius: 67 inches
    • Wheelbase: 84 inches
    • Ground Clearance: 3.5 inches
    • Fork Length: Varies
  • Powertrain
    • Drive Motor: 36V AC
    • Lift Motor: 36V DC
    • Battery: 36V, 1,080 Ah typical capacity
  • Weight
    • Total Weight without Load: 12,450 lbs
  • Tires
    • Type: Cushion
    • Front Tire Size: 16 x 6 inches
    • Rear Tire Size: 12 x 4.5 inches
  • Brakes
    • Service Brake: Electric
    • Parking Brake: Auto-electronic

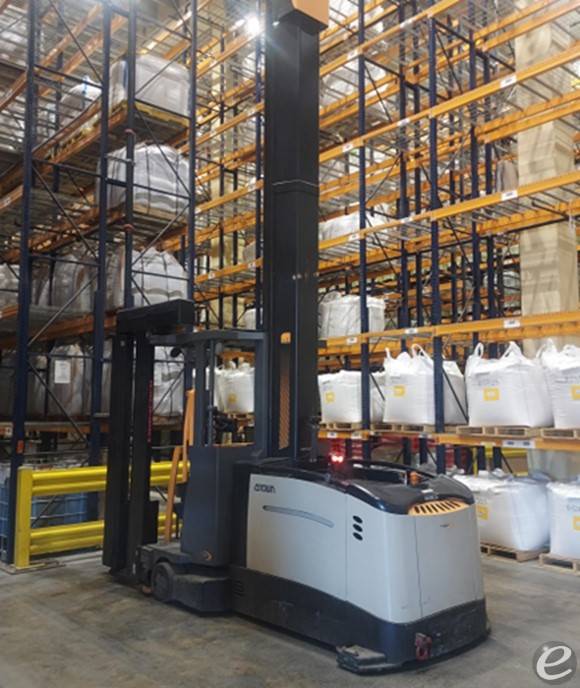

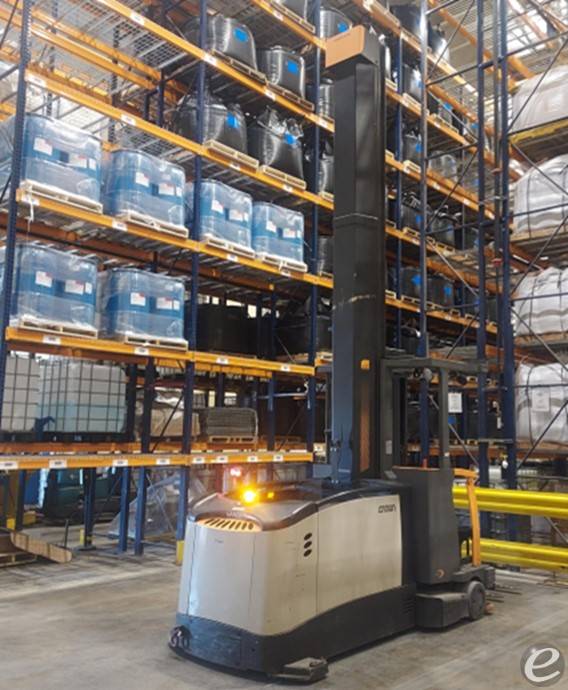

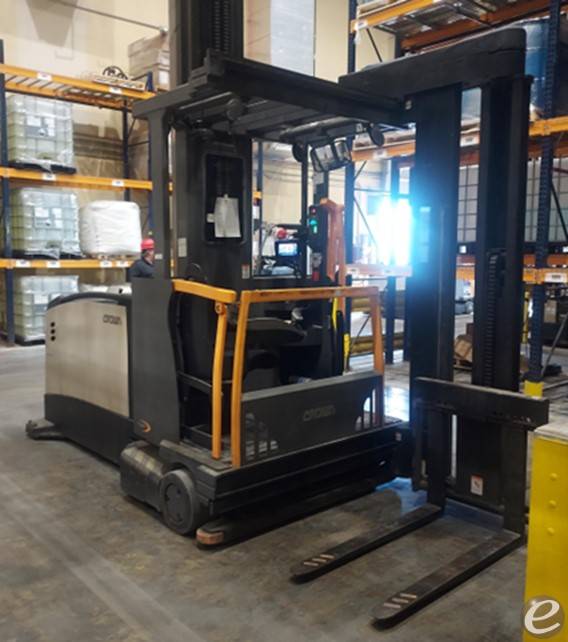

2017 Crown TSP700-33

electric man up swing reach turret

Call for price

CONTACT INFO
Name:
Kevin Patrick
Phone:

ADDRESS
Premier Lift Equipment
99 West Drive Building H
BramptonOntario L6T 2J6
ATTRIBUTES
STOCK #:
7487
YEAR:
2017
Manufacturer:
MODEL #:
CAPACITY:
3300
FUEL:
MAST TYPE:
MAST HEIGHT:
233 / 423 in
CONDITION:
Used
HOUR METER:
5723
UNIT LOCATION:
Ontario [L6T 2J6 ]
DESCRIPTION:
64" carriage width, wire guide, battery and charger
POST DATE:
4/27/2026
Reviews
Useful
Not

The Crown TSP700-33 is one of those forklifts that really makes you appreciate the little things in warehouse work. Having used it during a recent inventory overhaul, I found the maneuverability to be a game changer. It glides through narrow aisles with ease, which saved a ton of time. The electric function is quiet and efficient; you can almost forget it's there when you're focused on stocking. It's easy to control, which definitely helped when trying to reach those precarious top shelves. I remember feeling pretty confident as I navigated around tight corners, knowing it wouldn't let me down. Overall, it's a solid choice for anyone looking to boost productivity without the noise and emissions of a gas unit.
