2019 Grove RT750

earth moving and construction

Call for price
Large Lift Rentals
CONTACT INFO
Name:
Barkley Lindsey
Phone:

ADDRESS
Large Lift Rentals
7942 Rand St
HoustonTexas 77028
ATTRIBUTES
STOCK #:
DF0AF093A676
YEAR:
2019
Manufacturer:
MODEL #:

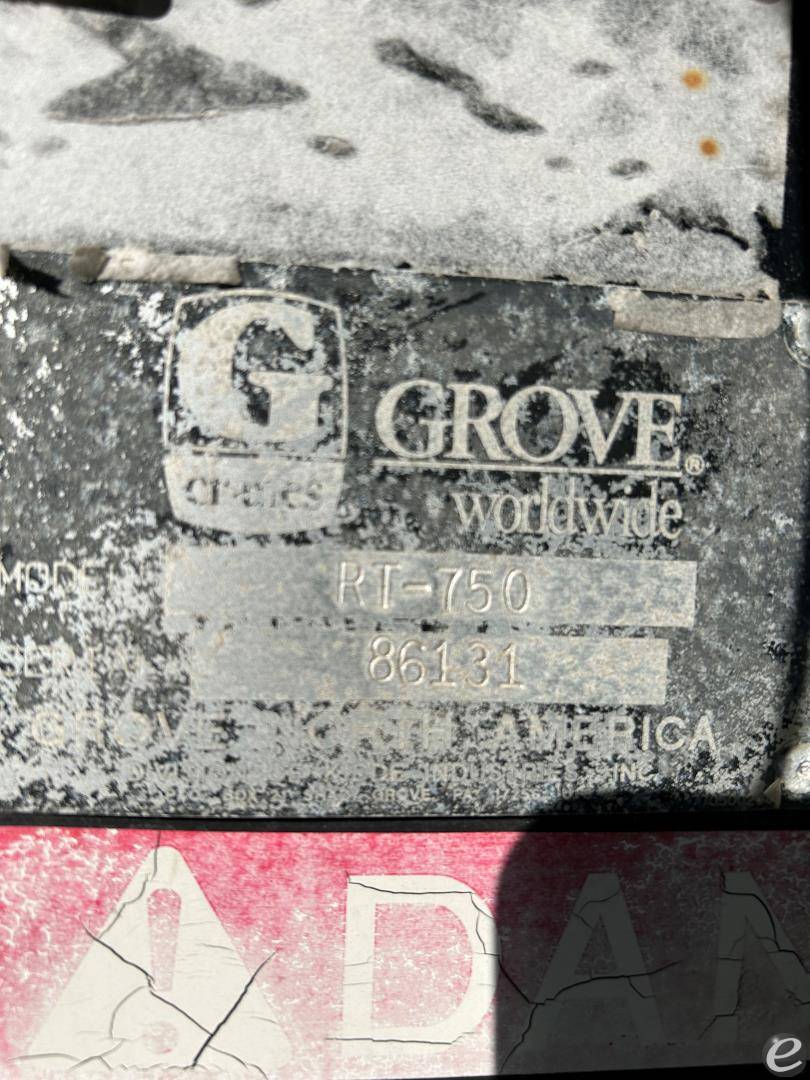

SERIAL #:
86131
CONDITION:
Used

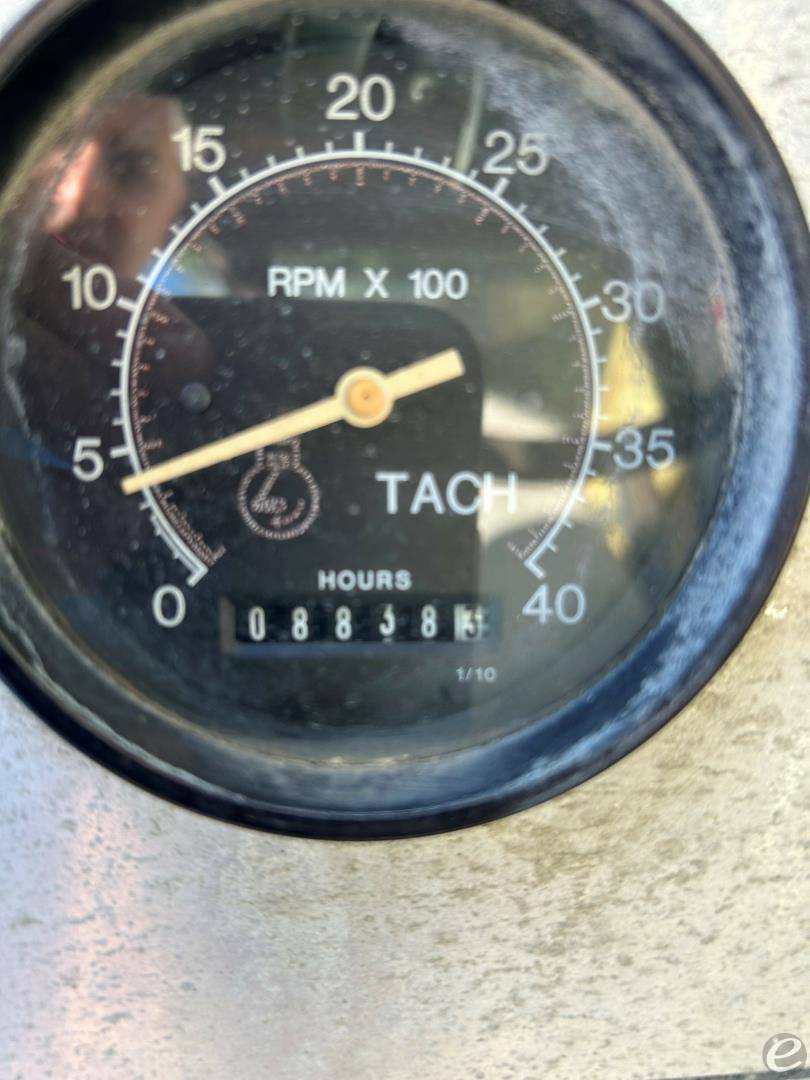

HOUR METER:
88383
LOCATION:
Texas [77028]
POST DATE:
6/25/2025
Equipment Description

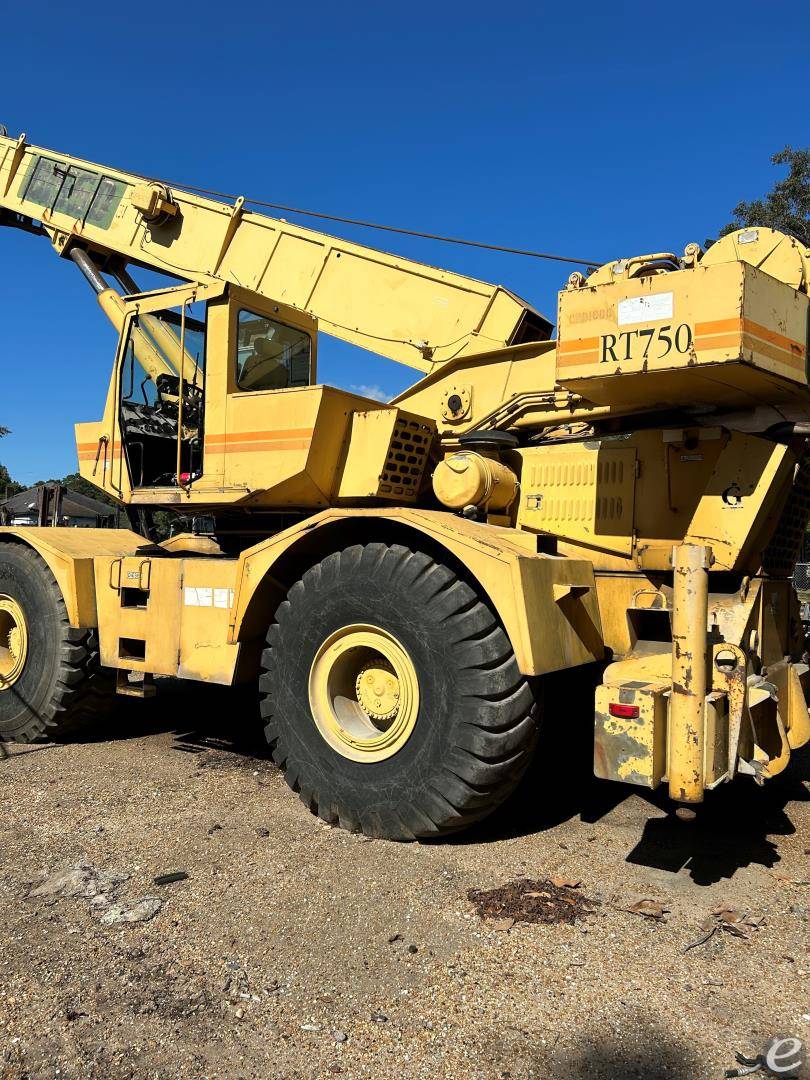

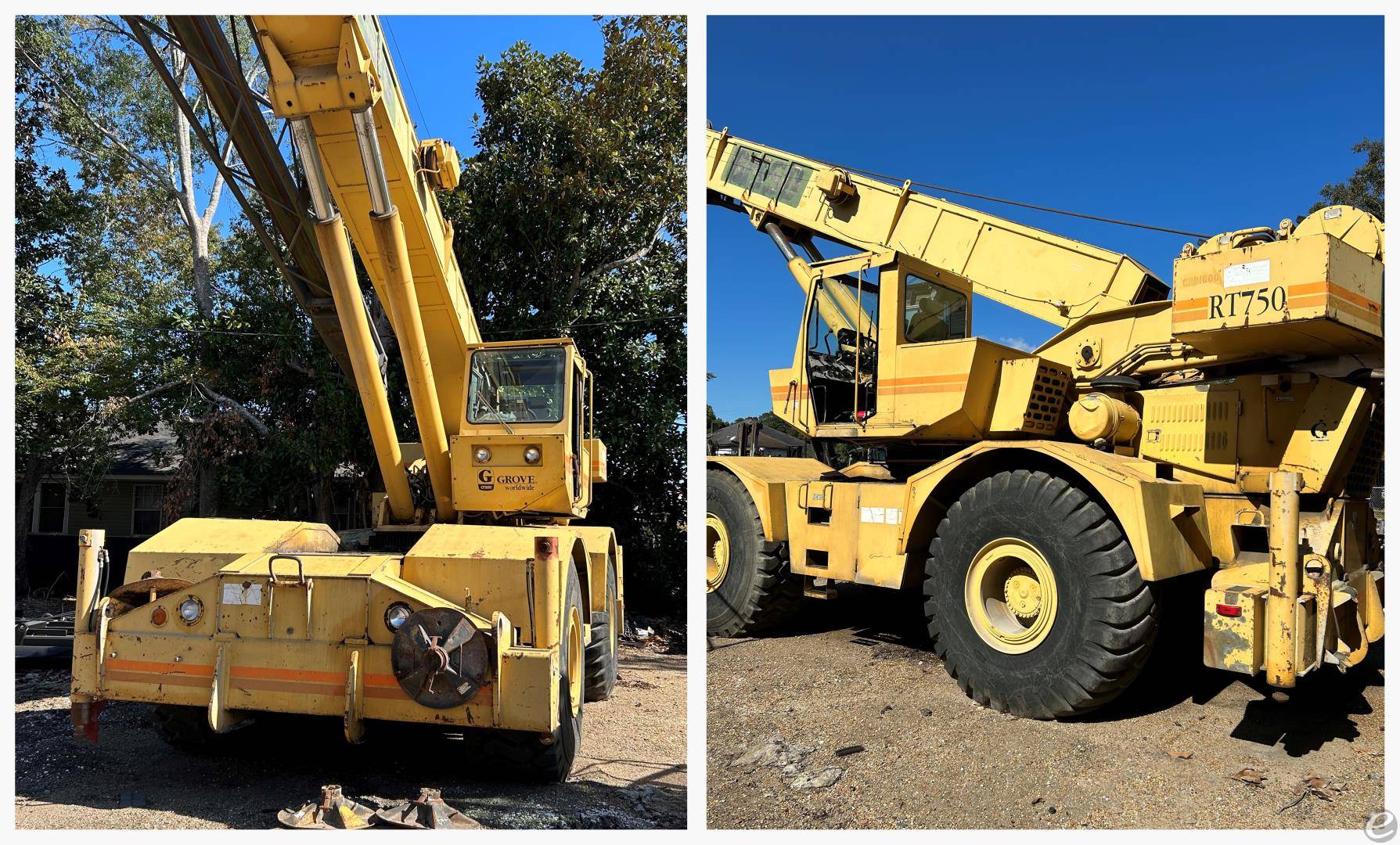

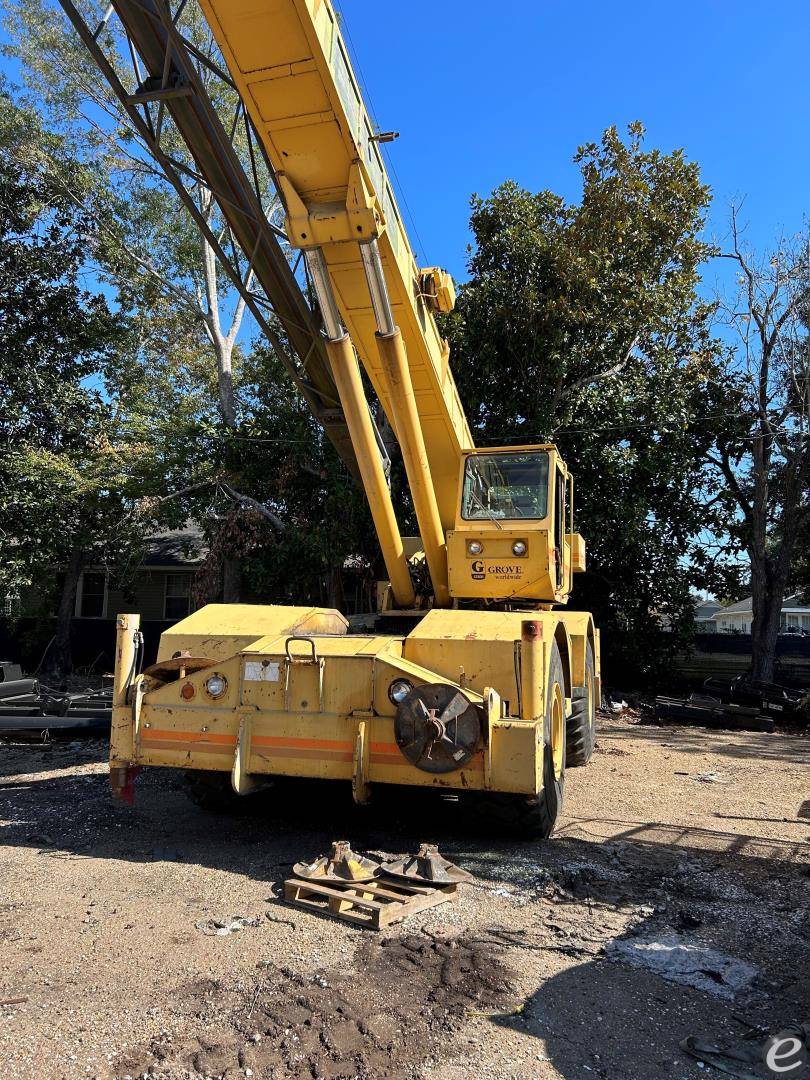

Used Grove RT750. Ask about year and pricing. Available in Mobile, AL. BOOMMin Height @ Max Raise Angle: 35ft inMax Height @ Max Raise Angle - No Jib: 110ft inMin Operating Radius: 10ft inMax Elevating Angle: 75degrees Max Operating Radius: 100ft inNumber Of Sections: 4Max Lift Capacity: 100000lbSwing Speed: 2.6rpmDIMENSIONS Transport Length: 43.59ft inTransport Width:: 10.88ft inTransport Height12.13ft inWheelbase: 12.5inGround Clearance: 1.54ft inWidth W/ Outriggers Extended: 23.34ft inCarrier/Base Length: 25.68ft inUpper Structure Tail Swing Radius: 13.67ft in Number Of Cylinders: 6Engine Make: CumminsEngine Model: 6BTA 5.9LGross Power: 199.9hpPower Measured @: 2500rpmMax Torque: 600.4lb ftTorque Measured @: 1500rpmDisplacement: 360.1cu in OPERATIONALOperating Weight: 80700lbFuel Capacity: 60galHydraulic System Fluid Capacity: 154galOperating Voltage: 12VTire Size: 29.5X25-28PRAspiration: turbocharged
  • Model Overview
    • Model Number: RT750
    • Manufacturer: Grove
    • Subtype: Earth Moving and Construction
  • Dimensions
    • Overall Length: Approximately 47.2 ft
    • Overall Height: Approximately 12.4 ft
    • Overall Width: Approximately 11.8 ft
    • Wheelbase: Approximately 21.3 ft
    • Ground Clearance: Approximately 1.5 ft
  • Weights
    • Operating Weight: Approximately 95,000 lbs
    • Gross Vehicle Weight: Approximately 100,000 lbs
  • Performance
    • Maximum Lift Capacity: Approximately 75,000 lbs
    • Travel Speed: Up to 25 mph
    • Turning Radius: Approximately 26.5 ft
  • Engine
    • Engine Manufacturer: Cummins
    • Engine Model: QSB6.7
    • Engine Power: Approximately 255 hp
    • Fuel Type: Diesel
    • Fuel Capacity: Approximately 80 gallons
  • Tires
    • Tire Size: 29.5-25
  • Hydraulic System
    • Hydraulic Pump Flow: Approximately 115 gallons per minute
    • Hydraulic Pressure: Approximately 4,500 psi
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
