Spec Sheet
Engine
  • Engine Manufacturer: Cummins
  • Engine Model: QSL 9.0L
  • EPA Certification: Tier 4 Final
  • Horsepower: 300 HP @ 2200 RPM
  • Torque: 1050 ft lbs @ 1500 RPM
Performance
  • Tractive Effort: 60,000 lbs
  • First Gear Speed: 0 to 2 MPH
  • Second Gear Speed: 0 to 5 MPH
  • Third Gear Speed: 0 to 9 MPH
  • Fourth Gear Speed: 0 to 13 MPH
Drivetrain
  • Transmission: John Deere - Funk DF250, four speeds forward and reverse
  • Axles: Axle Tech heavy duty planetary-type drive axles
  • Differentials: Mechanically locked in both front and rear
Brakes, Wheels & Tires
  • Service Brakes: Air over hydraulic actuated high-pressure disk brakes
  • Parking Brake: Disc brake on transmission output shaft

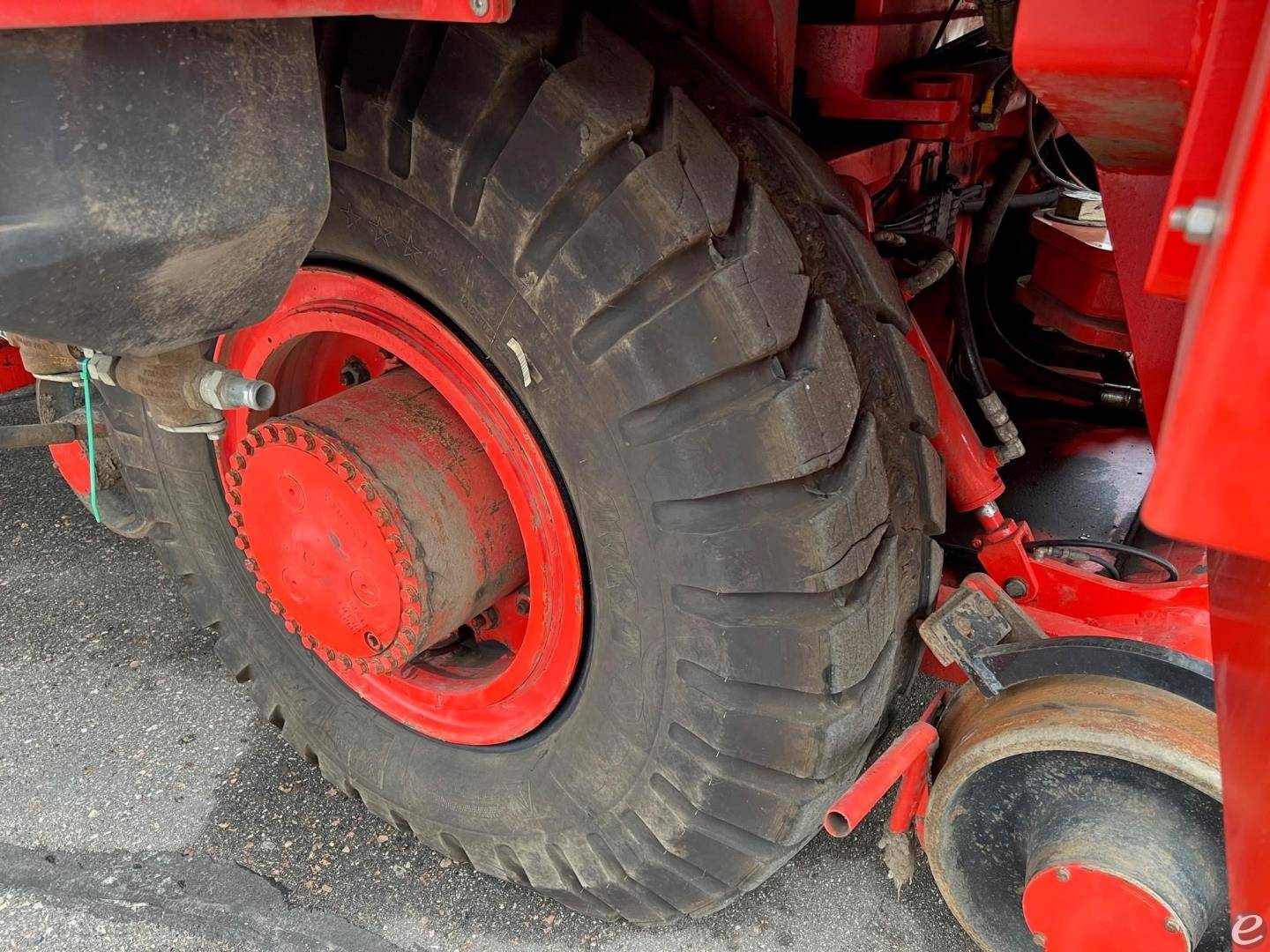

  • Rail Wheels: Eight 16 inch diameter AAR profile rail guide wheels
  • Tires: Four 14.00R x 24 tubeless tires
Dimensions & Weight
  • Weight: 101,000 lbs
  • Length: 296 in
  • Width: 120 in
  • Height: 143.5 in
  • Wheel Base: 168 in
  • Ground Clearance: 9 in
Capacities
  • Fuel Capacity: 90 gallons
  • Hydraulic Reservoir Capacity: 50 gallons
  • Rail Brake Air Tanks: Two 30 gallon tanks
  • Vehicle Brake Air Tank: 10.5 gallons
  • Sander Capacity: 800 pounds
Systems & Features
  • Electrical System: 12 Volt with 160-ampere alternator
  • Pneumatic System: Engine driven compressor producing 80 cfm
  • Couplers: Cast steel full size AAR couplers, non-weight transfer design
  • Frame Construction: All welded steel plate
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

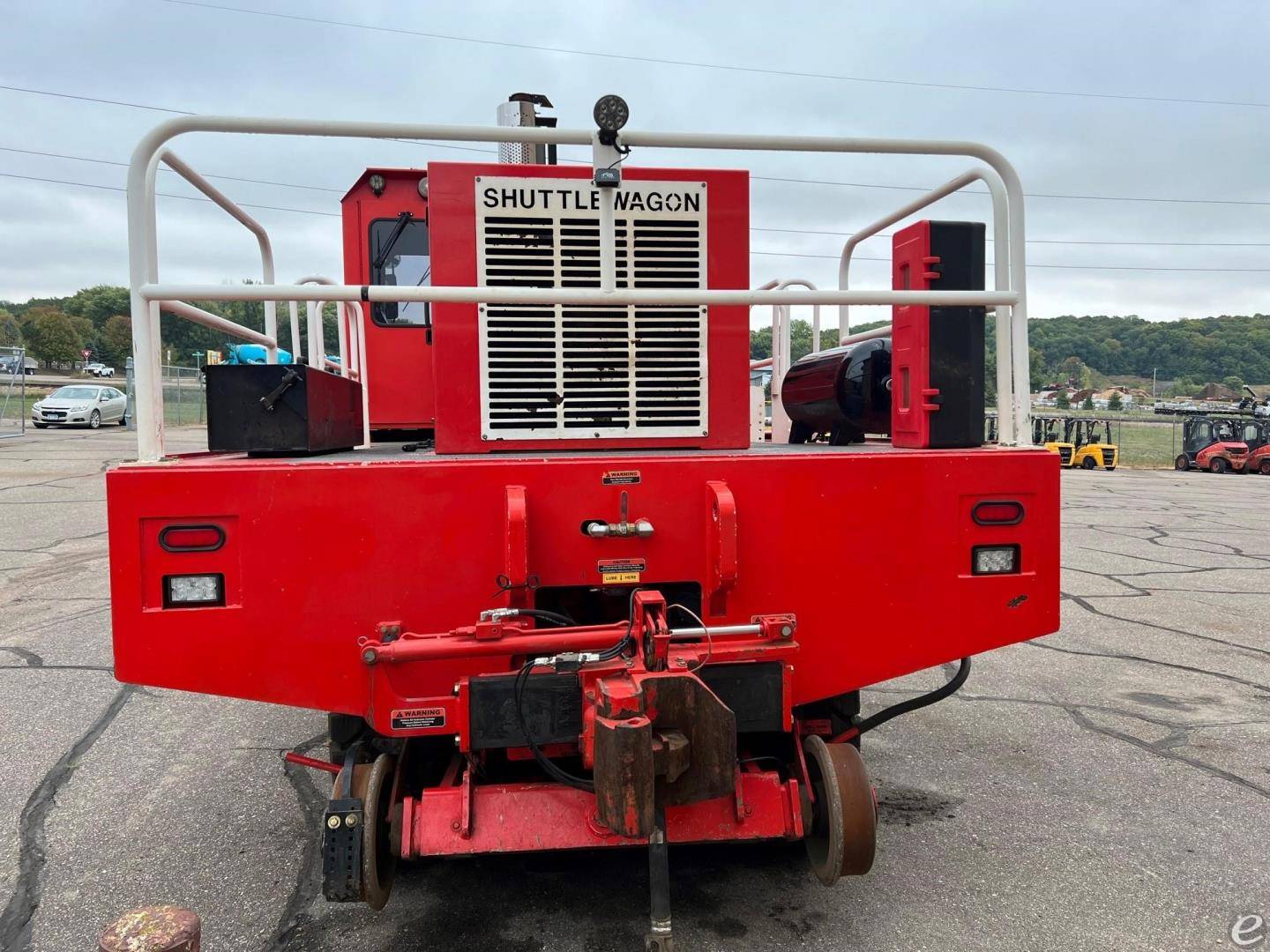

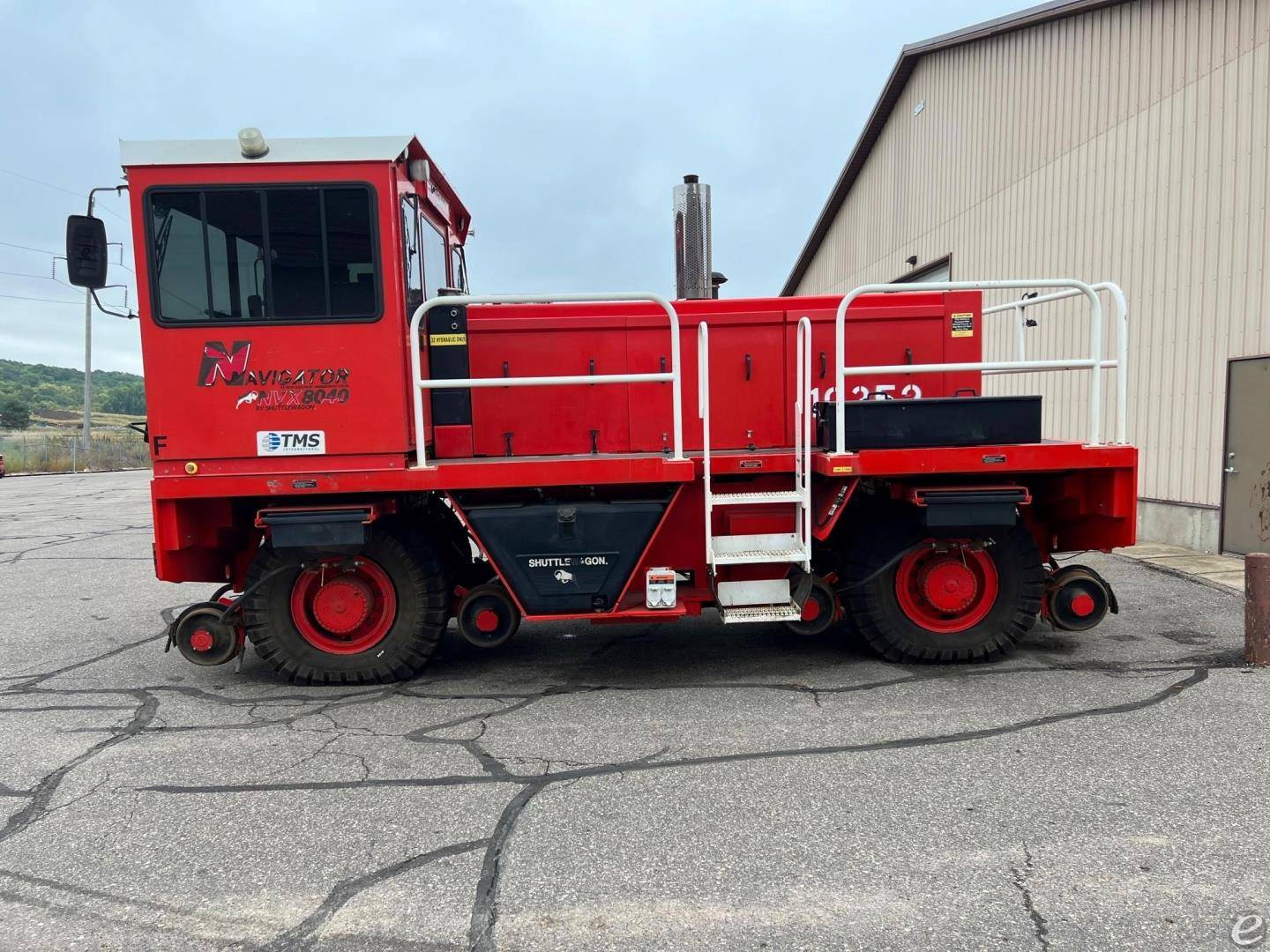

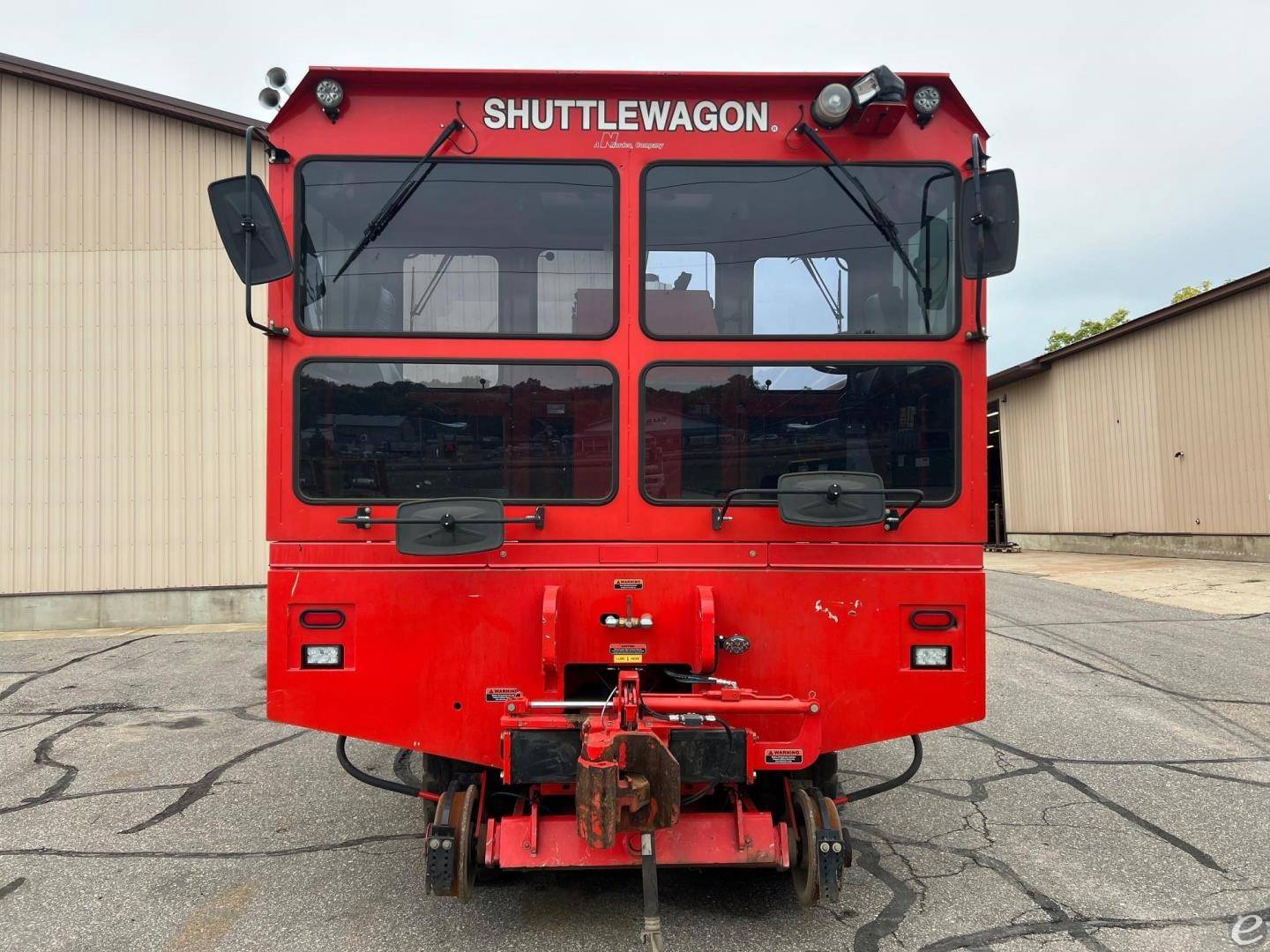

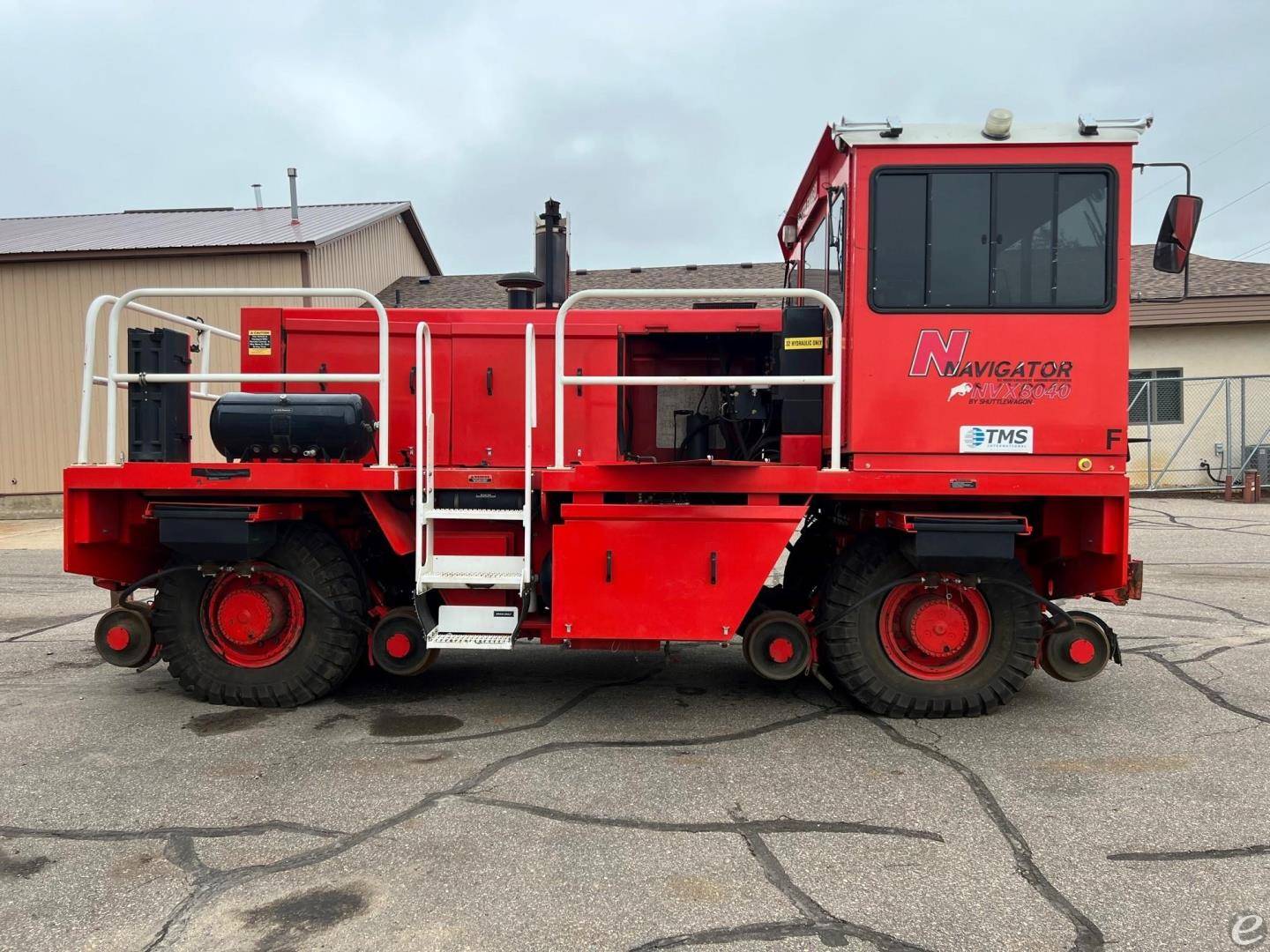

2016 Shuttlewagon NVX8040

Buy or Rent

railcar movers

$495,000 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Sales
Phone:

ADDRESS
Continental Lift Truck
16600 Johnson Memorial Dr
JordanMinnesota 55352
ATTRIBUTES
STOCK #:
R0480
YEAR:
2016
Manufacturer:
MODEL #:
SUBCATEGORY:
CONDITION:
Used/Rental
HOUR METER:
6577
UNIT LOCATION:
Minnesota [55352]
DESCRIPTION:
RAIL CAR MOVER, 80 EMPTIES, 40 LOADED
POST DATE:
2/17/2026
Engine
  • Engine Manufacturer: Cummins
  • Engine Model: QSL 9.0L
  • EPA Certification: Tier 4 Final
  • Horsepower: 300 HP @ 2200 RPM
  • Torque: 1050 ft lbs @ 1500 RPM
Performance
  • Tractive Effort: 60,000 lbs
  • First Gear Speed: 0 to 2 MPH
  • Second Gear Speed: 0 to 5 MPH
  • Third Gear Speed: 0 to 9 MPH
  • Fourth Gear Speed: 0 to 13 MPH
Drivetrain
  • Transmission: John Deere - Funk DF250, four speeds forward and reverse
  • Axles: Axle Tech heavy duty planetary-type drive axles
  • Differentials: Mechanically locked in both front and rear

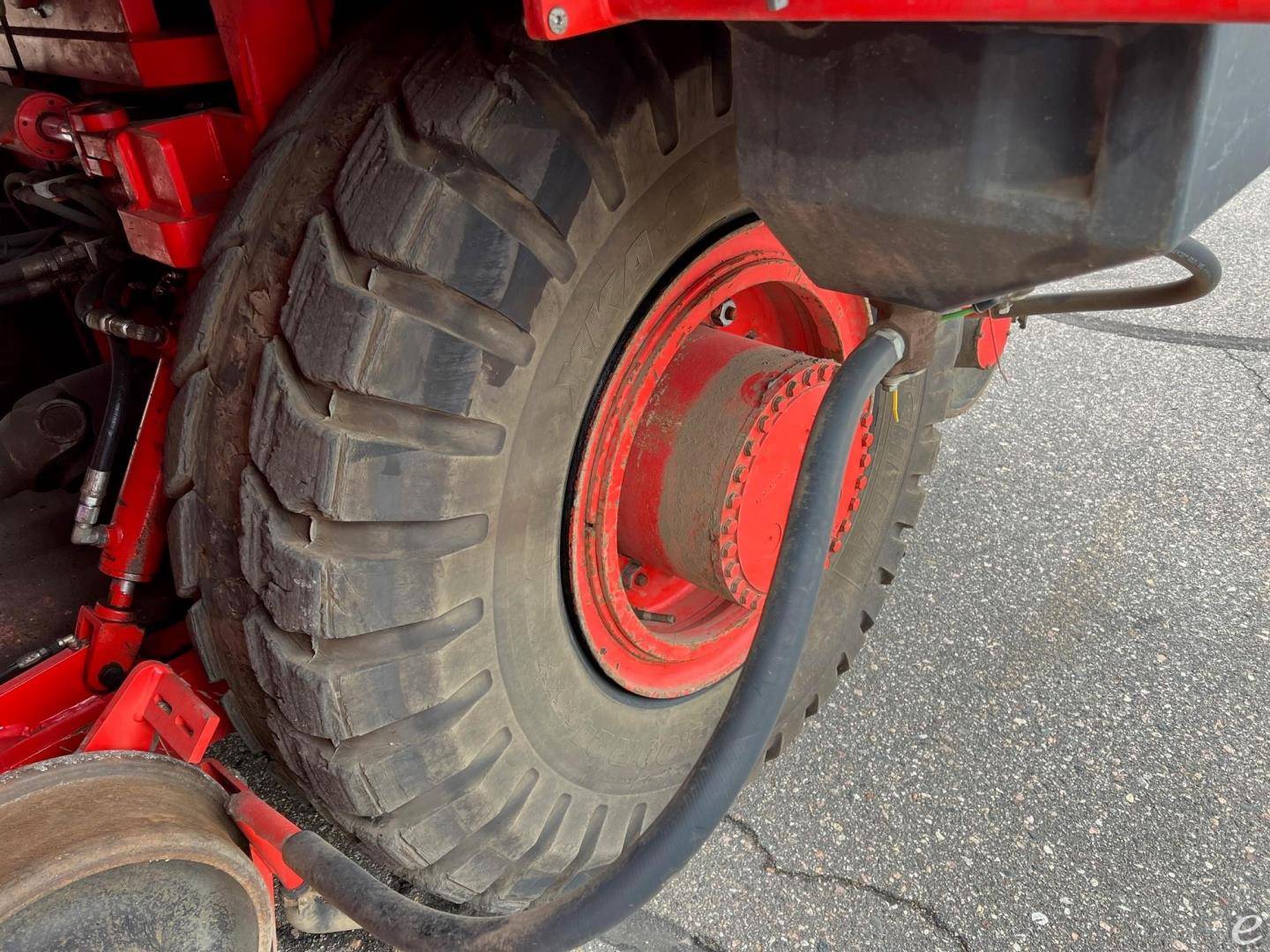

Brakes, Wheels & Tires
  • Service Brakes: Air over hydraulic actuated high-pressure disk brakes
  • Parking Brake: Disc brake on transmission output shaft
  • Rail Wheels: Eight 16 inch diameter AAR profile rail guide wheels
  • Tires: Four 14.00R x 24 tubeless tires
Dimensions & Weight
  • Weight: 101,000 lbs
  • Length: 296 in
  • Width: 120 in
  • Height: 143.5 in
  • Wheel Base: 168 in
  • Ground Clearance: 9 in
Capacities
  • Fuel Capacity: 90 gallons
  • Hydraulic Reservoir Capacity: 50 gallons
  • Rail Brake Air Tanks: Two 30 gallon tanks
  • Vehicle Brake Air Tank: 10.5 gallons
  • Sander Capacity: 800 pounds
Systems & Features
  • Electrical System: 12 Volt with 160-ampere alternator
  • Pneumatic System: Engine driven compressor producing 80 cfm
  • Couplers: Cast steel full size AAR couplers, non-weight transfer design
  • Frame Construction: All welded steel plate
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
