Overview
Spec Sheet
Shipping/Freight
Equipment Description

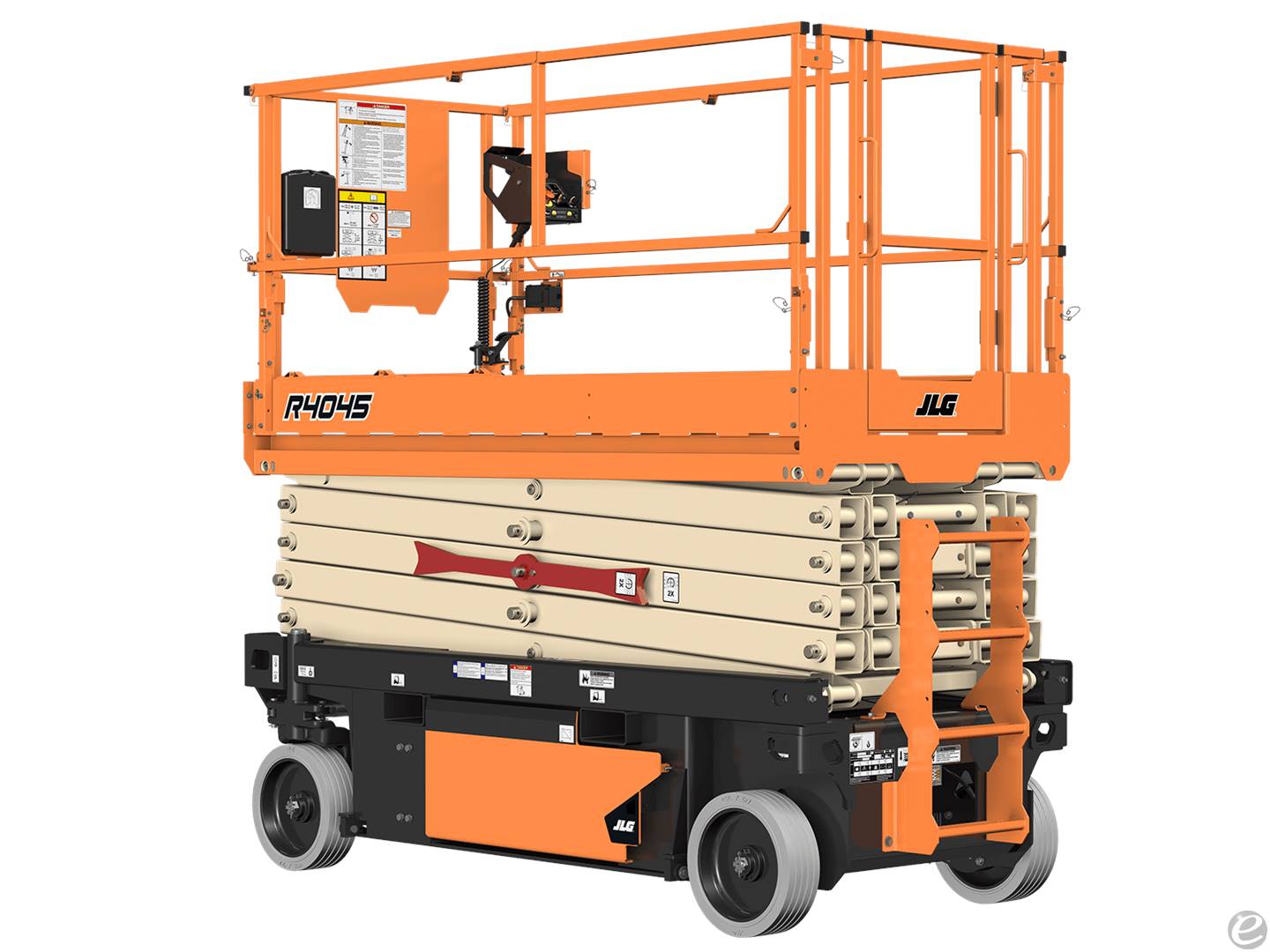

40ft max deck height scissors lift. 45in wide. 770lb max capacity. Electric, self-propelled. Full spec sheet in photos. *Stock photo. **Long-term discounts available.

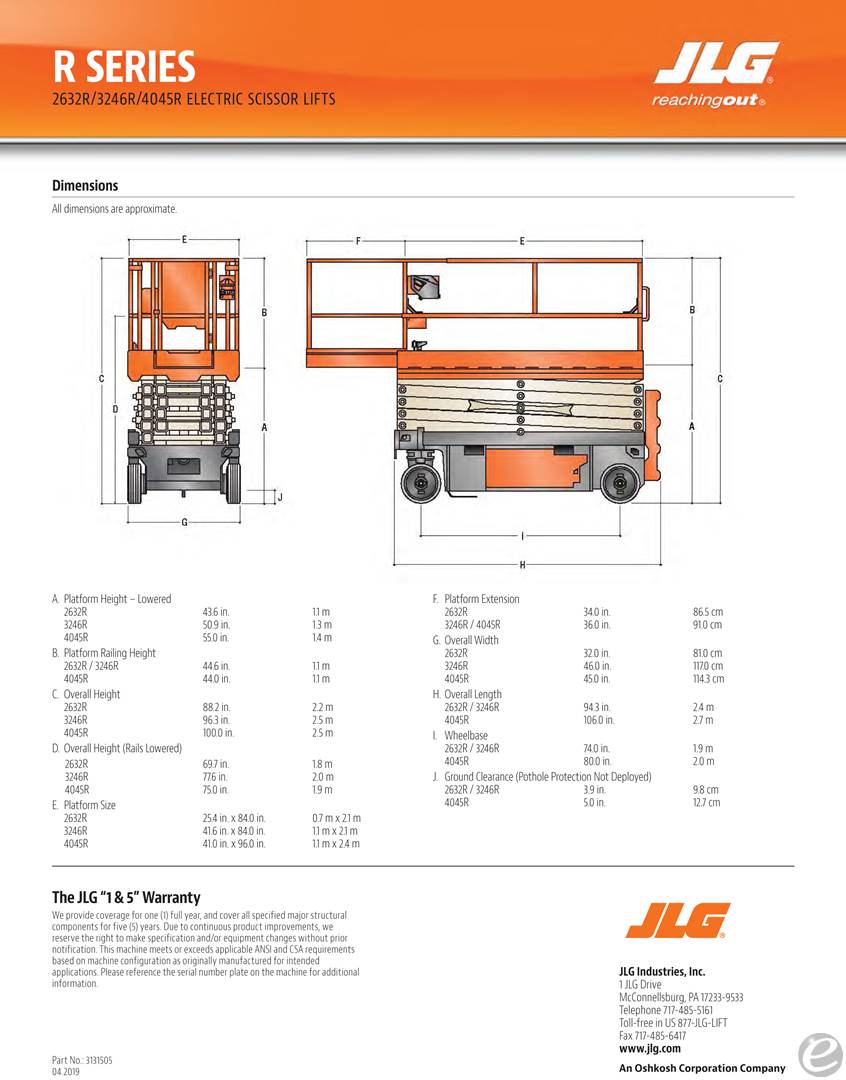

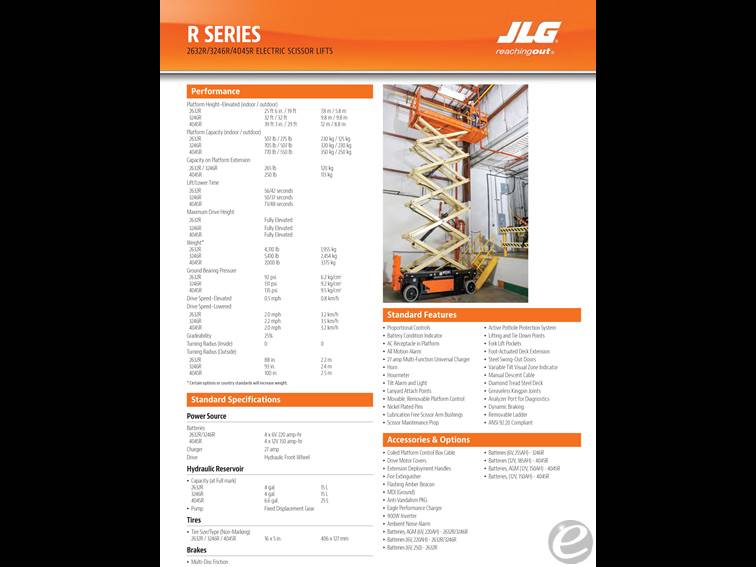

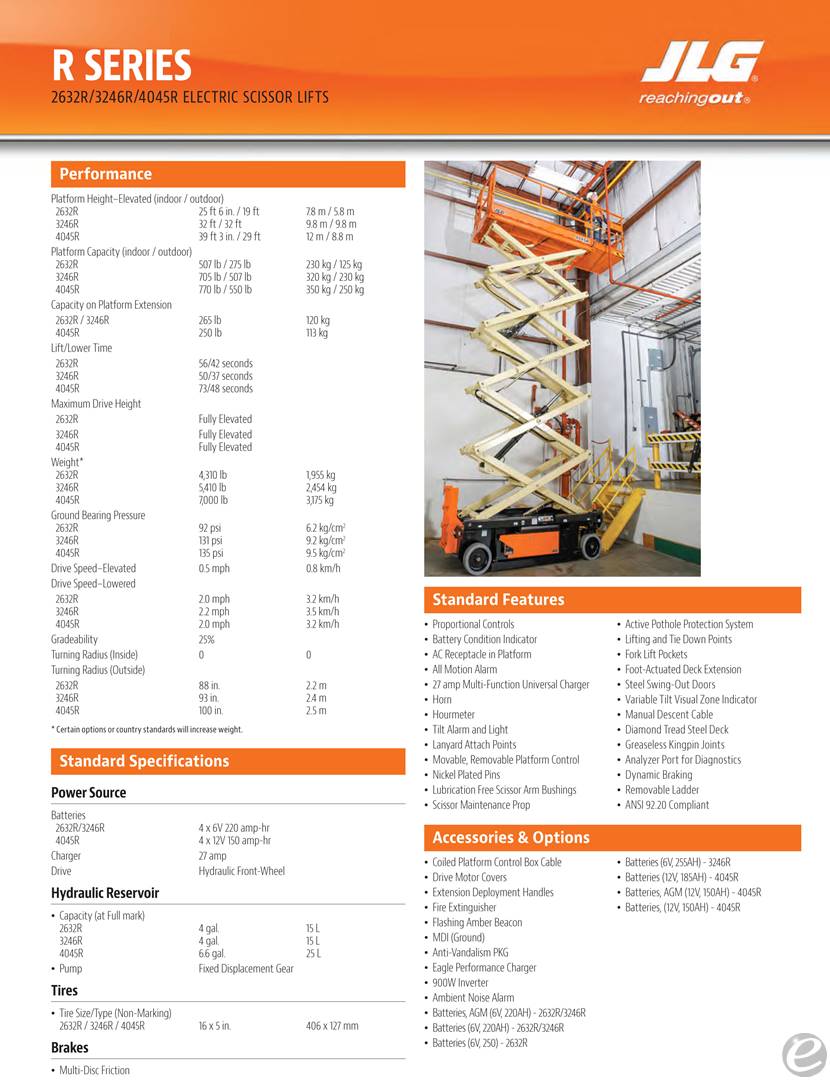

Spec Sheet
  • Dimensions
    • Machine Length: 8.4 ft
    • Machine Width: 3.8 ft
    • Machine Height (Rails Up): 8.2 ft
    • Machine Height (Rails Down): 6.8 ft
    • Platform Width: 3.6 ft
    • Platform Length: 10.1 ft
    • Ground Clearance: 5 in
  • Performance
    • Load Capacity: 700 lbs
    • Platform Extension Capacity: 300 lbs
    • Drive Speed: 2.2 mph
    • Turning Radius (Inside): 1.8 ft
    • Turning Radius (Outside): 10.4 ft
    • Gradeability: 25%
  • Power
    • Fuel Type: Electric
    • Voltage: 24V
    • Battery: Four 6V, 220 Ah batteries
  • Chassis
    • Axle Oscillation: None
    • Tires: Non-marking, solid tires
    • Brakes: Dual front wheel brakes
  • Weight
    • Machine Weight: 7,300 lbs
  • Features
    • Proportional controls for drive and lift functions
    • Automatic Pothole Protection
    • Fold-down guardrails
    • On-board diagnostics
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

JLG 4045R

Buy or Rent

slab electric

Call for price

$225 USD per day

$550 USD per week

$1,250 USD per month


CONTACT INFO
Name:
Greg Herzog
Phone:

ADDRESS
Lift-X Lift Services L.L.C.
N4134 State Rd 57
WaldoWisconsin 53093
ATTRIBUTES
STOCK #:
LX56
Manufacturer:
MODEL #:
Drive:
2WD
SUBCATEGORY:
Height:
40 ft
FUEL:
SERIAL #:
0200268891
CONDITION:
Used/Rental
UNIT LOCATION:
Wisconsin [53073]
DESCRIPTION:
40ft self-propelled electric scissors lift
POST DATE:
9/16/2025
Reviews
Useful
Not

The JLG 4045R scissor lift has become a reliable companion on job sites over the past few months. Its electric power really stands out, especially during those days when you just don't want to deal with the noise and emissions of gas-powered machines. I remember the first time I used it; it felt surprisingly smooth to operate, not to mention stable as I worked at height. Having had my fair share of sketchy lifts in the past, this one’s got a solid feel to it that gives you confidence. Plus, maneuvering it in tight spaces was much easier than I anticipated. Overall, a solid choice for anyone looking to get the job done without the fuss.

Review by Jake Thompson

  • Dimensions
    • Machine Length: 8.4 ft
    • Machine Width: 3.8 ft
    • Machine Height (Rails Up): 8.2 ft
    • Machine Height (Rails Down): 6.8 ft
    • Platform Width: 3.6 ft
    • Platform Length: 10.1 ft
    • Ground Clearance: 5 in
  • Performance
    • Load Capacity: 700 lbs
    • Platform Extension Capacity: 300 lbs
    • Drive Speed: 2.2 mph
    • Turning Radius (Inside): 1.8 ft
    • Turning Radius (Outside): 10.4 ft
    • Gradeability: 25%
  • Power
    • Fuel Type: Electric
    • Voltage: 24V
    • Battery: Four 6V, 220 Ah batteries
  • Chassis
    • Axle Oscillation: None
    • Tires: Non-marking, solid tires
    • Brakes: Dual front wheel brakes
  • Weight
    • Machine Weight: 7,300 lbs
  • Features
    • Proportional controls for drive and lift functions
    • Automatic Pothole Protection
    • Fold-down guardrails
    • On-board diagnostics
