Equipment Description

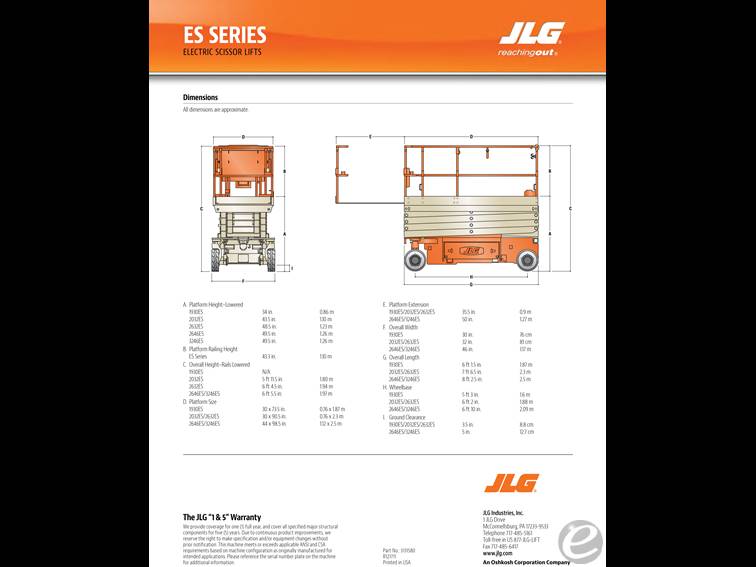

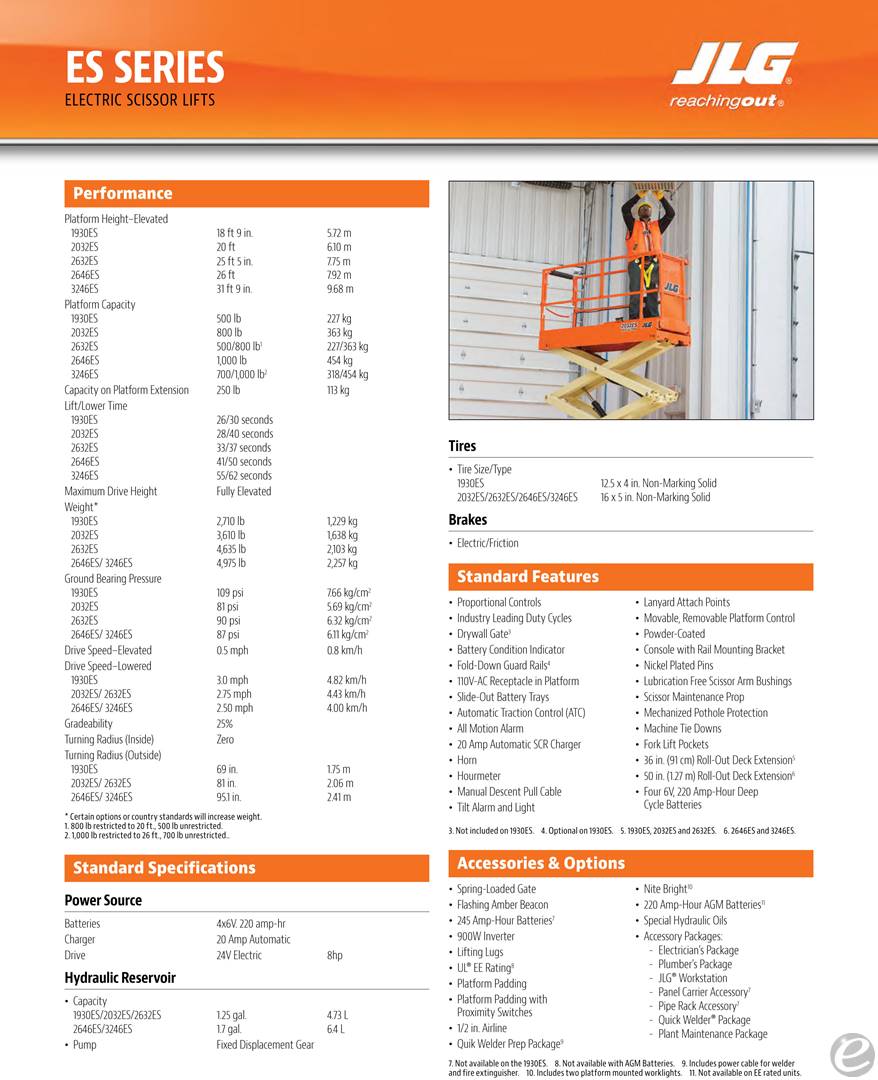

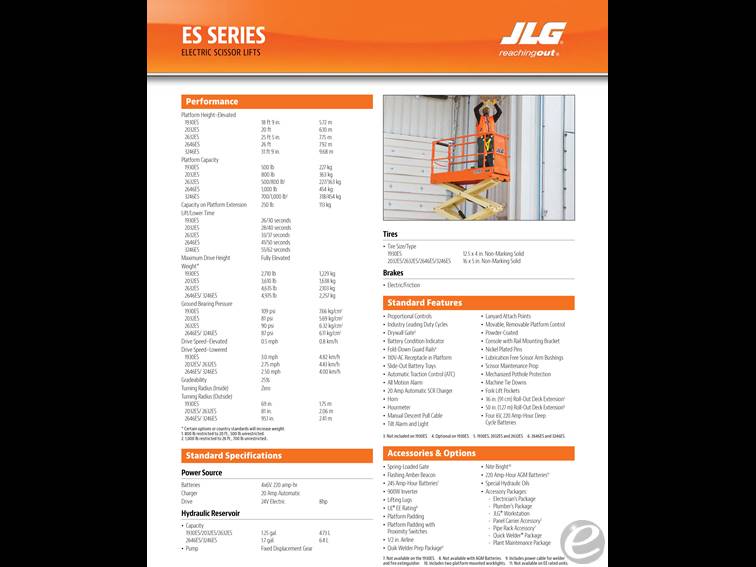

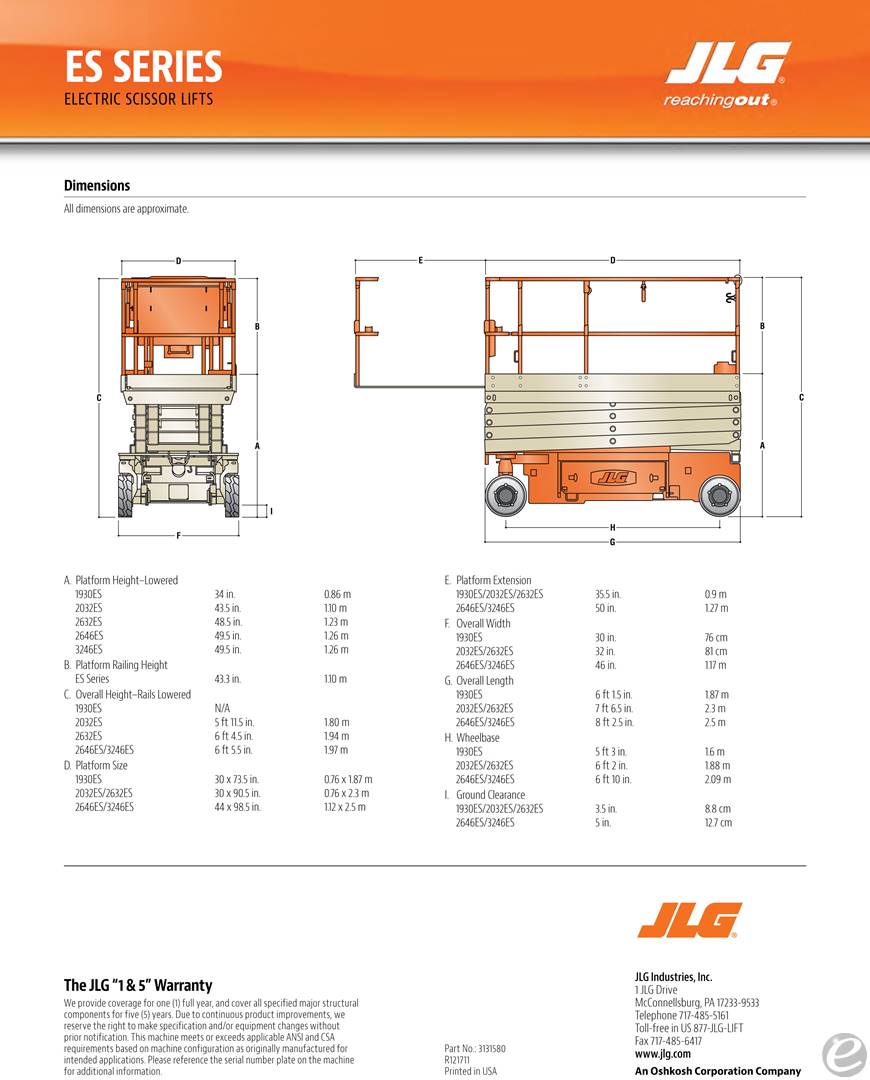

26ft max deck height scissors lift. 30in wide. 500lb max capacity. Electric, self-propelled. Full spec sheet in photos. *Stock Photo. **Long-term discounts available.
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Specifications
    • Model Number: 2630ES
    • Manufacturer: JLG
    • Type: Scissor Lift
  • Dimensions
    • Platform Height: 26 ft
    • Platform Length: 8 ft
    • Stowed Height: 6 ft 6 in
    • Overall Width: 30 in
    • Wheelbase: 6 ft
  • Performance
    • Lifting Capacity: 500 lbs
    • Drive Speed (Stowed): 2 mph
    • Drive Speed (Raised): 0.5 mph
    • Turning Radius (Inside): Zero
    • Turning Radius (Outside): 7 ft 6 in
    • Gradeability: 25%
  • Power
    • Power Source: Electric
    • Battery: 4 x 6V, 220 amp-hour
    • Charger: 20 amp Automatic
  • Weight
    • Machine Weight: 4,180 lbs
  • Features
    • Proportional Controls
    • Non-Marking Tires
    • Fold-Down Platform Rails
    • Automatic Traction Control
    • Platform Extension

JLG 2630ES

Buy or Rent

slab electric

Call for price

$100 USD per day

$195 USD per week

$585 USD per month


CONTACT INFO
Name:
Greg Herzog
Phone:

ADDRESS
Lift-X Lift Services L.L.C.
N4134 State Rd 57
WaldoWisconsin 53093
ATTRIBUTES
STOCK #:
LX43
Manufacturer:
MODEL #:
Drive:
2WD
SUBCATEGORY:
Height:
26 ft
FUEL:
SERIAL #:
0200170740
CONDITION:
Used/Rental
UNIT LOCATION:
Wisconsin [53073]
DESCRIPTION:
26ft self-propelled electric scissors lift
POST DATE:
4/8/2026
Reviews
Useful
Not

The JLG 2630ES scissor lift has been a reliable companion on various job sites I've worked on. Its compact size makes it easy to maneuver in tight spaces, which really came in handy when we were tackling a renovation project at a small retail shop. I appreciate how straightforward it is to set up—just a quick press of a button and you’re up in the air. The lift feels stable, which is a must when you're working at heights, and the battery life has always held up during long days. Overall, it's a solid performer that just gets the job done without any fuss.



Review by Jason Mitchell (11/20/2024)

  • General Specifications
    • Model Number: 2630ES
    • Manufacturer: JLG
    • Type: Scissor Lift
  • Dimensions
    • Platform Height: 26 ft
    • Platform Length: 8 ft
    • Stowed Height: 6 ft 6 in
    • Overall Width: 30 in
    • Wheelbase: 6 ft
  • Performance
    • Lifting Capacity: 500 lbs
    • Drive Speed (Stowed): 2 mph
    • Drive Speed (Raised): 0.5 mph
    • Turning Radius (Inside): Zero
    • Turning Radius (Outside): 7 ft 6 in
    • Gradeability: 25%
  • Power
    • Power Source: Electric
    • Battery: 4 x 6V, 220 amp-hour
    • Charger: 20 amp Automatic
  • Weight
    • Machine Weight: 4,180 lbs
  • Features
    • Proportional Controls
    • Non-Marking Tires
    • Fold-Down Platform Rails
    • Automatic Traction Control
    • Platform Extension
