Equipment Description
19ft max deck height scissors lift. 30in wide. 550lb max capacity. Electric powered, hydraulic drive. Full spec sheet in photos. *Stock Photo. **Long-term discounts available.

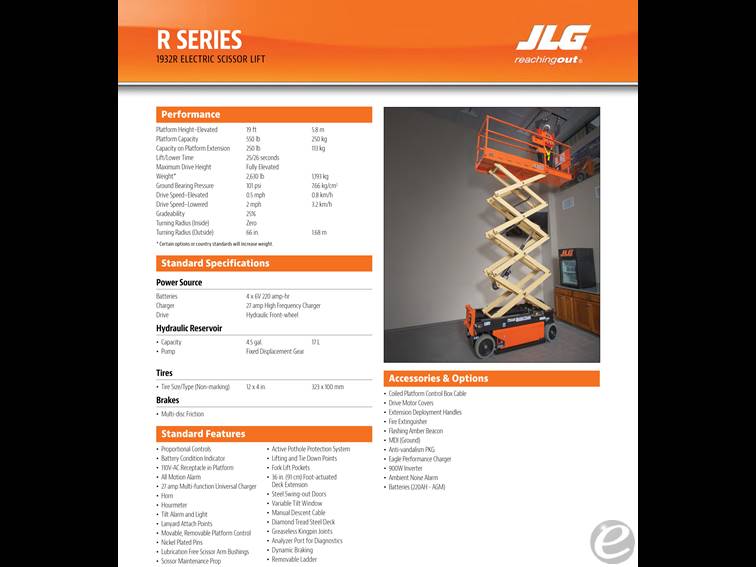

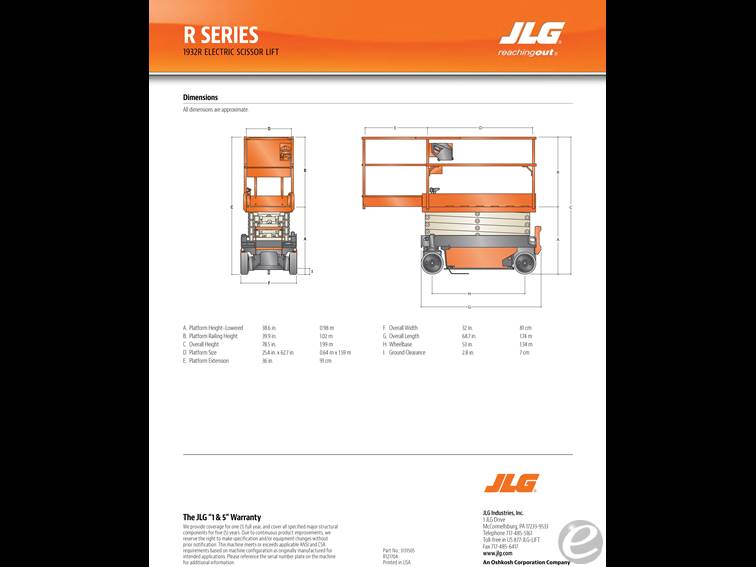

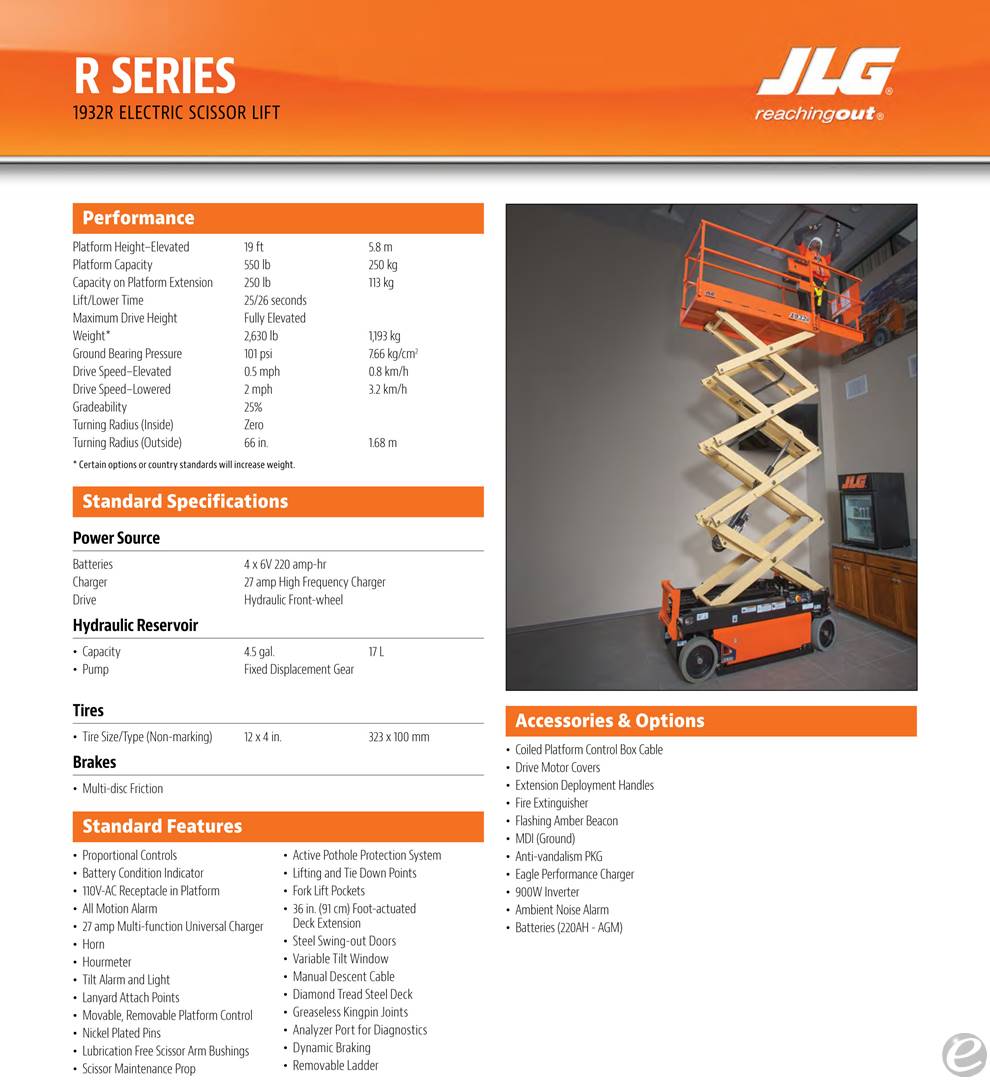

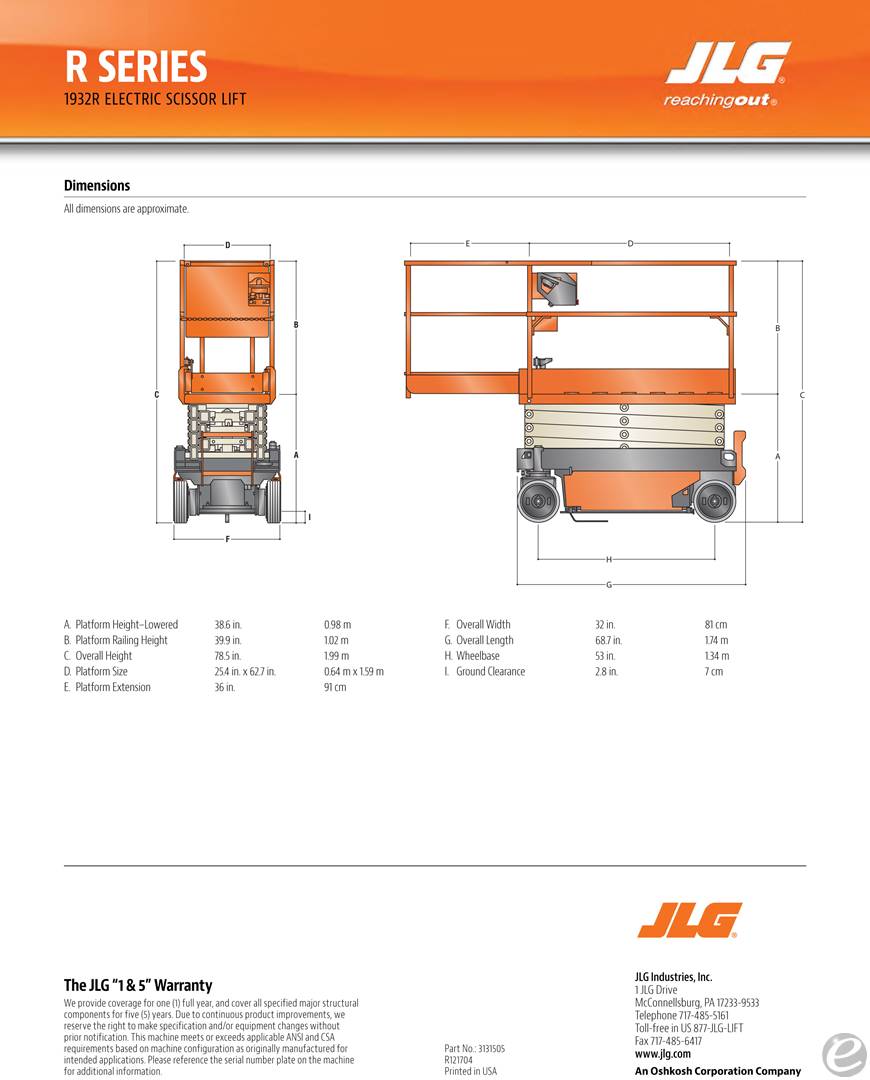

Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • Model Number: 1932R
  • Manufacturer: JLG
  • Type: Scissor Lift
  • Dimensions
    • Machine Width: 2 ft 8 in
    • Machine Length: 6 ft
    • Machine Height (Rails Up): 6 ft 8 in
    • Machine Height (Rails Down): 5 ft
    • Platform Size: 2 ft 6 in x 6 ft
    • Ground Clearance: 3 in
  • Performance
    • Platform Capacity: 550 lbs
    • Drive Speed – Platform Elevated: Up to 0.5 mph
    • Drive Speed – Platform Lowered: Up to 3 mph
    • Gradeability: 25%
    • Turning Radius (Inside): Zero
    • Turning Radius (Outside): 5 ft 5 in
  • Power Source
    • Battery: 4 x 6V, 220 amp-hours
    • Hydraulic Tank Capacity: 2.6 gal
    • Charger: Integrated, 20 amp
  • Weights
    • Machine Weight: 2,845 lbs
  • Operational
    • Tire Size: 12.25 x 4 in
    • Control Type: Proportional

JLG 1932R

Buy or Rent

slab electric

Call for price

$90 USD per day

$175 USD per week

$525 USD per month


CONTACT INFO
Name:
Greg Herzog
Phone:

ADDRESS
Lift-X Lift Services L.L.C.
N4134 State Rd 57
WaldoWisconsin 53093
ATTRIBUTES
STOCK #:
LX39
Manufacturer:
MODEL #:
Drive:
2WD
SUBCATEGORY:
Height:
19 ft
FUEL:
SERIAL #:
M200032087
CONDITION:
Used/Rental
UNIT LOCATION:
Wisconsin [53073]
DESCRIPTION:
19ft self-propelled electric scissors lift
POST DATE:
4/8/2026
Reviews
Useful
Not

The JLG 1932R scissor lift is a solid choice for anyone needing to tackle those hard-to-reach spots safely and efficiently. I remember using one for the first time at a friend's warehouse, and it was surprisingly easy to maneuver. The lift provided a stable platform while working, which gave me a lot of confidence, especially when I was up there hanging lights for an event. It's fun to think about how something like this can make a tough job much simpler. Plus, it folds up nicely for transport. Definitely a handy tool for any construction or maintenance project.



Review by Jake Thompson (6/3/2025)

  • Model Number: 1932R
  • Manufacturer: JLG
  • Type: Scissor Lift
  • Dimensions
    • Machine Width: 2 ft 8 in
    • Machine Length: 6 ft
    • Machine Height (Rails Up): 6 ft 8 in
    • Machine Height (Rails Down): 5 ft
    • Platform Size: 2 ft 6 in x 6 ft
    • Ground Clearance: 3 in
  • Performance
    • Platform Capacity: 550 lbs
    • Drive Speed – Platform Elevated: Up to 0.5 mph
    • Drive Speed – Platform Lowered: Up to 3 mph
    • Gradeability: 25%
    • Turning Radius (Inside): Zero
    • Turning Radius (Outside): 5 ft 5 in
  • Power Source
    • Battery: 4 x 6V, 220 amp-hours
    • Hydraulic Tank Capacity: 2.6 gal
    • Charger: Integrated, 20 amp
  • Weights
    • Machine Weight: 2,845 lbs
  • Operational
    • Tire Size: 12.25 x 4 in
    • Control Type: Proportional
