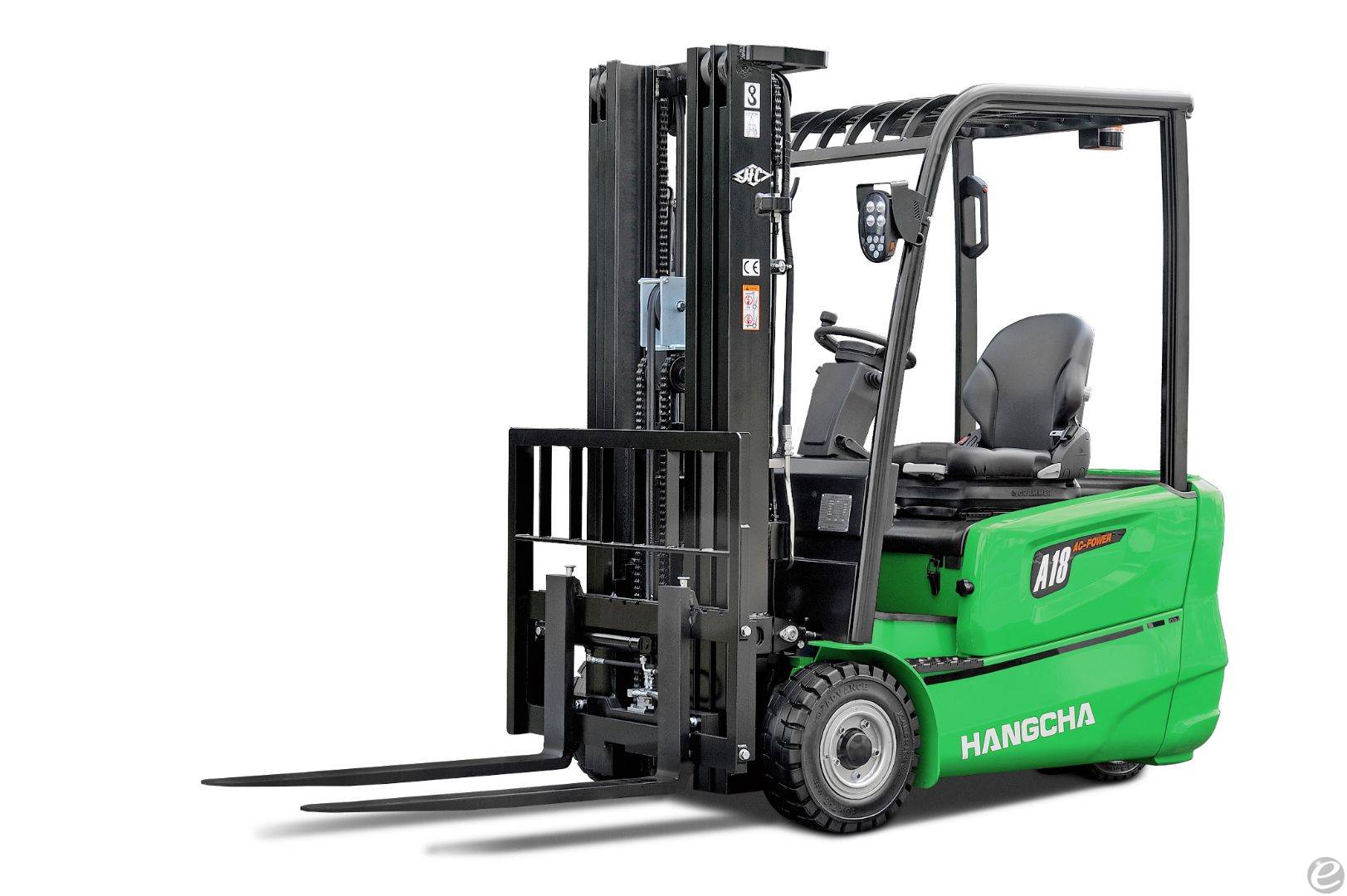

Hangcha CPDS18-AD6-I

electric 3 wheel sit down

Call for priceNew
Florida Forklift Inc.
CONTACT INFO
Name:
Florida Forklift
Phone:

ADDRESS
Florida Forklift Inc.
3221 N. 40th Street
TampaFlorida 33605
ATTRIBUTES
STOCK #:
CALL FOR QUOTE!
Manufacturer:
MODEL #:
CAPACITY:
3500
FUEL:
Electric
MAST TYPE:
Three Stage
MAST HEIGHT:
85.6 / 185 in
SIDE SHIFTER:
Yes
CONDITION:
New
LOCATION:
POST DATE:
2/21/2025
Equipment Description
3000, 4000 lb. capacities Freezer Package -20 Solid pneumatic tires High efficiency AC driving motor Multi-functions instrument Front dual driving motors Rubber floor mat Solid tyre Emergency disconnect switch 2-valve inside chassis LED headlight Rear combination LED light Panoramic rearview mirror (in the middle position of the overhead guard) 118.1 inch duplex wide view mast Adjustable steering column Full electronic controlled travelling, lifting and steering Horn and reversing buzzer Toolbox and file folder CAN-BUS system Low noise gear pump (Brand: Shimadzu, Made in Japan) Full hydraulic steering Soft landing system Non suspension seat: Grammer GS12 with switch ZF reducer and SCHABMULLER traveling motor
  • General Specifications
    • Model Number: CPDS18-AD6-I
    • Manufacturer: Hangcha
    • Type: Forklift
    • Subtype: Electric 3 Wheel Sit Down
    • Fuel Type: Electric
  • Dimensions and Weight
    • Overall Length: 78.7 inches
    • Overall Width: 41.3 inches
    • Overall Height (with lowered overhead guard): 78.7 inches
    • Wheelbase: 51.2 inches
    • Ground Clearance: 3.9 inches
    • Turning Radius: 53.5 inches
    • Weight: 6,173 lbs
  • Performance
    • Load Capacity: 3,968 lbs
    • Travel Speed (laden/unladen): 8.7 mph / 9.3 mph
    • Lifting Speed (laden/unladen): 11.8 inches/sec / 19.7 inches/sec
    • Lowering Speed (laden/unladen): 19.7 inches/sec / 11.8 inches/sec
    • Gradeability (laden/unladen): 15% / 20%
  • Power and Drive
    • Drive Motor Power: 7.5 kW (10 HP)
    • Lift Motor Power: 14.3 kW (19.2 HP)
    • Battery Voltage: 48V
    • Battery Capacity: 400 Ah
  • Wheels and Tires
    • Tire Type: Cushion
    • Front Tires: 18x7-8
    • Rear Tires: 15x4.5-8
  • Forks
    • Fork Length: Varies
    • Fork Width: 3.9 inches
    • Fork Thickness: 1.6 inches
