Overview
Spec Sheet
Shipping/Freight
Equipment Description
Axle based 4WD system Operator controlled locking rear differential and limited slip front differential Oscillating axle Drivable at full height 355° Non-continuous turret rotation 45% Gradeability Diesel or dual fuel engine Swing out engine tray Swing up cowlings Modular platform railing system Dual-entry sliding mid rails 110V AC outlet on platform with GFI Direction sensing drive and steer controls Proportional controls Relay based control system Color coded and numbered wiring Hourmeter Operator horn All motion alarm Tie down/lifting lugs Wet disc SAHR brakes (rear axle) 12 x 16.5 grip lug air-filled tires Telematics ready
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Specifications
    • Model Number: SJ46 AJ
    • Manufacturer: Skyjack
    • Type: Boom Lift
    • Subtype: Articulated Boom
    • Fuel Type: Diesel
  • Dimensions
    • Overall Length (transport): 21 ft
    • Overall Width: 7 ft
    • Overall Height (stowed): 7.5 ft
    • Wheelbase: 7 ft
    • Ground Clearance: 1 ft
  • Performance
    • Platform Capacity: 500 lbs
    • Platform Height: 46 ft
    • Horizontal Outreach: 25 ft
    • Up and Over Clearance: 20 ft
    • Gradeability: 45%
    • Turning Radius (inside): 15 ft
    • Turning Radius (outside): 12 ft
    • Platform Rotation: 180 degrees
    • Jib Range of Motion: 130 degrees
  • Engine
    • Power Source: Diesel Engine
    • Engine Manufacturer: Kubota
    • Engine type: V2403
    • Displacement: 2.4 L
  • Weights
    • Machine Weight: 14,500 lbs
  • Hydraulic System
    • Hydraulic Tank Capacity: 17 gallons
    • System Pressure: 3,000 psi
  • Features
    • 360-degree Continuous Rotation
    • Proportional Controls
    • 4-Wheel Drive
    • Foam-Filled Tires
    • Auxiliary Power Unit

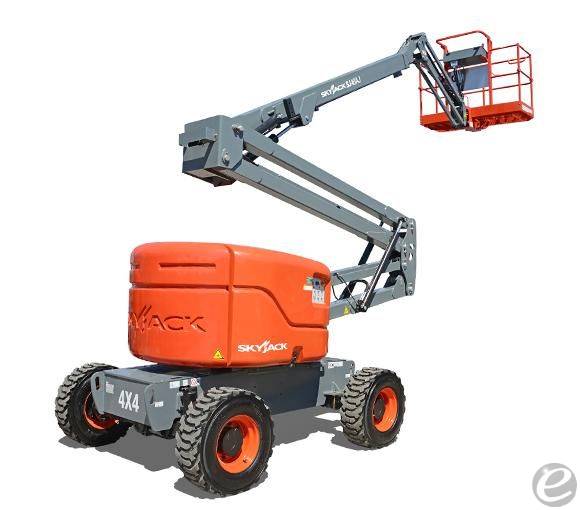

Skyjack SJ46 AJ

New

articulated boom ac power

Call for price

CONTACT INFO
Name:
Florida Forklift
Phone:

ADDRESS
Florida Forklift Inc.
3221 N. 40th Street
TampaFlorida 33605
ATTRIBUTES
Manufacturer:
MODEL #:
Drive:
4WD
SUBCATEGORY:
Height:
ft
FUEL:
CONDITION:
New
UNIT LOCATION:
POST DATE:
4/27/2026
Reviews
Useful
Not

The Skyjack SJ46 AJ boom lift has been a real lifesaver on our job sites, especially when we needed to lift materials to some seriously high places. It felt sturdy and reliable while reaching those tricky spots. I remember the first time we used it for a project that involved working on an old warehouse. The diesel power was a big plus, letting us work all day without worrying about running out of juice. The controls were pretty intuitive too, making it easier for the crew to handle even if they weren’t complete pros with boom lifts. Overall, it's been a dependable machine that has served us well when tackling those high-reaching challenges.



Review by Mike Johnson (12/31/2025)
