  • General Specifications
    • Model Number: 1255
    • Manufacturer: JLG
    • Type: Telehandler
  • Dimensions
    • Overall Length (without forks): 20 ft 3 in
    • Overall Width: 8 ft 6 in
    • Overall Height: 8 ft 6 in
    • Wheelbase: 12 ft 1 in
    • Ground Clearance: 1 ft 6 in
  • Performance
    • Max Lift Capacity: 12,000 lbs
    • Max Reach: 42 ft
    • Max Forward Reach: 35 ft
    • Turning Radius (outside): 14 ft 1 in
    • Travel Speed: 20 mph
  • Engine
    • Make: Cummins
    • Type: Turbo Diesel
    • Power: 130 hp
    • Fuel Tank Capacity: 44 gal
  • Tires
    • Tire Size: 15.5-25
    • Tire Type: Pneumatic
  • Hydraulic System
    • Hydraulic Power: 45 gal/min
    • Hydraulic System Pressure: 3,500 psi
  • Weights
    • Operating Weight: 36,070 lbs
    • Counterweight: Integral

2019 JLG 1255

earth moving and construction

Call for price

CONTACT INFO
Name:
Francisco Alvidrez

ADDRESS
Fallsway Equipment Co
2011 S Crane Ave Building C
Odessa, Texas 79766
ATTRIBUTES
STOCK #:
UT00194
YEAR:
2019
Manufacturer:
MODEL #:
SERIAL #:
160096638
CONDITION:
Used
UNIT LOCATION:
Texas [79766]
DESCRIPTION:

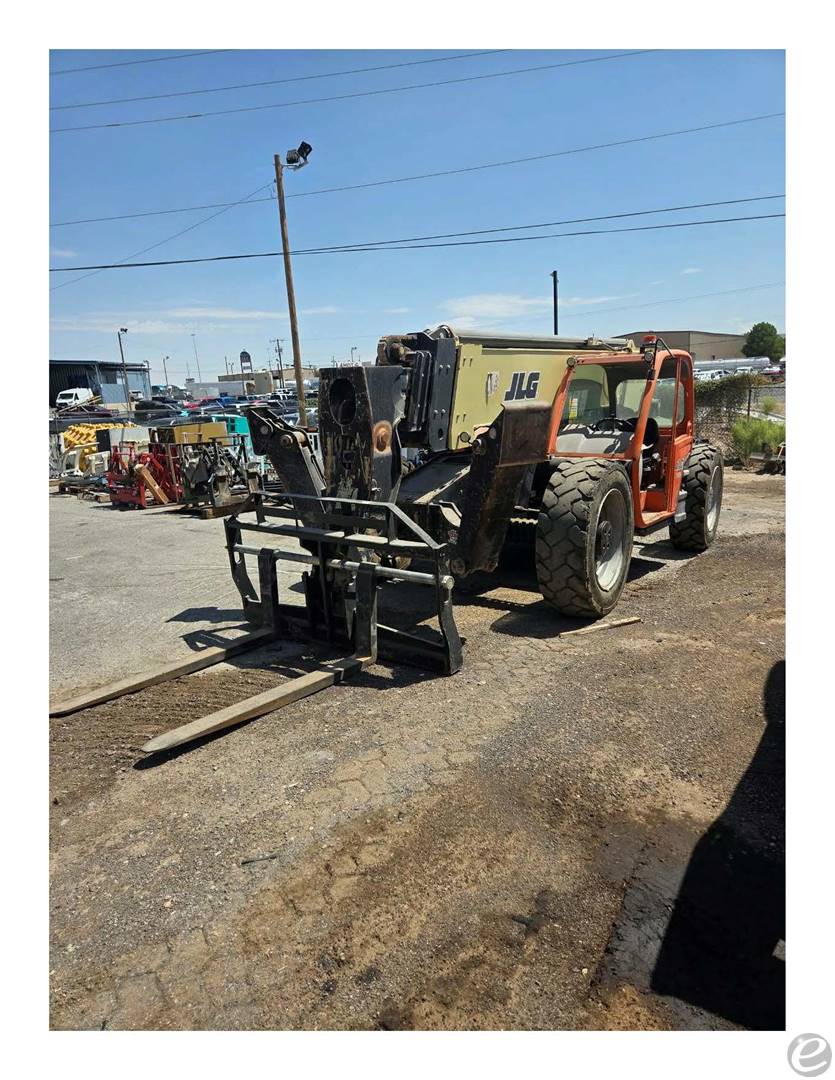

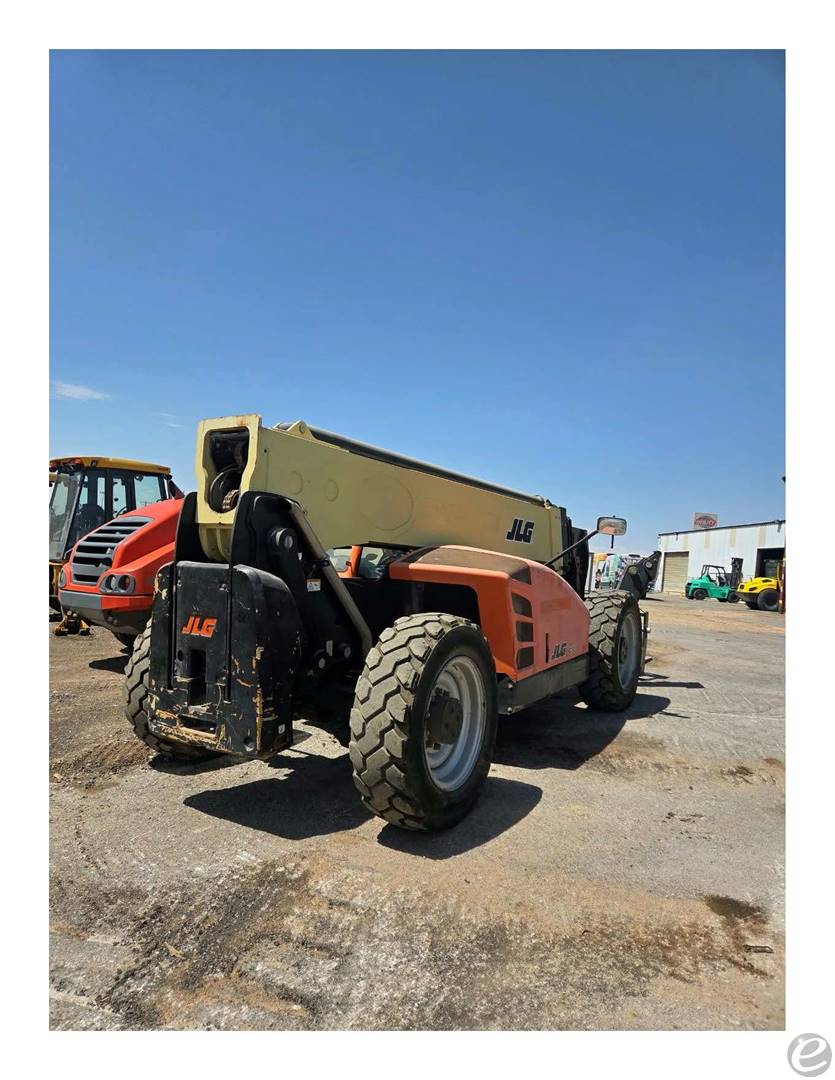

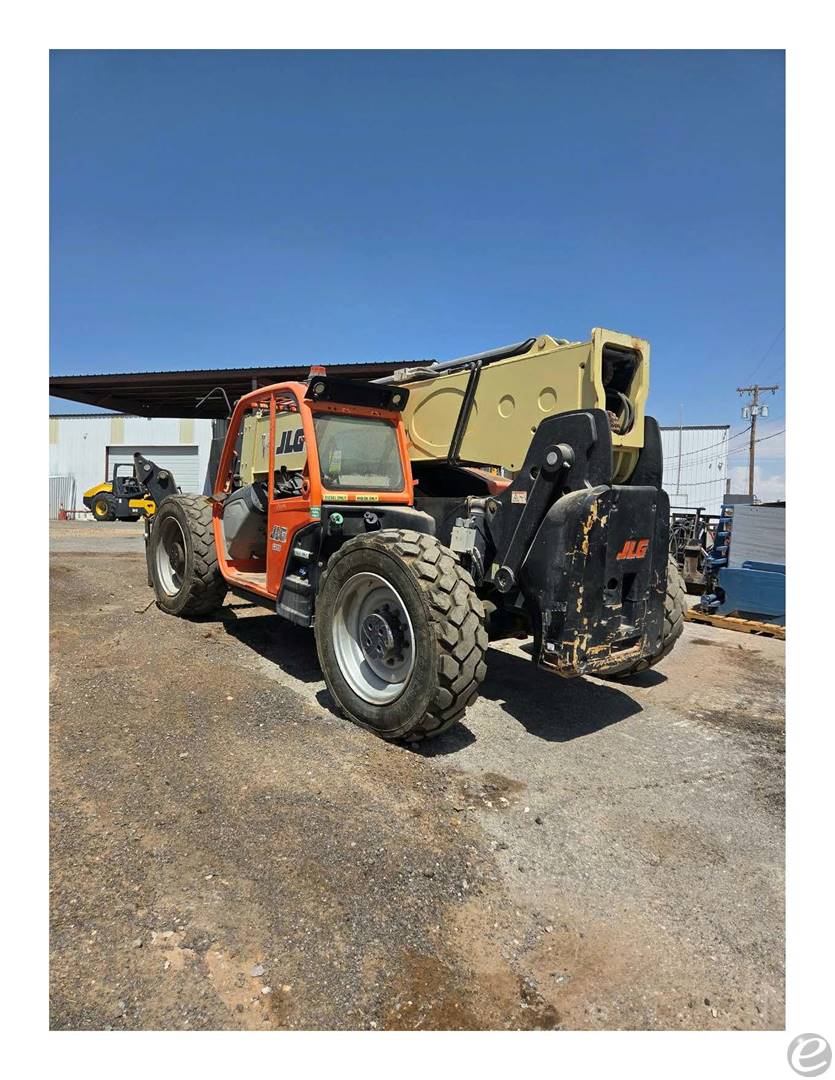

Used 2019 JLG 1255 Telehandler
POST DATE:
10/26/2026
  • General Specifications
    • Model Number: 1255
    • Manufacturer: JLG
    • Type: Telehandler
  • Dimensions
    • Overall Length (without forks): 20 ft 3 in
    • Overall Width: 8 ft 6 in
    • Overall Height: 8 ft 6 in
    • Wheelbase: 12 ft 1 in
    • Ground Clearance: 1 ft 6 in
  • Performance
    • Max Lift Capacity: 12,000 lbs
    • Max Reach: 42 ft
    • Max Forward Reach: 35 ft
    • Turning Radius (outside): 14 ft 1 in
    • Travel Speed: 20 mph
  • Engine
    • Make: Cummins
    • Type: Turbo Diesel
    • Power: 130 hp
    • Fuel Tank Capacity: 44 gal
  • Tires
    • Tire Size: 15.5-25
    • Tire Type: Pneumatic
  • Hydraulic System
    • Hydraulic Power: 45 gal/min
    • Hydraulic System Pressure: 3,500 psi
  • Weights
    • Operating Weight: 36,070 lbs
    • Counterweight: Integral
