  • Engine
    • Manufacturer: John Deere
    • Model: 4045T
    • Type: Turbocharged, 4-cylinder
    • Displacement: 276 cubic inches
    • Net Power: 54 kW (72 hp) at 2,200 rpm
    • Tank Capacity: 24 gallons
  • Performance
    • Operating Weight: 16,273 lbs
    • Digging Reach (at ground level): 24 feet
    • Travel Speed: 3.1 mph
    • Max Arm Digging Force: 6,940 lbf
    • Max Bucket Digging Force: 12,364 lbf
  • Hydraulics
    • Pump Type: Variable-displacement axial-piston
    • Main Pump Flow: 33.4 gpm
    • Hydraulic Pressure: 3,336 psi
  • Dimensions
    • Overall Length: 23 feet
    • Overall Width: 8 feet
    • Overall Height: 9 feet
    • Ground Clearance: 13.3 inches
    • Tail Swing Radius: 6.8 feet
  • Undercarriage
    • Track Width: 1.6 feet
    • Shoe Width: 19.7 inches
    • Track Length: 10.8 feet
  • Capacities
    • Fuel Tank: 46 gallons
    • Hydraulic Tank: 13.2 gallons
    • Engine Oil: 3.2 gallons

2016 John Deere 75G

earth moving and construction

Call for price

CONTACT INFO
Name:
Francisco Alvidrez

ADDRESS
Fallsway Equipment Co
2011 S Crane Ave Building C
Odessa, Texas 79766
ATTRIBUTES
STOCK #:
UT00200
YEAR:
2016
Manufacturer:
MODEL #:
SERIAL #:
IFF075GXJFJ015840
CONDITION:
Used
HOUR METER:
6210
UNIT LOCATION:
Texas [79766]
DESCRIPTION:

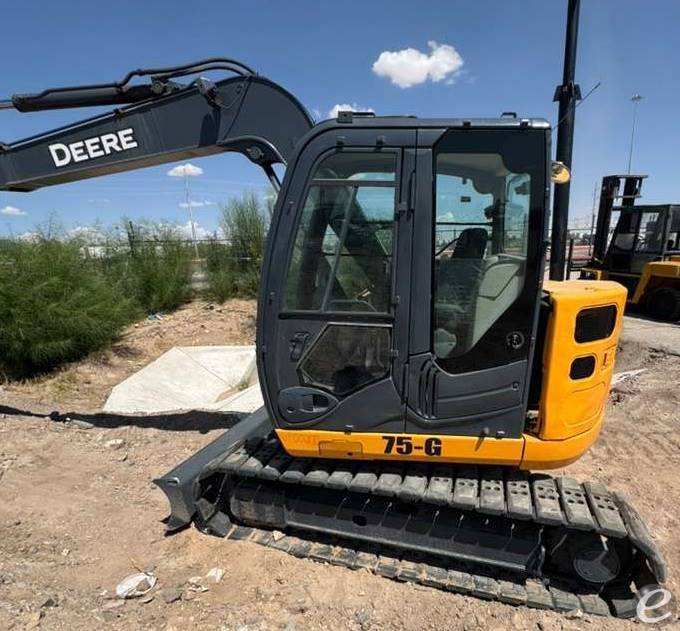

Used 2016 John Deere 75G Excavator
POST DATE:
10/26/2026
  • Engine
    • Manufacturer: John Deere
    • Model: 4045T
    • Type: Turbocharged, 4-cylinder
    • Displacement: 276 cubic inches
    • Net Power: 54 kW (72 hp) at 2,200 rpm
    • Tank Capacity: 24 gallons
  • Performance
    • Operating Weight: 16,273 lbs
    • Digging Reach (at ground level): 24 feet
    • Travel Speed: 3.1 mph
    • Max Arm Digging Force: 6,940 lbf
    • Max Bucket Digging Force: 12,364 lbf
  • Hydraulics
    • Pump Type: Variable-displacement axial-piston
    • Main Pump Flow: 33.4 gpm
    • Hydraulic Pressure: 3,336 psi
  • Dimensions
    • Overall Length: 23 feet
    • Overall Width: 8 feet
    • Overall Height: 9 feet
    • Ground Clearance: 13.3 inches
    • Tail Swing Radius: 6.8 feet
  • Undercarriage
    • Track Width: 1.6 feet
    • Shoe Width: 19.7 inches
    • Track Length: 10.8 feet
  • Capacities
    • Fuel Tank: 46 gallons
    • Hydraulic Tank: 13.2 gallons
    • Engine Oil: 3.2 gallons
