Equipment Description
Used 2012 Genie Articulating Boom Lift Model #: Z135/70 Basic Capacity: 600 lbs Fuel: Diesel Max Work Height: 141' Horizontal Reach: 70' Up & Over Clearance: 75'6" Below Ground Reach: 19'3" Status: Standard Warranty: 30 Days Parts, Labor, & Powertrain (or 100 Hours)
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • Model Name: Genie Z135/70
  • Type: Boom Lift
  • Subtype: Articulated Boom
  • Dimensions
    • Overall Length: 42 ft
    • Overall Width: 8 ft
    • Overall Height (stowed): 10.5 ft
    • Platform Height: 135 ft
    • Width of Platform: 8 ft
    • Length of Platform: varies
    • Wheelbase: 12 ft
    • Ground Clearance: 1 ft
  • Performance
    • Platform Capacity: 600 lbs (unrestricted), 1000 lbs (restricted)
    • Horizontal Reach: 69 ft 9 in
    • Up And Over Clearance: 75 ft 6 in
    • Drive Speed - Stowed: 2.8 mph
    • Drive Speed - Elevated: 0.68 mph
    • Turning Radius: 17 ft 7 in (inside), 25 ft (outside)
    • Gradeability: 45%
    • Lift Functions: 75 seconds (full height)
  • Power
    • Power Source: Diesel
    • Engine: Deutz, 4-cylinder turbo diesel, 122 hp
    • Fuel Tank Capacity: 40 gallons
  • Hydraulic System
    • Hydraulic Tank Capacity: 60 gallons
    • Hydraulic Pump: Variable displacement axial piston
  • Weights
    • Weight: 44,900 lbs
  • Other Features
    • Proportional Controls
    • Self-leveling Platform
    • AC Wiring to Platform
    • Air Line to Platform
    • 360-degree Continuous Rotation Turntable
    • 180-degree Hydraulic Platform Rotation

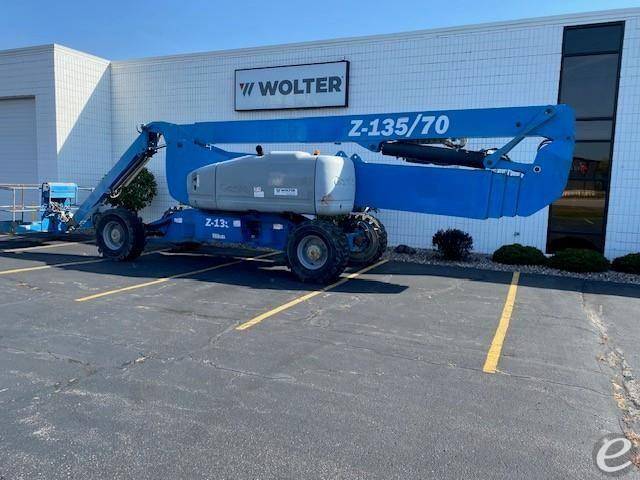

2012 Genie Z135/70

articulated boom diesel

$58,900 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Ashley Hall
Phone:
Website:

ADDRESS
Wolter, Inc.
820 S Post Rd
IndianapolisIndiana 46239
ATTRIBUTES
STOCK #:
328853
YEAR:
2012
Manufacturer:
MODEL #:
Drive:
4WD
SUBCATEGORY:
Height:
ft
FUEL:
SERIAL #:
Z13512-1597
CONDITION:
Used
HOUR METER:
4413
UNIT LOCATION:
Wisconsin [54401]
POST DATE:
7/21/2026
