Equipment Description
Quick Coupler, Angle Blade, 1 Hour
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • Engine
    • Manufacturer: Kubota
    • Model: D1703-M-E4
    • Output: 47.6 HP
    • Displacement: 100.5 cu. in.
    • Cylinders: 3
    • Fuel Type: Diesel
  • Dimensions
    • Overall Length: 15.95 ft
    • Overall Width: 5.1 ft
    • Overall Height: 8.2 ft
    • Track Width: 1.1 ft
    • Ground Clearance: 11 in
  • Weight
    • Operating Weight: 8,300 lbs
  • Performance
    • Bucket Capacity: 0.08-0.17 yd³
    • Travel Speed: 1.8/3.1 mph
    • Max Digging Depth: 11.1 ft
    • Max Reach at Ground Level: 17.8 ft
    • Max Dumping Height: 12.8 ft
    • Arm Breakout Force: 6,300 lbs
    • Bucket Breakout Force: 9,900 lbs
  • Hydraulic System
    • Hydraulic Pressure: 3,900 psi
    • Pump Capacity: 25.6 GPM
    • Auxiliary Hydraulic Flow: 16.9 GPM
  • Undercarriage
    • Shoe Width: 12 in
    • Tumbler Distance: 6.2 ft
    • Track Gauge: 4.1 ft
  • Capacities
    • Fuel Tank: 17.2 gallons
    • Cooling System: 1.7 gallons
    • Hydraulic Oil Tank: 5 gallons

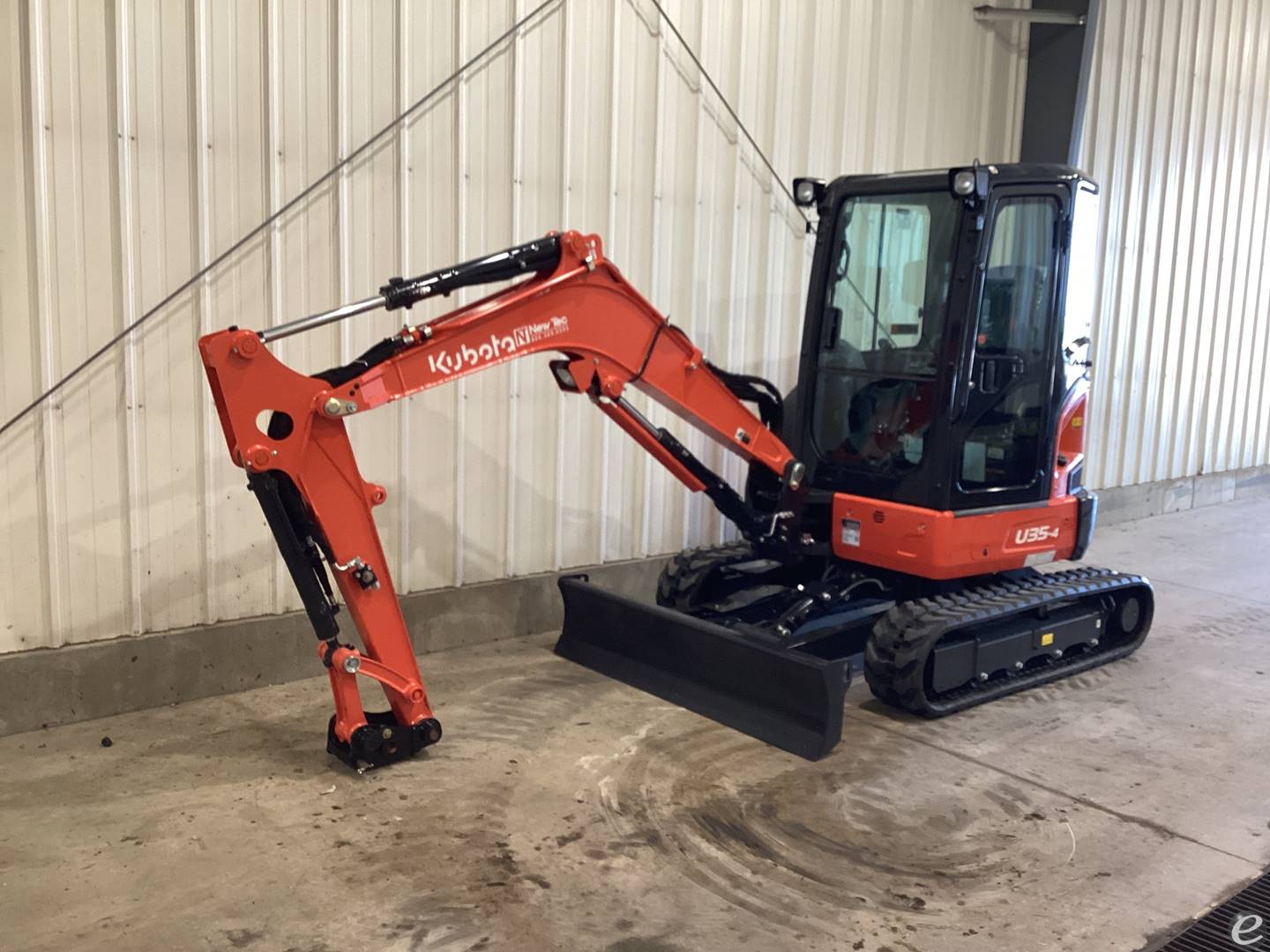

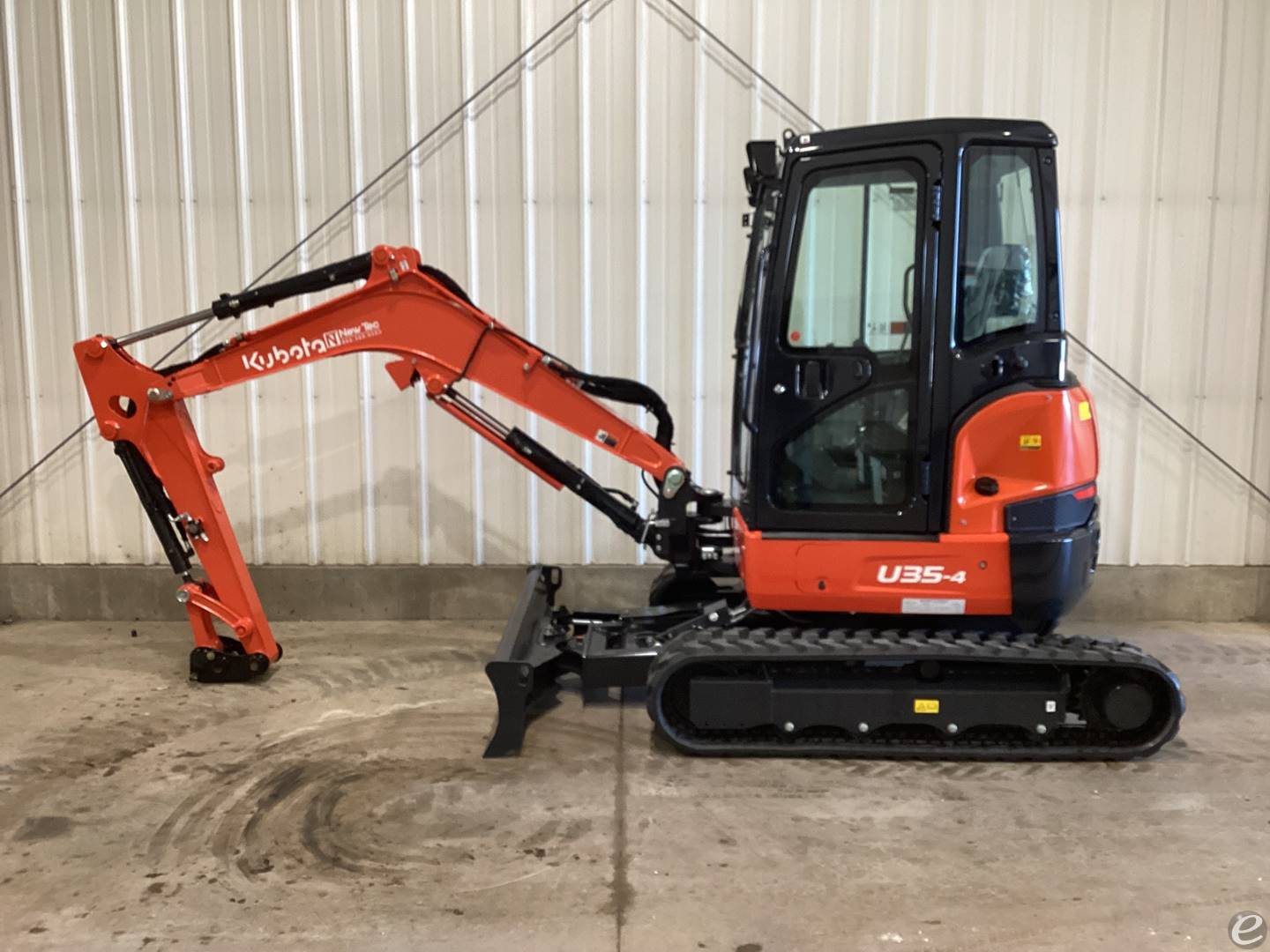

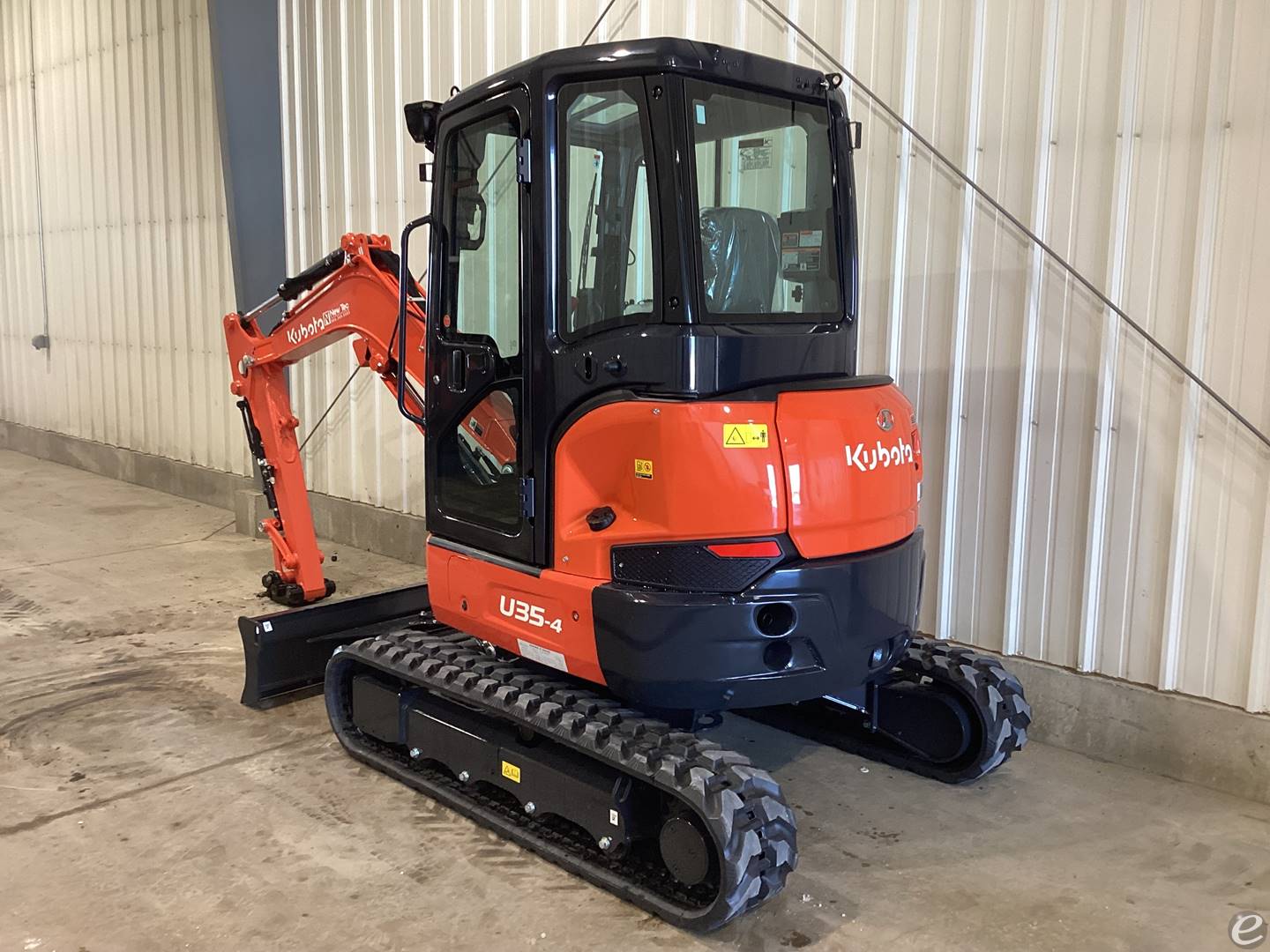

2026 Kubota U35-4R3A

New

earth moving and construction

Call for price

CONTACT INFO
Name:
Jeremy or Tage
Phone:
Website:

ADDRESS
New Tec, Inc.
4321 Hwy Blvd
SpencerIowa 51301
ATTRIBUTES
STOCK #:
0022777
YEAR:
2026
Manufacturer:
MODEL #:
SERIAL #:
KBCCZ78CHT3C29389
CONDITION:
New
HOUR METER:
1
UNIT LOCATION:
Iowa [51301]
DESCRIPTION:

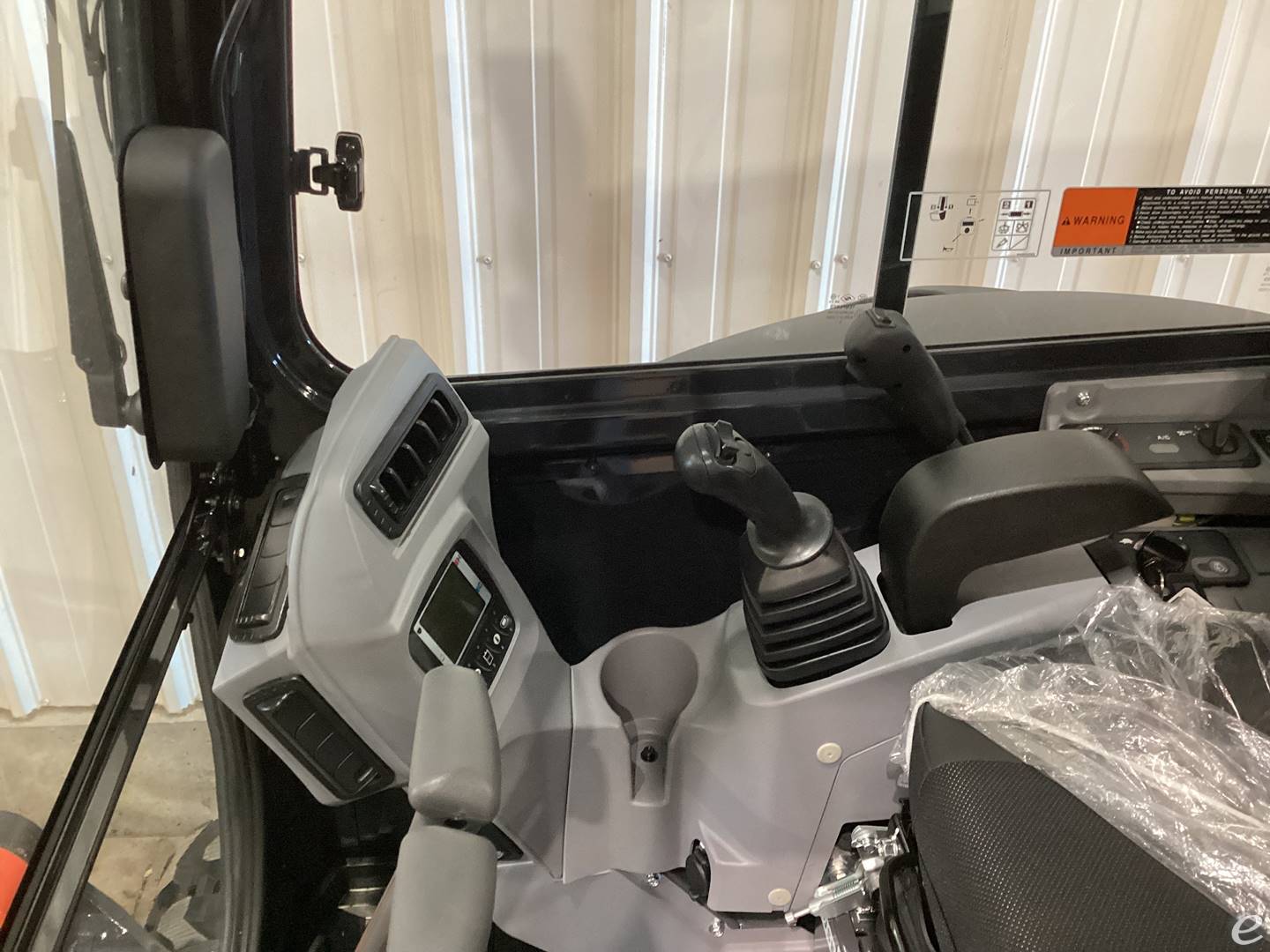

U35-4R3A Kubota Diesel, Cab w/ AC, Aux Hydraulics,
POST DATE:
7/8/2026
  • Engine
    • Manufacturer: Kubota
    • Model: D1703-M-E4
    • Output: 47.6 HP
    • Displacement: 100.5 cu. in.
    • Cylinders: 3
    • Fuel Type: Diesel
  • Dimensions
    • Overall Length: 15.95 ft
    • Overall Width: 5.1 ft
    • Overall Height: 8.2 ft
    • Track Width: 1.1 ft
    • Ground Clearance: 11 in
  • Weight
    • Operating Weight: 8,300 lbs
  • Performance
    • Bucket Capacity: 0.08-0.17 yd³
    • Travel Speed: 1.8/3.1 mph
    • Max Digging Depth: 11.1 ft
    • Max Reach at Ground Level: 17.8 ft
    • Max Dumping Height: 12.8 ft
    • Arm Breakout Force: 6,300 lbs
    • Bucket Breakout Force: 9,900 lbs
  • Hydraulic System
    • Hydraulic Pressure: 3,900 psi
    • Pump Capacity: 25.6 GPM
    • Auxiliary Hydraulic Flow: 16.9 GPM
  • Undercarriage
    • Shoe Width: 12 in
    • Tumbler Distance: 6.2 ft
    • Track Gauge: 4.1 ft
  • Capacities
    • Fuel Tank: 17.2 gallons
    • Cooling System: 1.7 gallons
    • Hydraulic Oil Tank: 5 gallons
