NLEQ# 151975, 1802 Hours, Kubota Turbo Diesel, 4WD, 8' Platform, Foam Filled Tires, 126' Platform Height, 132' Working Height, Fresh Boom Job & Cables, Fully Serviced, Fresh Annual Inspection, 30 Day Warranty!
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Specifications
    • Model Number: TB126J
    • Manufacturer: Snorkel
    • Type: Boom Lift
    • Subtype: Telescopic Boom
    • Fuel Type: Diesel
  • Dimensions
    • Overall Length: 48 ft 11 in
    • Overall Width: 8 ft 3 in
    • Overall Height (stowed): 9 ft 10 in
    • Wheelbase: 12 ft 3 in
    • Ground Clearance: 1 ft 4 in
  • Weight
    • Machine Weight: Approximately 15,650 lbs
  • Performance
    • Lift Capacity: 500 lbs
    • Horizontal Outreach: 63 ft
    • Platform Rotation: 150 degrees
    • Rotation: 360 degrees continuous
    • Gradeability: 30%
    • Drive Speed: 3.2 mph
  • Power
    • Engine Type: Diesel
    • Engine Power: 65 hp
  • Operational

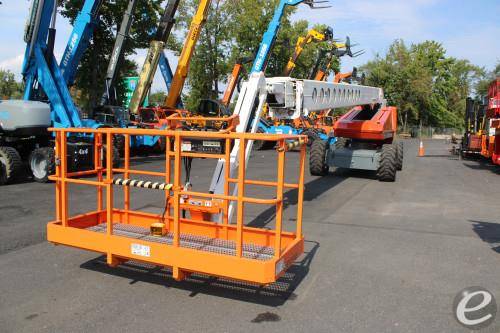

    • Platform Size: 8 ft x 3 ft
    • Turret Tailswing: 4 ft 9 in
  • Tires
    • Type: Foam-filled or pneumatic
    • Size: 15 x 22.5 in
  • Additional Features
    • 4-Wheel Drive
    • Proportional Controls
    • Power Line to Platform
    • Horn
    • Hour Meter

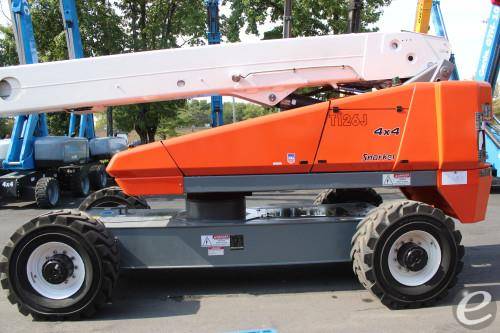

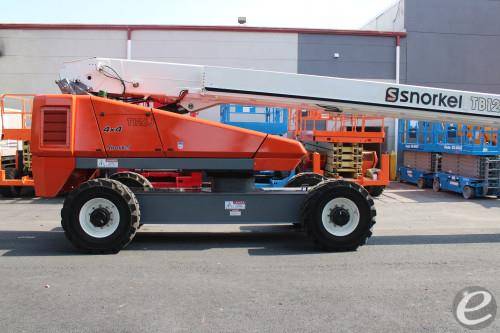

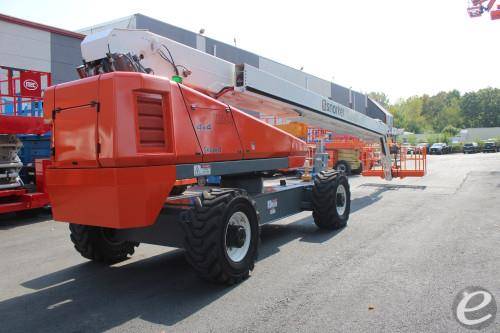

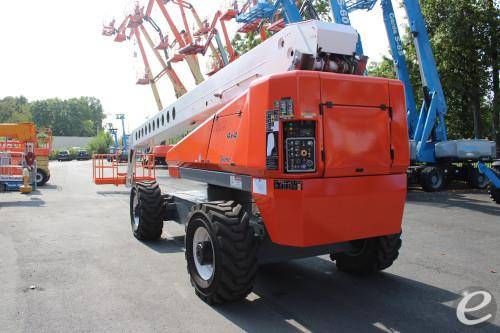

2016 Snorkel TB126J

telescopic boom diesel

$54,785 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Sales

ADDRESS
National Lift Equipment
300 Pond St.
BristolPennsylvania 19007
ATTRIBUTES
STOCK #:
151975
YEAR:
2016
Manufacturer:
MODEL #:
SUBCATEGORY:
Height:
126 ft
FUEL:
CONDITION:
Used
HOUR METER:
1802
UNIT LOCATION:
Pennsylvania [19007]
POST DATE:
6/25/2026
Reviews
Useful
Not

The Snorkel TB126J boom lift has been a game changer for our recent projects, making those high-reach jobs feel much safer and more manageable. A buddy of mine who runs a construction crew swears by the telescopic design, and after trying it out on a few sites, I can see why he loves it. It's diesel-powered, which means it has that reliable grunt you need when you're working on some rugged terrain. Maneuvering it felt pretty intuitive, and the height it reached made even the tallest jobs a breeze. It sure beats climbing up rickety ladders or scaffolding! Overall, a solid choice if you're looking to tackle tough jobs with ease.



Review by Jake Matthews (5/25/2025)

  • General Specifications
    • Model Number: TB126J
    • Manufacturer: Snorkel
    • Type: Boom Lift
    • Subtype: Telescopic Boom
    • Fuel Type: Diesel
  • Dimensions
    • Overall Length: 48 ft 11 in
    • Overall Width: 8 ft 3 in
    • Overall Height (stowed): 9 ft 10 in
    • Wheelbase: 12 ft 3 in
    • Ground Clearance: 1 ft 4 in
  • Weight
    • Machine Weight: Approximately 15,650 lbs
  • Performance
    • Lift Capacity: 500 lbs
    • Horizontal Outreach: 63 ft
    • Platform Rotation: 150 degrees
    • Rotation: 360 degrees continuous
    • Gradeability: 30%
    • Drive Speed: 3.2 mph
  • Power
    • Engine Type: Diesel
    • Engine Power: 65 hp
  • Operational
    • Platform Size: 8 ft x 3 ft
    • Turret Tailswing: 4 ft 9 in
  • Tires
    • Type: Foam-filled or pneumatic
    • Size: 15 x 22.5 in
  • Additional Features
    • 4-Wheel Drive
    • Proportional Controls
    • Power Line to Platform
    • Horn
    • Hour Meter
