Equipment Description

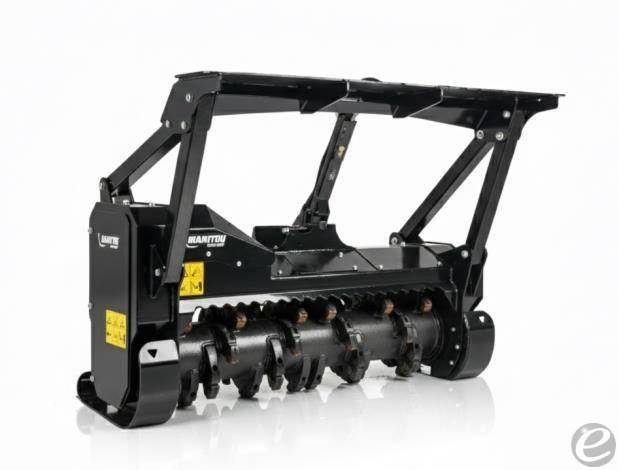

NEW Manitou Heavy Duty Rotary Mulcher
Key Features:
- 2-speed D97X2 Hydraulic motor- 20-75 gpm.
20 gpm (3,000 psi) maximum tree diameter of 5”.
40 gpm (3,000 psi) maximum tree diameter of 10”
75 gpm (3,000 psi) maximum tree diameter of 17.5”.
- Heavy Duty Frame constructed of T1 alloy tool steel for maximum strength.
- Replaceable, internal bolt-in AR400 steel wear plates.
- Angled frame design allows for rollback of the pusher bar allowing the operator to use the mulching head to fell standing trees.
- Adjustable, Replaceable AR400 skid shoes.
- Large pressure gauge allows the user to see and maintain optimal flow/performance.
- Integrated push bar with directional felling hooks to control and move wayward trees and branches where you want them.
- Adjustable belt tensioner, simply loosen the bolts, set, and torque.
- Standard wire protection kit safeguards the rotor and shaft from fencing wire.
- Spring loaded hose support with greasable pin and curved hose bracket protect hoses from hermes way while minimizing risk of pinching or chafing.
- Armored and sleeved hoses for additional protection.
- Reinforced, gusseted skid steer plate.
- Rear of the unit is guarded by a ⅜” thick curtain chain so standing brush enters and mulched debris exits.
- Powder coated for durability
- Case Drain Required
Key Specs
- Overall Width: 75”
- Rotor Width: 60”
- Hydraulic Flow Range: 20-75 gpm
- Cutting Depth: 1.5” above to “Heavy Duty” below grade
- Maximum Tree Diameter: 18.25” @ 4,000 psi
- Rotor Diameter/Weight - 18.5” 860 lbs
- Weight: 2975 lbs
**Price Does Not Include Tax Or Freight FOB Bolingbrook, IL**
