Equipment Description

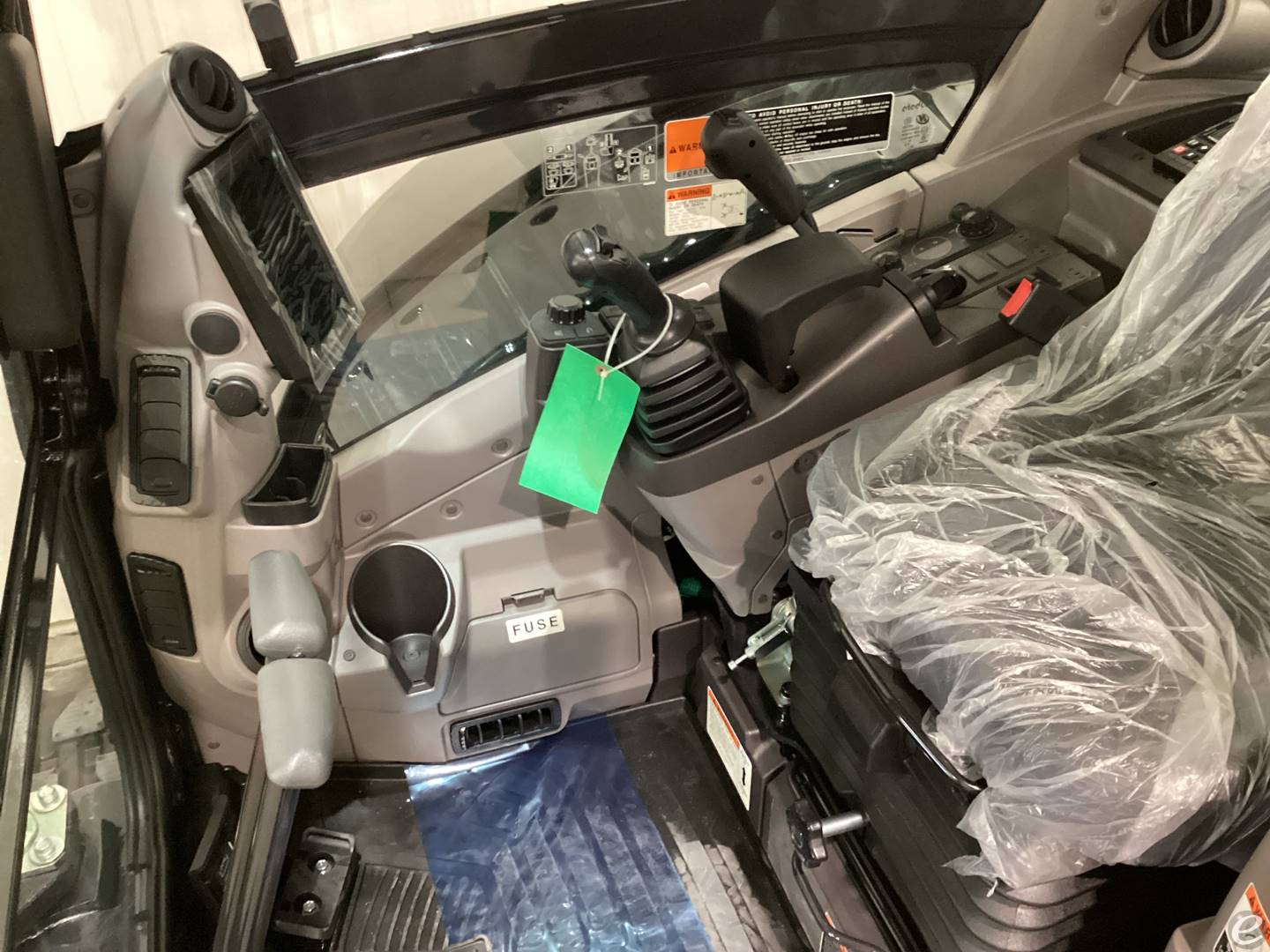

15.8" Staggered Block Rubber Tracks, Angle Blade, Cab w/ AC, ISO Controls, Telematics, 2nd Service Port
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Specifications
    • Manufacturer: Kubota
    • Model Number: KX057-5R3AP
    • Subtype: Earth Moving and Construction
    • Operating Weight: Approximately 12,400 lbs
  • Engine
    • Engine Model: Kubota D2403
    • Engine Power: Approximately 47.6 HP
    • Fuel Type: Diesel
    • Total Displacement: Approximately 148 cubic inches
  • Dimensions
    • Overall Length: Approximately 18.5 feet
    • Overall Width: Approximately 6.5 feet
    • Overall Height: Approximately 8.4 feet
    • Minimum Tail Swing Radius: Approximately 3.6 feet
  • Performance
    • Digging Depth: Approximately 12.5 feet
    • Dump Height: Approximately 13.4 feet
    • Max Digging Reach on Ground: Approximately 20 feet
    • Arm Breakout Force: Approximately 5,900 lbs
    • Boom Swing Angle (Left/Right): Approximately 70/55 degrees
  • Hydraulic System
    • Hydraulic Pump Flow Capacity: Approximately 18.8 gallons per minute
    • Auxiliary Hydraulic Flow Rate: Approximately 19.8 gallons per minute
  • Travel Speed
    • High: Approximately 3.1 mph
    • Low: Approximately 1.8 mph
  • Tracks
    • Track Width: Approximately 15.7 inches
    • Ground Clearance: Approximately 1.1 feet
  • Fuel Capacity
    • Fuel Tank Capacity: Approximately 21.1 gallons

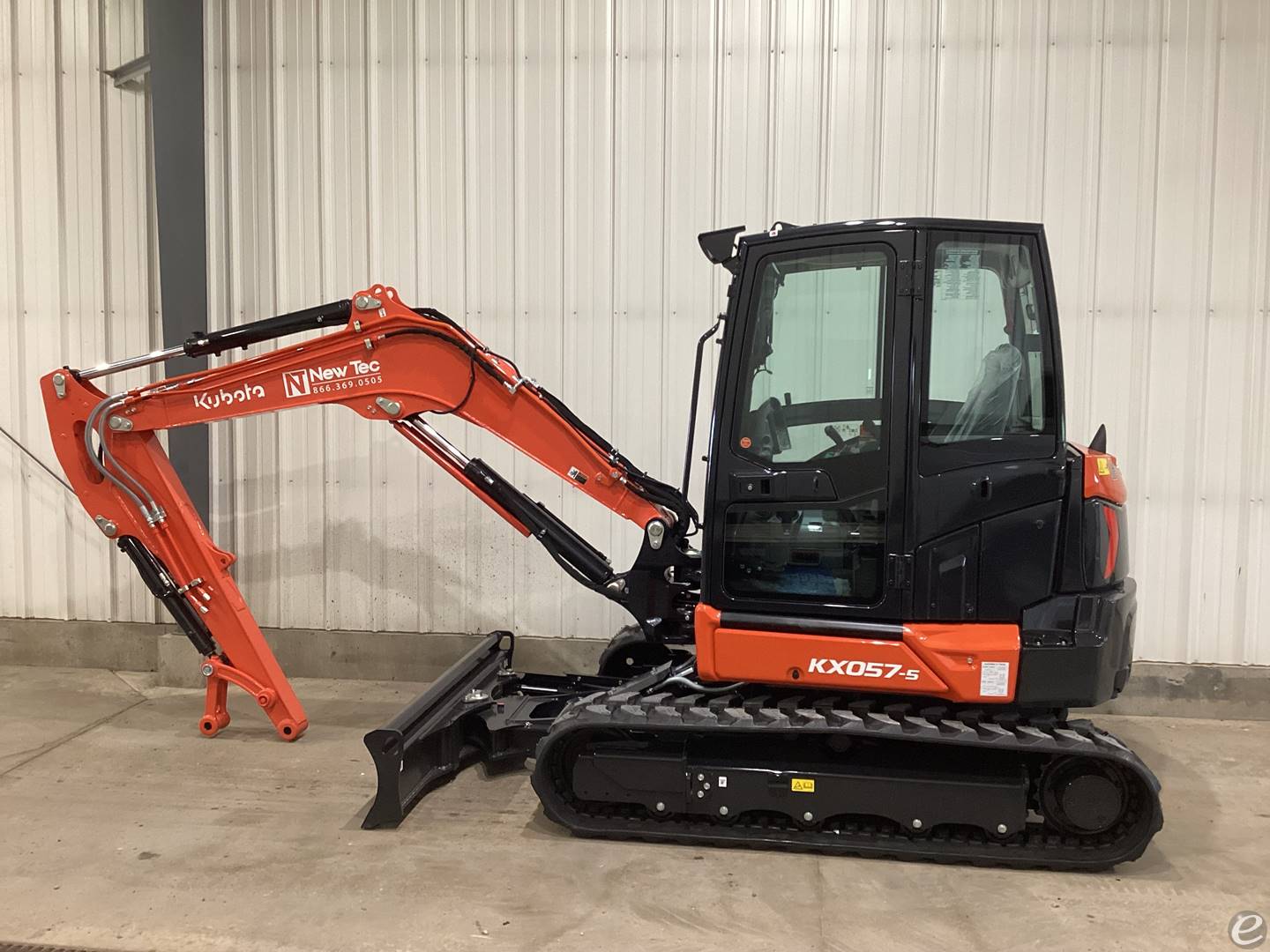

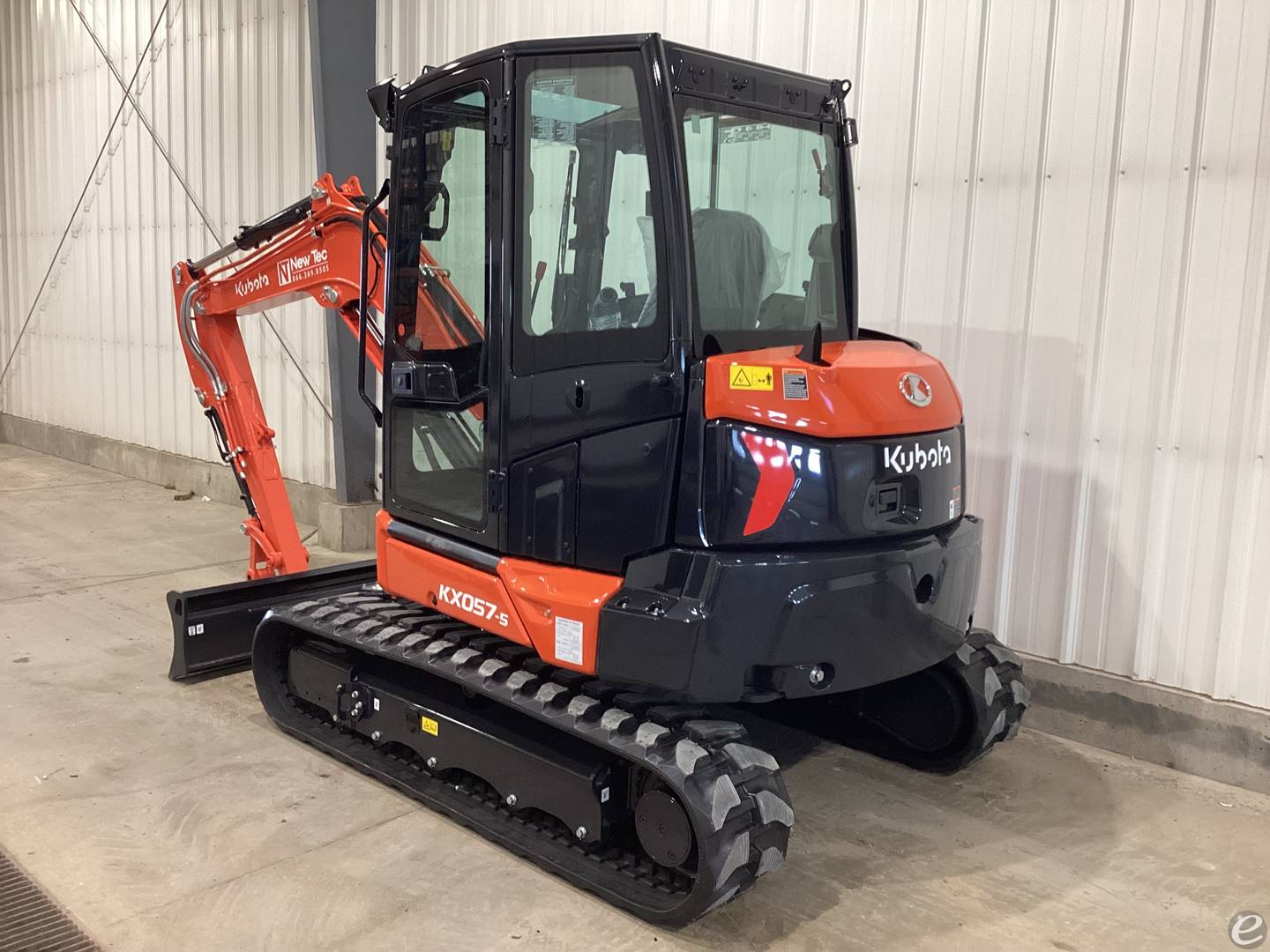

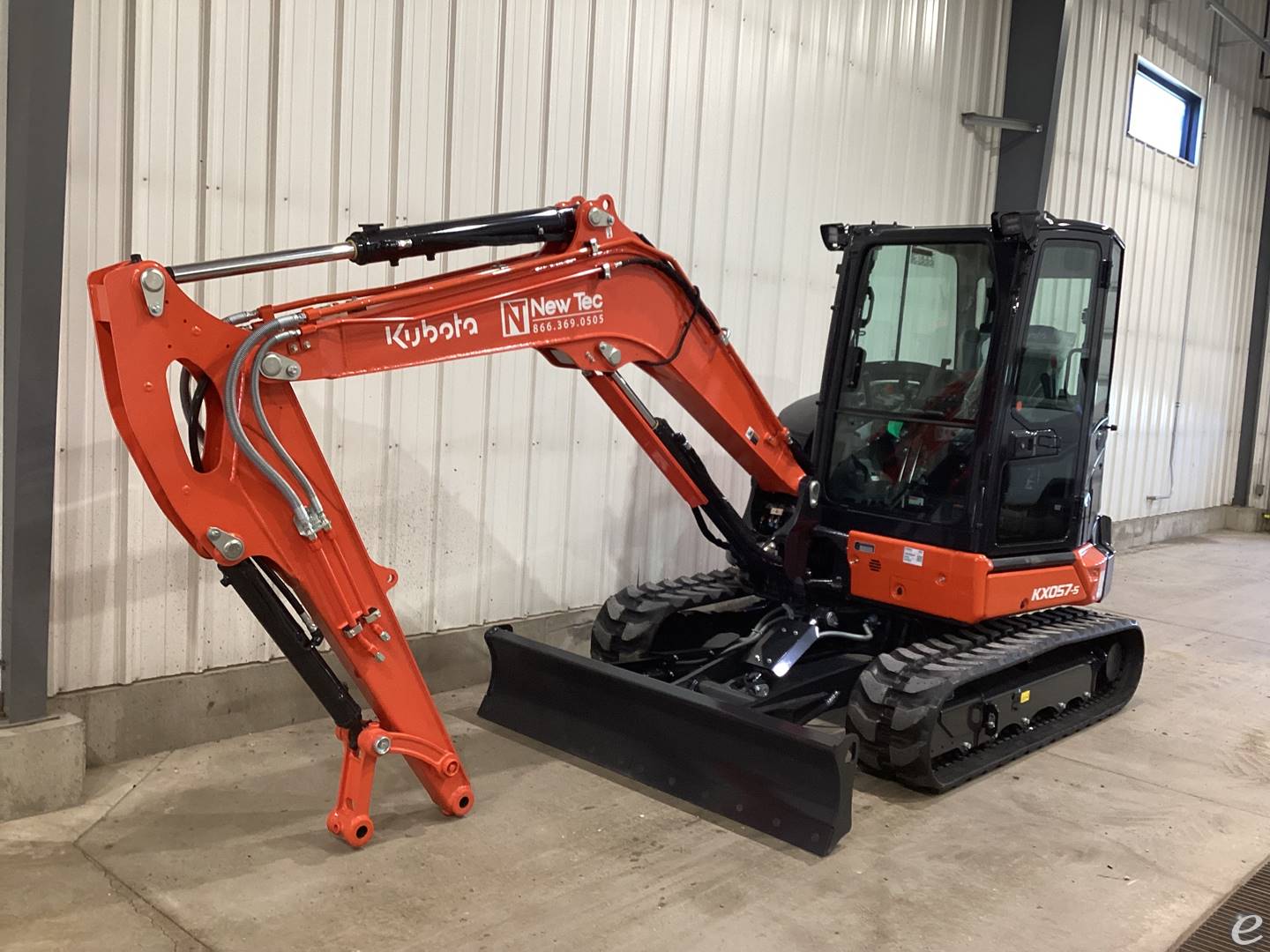

2026 Kubota KX057-5R3AP

New

earth moving and construction

Call for price

CONTACT INFO
Name:
Jeremy or Tage
Phone:
Website:

ADDRESS
New Tec, Inc.
4321 Hwy Blvd
SpencerIowa 51301
ATTRIBUTES
STOCK #:
0021923
YEAR:
2026
Manufacturer:
MODEL #:
SERIAL #:
KBCDZ37CPT3C25251
CONDITION:
New
UNIT LOCATION:
Iowa [51301]
DESCRIPTION:
KX057-5R3AP Kubota V2607 Engine, 2 Speed
POST DATE:
6/8/2026
  • General Specifications
    • Manufacturer: Kubota
    • Model Number: KX057-5R3AP
    • Subtype: Earth Moving and Construction
    • Operating Weight: Approximately 12,400 lbs
  • Engine
    • Engine Model: Kubota D2403
    • Engine Power: Approximately 47.6 HP
    • Fuel Type: Diesel
    • Total Displacement: Approximately 148 cubic inches
  • Dimensions
    • Overall Length: Approximately 18.5 feet
    • Overall Width: Approximately 6.5 feet
    • Overall Height: Approximately 8.4 feet
    • Minimum Tail Swing Radius: Approximately 3.6 feet
  • Performance
    • Digging Depth: Approximately 12.5 feet
    • Dump Height: Approximately 13.4 feet
    • Max Digging Reach on Ground: Approximately 20 feet
    • Arm Breakout Force: Approximately 5,900 lbs
    • Boom Swing Angle (Left/Right): Approximately 70/55 degrees
  • Hydraulic System
    • Hydraulic Pump Flow Capacity: Approximately 18.8 gallons per minute
    • Auxiliary Hydraulic Flow Rate: Approximately 19.8 gallons per minute
  • Travel Speed
    • High: Approximately 3.1 mph
    • Low: Approximately 1.8 mph
  • Tracks
    • Track Width: Approximately 15.7 inches
    • Ground Clearance: Approximately 1.1 feet
  • Fuel Capacity
    • Fuel Tank Capacity: Approximately 21.1 gallons
