Equipment Description
The Raymond 415-C35TT is a 3,500 lb capacity, stand‑up, end‑control electric counterbalanced forklift with cushion tires, ideal for indoor warehouse, dock, and narrow‑aisle operations. Its compact design, tight turning radius, electric power steering, and regenerative braking give operators smooth, precise control and fast directional changes in busy work areas. Typically equipped with a 36V electric system, high‑visibility three‑stage mast, and sideshift carriage, this truck delivers quiet, zero‑emission performance with excellent load handling and operator visibility. Please call if you cannot find what you are looking for.
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Specifications
    • Model Number: 415 C35TT
    • Manufacturer: Raymond
    • Type: Forklift
    • Subtype: Electric Stand Up End Control (Docker)
    • Operator Type: Stand-up
    • Power Source: Electric
  • Dimensions
    • Overall Length: Approximately 95 inches
    • Overall Width: Approximately 42 inches
    • Height to Top of Overhead Guard: Approximately 88 inches
    • Wheelbase: Approximately 60 inches
  • Performance
    • Load Capacity: 3,500 lbs
    • Drive Speed Loaded: Approximately 6.5 mph
    • Drive Speed Unloaded: Approximately 7 mph
    • Lift Speed, Loaded: Approximately 50 feet per minute
    • Lift Speed, Unloaded: Approximately 90 feet per minute
    • Gradeability, Loaded: Approximately 10%
    • Gradeability, Unloaded: Approximately 15%
  • Battery
    • Battery Voltage: 36V
    • Battery Capacity: Approximately 750 Ah
  • Wheels
    • Number of Wheels: 3
    • Drive Tire: Polyurethane
    • Steer Tire: Polyurethane
    • Wheel Diameter: Approximately 10 inches (drive), 12 inches (steer)
  • Fork Specifications
    • Fork Thickness: Approximately 1.6 inches
    • Fork Width: Approximately 4 inches
    • Fork Length: Varies
  • Brakes
    • Service Brake: Regenerative
    • Parking Brake: Electromagnetic

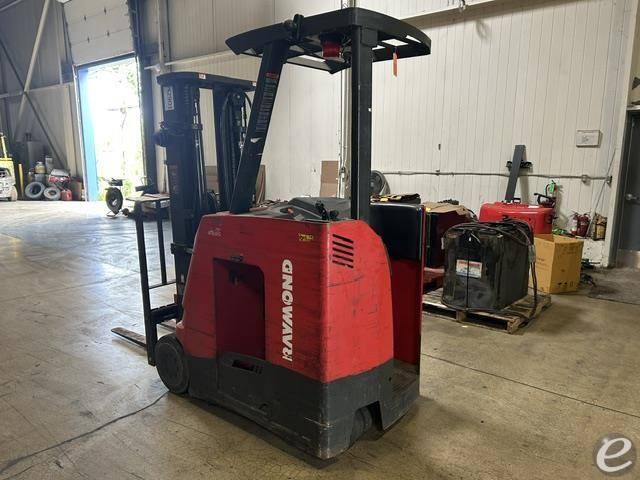

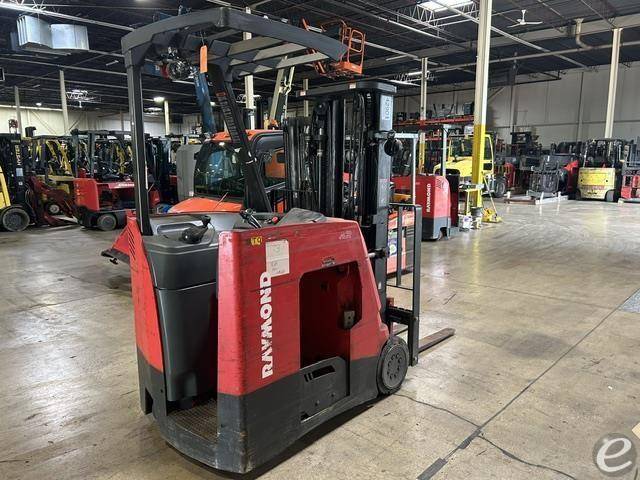

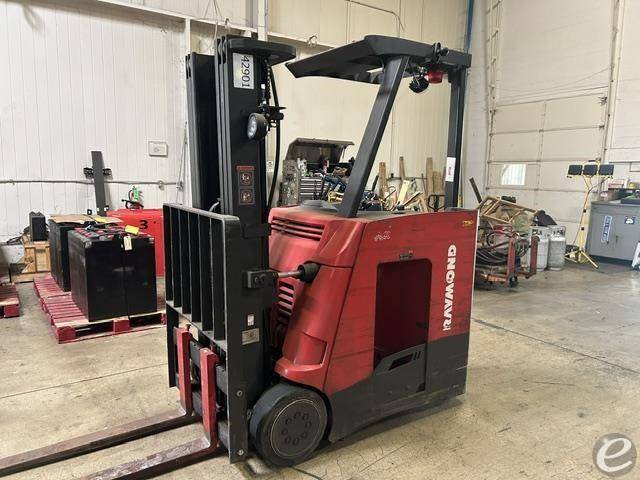

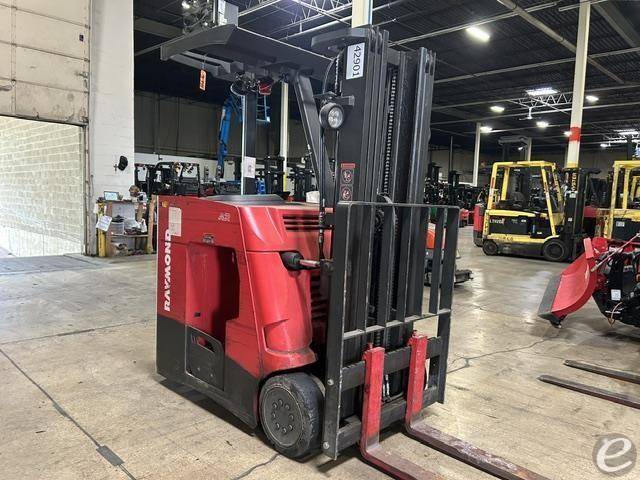

Raymond 415C35TT

electric stand up end control (docker)

$5,900 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
George Rieber
Phone:

ADDRESS
Somerset Equipment Sales
1375 Kingsland
Batavia Illinois 60510
ATTRIBUTES
STOCK #:
45696
Manufacturer:
MODEL #:
CAPACITY:
3500
FUEL:
MAST TYPE:
MAST HEIGHT:
188 in
SERIAL #:
415-15-45696
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
9679
UNIT LOCATION:
Illinois [60510]
POST DATE:
5/30/2026
Reviews
Useful
Not

Having spent some time operating the Raymond Model 415 C35TT electric stand-up end control forklift, I can confidently say it’s a solid choice for any warehouse. It feels surprisingly nimble for its size, making it easy to maneuver in tight spaces—a definite plus during our busy shifts. I remember the first time I hopped on one; it was like getting behind the wheel of a go-kart—except with a bit more responsibility! The electric setup is smooth and quiet, which is great for those long days when you're doing repetitive lifts. Overall, it’s reliable and efficient, making it a staple on our loading dock. Definitely worth considering if you're looking to up your material handling game.



Review by Mark Thompson (1/30/2025)
