Equipment Description
461 Hours 2021 used HELI CTD16-960H for sale. Global has over 2000 pieces of used equipment in stock. Inquire today about Stock #AL-162E, Stock Number: AL-162E, Make: HELI, Model: CTD16-960H, Year: 2021, Auxilliary Hydralic Valves: 0, Capacity: 3500 Lbs, Full Free Height: 0.00", Max Fork Height: 177.00", Hours: 461, Fuel: Electric
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Information
    • Model Number: CTD16-960H
    • Manufacturer: Heli
    • Type: Forklift
  • Dimensions
    • Overall Length: 73.2 inches
    • Overall Width: 43.3 inches
    • Overall Height: 77.6 inches
    • Wheelbase: 47.6 inches
    • Ground Clearance: 4.7 inches
    • Turning Radius: 55.1 inches
  • Weight
    • Service Weight: 3,527 lbs
  • Performance
    • Lifting Capacity: 3,527 lbs
    • Travel Speed (Loaded): 3.1 mph
    • Travel Speed (Unloaded): 3.4 mph
    • Lift Speed (Loaded): 5.1 inches/second
    • Lift Speed (Unloaded): 6.3 inches/second
  • Powertrain
    • Drive Motor Power: 2.5 kW
    • Lift Motor Power: 2.2 kW
    • Battery Voltage: 24V
    • Battery Capacity: 240 Ah
  • Forks
    • Fork Length: Varies
    • Fork Width: 3.9 inches
    • Fork Thickness: 1.4 inches
  • Chassis
    • Tire Type: Polyurethane
    • Drive Wheel: 10 x 4 inches
    • Load Wheels: 3.2 x 2.4 inches

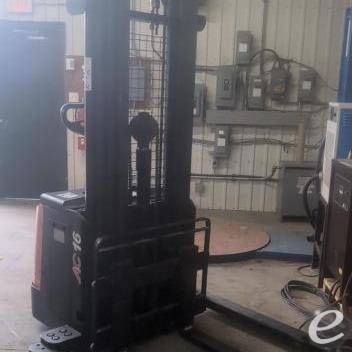

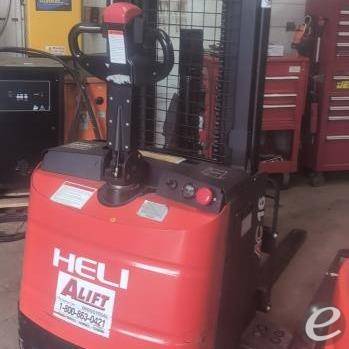

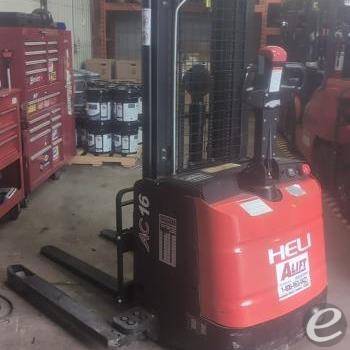

2021 Heli CTD16-960H

electric walkie pallet jack

Call for price

CONTACT INFO
Name:
Sales Rep

ADDRESS
Global Fleet Solutions
17300 W Valley Hwy
SeattleWashington 98188
ATTRIBUTES
STOCK #:
AL-162E
YEAR:
2021
Manufacturer:
MODEL #:
CAPACITY:
3500
FUEL:
MAST TYPE:
MAST HEIGHT:
177 in
SERIAL #:
080167K0839
HOUR METER:
461
UNIT LOCATION:
POST DATE:
5/26/2026
Reviews
Useful
Not

The CTD16-960H from Heli has been a real game-changer in our warehouse. Initially, I wasn’t sure if changing our forklift would make much difference, but after a few shifts with it, the smoothness and ease of operation have really impressed the whole team. A coworker who was skeptical about new equipment even admitted it made his job easier when loading those heavy pallets. It feels sturdy and handles well even in tighter spaces, which is a big plus since our aisles can get crowded. Overall, it’s been a solid addition to our fleet, making those long days a bit more manageable.



Review by Jake Thompson (3/24/2025)
