Equipment Description
NLEQ# 151487, 3950 Hours, Dual Fuel, 4WD, Single Deck - Manual Extension Deck, Rough Terrain, 43' Platform Height, 49' Working Height - Any Questions, Please contact Robert Cammeso @ 215-781-1602
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Specifications
    • Model Number: 4394RT
    • Manufacturer: JLG
    • Type: Scissor Lift
    • Subtype: Slab
  • Dimensions
    • Overall Length: 14.3 ft
    • Overall Width: 7.8 ft
    • Overall Height (Rails Up): 8.5 ft
    • Overall Height (Rails Down): 6.8 ft
    • Wheelbase: 11.5 ft
    • Ground Clearance: 9.5 in
  • Operational
    • Maximum Platform Occupancy: 7
    • Lift Time: 40 sec
    • Lower Time: 50 sec
    • Drive Speed (Platform Lowered): 3.5 mph
    • Drive Speed (Platform Elevated): 0.5 mph
    • Gradeability: 45%
    • Turning Radius (Inside): 5.5 ft
    • Turning Radius (Outside): 17.5 ft
  • Platform
    • Platform Length: 12 ft
    • Platform Width: 7.5 ft
    • Platform Extension Length: 5 ft
    • Platform Height (Lowered): 6.2 ft
    • Maximum Platform Height: 43 ft
    • Platform Capacity: 2,250 lbs
  • Weight
    • Operating Weight: 15,500 lbs
  • Power Source
    • Power Source: Diesel Engine
    • Engine Make: Deutz
    • Engine Model: D2.9 L4
    • Horsepower: 48 HP
    • Fuel Tank Capacity: 15 gal
  • Tires
    • Tire Type: Foam-Filled
    • Tire Size: 33 x 15 in

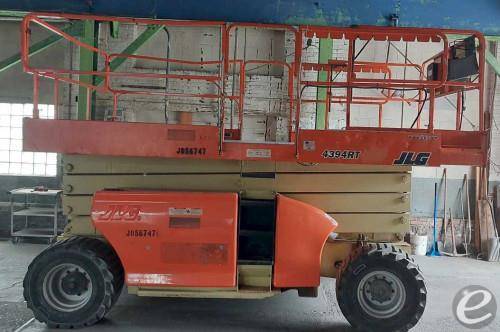

2006 JLG 4394RT

rough terrain dual fuel

$11,500 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Sales

ADDRESS
National Lift Equipment
300 Pond St.
BristolPennsylvania 19007
ATTRIBUTES
STOCK #:
151487
YEAR:
2006
Manufacturer:
MODEL #:
SUBCATEGORY:
Height:
43 ft
FUEL:
CONDITION:
Used
HOUR METER:
3950
UNIT LOCATION:
Pennsylvania [19007]
POST DATE:
4/30/2026
