Equipment Description
NLEQ# 151439, 0 Hours, Electric,2WD,Single Deck - Manual Extension Deck , Solid Tires , 19, Brand New w/ Full Factory Warranty! - Any Questions, Please contact Robert Cammeso @ 215-781-1602
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

**Model Specifications** - Model Number: ES1932 - Manufacturer: JLG - Type: Scissor Lift - Subtype: Slab **Dimensions** - Overall Length: 5 ft 10 in - Overall Width: 2 ft 8 in - Platform Height: 19 ft - Platform Extension: 3 ft - Wheelbase: 5 ft - Ground Clearance: 3.5 in - Overall Height - Rails Up: 7 ft 5 in - Overall Height - Rails Lowered: 6 ft 6 in **Performance** - Drive Speed - Platform Lowered: 2.5 mph - Drive Speed - Platform Elevated: 0.5 mph - Gradeability: 25% - Turning Radius - Inside: 0 ft - Turning Radius - Outside: 7 ft 10 in - Maximum Drive Height: 19 ft **Power Source** - Power Source: Electric - Battery: 24V - Hydraulic Pump Capacity: Varied (determined by system design) **Weights** - Machine Weight: 3,130 lbs **Tires** - Tire Type: Solid, non-marking - Tire Size: 12.75 in x 4 in **Operational Specifications** - Platform Capacity: 507 lbs - Platform Capacity - Extended: 250 lbs - Lift Time: 16 seconds - Lower Time: 20 seconds **Features** - Proportional controls for drive and lift - Onboard diagnostics for simplified troubleshooting - Dual-rail step for easy platform access - Automatic traction control - Battery saver feature

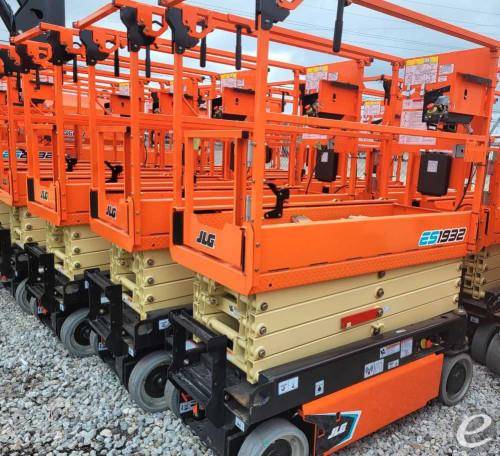

2026 JLG ES1932

slab electric

$16,950 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Sales

ADDRESS
National Lift Equipment
300 Pond St.
BristolPennsylvania 19007
ATTRIBUTES
STOCK #:
151439
YEAR:
2026
Manufacturer:
MODEL #:
SUBCATEGORY:
Height:
ft
FUEL:
CONDITION:
Used
HOUR METER:
0
UNIT LOCATION:
Pennsylvania [19007]
POST DATE:
4/27/2026
Reviews
Useful
Not

The JLG ES1932 scissor lift has really become a staple on my job sites. It’s compact enough to fit in tight spots but strong and stable when fully extended. I remember using it to reach some high drywall finishes in a client’s home; it made the job so much easier and quicker. The controls were pretty intuitive, which was a relief for someone like me who doesn’t always get along with heavy machinery. I’ve also noticed it’s pretty reliable, which is a huge plus when deadlines are looming. Overall, it’s been a solid performer and I’d definitely recommend it for any mid-sized access projects.


Review by Jake Thompson (12/27/2024)

**Model Specifications** - Model Number: ES1932 - Manufacturer: JLG - Type: Scissor Lift - Subtype: Slab **Dimensions** - Overall Length: 5 ft 10 in - Overall Width: 2 ft 8 in - Platform Height: 19 ft - Platform Extension: 3 ft - Wheelbase: 5 ft - Ground Clearance: 3.5 in - Overall Height - Rails Up: 7 ft 5 in - Overall Height - Rails Lowered: 6 ft 6 in **Performance** - Drive Speed - Platform Lowered: 2.5 mph - Drive Speed - Platform Elevated: 0.5 mph - Gradeability: 25% - Turning Radius - Inside: 0 ft - Turning Radius - Outside: 7 ft 10 in - Maximum Drive Height: 19 ft **Power Source** - Power Source: Electric - Battery: 24V - Hydraulic Pump Capacity: Varied (determined by system design) **Weights** - Machine Weight: 3,130 lbs **Tires** - Tire Type: Solid, non-marking - Tire Size: 12.75 in x 4 in **Operational Specifications** - Platform Capacity: 507 lbs - Platform Capacity - Extended: 250 lbs - Lift Time: 16 seconds - Lower Time: 20 seconds **Features** - Proportional controls for drive and lift - Onboard diagnostics for simplified troubleshooting - Dual-rail step for easy platform access - Automatic traction control - Battery saver feature
