2 Speed, ISO Controls, High Flow, Quick Coupler, 1800 Hours
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • Model: SVL97-2HFCC
  • Manufacturer: Kubota
  • Subtype: Earth Moving and Construction
  • Dimensions and Weight
    • Overall Length: 12.1 ft
    • Overall Width: 6.5 ft
    • Overall Height: 6.5 ft
    • Ground Clearance: 12.8 inches
    • Curb Weight: 11,299 lbs
  • Engine Specifications
    • Engine Model: V3800-TIEF4
    • Type: Turbocharged Diesel Engine
    • Horsepower: 96.4 HP
    • @ Rated RPM: 2400 RPM
    • Emissions: Tier 4 Final
    • Displacement: 230 cu. in.
  • Performance
    • Rated Operating Capacity: 3,200 lbs
    • Tipping Load: 9,143 lbs
    • Travel Speed: 7.1 mph
    • Travel Speed (High): 11.8 mph
  • Hydraulic System
    • Auxiliary Hydraulic Flow (Standard): 23.1 GPM
    • Auxiliary Hydraulic Flow (High Flow): 40 GPM
    • Hydraulic Pressure: 3,553 psi
  • Operational Capacities
    • Fuel Tank Capacity: 28.8 gallons
    • Hydraulic Reservoir Capacity: 18.5 gallons

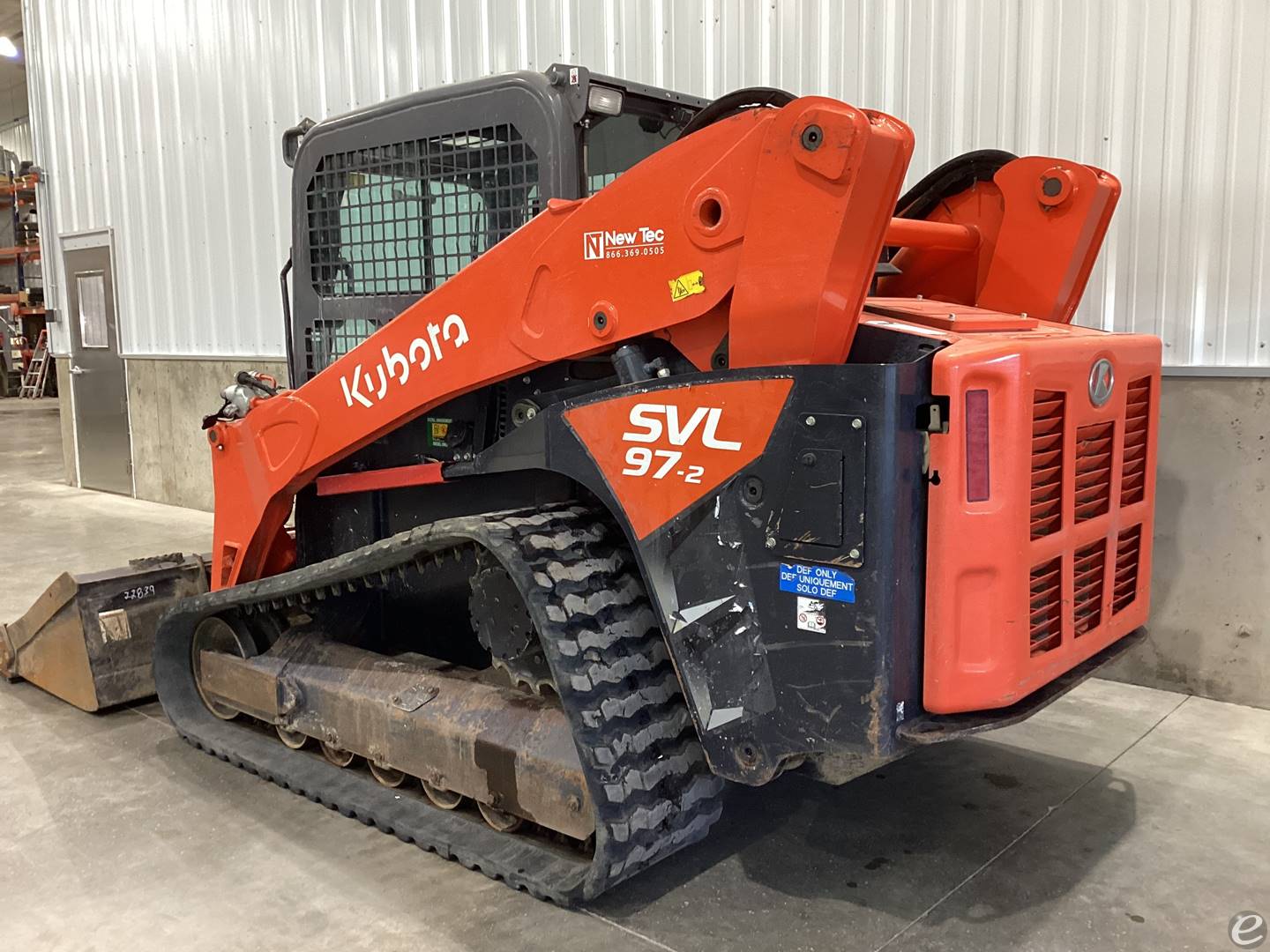

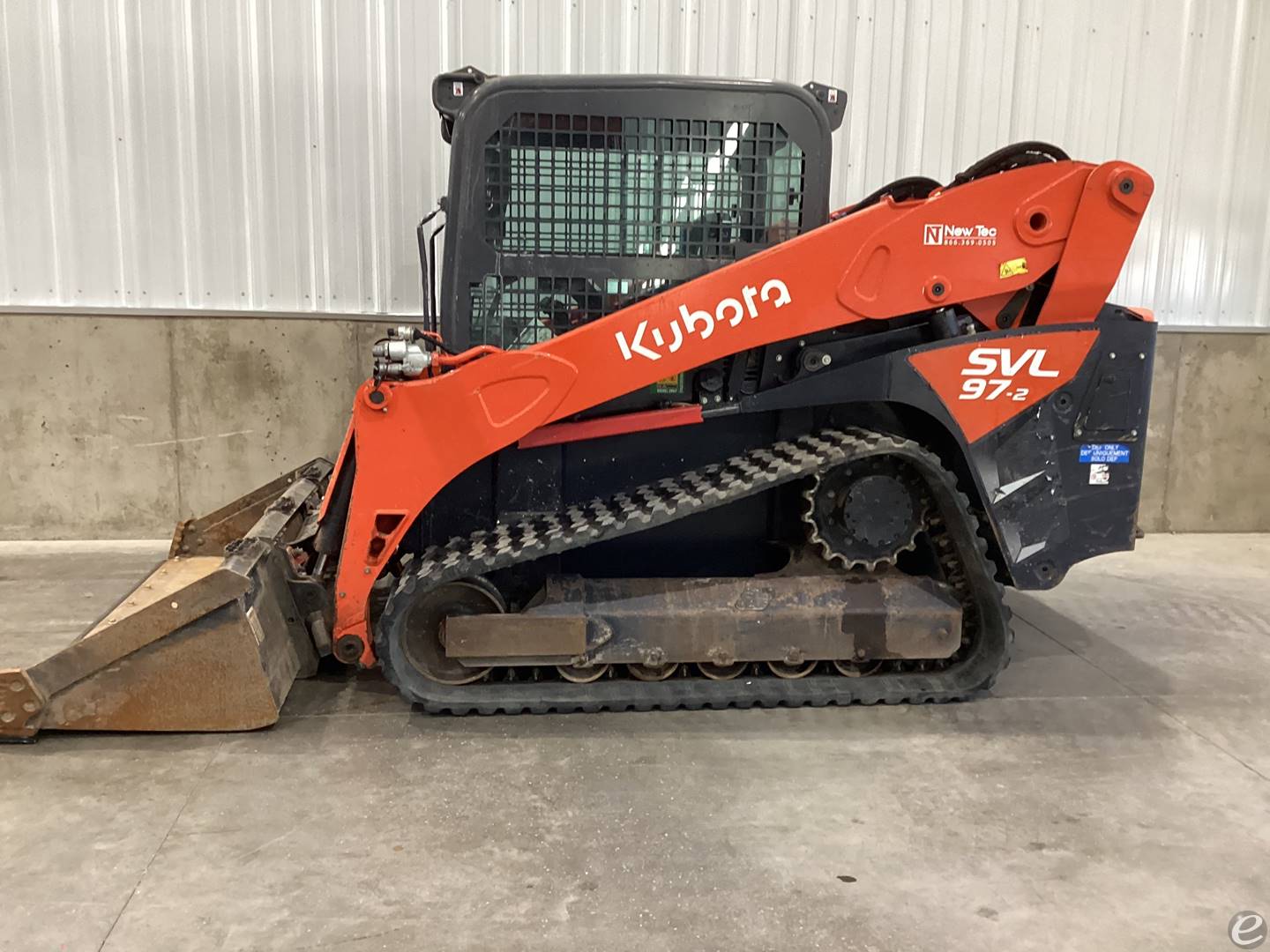

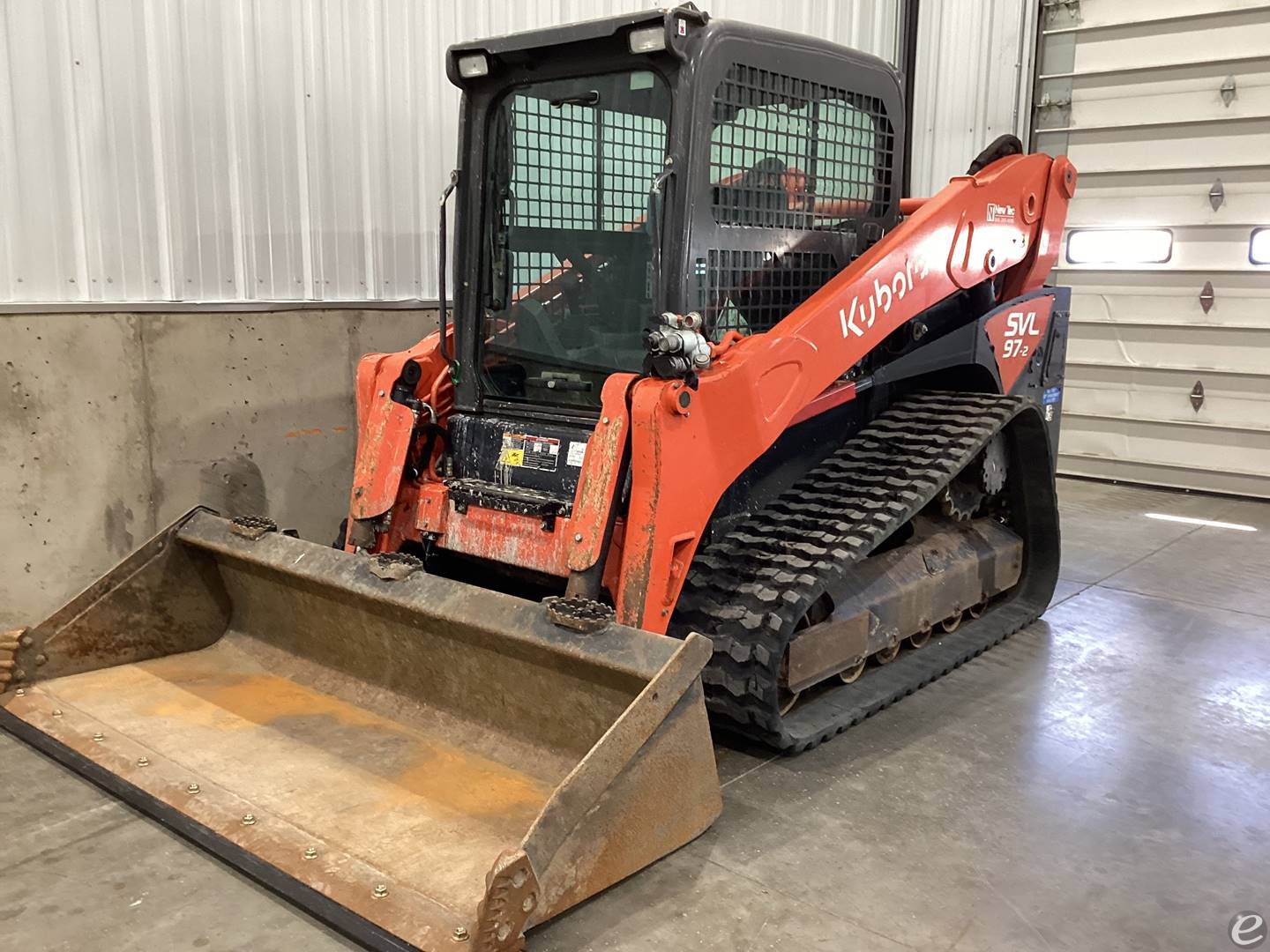

2024 Kubota SVL97-2HFCC

earth moving and construction

Call for price

CONTACT INFO
Name:
Jeremy or Tage
Phone:
Website:

ADDRESS
New Tec, Inc.
3764 US 75 Ave
Sioux CenterIowa 51250
ATTRIBUTES
STOCK #:
0022839
YEAR:
2024
Manufacturer:
MODEL #:
SERIAL #:
KBCZ064CJP1M81638
CONDITION:
Used
HOUR METER:
1800
UNIT LOCATION:
Iowa [51250]
DESCRIPTION:

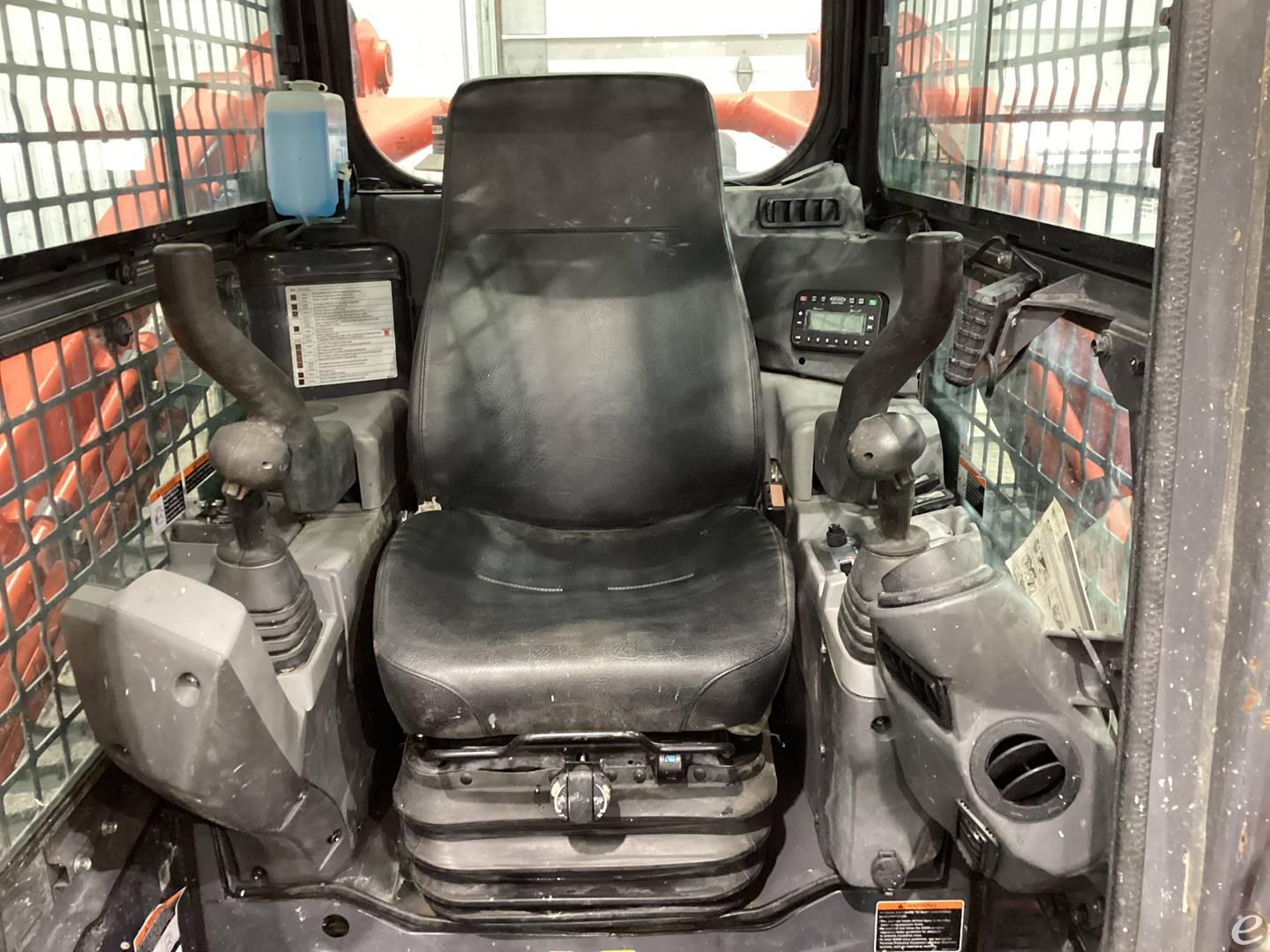

SVL97-2HFCC Kubota Diesel, Cab w/ Heat & AC, Aux Hydraulics
POST DATE:
4/7/2026
