Equipment Description
Hydrostatic Transmission, R14 Tires, 78 Hours
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • Engine
    • Type: Diesel, liquid-cooled, 3-cylinder
    • Engine Model: Kubota D1105
    • Displacement: 68.5 cubic inches
    • Horsepower: 26 HP
    • Rated Engine Speed: 2600 RPM
  • Transmission
    • Type: Hydrostatic transmission
  • Dimensions
    • Overall Length: 94.9 inches (without 3-point hitch)
    • Overall Width: 49 inches
    • Overall Height: 85 inches
    • Wheelbase: 61.4 inches
    • Ground Clearance: 12.8 inches
  • Weight
    • Operating Weight: Approximately 1,632 lbs
  • Tires
    • Front: 7.2-16 (Farm), 24x8.50-14 (R4)
    • Rear: 11.2-24 (Farm), R4 12.4-16
  • Capacities
    • Fuel Tank Capacity: 7.2 gallons
  • Performance
    • PTO Power: 19.5 HP
    • Hydraulic Output: 6.2 GPM
  • 3-Point Hitch
    • Type: Category I
    • Lifting Capacity at 24 inches behind LP: 1,918 lbs

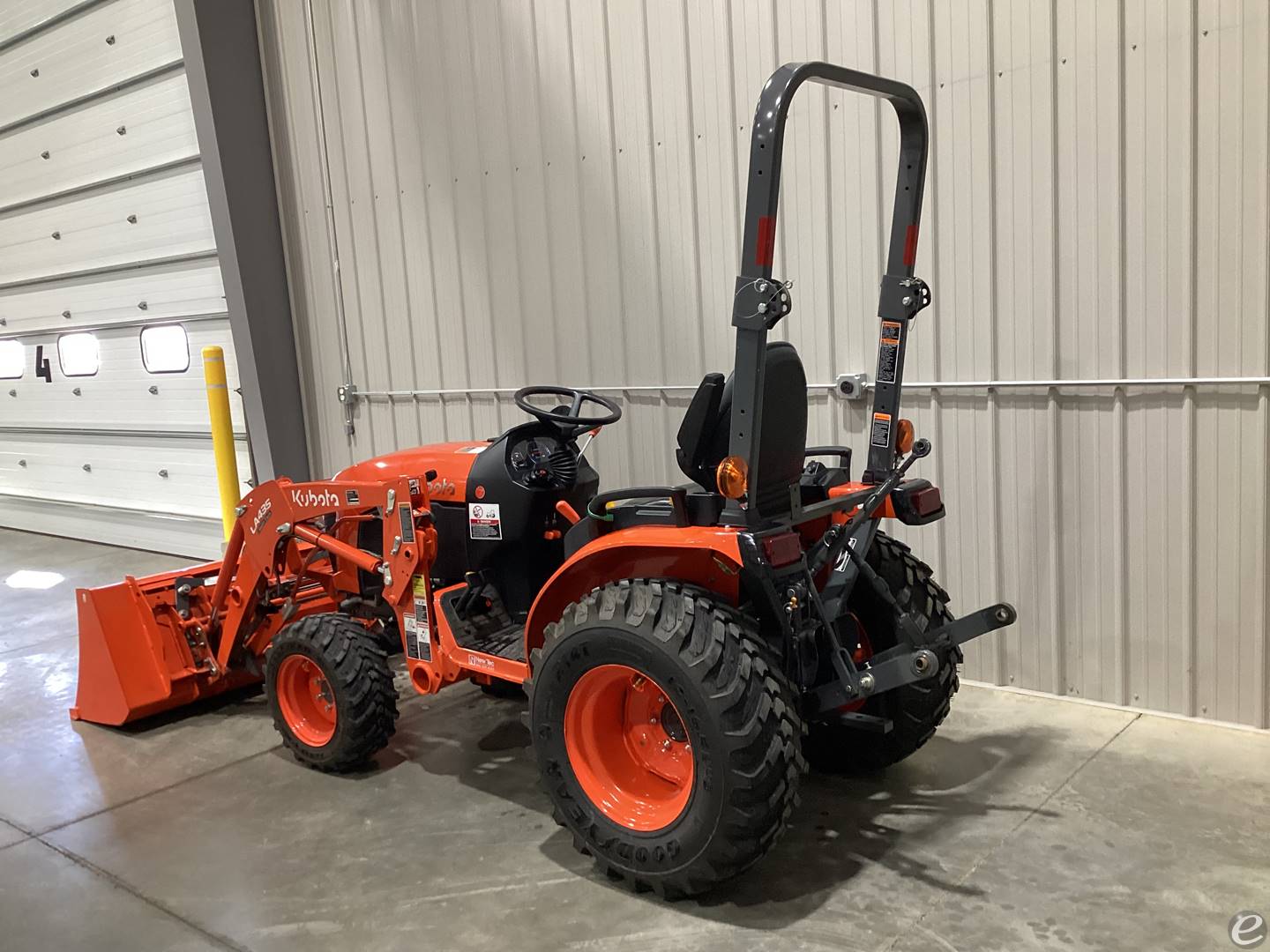

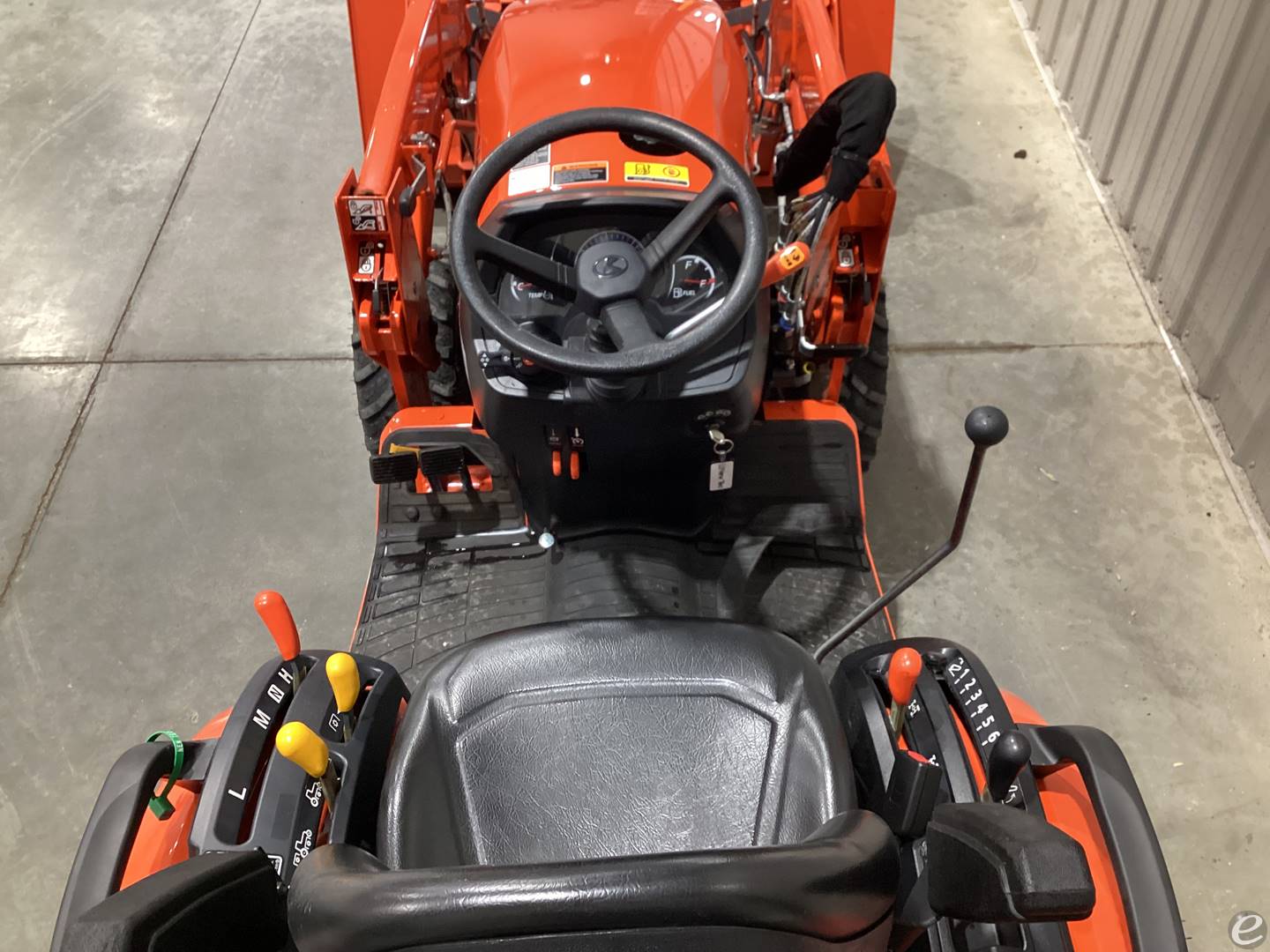

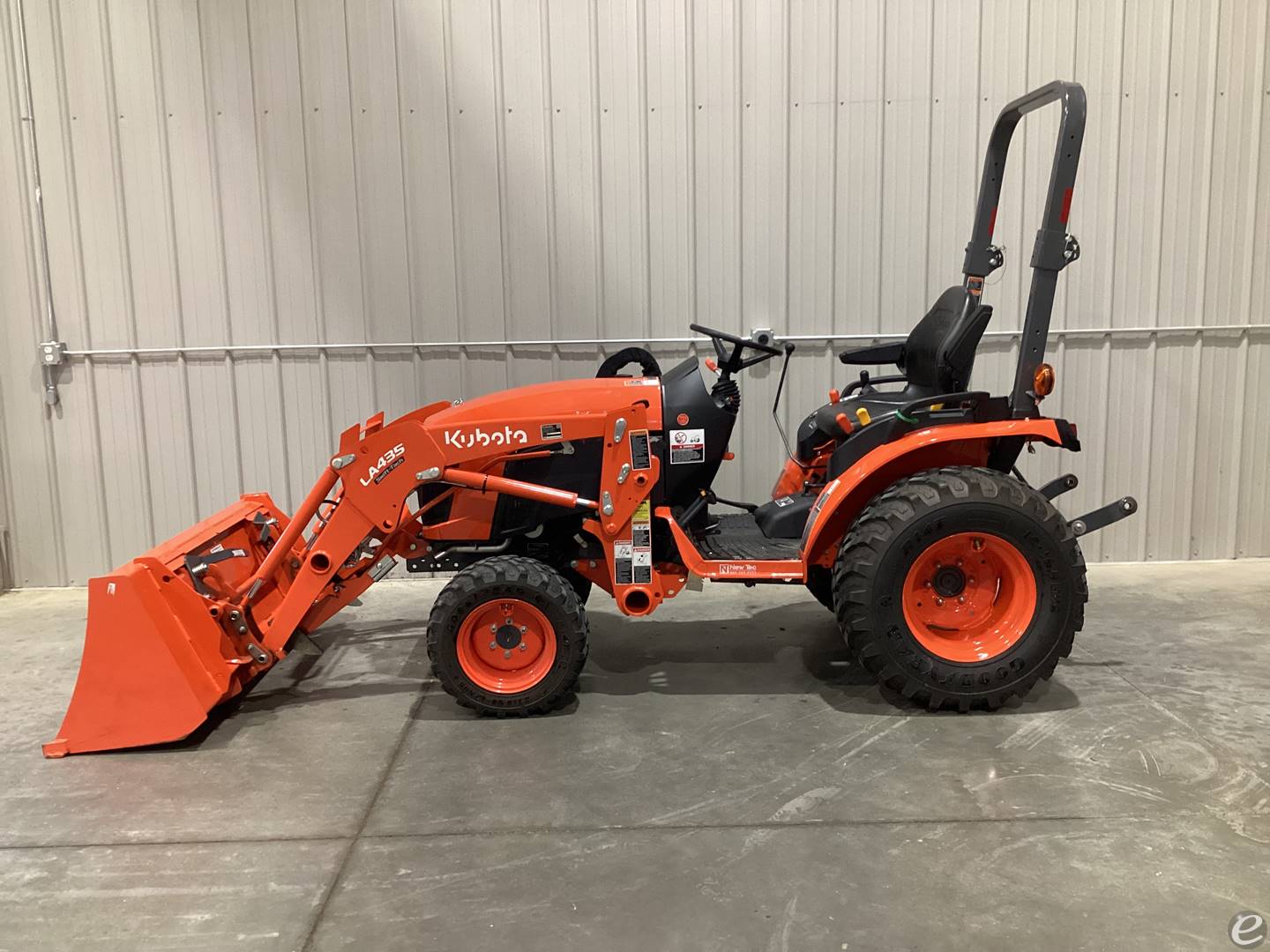

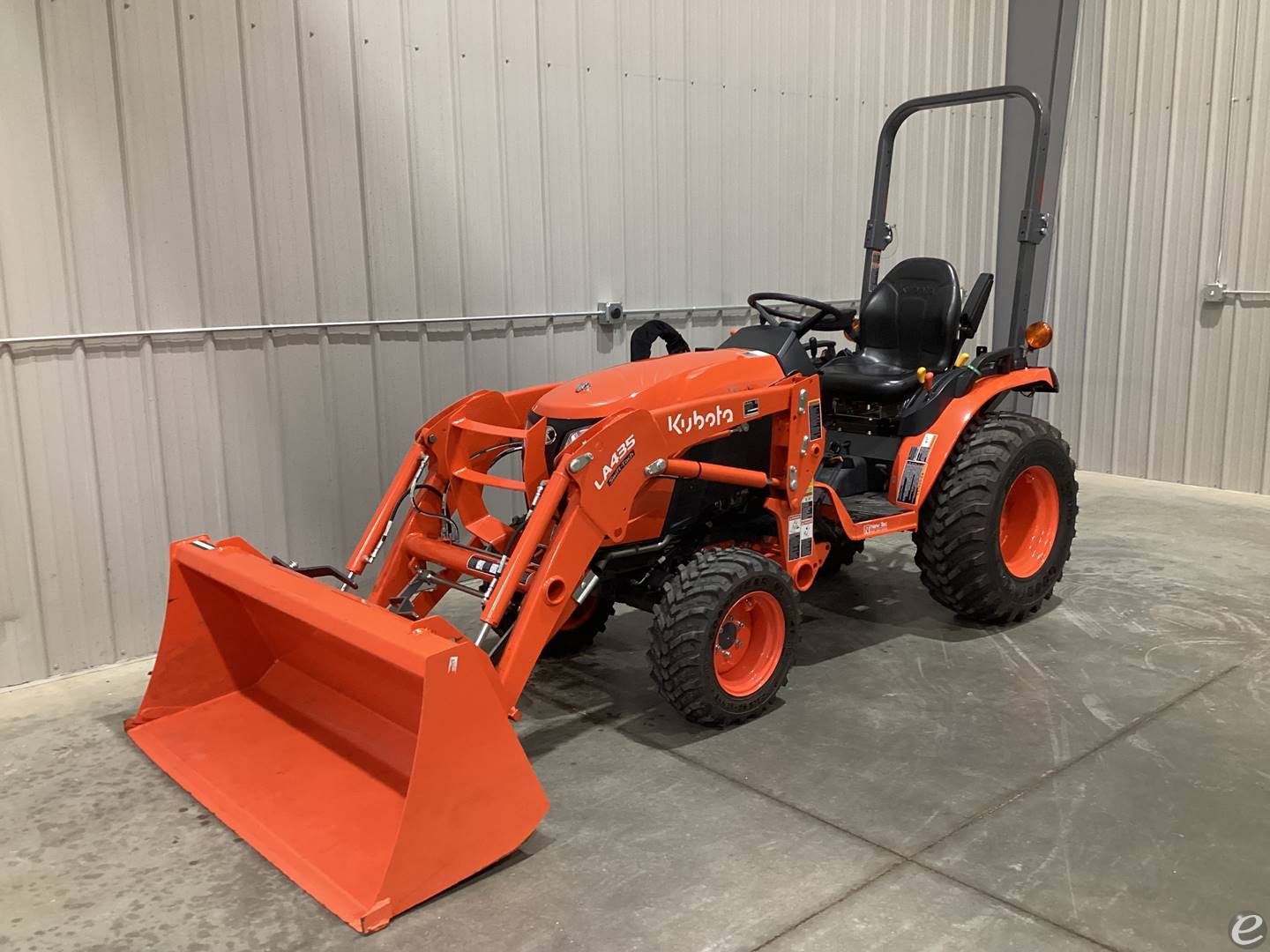

2020 Kubota B2601HSD

earth moving and construction

Call for price

CONTACT INFO
Name:
Jeremy or Tage
Phone:
Website:

ADDRESS
New Tec, Inc.
1301 Bioscience Dr.
WorthingtonMinnesota 56187
ATTRIBUTES
STOCK #:
0022802
YEAR:
2020
Manufacturer:
MODEL #:
SERIAL #:
KBUB6BHRTL1H71986
CONDITION:
Used
HOUR METER:
78
UNIT LOCATION:
Minnesota [56187]
DESCRIPTION:
B2601HSD Kubota D1105 Engine, 24 Hp, 4WD, Foldable ROPS
POST DATE:
4/2/2026
  • Engine
    • Type: Diesel, liquid-cooled, 3-cylinder
    • Engine Model: Kubota D1105
    • Displacement: 68.5 cubic inches
    • Horsepower: 26 HP
    • Rated Engine Speed: 2600 RPM
  • Transmission
    • Type: Hydrostatic transmission
  • Dimensions
    • Overall Length: 94.9 inches (without 3-point hitch)
    • Overall Width: 49 inches
    • Overall Height: 85 inches
    • Wheelbase: 61.4 inches
    • Ground Clearance: 12.8 inches
  • Weight
    • Operating Weight: Approximately 1,632 lbs
  • Tires
    • Front: 7.2-16 (Farm), 24x8.50-14 (R4)
    • Rear: 11.2-24 (Farm), R4 12.4-16
  • Capacities
    • Fuel Tank Capacity: 7.2 gallons
  • Performance
    • PTO Power: 19.5 HP
    • Hydraulic Output: 6.2 GPM
  • 3-Point Hitch
    • Type: Category I
    • Lifting Capacity at 24 inches behind LP: 1,918 lbs
