Equipment Description

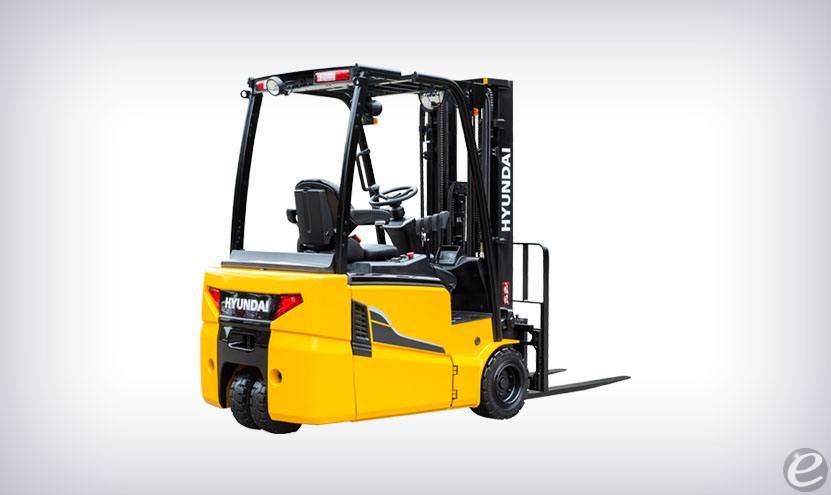

https://hyundaimaterialhandling.com/forklift/15-18-20bt-9u/ The newly designed 3 wheel counterbalance tucks with dual drive provide every operator comfortable driving, increased productivity and easy maintenance. Compact forklift with proven AC technology Maximum performance Spacious operator’s cab Fingertip controlled mini levers available (optional) Weight indicator (optional) Safety system that prevents over loading (optional) Battery side loading system available Curve control system
Spec Sheet
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

  • General Information
    • Model Number: 15BT-9U
    • Manufacturer: Hyundai
    • Type: Forklift
    • Subtype: Electric 3 Wheel Sit Down
    • Fuel Type: Electric
  • Dimensions and Weight
    • Overall Length: 71.6 inches
    • Overall Width: 41.3 inches
    • Overall Height (to top of overhead guard): 83.1 inches
    • Wheelbase: 49.2 inches
    • Ground Clearance: 3.3 inches
    • Turning Radius: 55.1 inches
    • Weight: 5,732 lbs
  • Performance
    • Load Capacity: 3,300 lbs
    • Travel Speed, Loaded: 9.3 mph
    • Travel Speed, Unloaded: 9.3 mph
    • Lifting Speed, Loaded: 59 ft/min
    • Lifting Speed, Unloaded: 98 ft/min
    • Gradeability, Loaded: 19%
    • Gradeability, Unloaded: 33%
  • Powertrain
    • Drive Motor: 10.4 HP
    • Lift Motor: 11.6 HP
    • Battery Voltage: 48V
    • Battery Capacity: 565 Ah
  • Tires
    • Tire Type: Solid Pneumatic
    • Front Tire Size: 18 x 7 - 8 inches
    • Rear Tire Size: 15 x 4.5 - 8 inches
  • Forks
    • Fork Length: Varies
    • Fork Width: 3.9 inches
    • Fork Thickness: 1.6 inches

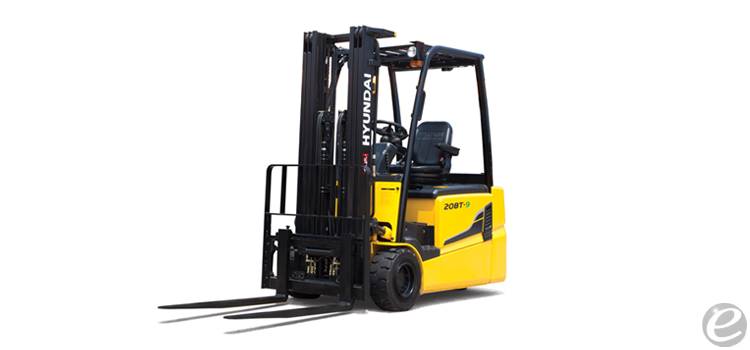

2026 Hyundai 15BT-9U

New

electric 3 wheel sit down electric

$42,989 USD

Instant Quote Eligible Listing - CLICK HERE!
CONTACT INFO
Name:
Ed Valdes
Phone:

ADDRESS
Forklift Consulting LLC
10450 SW 187th Terrace
MiamiFlorida 33157
ATTRIBUTES
STOCK #:
NS_15BT-9U
YEAR:
2026
Manufacturer:
MODEL #:
CAPACITY:
3000
FUEL:
MAST TYPE:
MAST HEIGHT:
186 / 84 in
SIDE SHIFTER:
Yes
CONDITION:
New
HOUR METER:
1
UNIT LOCATION:
Florida [33014]
DESCRIPTION:
HYUNDAI 3 YEAR WARRANTY OIL COOLED DISC BRAKES
POST DATE:
5/6/2026
Reviews
Useful
Not

This Hyundai 15BT-9U electric forklift has really changed the game for our warehouse. The first time we used it, I remember how smooth it felt gliding over the floor—no more sluggish gas fumes filling the air, just quiet efficiency. It’s surprisingly nimble for its size, making tight turns around stacks of boxes feel like a breeze. My coworkers were also impressed by how long it lasts on a single charge; we’ve had days where we didn’t have to stop to swap out batteries, which is a big win for productivity. Overall, it’s been a reliable workhorse that I’d definitely recommend to anyone looking to upgrade their lift game without the hassle of gas.


Review by Mike Henderson (7/14/2025)

  • General Information
    • Model Number: 15BT-9U
    • Manufacturer: Hyundai
    • Type: Forklift
    • Subtype: Electric 3 Wheel Sit Down
    • Fuel Type: Electric
  • Dimensions and Weight
    • Overall Length: 71.6 inches
    • Overall Width: 41.3 inches
    • Overall Height (to top of overhead guard): 83.1 inches
    • Wheelbase: 49.2 inches
    • Ground Clearance: 3.3 inches
    • Turning Radius: 55.1 inches
    • Weight: 5,732 lbs
  • Performance
    • Load Capacity: 3,300 lbs
    • Travel Speed, Loaded: 9.3 mph
    • Travel Speed, Unloaded: 9.3 mph
    • Lifting Speed, Loaded: 59 ft/min
    • Lifting Speed, Unloaded: 98 ft/min
    • Gradeability, Loaded: 19%
    • Gradeability, Unloaded: 33%
  • Powertrain
    • Drive Motor: 10.4 HP
    • Lift Motor: 11.6 HP
    • Battery Voltage: 48V
    • Battery Capacity: 565 Ah
  • Tires
    • Tire Type: Solid Pneumatic
    • Front Tire Size: 18 x 7 - 8 inches
    • Rear Tire Size: 15 x 4.5 - 8 inches
  • Forks
    • Fork Length: Varies
    • Fork Width: 3.9 inches
    • Fork Thickness: 1.6 inches
