Spec Sheet
  • General Information
    • Manufacturer: Komatsu
    • Model Number: FB18MU-12
    • Type: Forklift
    • Subtype: Electric 3 Wheel Sit Down
    • Fuel Type: Electric
  • Dimensions
    • Overall Length: 87.6 inches
    • Overall Width: 41.7 inches
    • Overall Height to Overhead Guard: 78.7 inches
    • Wheelbase: 48 inches
    • Turning Radius: 61 inches
    • Ground Clearance: 3.5 inches
  • Weight
    • Service Weight: 6,834 lbs
  • Performance
    • Load Capacity: 3,968 lbs
    • Travel Speed Loaded/Unloaded: 9.3 mph
    • Lifting Speed Loaded/Unloaded: 1.3 ft/s
    • Lowering Speed Loaded/Unloaded: 1.5 ft/s
    • Gradeability Loaded: 10%

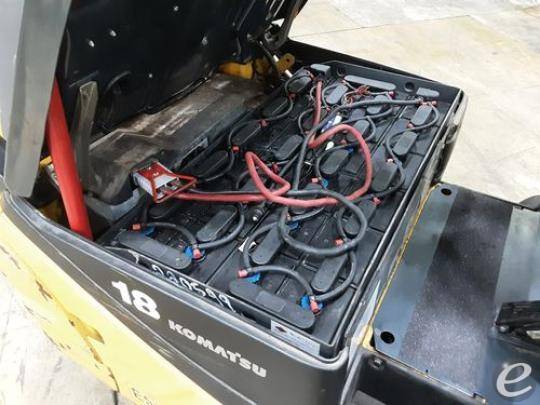

  • Battery
    • Battery Voltage: 48 V
    • Battery Capacity: 560 Ah
  • Wheels and Tires
    • Front Tire Type: Solid Pneumatic
    • Rear Tire Type: Solid Pneumatic
    • Front Tire Size: 18 x 7-8
    • Rear Tire Size: 15 x 4.5-8
  • Brakes
    • Service Brakes: Hydraulic
    • Parking Brakes: Mechanical
  • Additional Specifications
    • Steering: Power Steering

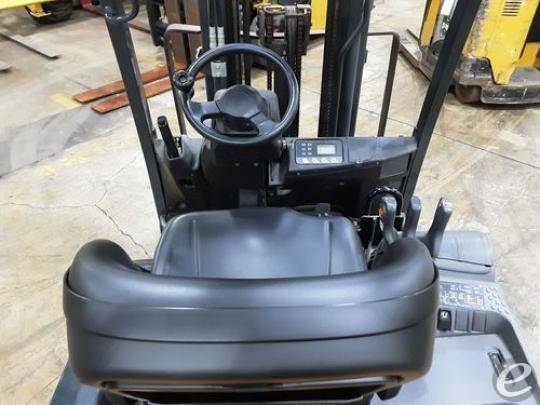

    • Operator’s Compartment: Adjustable Seat
    • Control Type: Fingertip Control
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

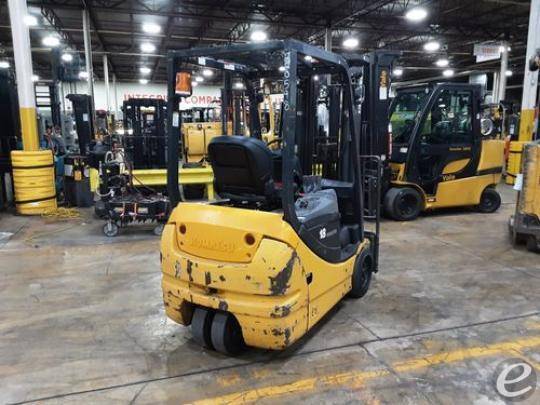

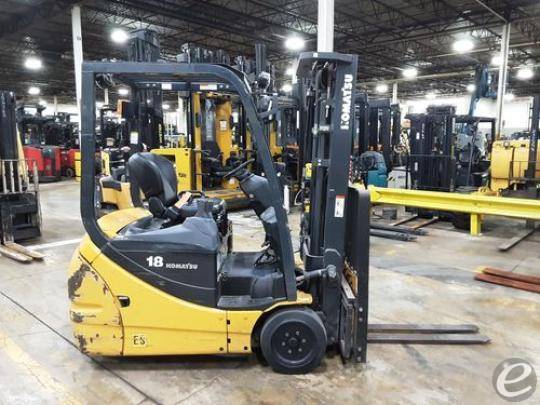

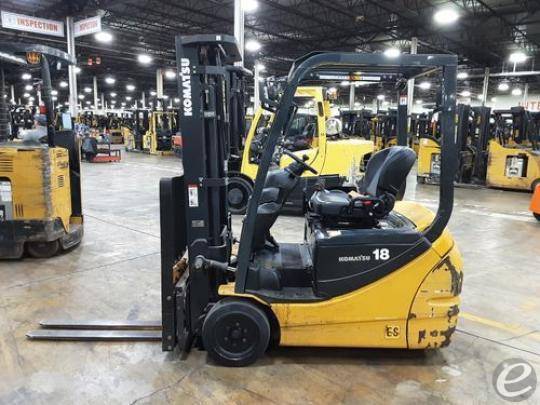

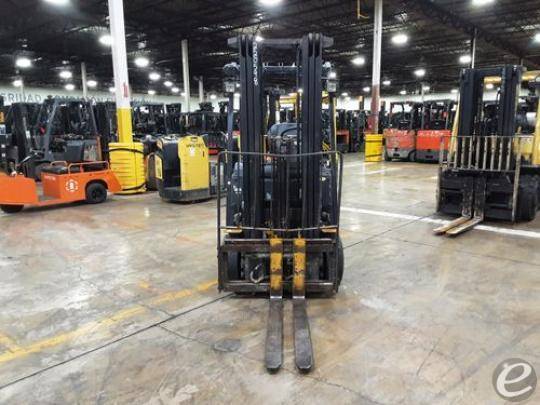

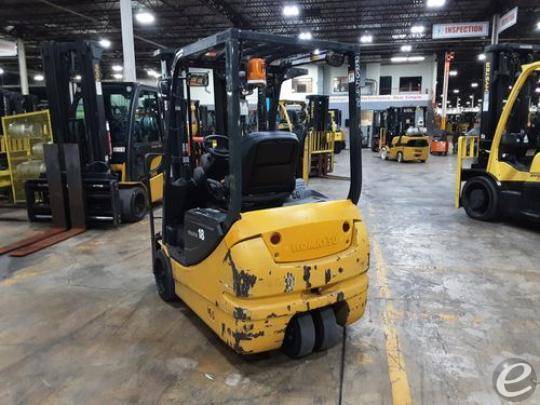

2019 Komatsu FB18MU-12

electric 3 wheel sit down electric

Call for price

CONTACT INFO
Name:
Sales Dept.
Phone:

ADDRESS
Russell Equipment
1793 Enterprise Parkway
TwinsburgOhio 44087
ATTRIBUTES
STOCK #:
220598
YEAR:
2019
Manufacturer:
MODEL #:
CAPACITY:
3600
FUEL:
MAST TYPE:
LOCATION:
Ohio [44087]
DESCRIPTION:
POST DATE:
1/5/2026
Reviews
Useful
Not

The Komatsu FB18MU-12 is a solid little electric forklift that really makes moving things around feel effortless, especially in tight spaces. I remember when I first got my hands on one for a warehouse job; I was surprised at how nimble it felt compared to the gas models. The steering is responsive, almost like driving a car, and the quiet operation is a blessing when you're in busy, enclosed areas. It's refreshing not to worry about fumes either. It's been pretty reliable for the most part, though I've heard some guys mention that the battery life could be a bit better during those long shifts. Overall, it's a dependable workhorse that gets the job done without too much fuss.
